Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

5 part groups · 2 illustrations

Illustrations

Figure 816357B

816357B 2012-10 → 2015-10

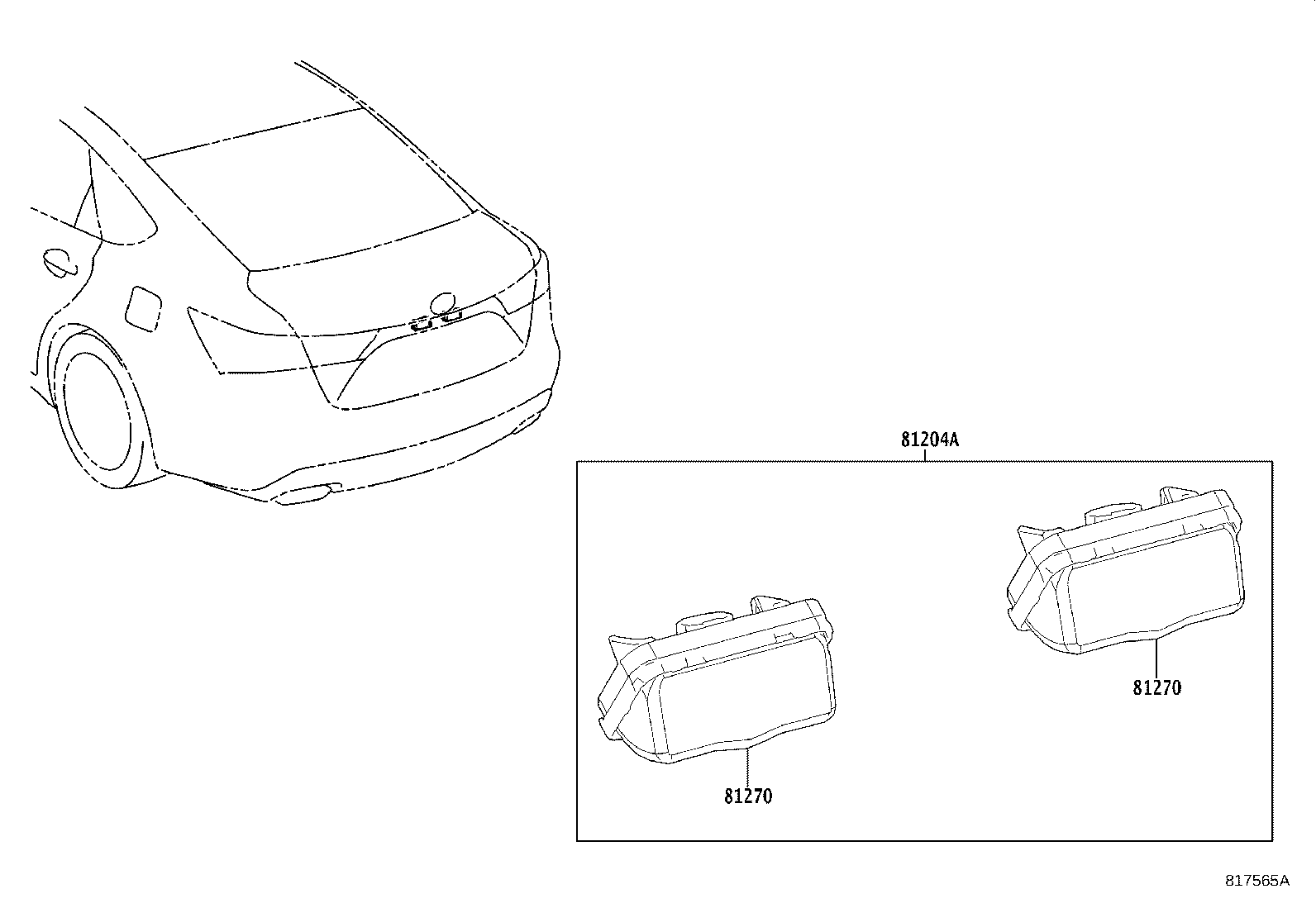

Figure 817565A

817565A 2015-10 → —

Part groups

PNC	Description
81204A	Lamp Sub-assy, License Plate
81270	Lamp Assy, License Plate
81270B	Bulb (FOR LICENSE PLATE LAMP)
81271	Lens, License Plate Lamp
81274B	Packing, License Plate Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
