Toyota Avalon
2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States
Supported model
Data version 2018-11
Wiring & Clamp
63 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

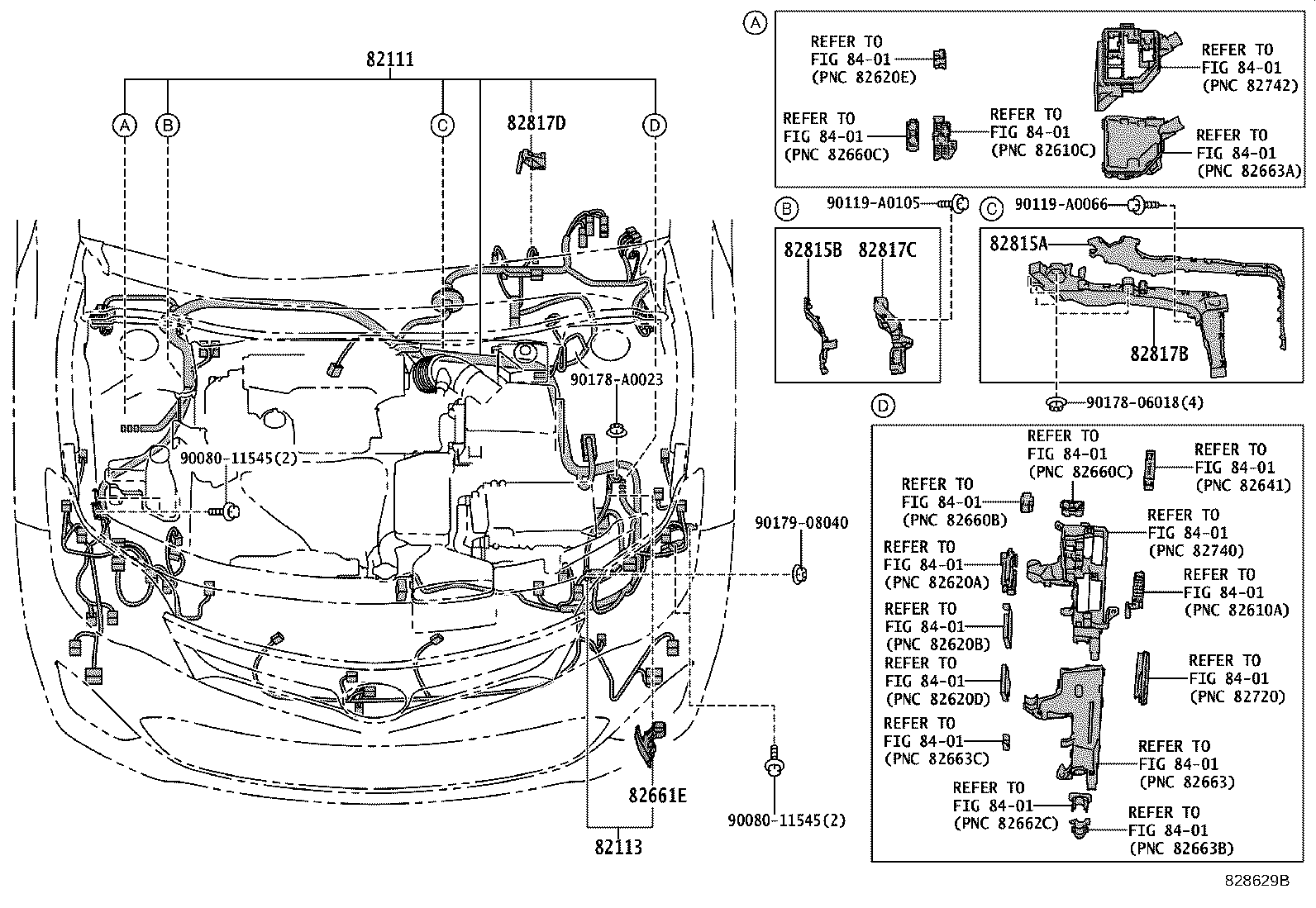

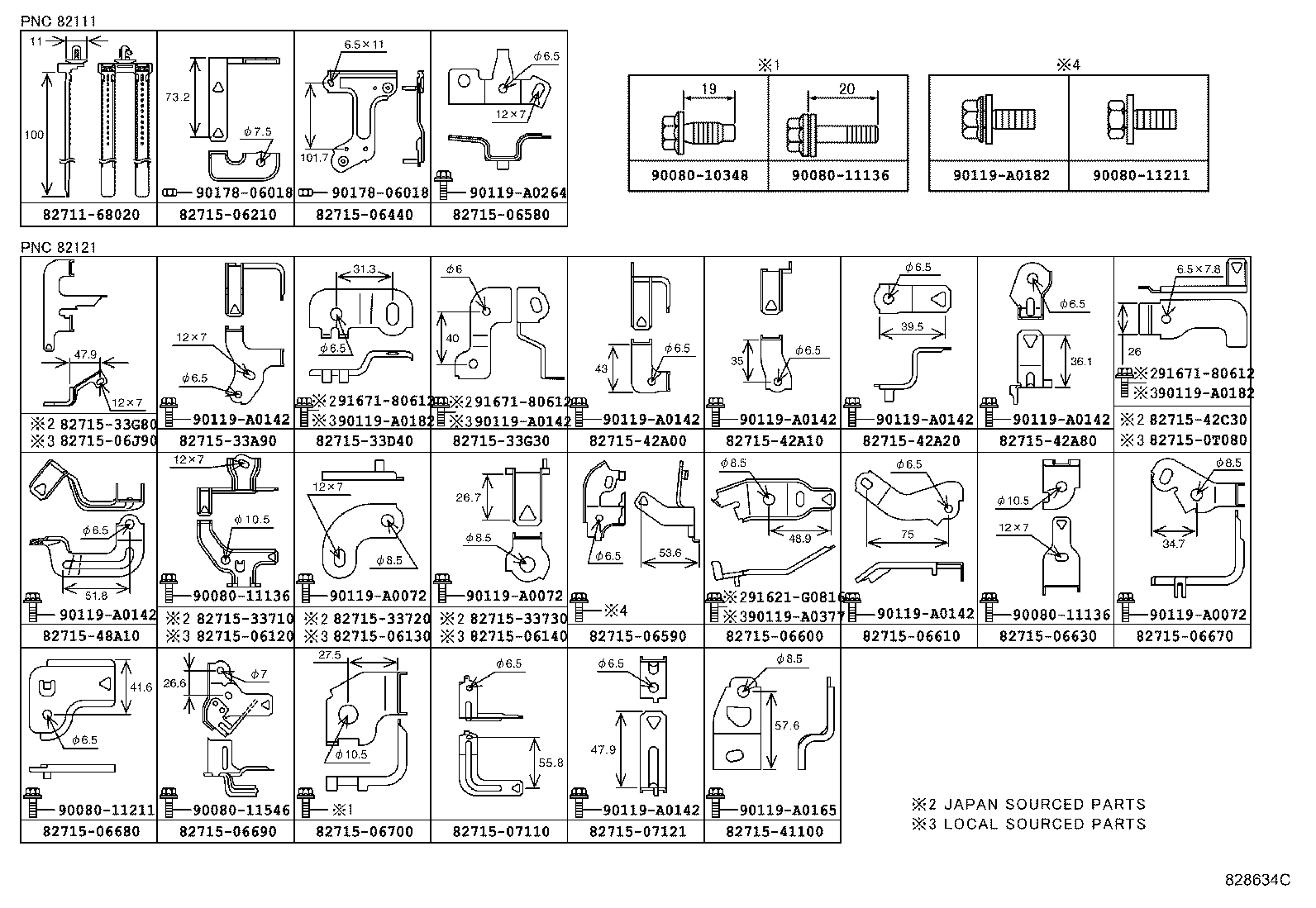

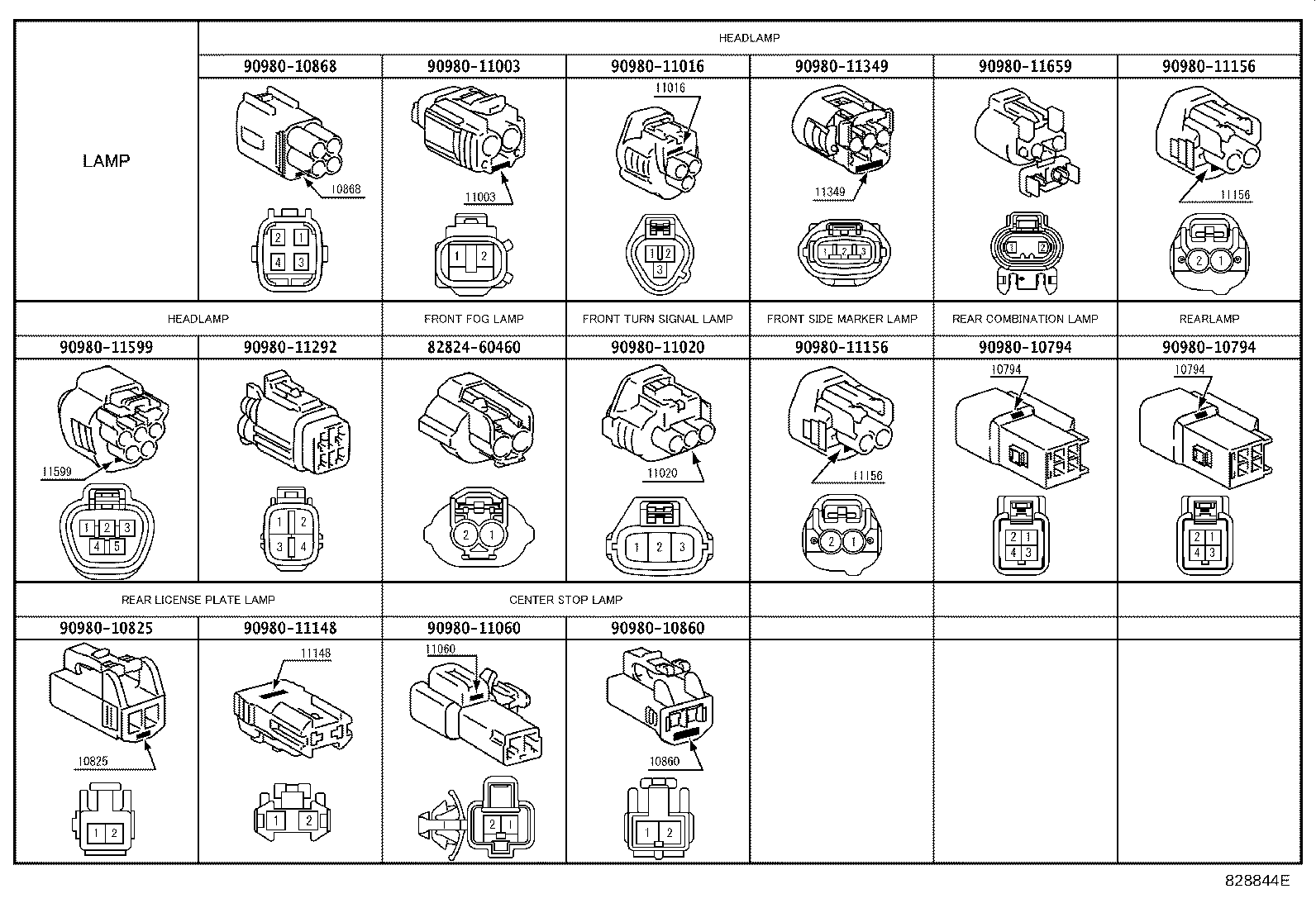

| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |

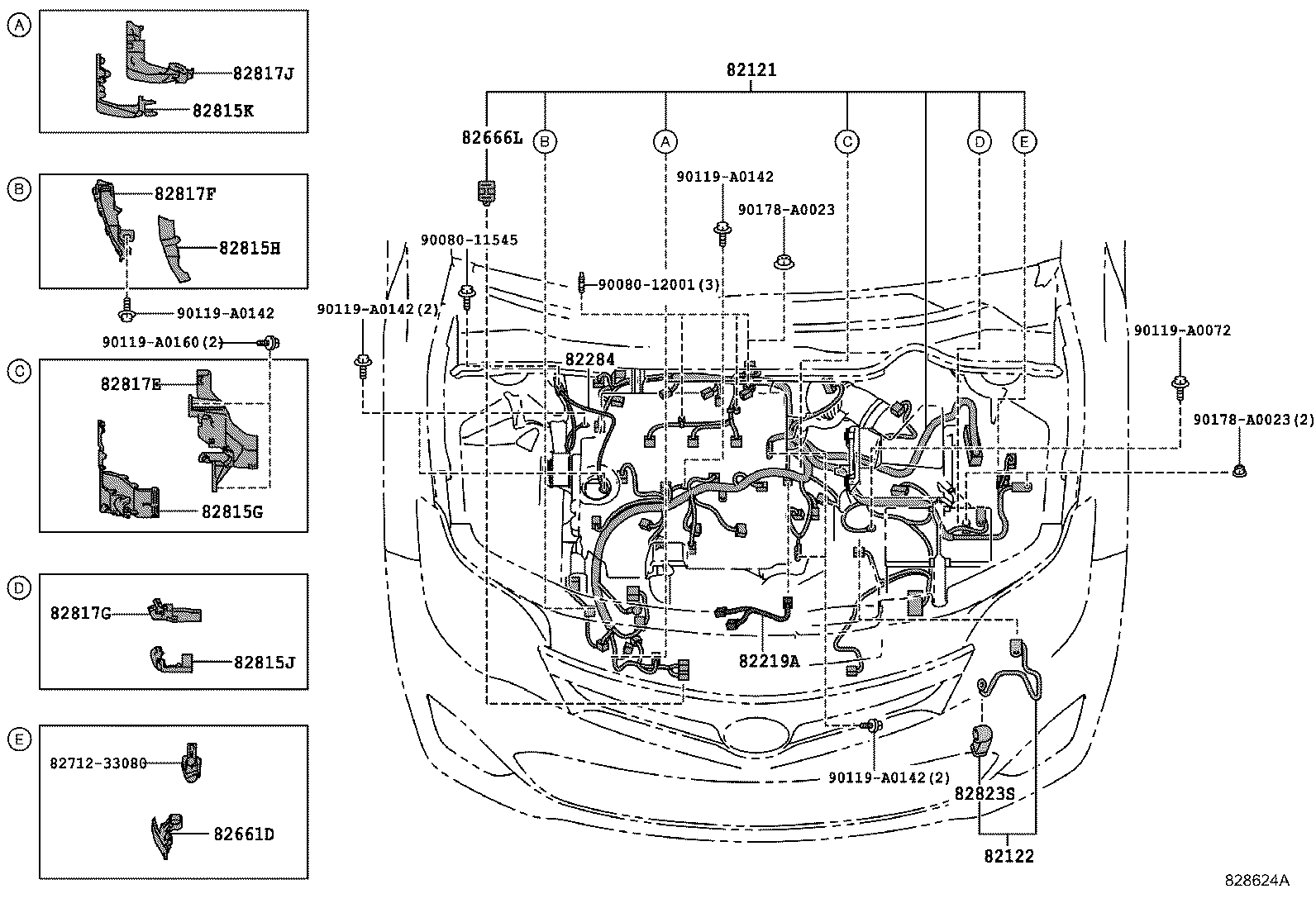

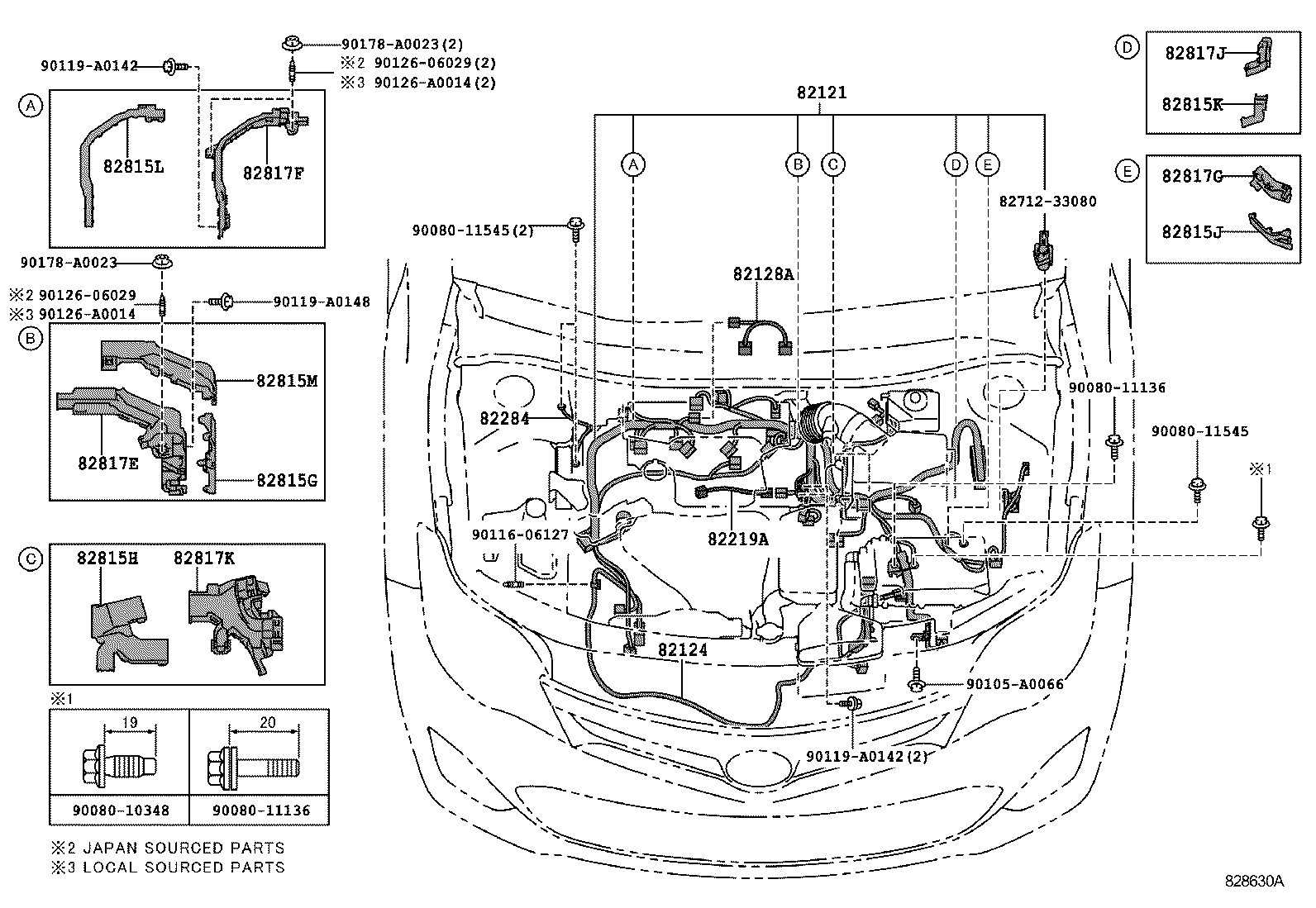

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |

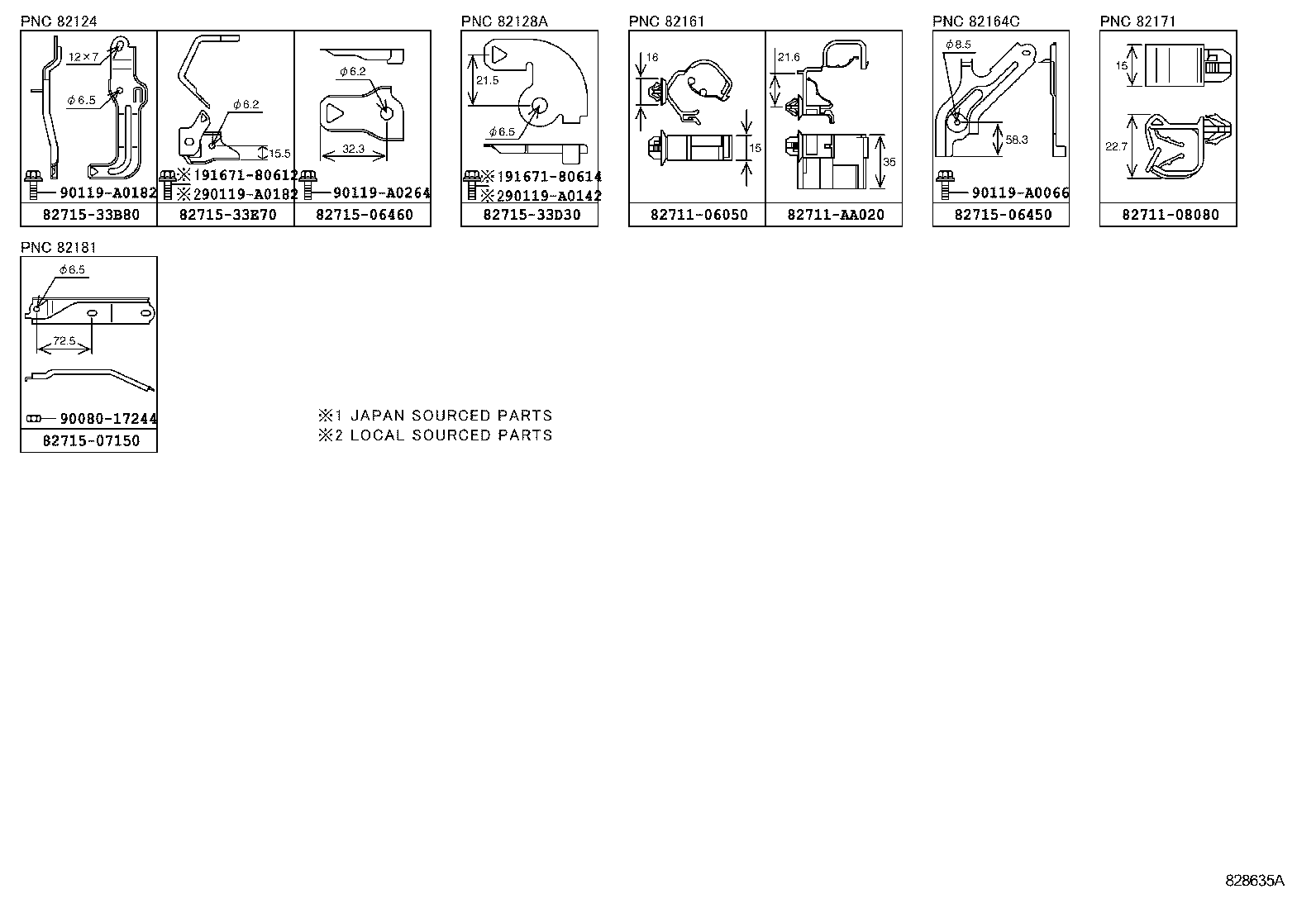

| 82124 | Wire, Engine, NO.4 |
| 82128A | Wire, Engine, NO.8 |

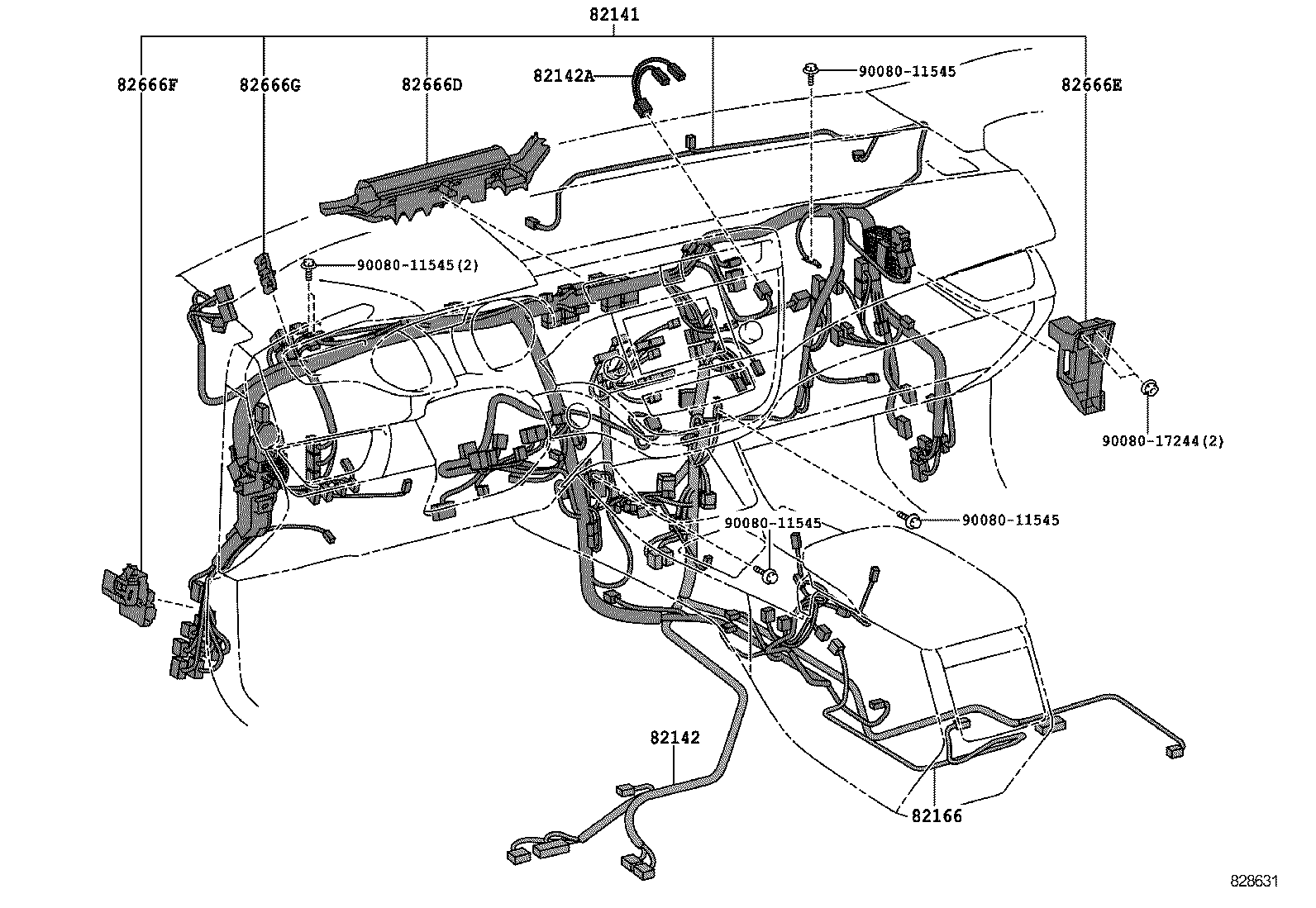

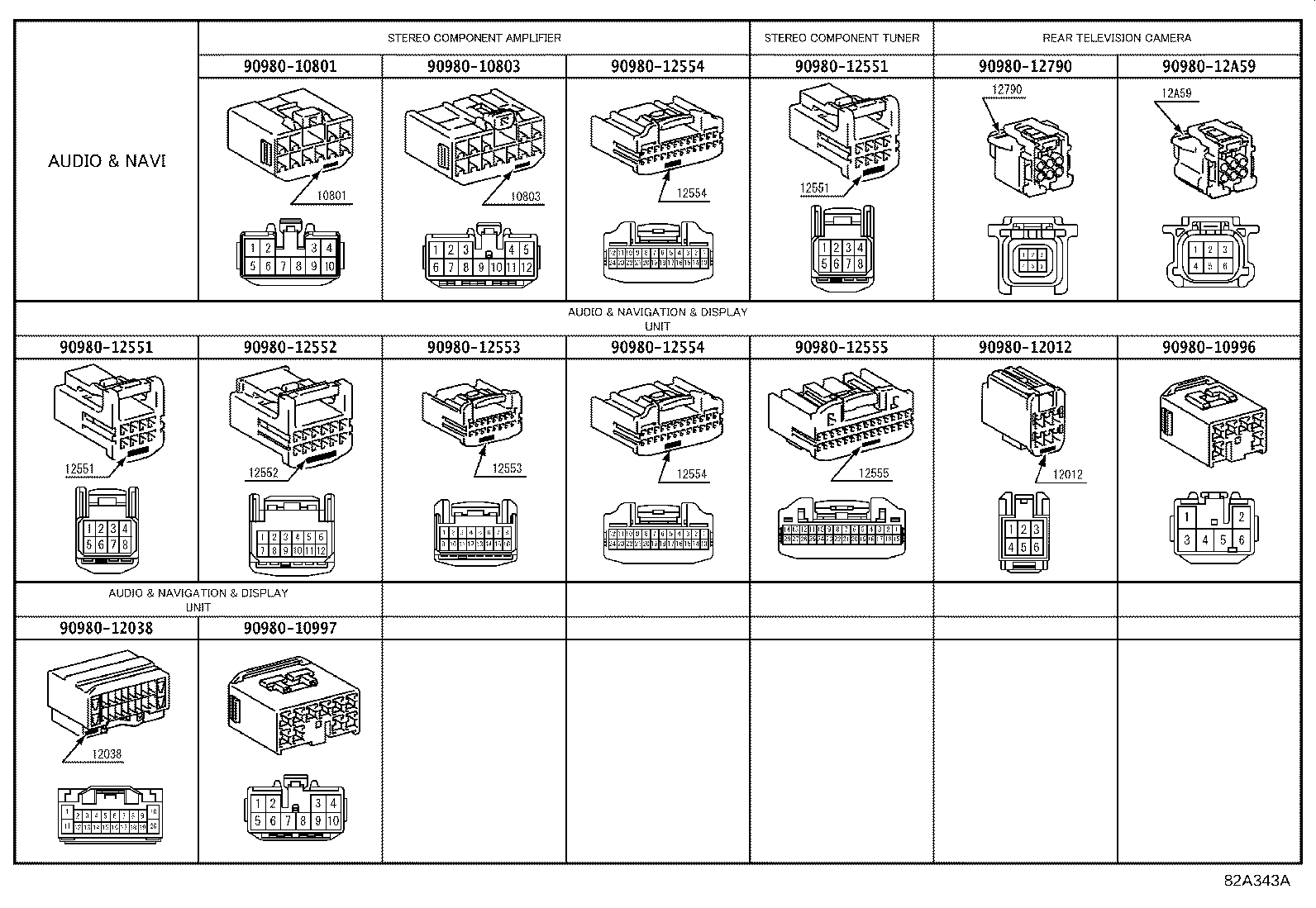

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |

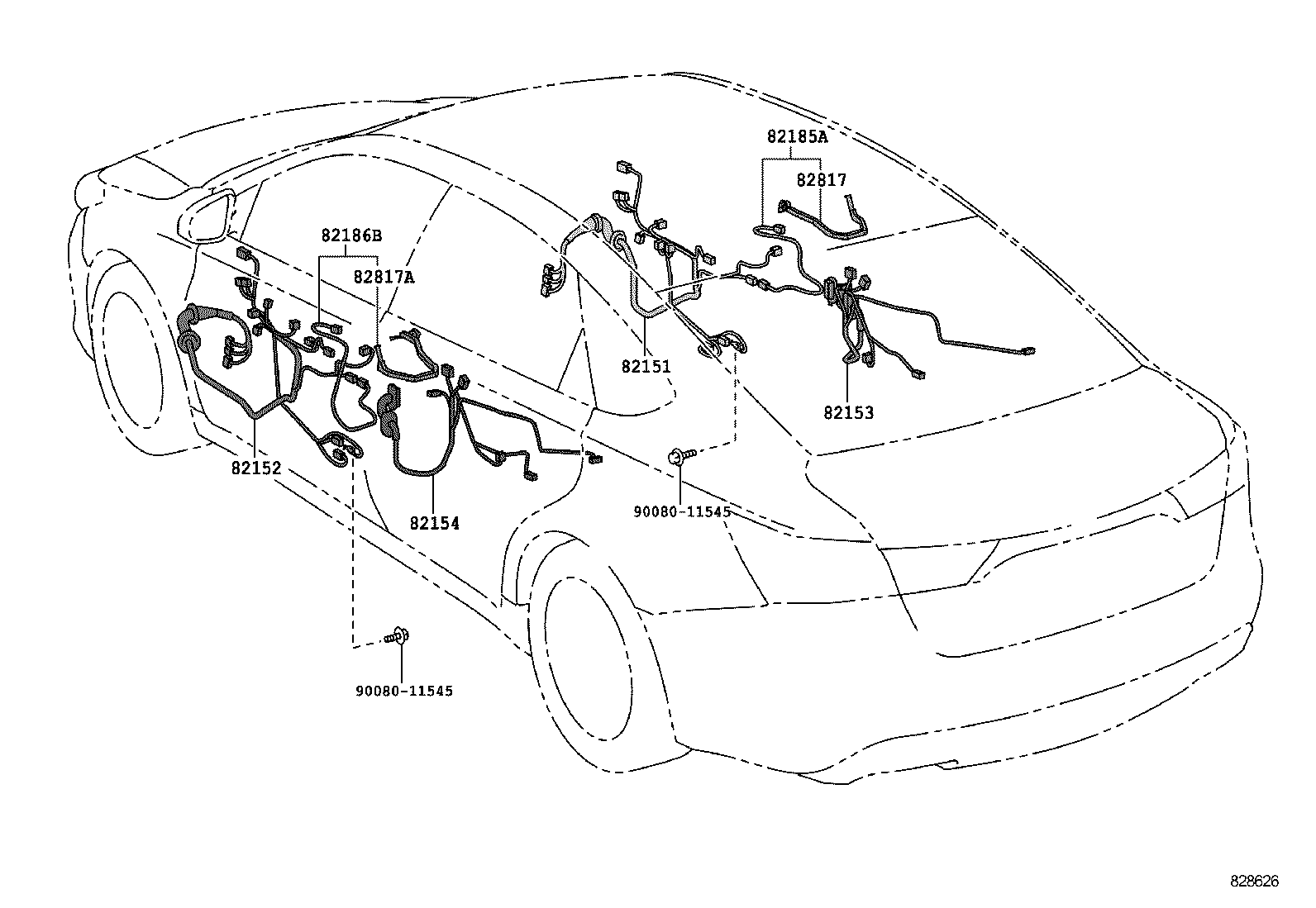

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

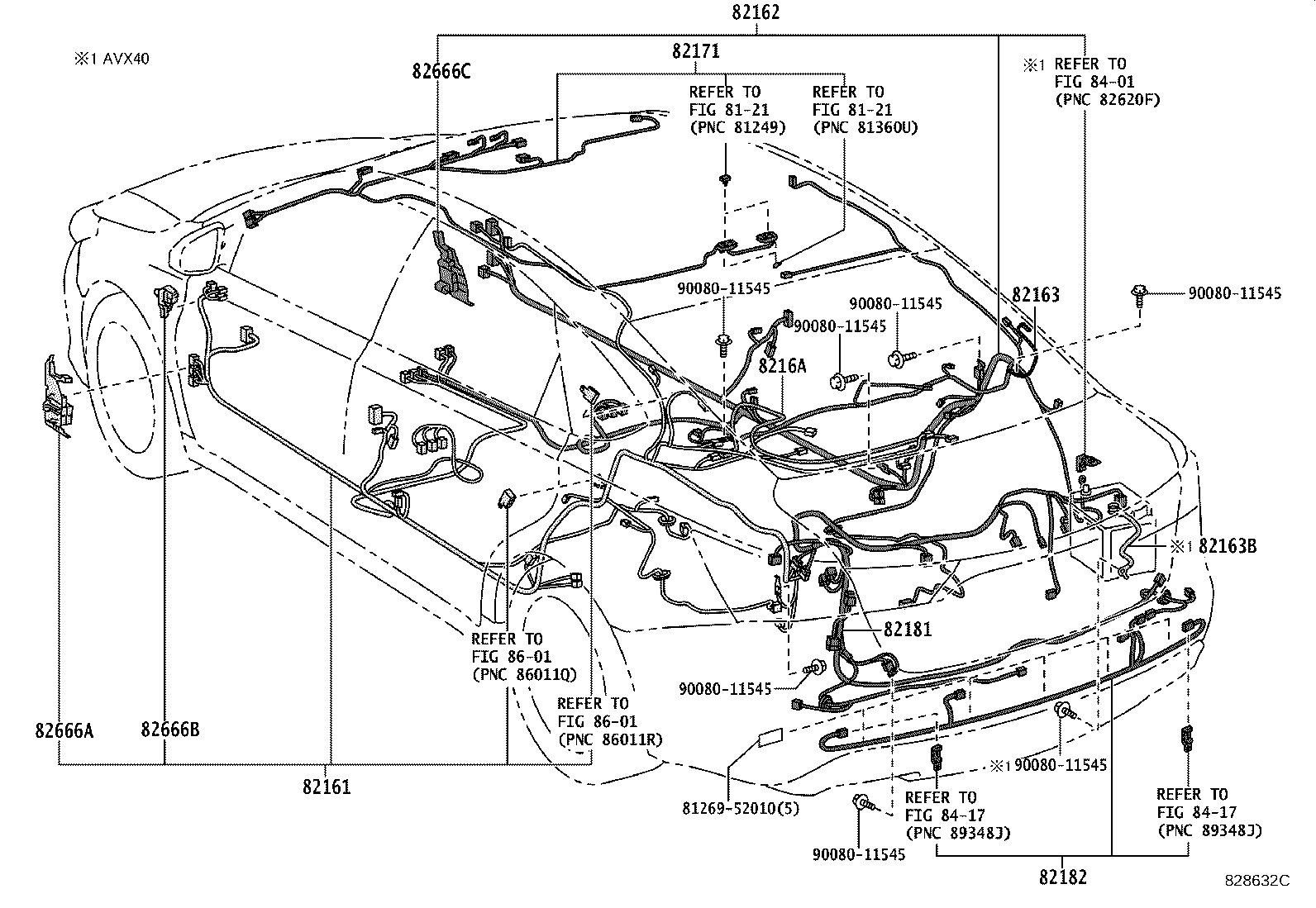

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82163B | Wire, Floor NO.5 |

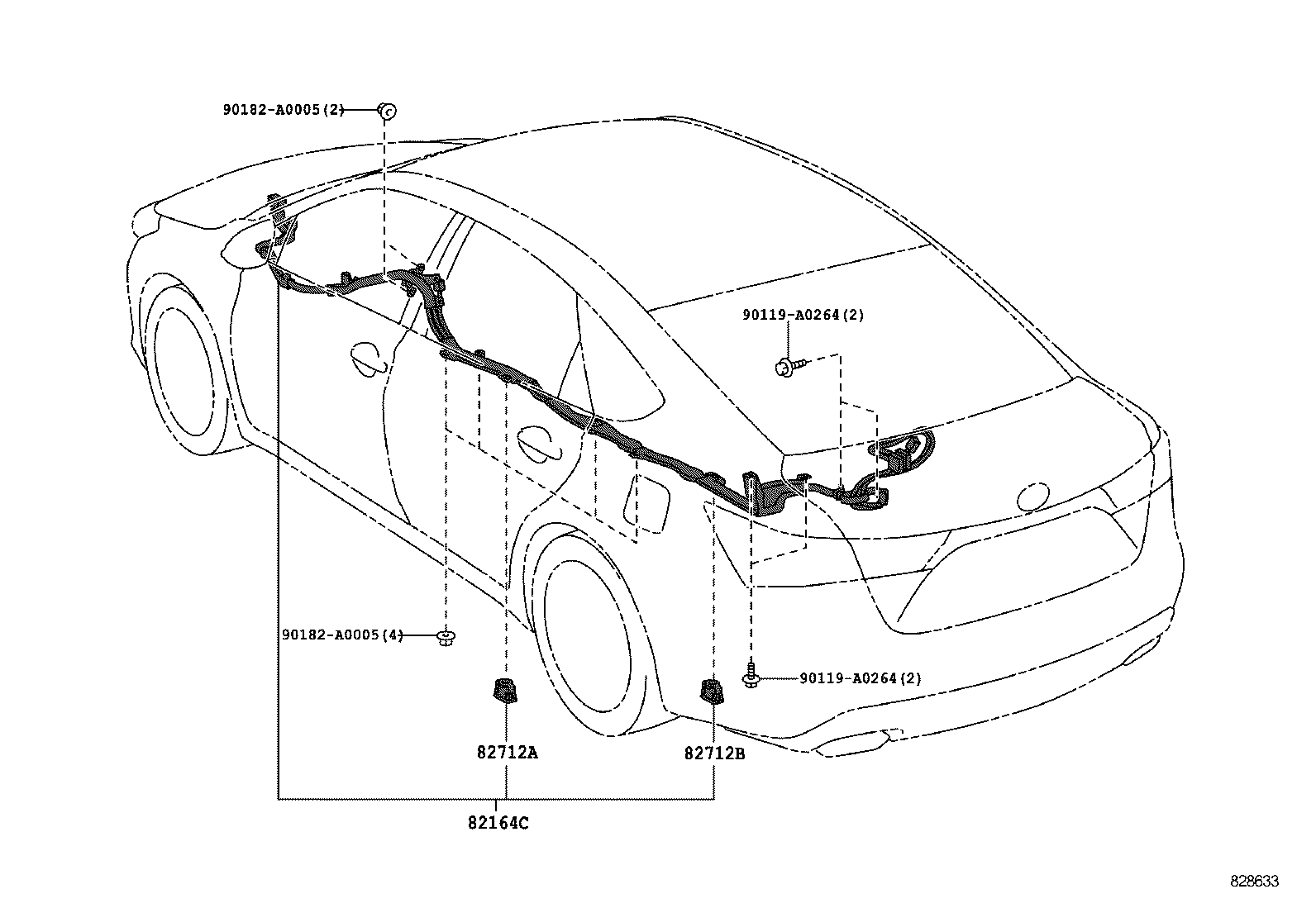

| 82164C | Wire, Floor, NO.4 |
| 82166 | Wire, Console Box |
| 82168 | Wire, Seat, NO.2 |
| 8216A | Wire, Floor NO.7 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82185A | Wire, Smart Door, Front RH |
| 82186B | Wire, Smart Door, Front LH |
| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |

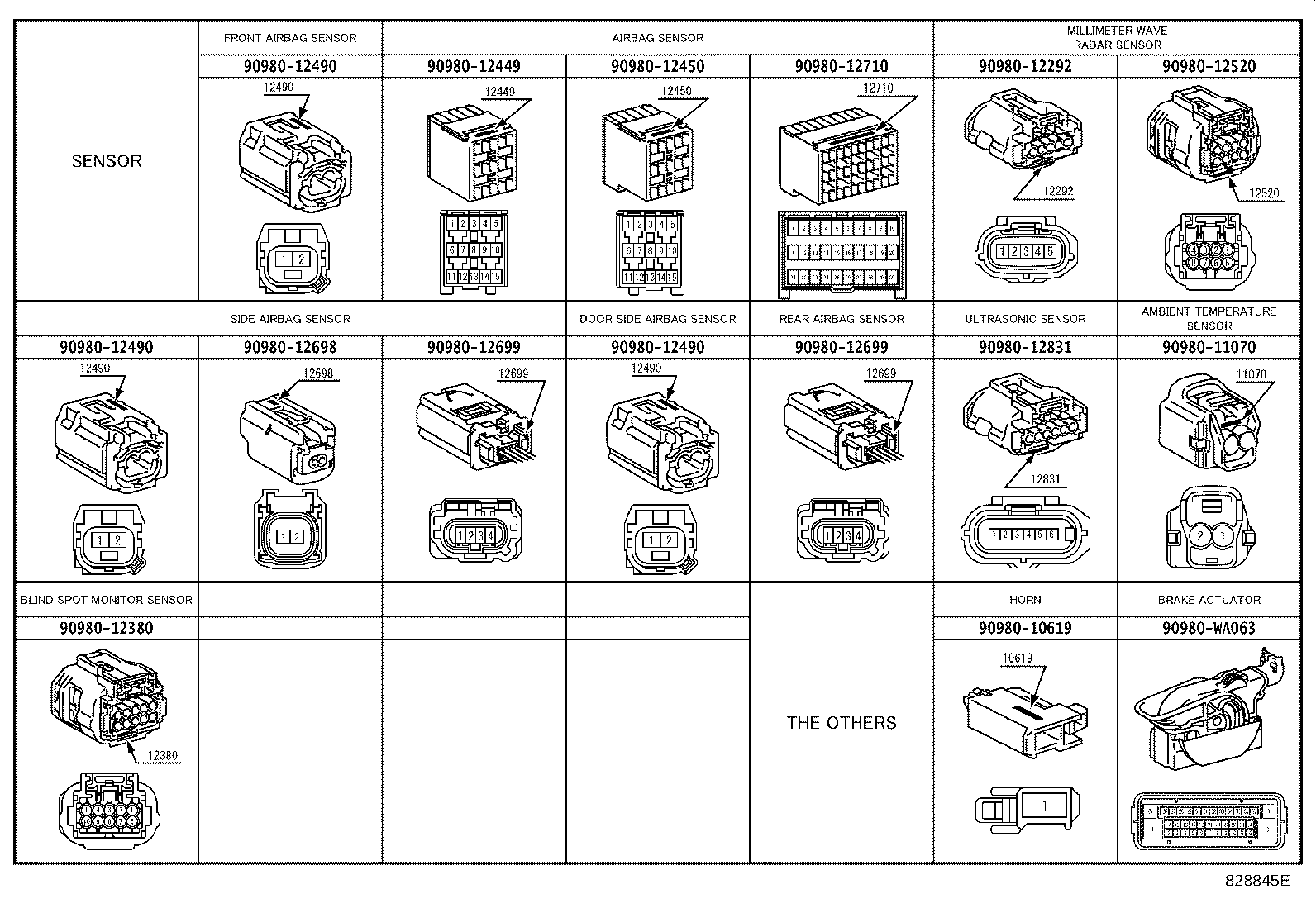

| 82219A | Wire, Sensor |
| 82284 | Wire, Earth |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82661E | Cover, Relay Block, Side NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82823S | Cap, Starter Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
