Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

116 part groups · 13 illustrations

Illustrations

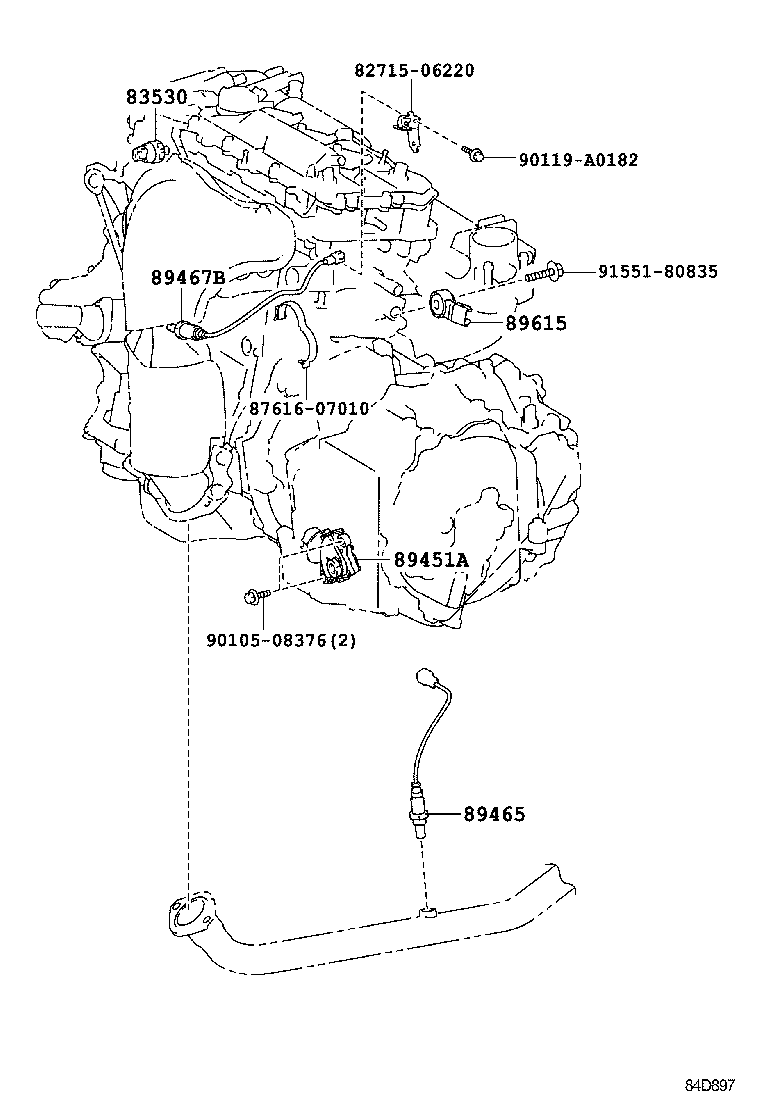

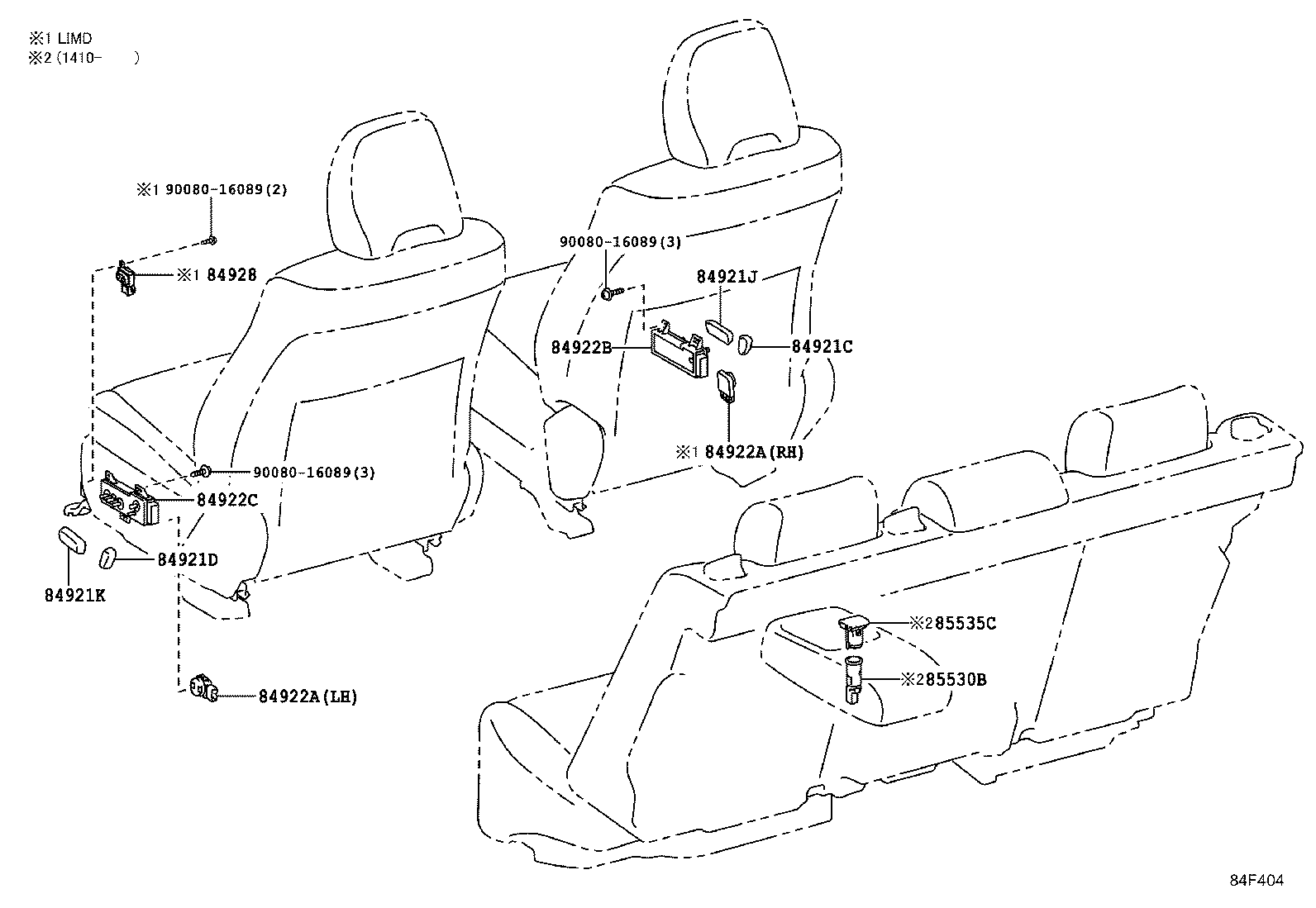

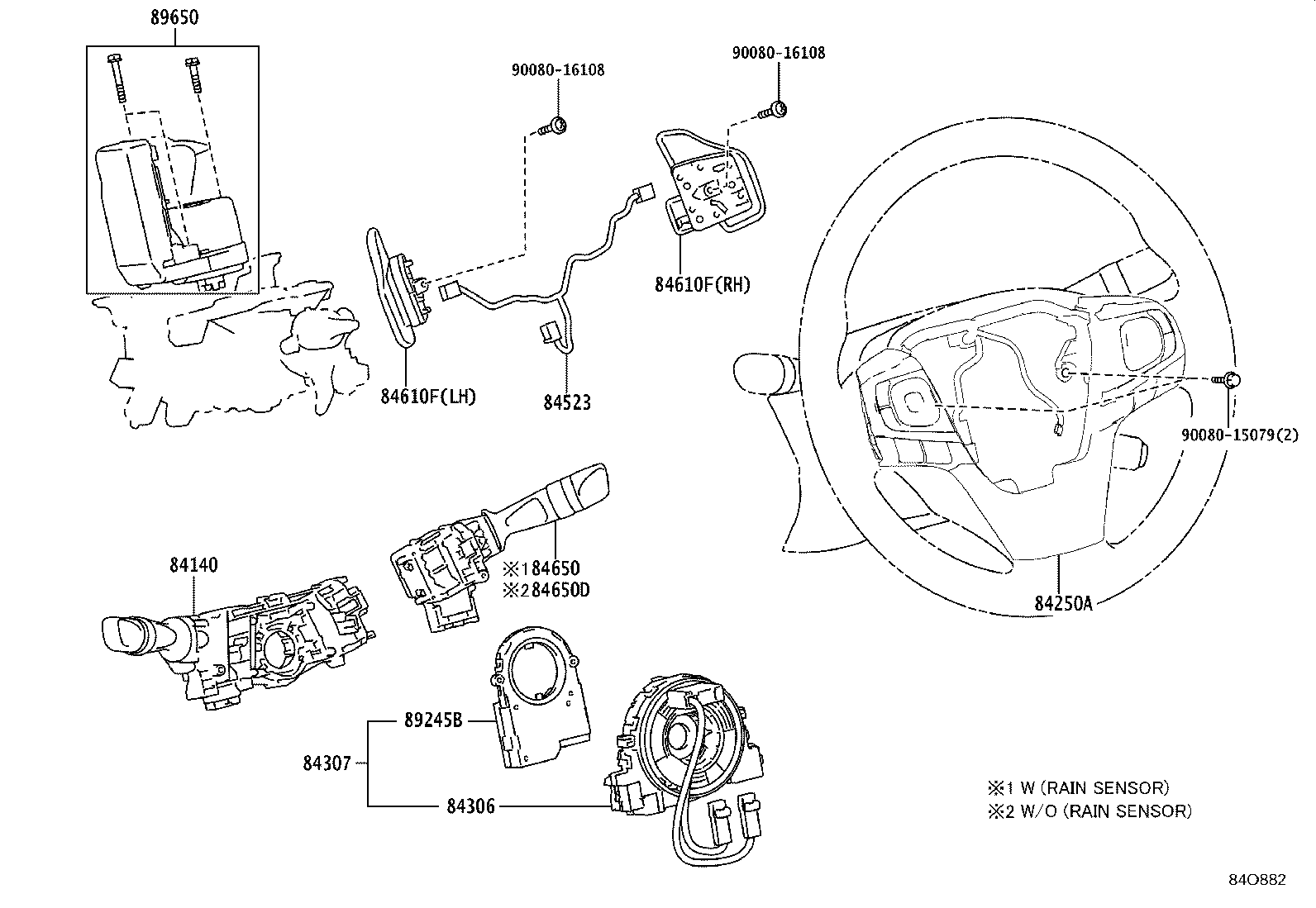

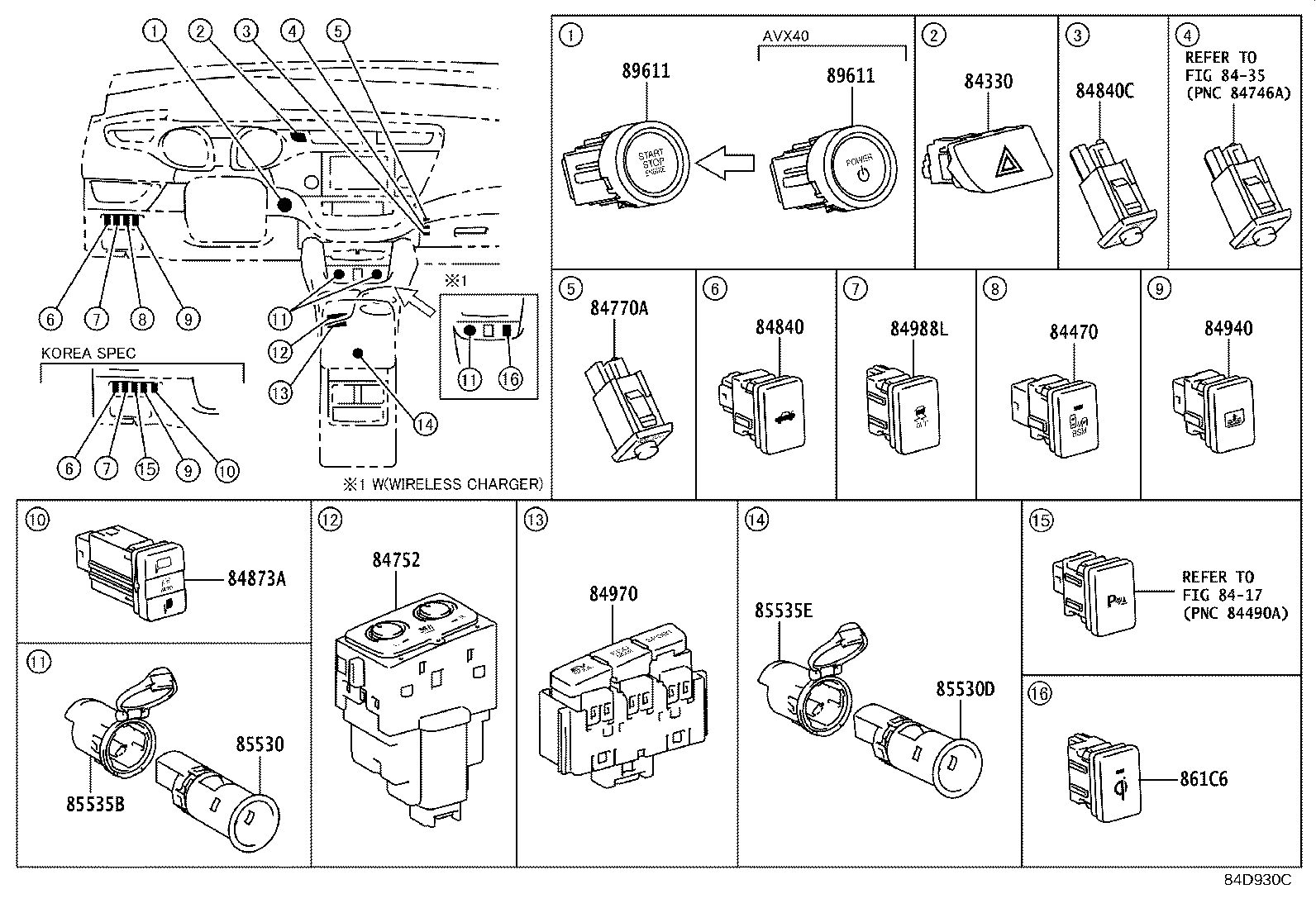

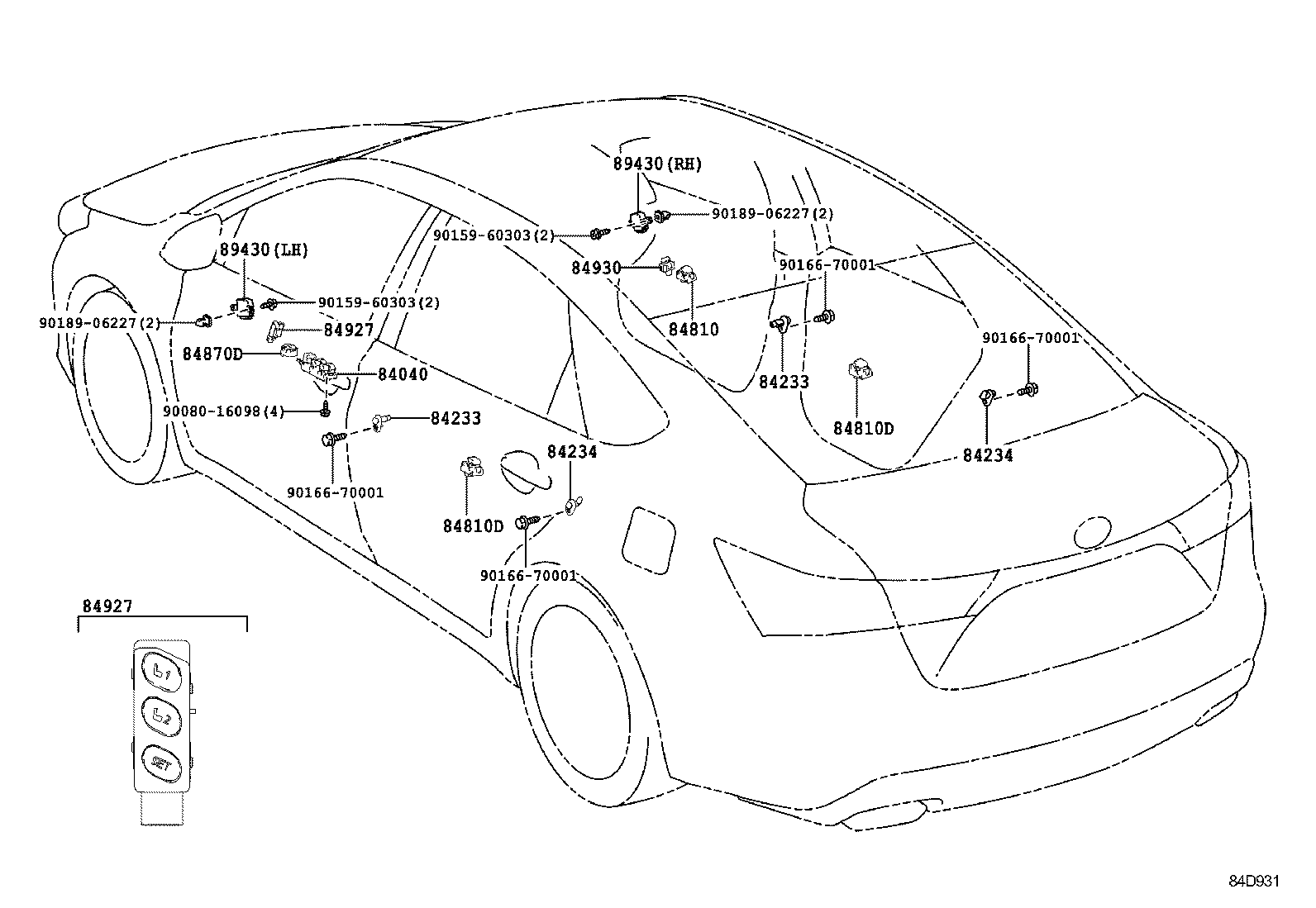

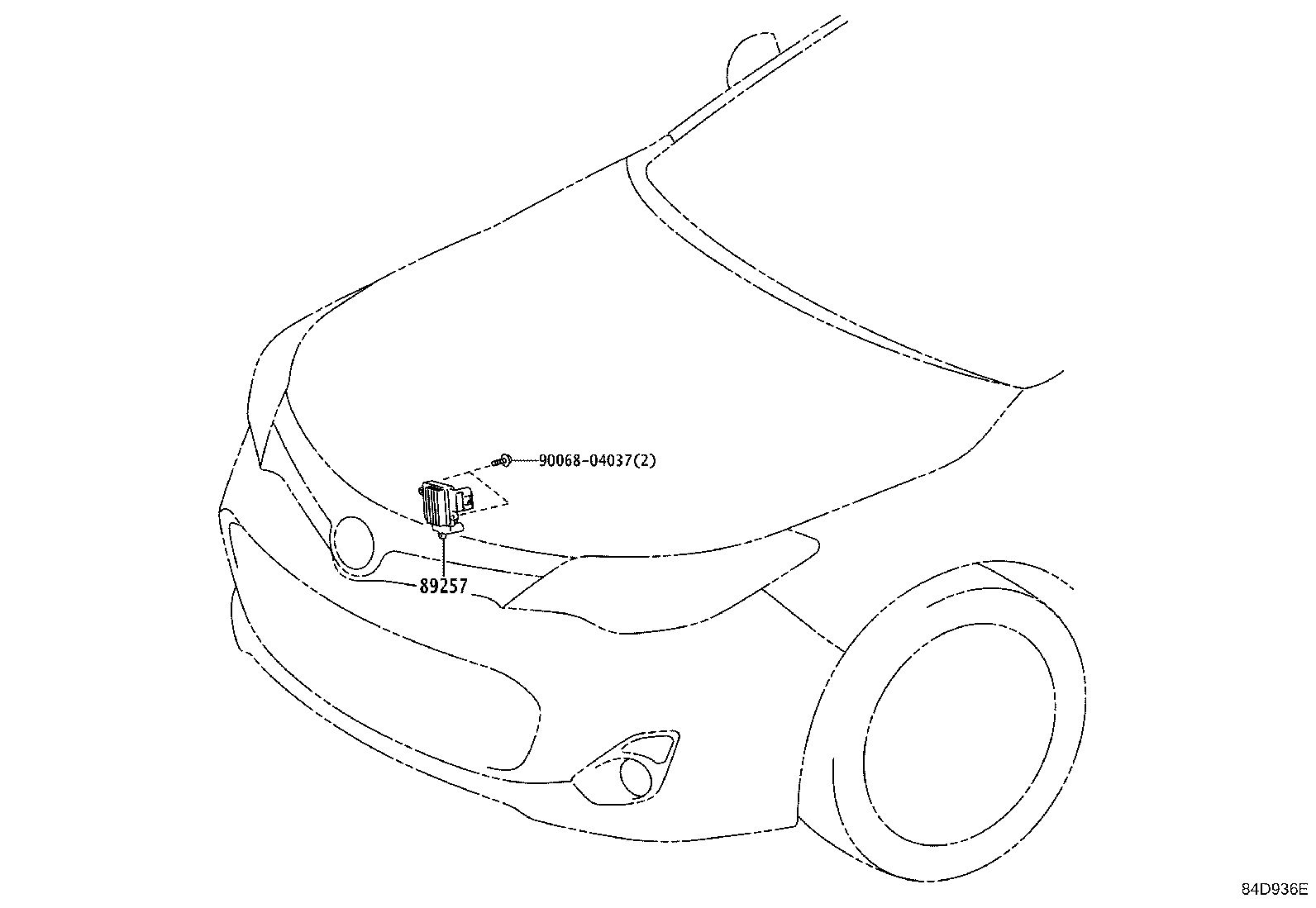

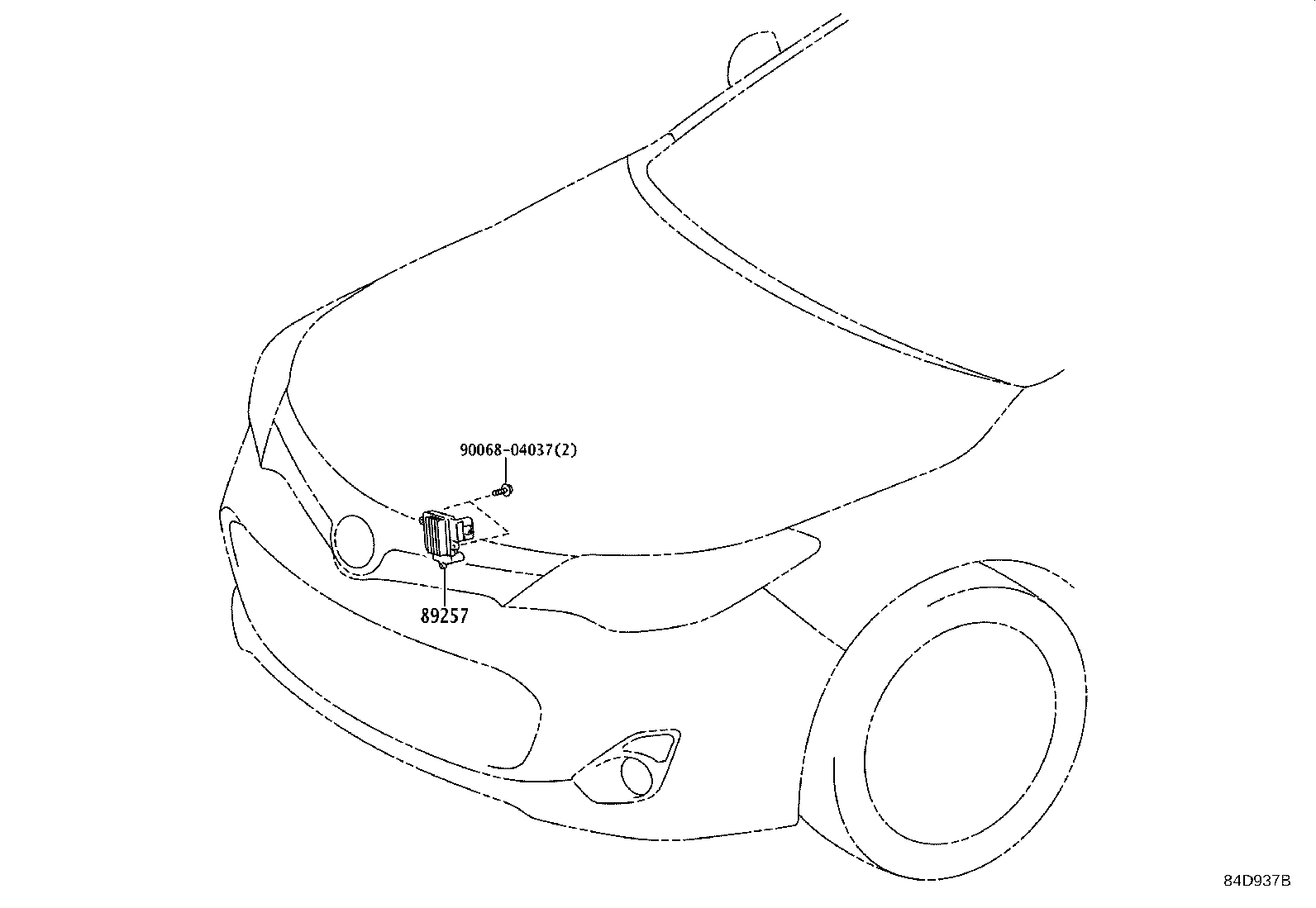

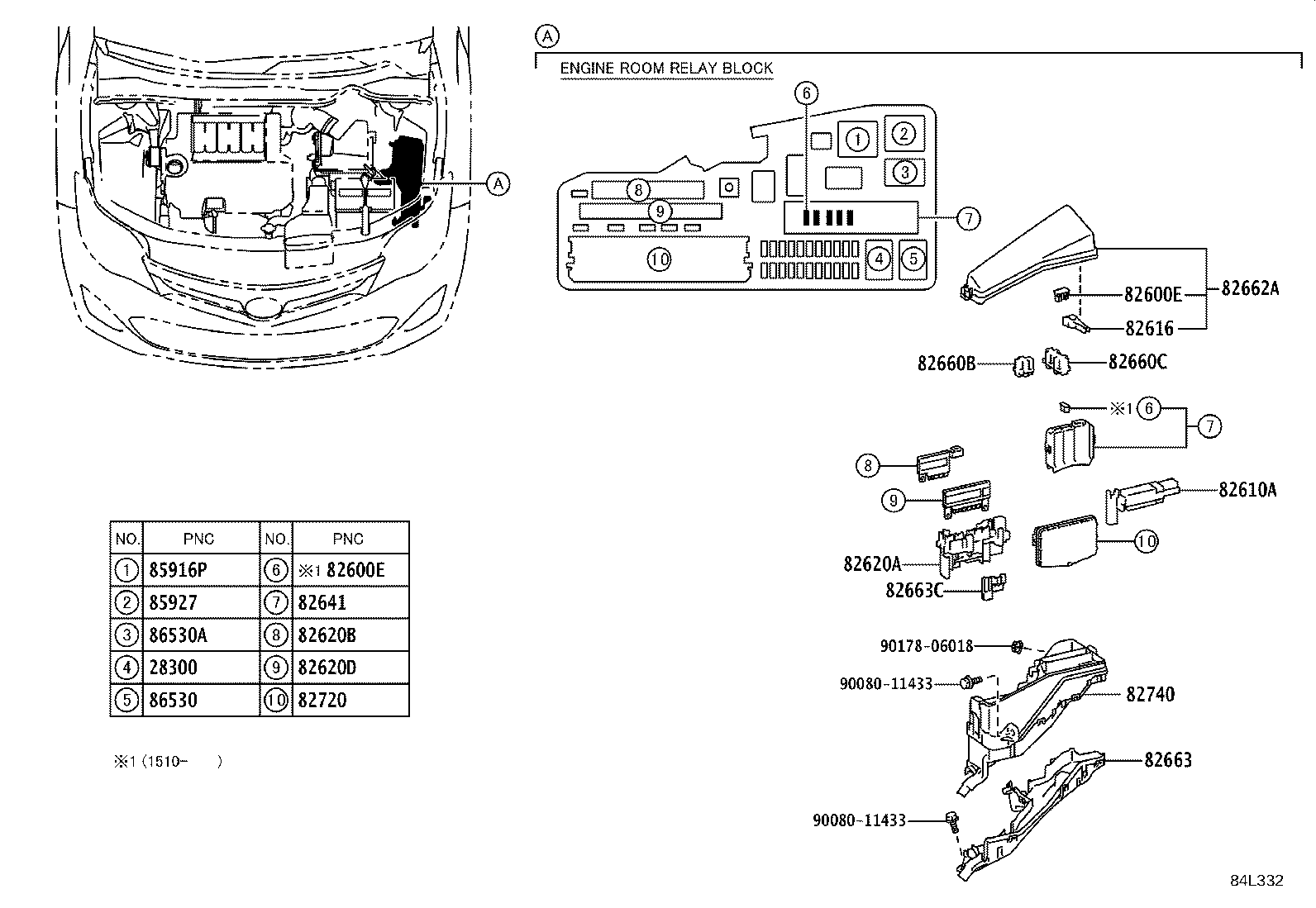

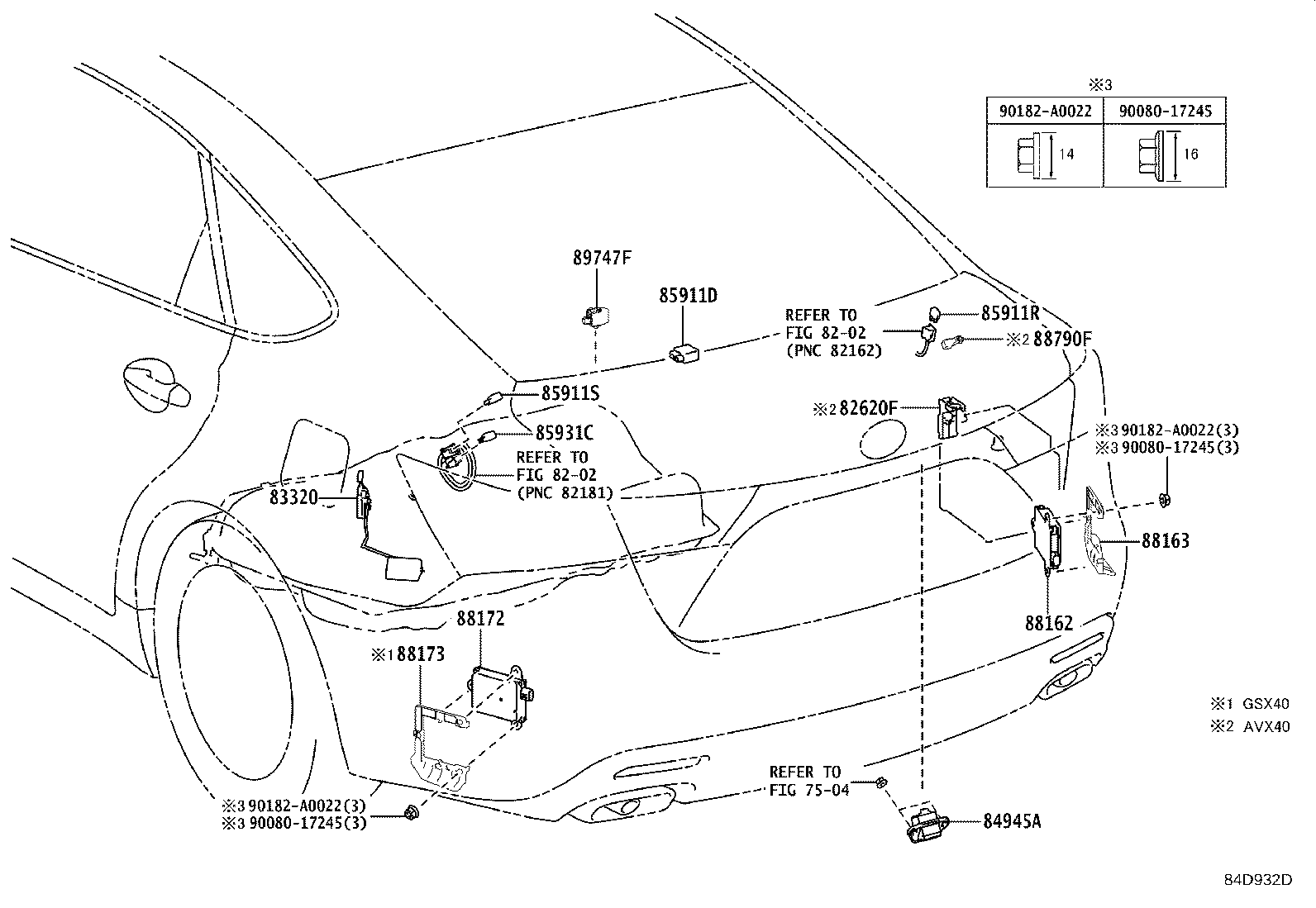

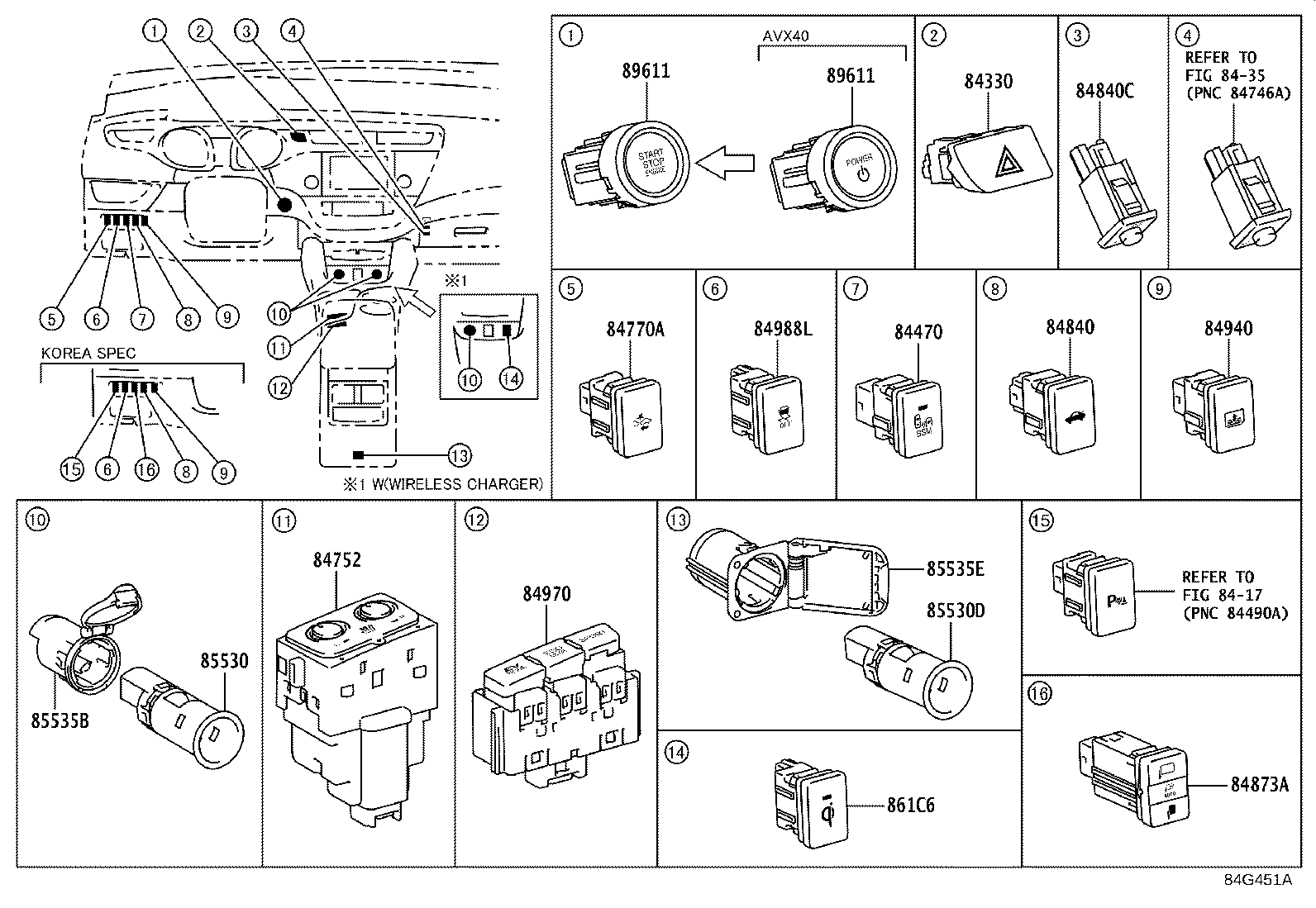

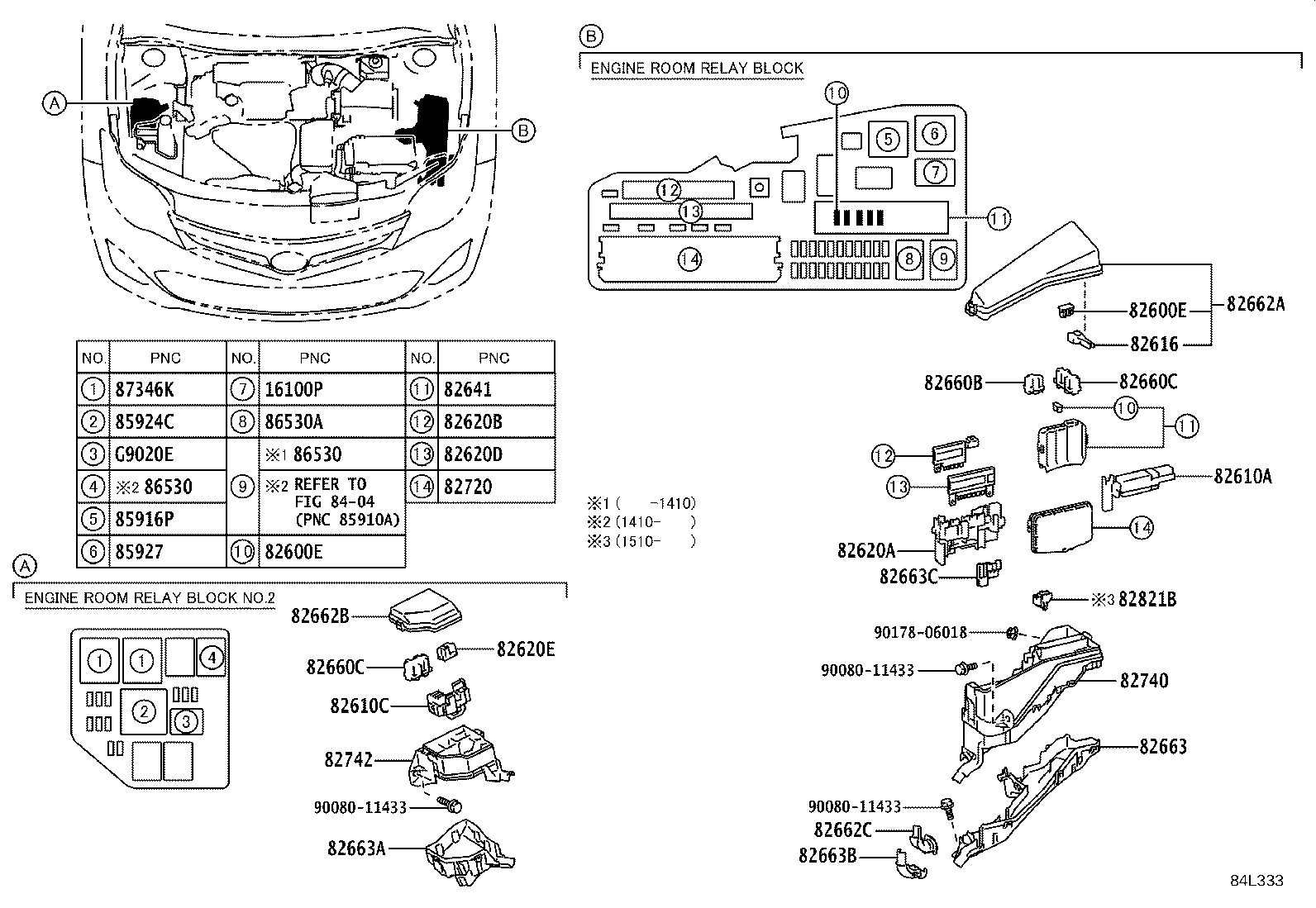

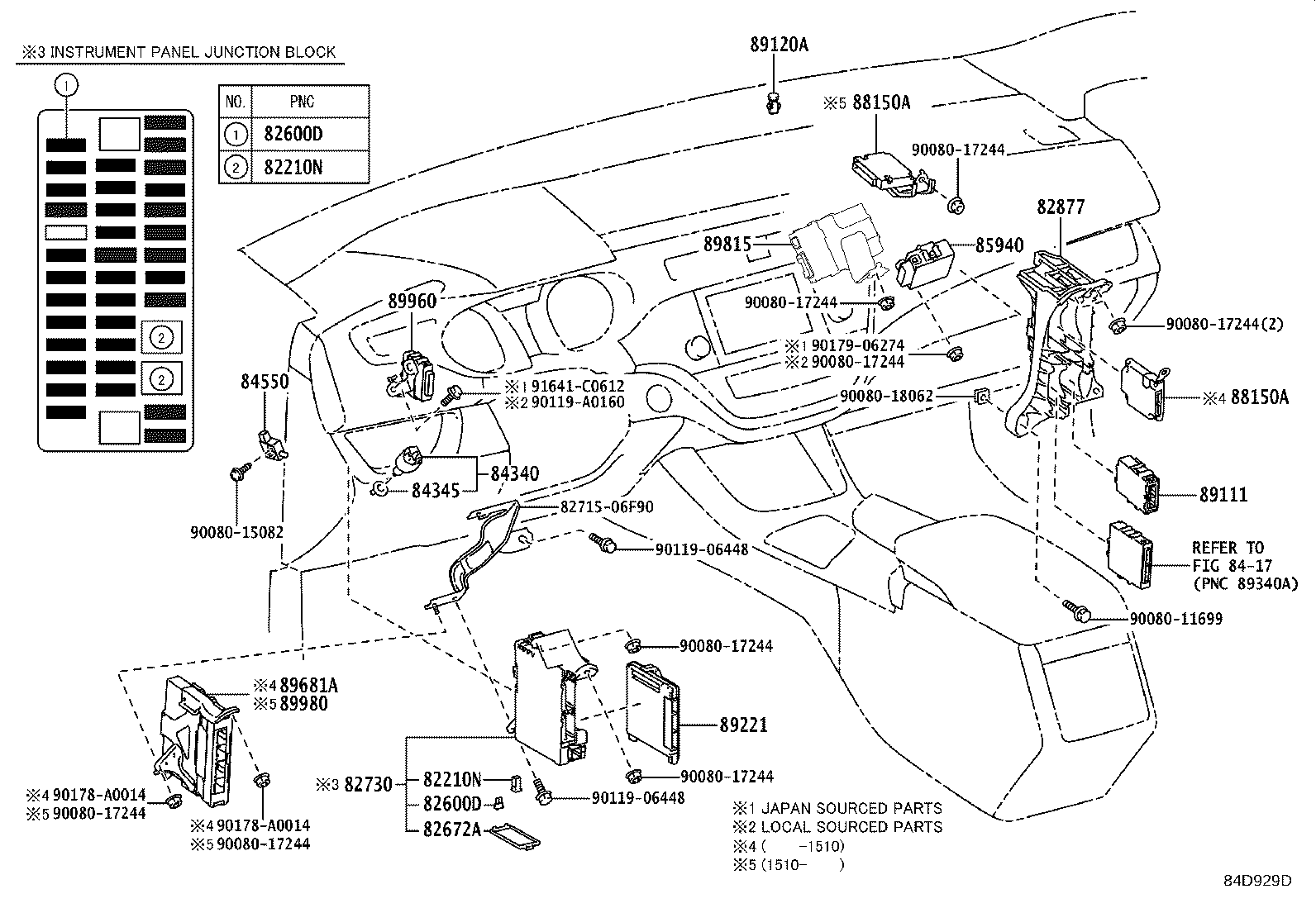

Figure 84G558 84G558 2012-10 → — Figure 84D897 84D897 2012-11 → — Figure 84D937B 84D937B 2012-10 → — Figure 84D936E 84D936E 2012-11 → — Figure 84L333 84L333 2012-11 → — Figure 84L332 84L332 2012-10 → — Figure 84D929D 84D929D 2012-10 → — Figure 84D930C 84D930C 2012-10 → 2015-10 Figure 84G451A 84G451A 2015-10 → — Figure 84O882 84O882 2012-10 → — Figure 84F404 84F404 2012-10 → — Figure 84D931 84D931 2012-10 → — Figure 84D932D 84D932D 2012-10 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84470 Switch Assy, Warning Canceling
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84870D Switch Assy, Outer Mirror, NO.2
84873A Switch, Retractable Outer Mirror
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84928 Switch, Seat Variable Cushion
84930 Switch Assy, Door Control
84940 Switch Assy, Curtain
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85911D Relay, Rear Sunshade
85911R Relay, Rear Seat Heater, RH
85911S Relay, Rear Seat Heater, LH
85916P Relay, Headlamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85931C Relay, Fuel Door Lock
85940 Relay Assy, Windshield Wiper
861C6 Switch, Mobile Wireless Charger
86530 Relay Assy, Horn
86530A Relay, Horn
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89430 Computer Assy, Outer Mirror Control
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89960 Computer Assy, Headlamp Leveling
89980 Computer Assy, Hybrid Vehicle Control
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
