Toyota Avalon
2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States
Supported model
Data version 2018-11

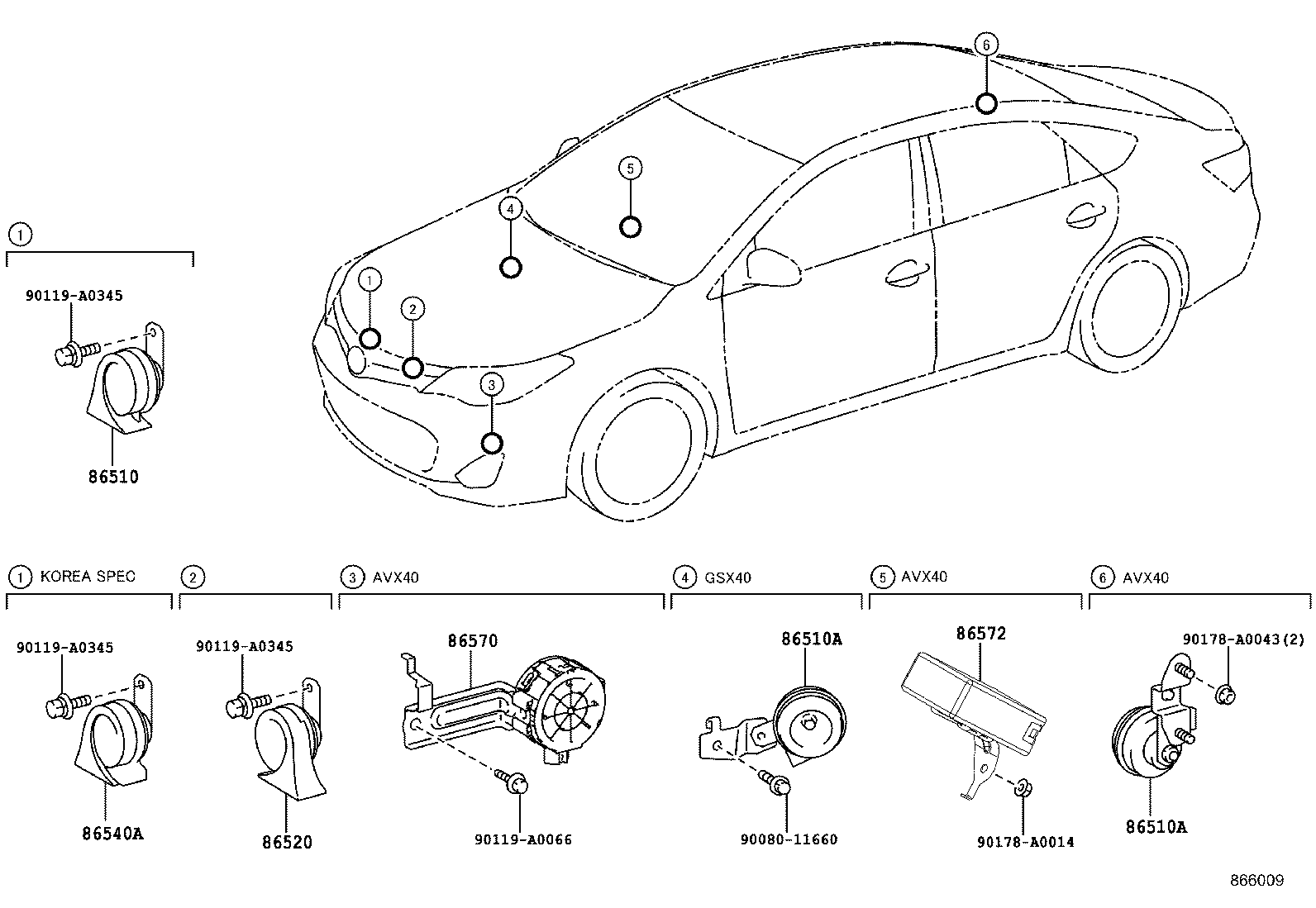

Horn
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86510 | Horn Assy, High Pitched |
| 86510A | Horn Assy, Security |
| 86520 | Horn Assy, Low Pitched |
| 86540A | Horn Assy, Super Low Pitched |
| 86570 | Speaker Assy, Vehicle Approaching |
| 86572 | Controller, Vehicle Approaching Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
