Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 3 illustrations

Illustrations

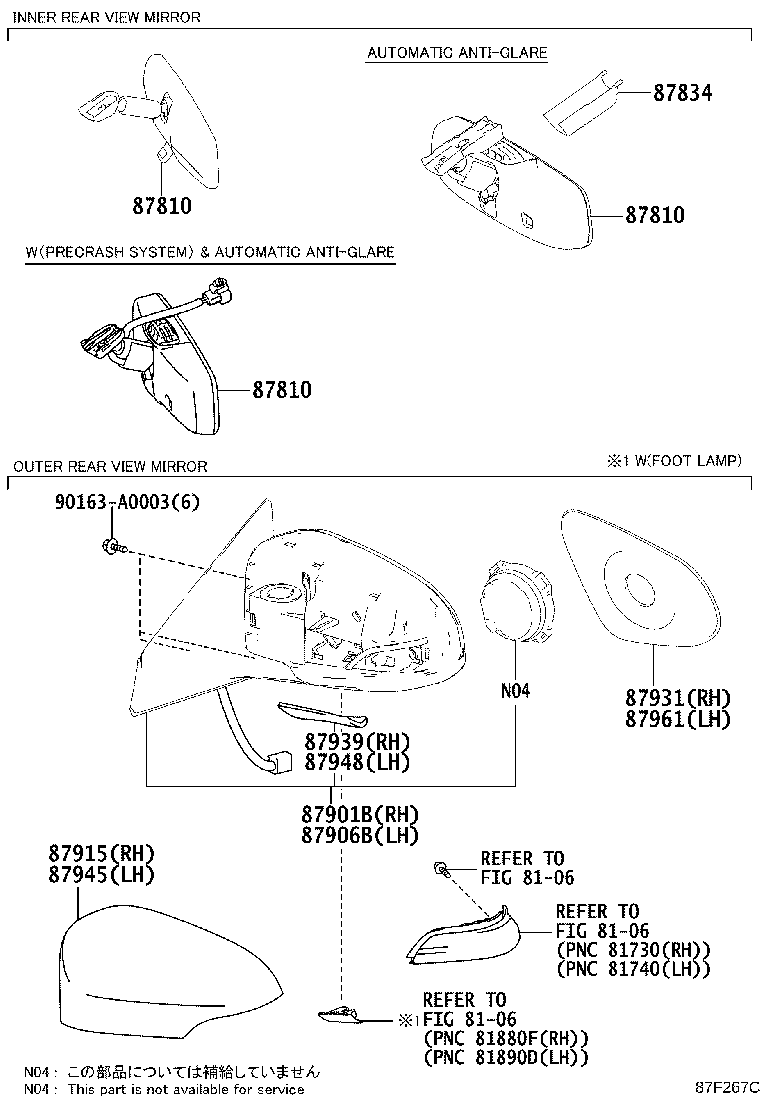

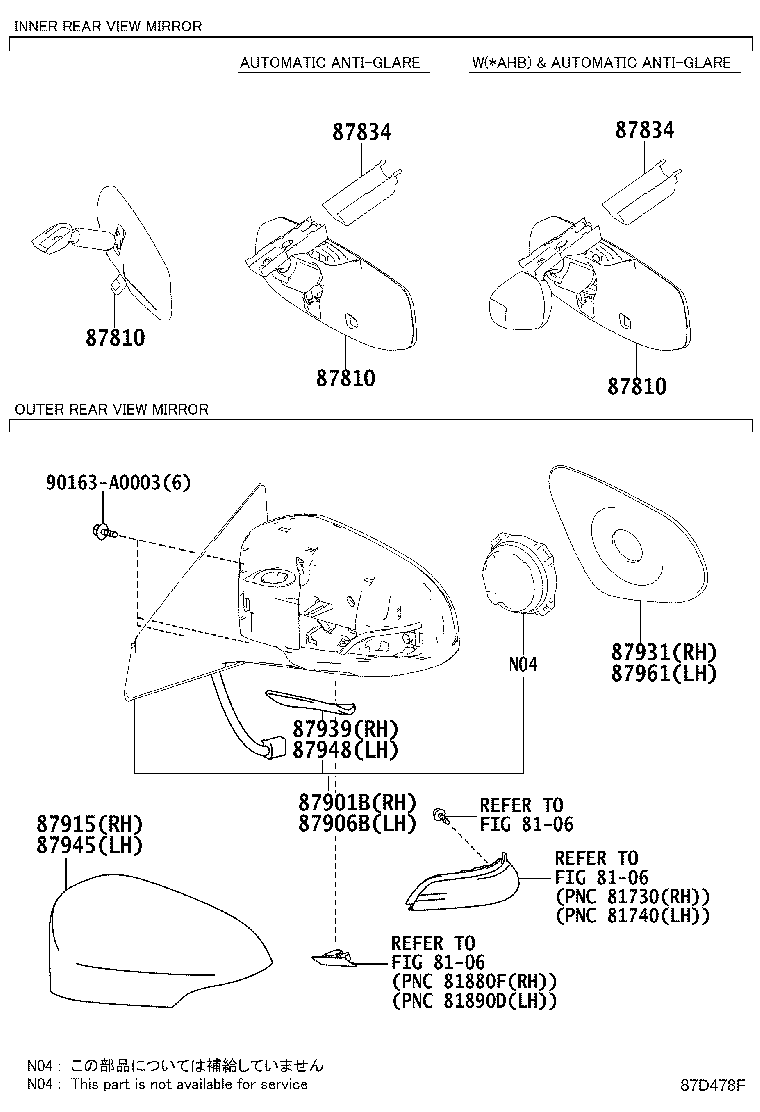

Figure 87D284F 87D284F 2012-10 → 2015-10 Figure 87D478F 87D478F 2012-10 → 2015-10 Figure 87F267C 87F267C 2015-10 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87915 Cover, Outer Mirror, RH
87931 Outer Mirror, RH
87939 Cover, Outer Mirror Hole, RH
87945 Cover, Outer Mirror, LH
87948 Cover, Outer Mirror Hole, LH
87961 Mirror Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
