Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

26 part groups · 3 illustrations

Illustrations

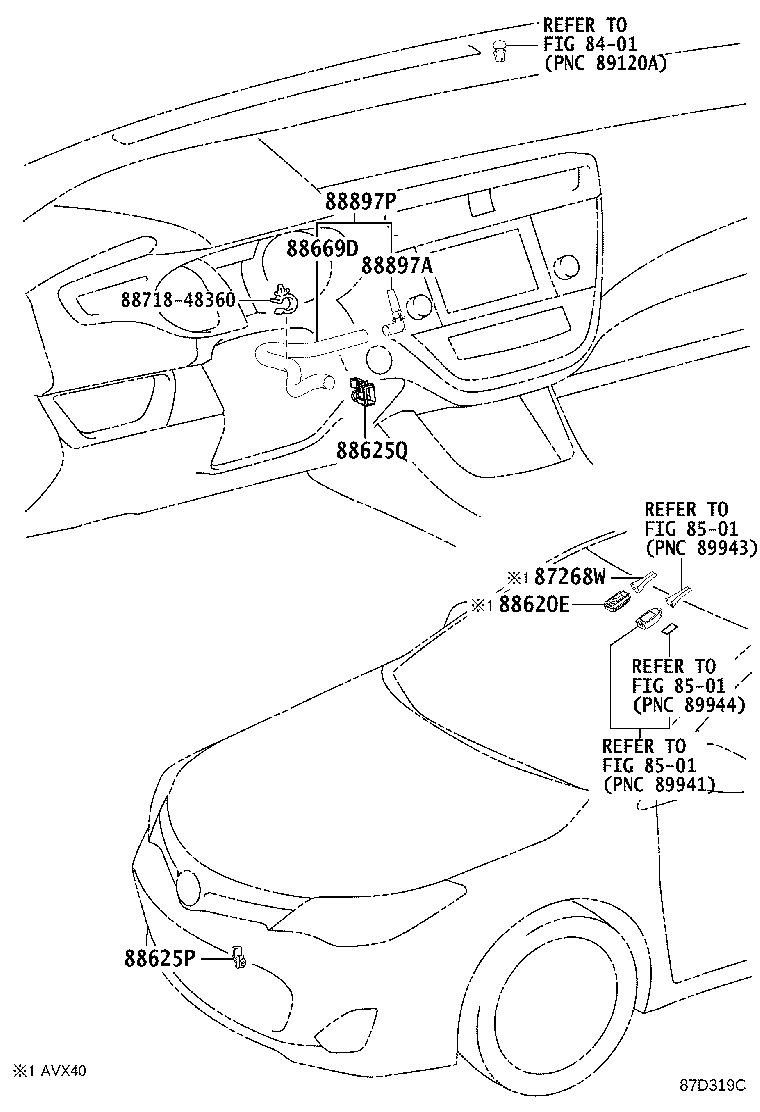

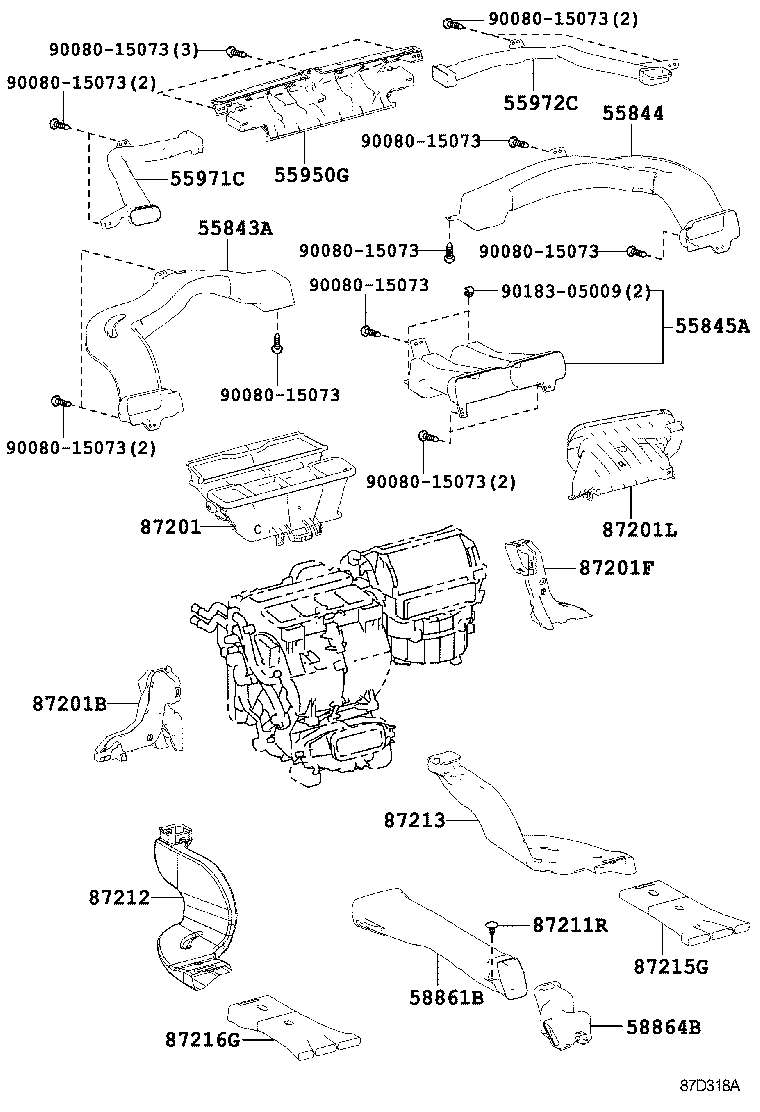

Figure 87D317C 87D317C 2012-10 → — Figure 87D318A 87D318A 2012-10 → — Figure 87D319C 87D319C 2012-10 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900D Control Assy, Air Conditioner, NO.2
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
87268W Protector
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669D Hose, Air
88897A Pipe, Aspirator
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
