Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 2 illustrations

Illustrations

Figure 87D311A

87D311A 2012-10 → —

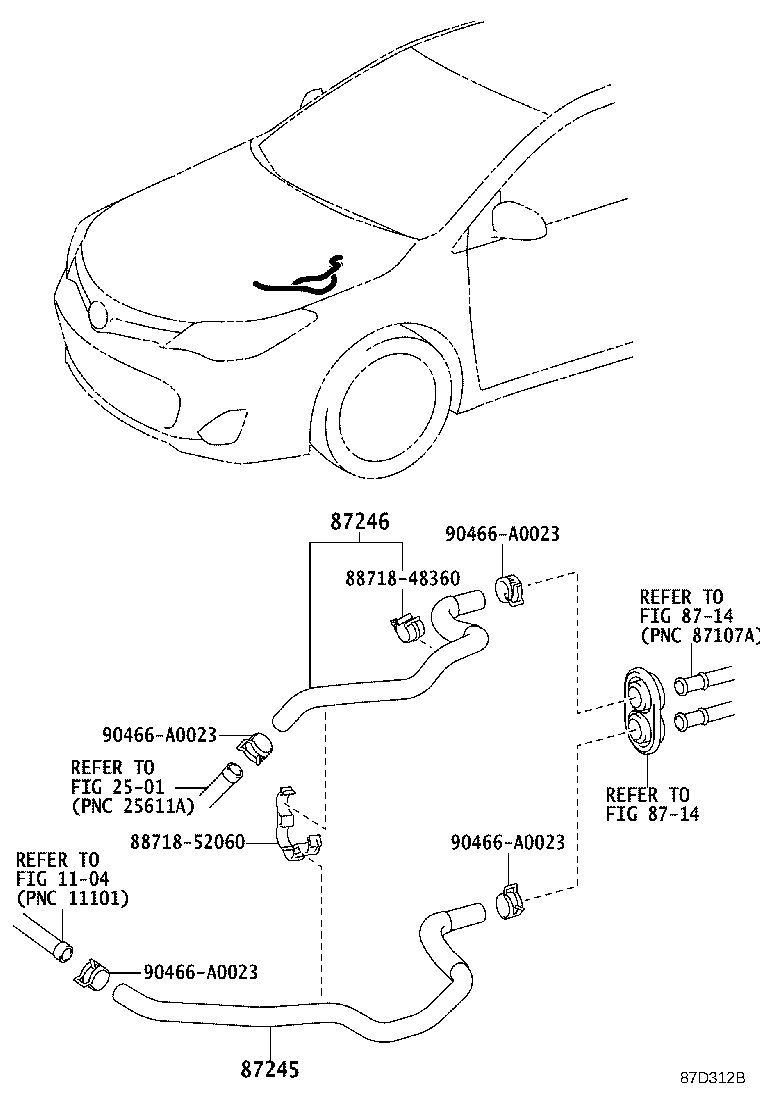

Figure 87D312B

87D312B 2012-11 → —

Part groups

PNC	Description
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
