Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 2 illustrations

Illustrations

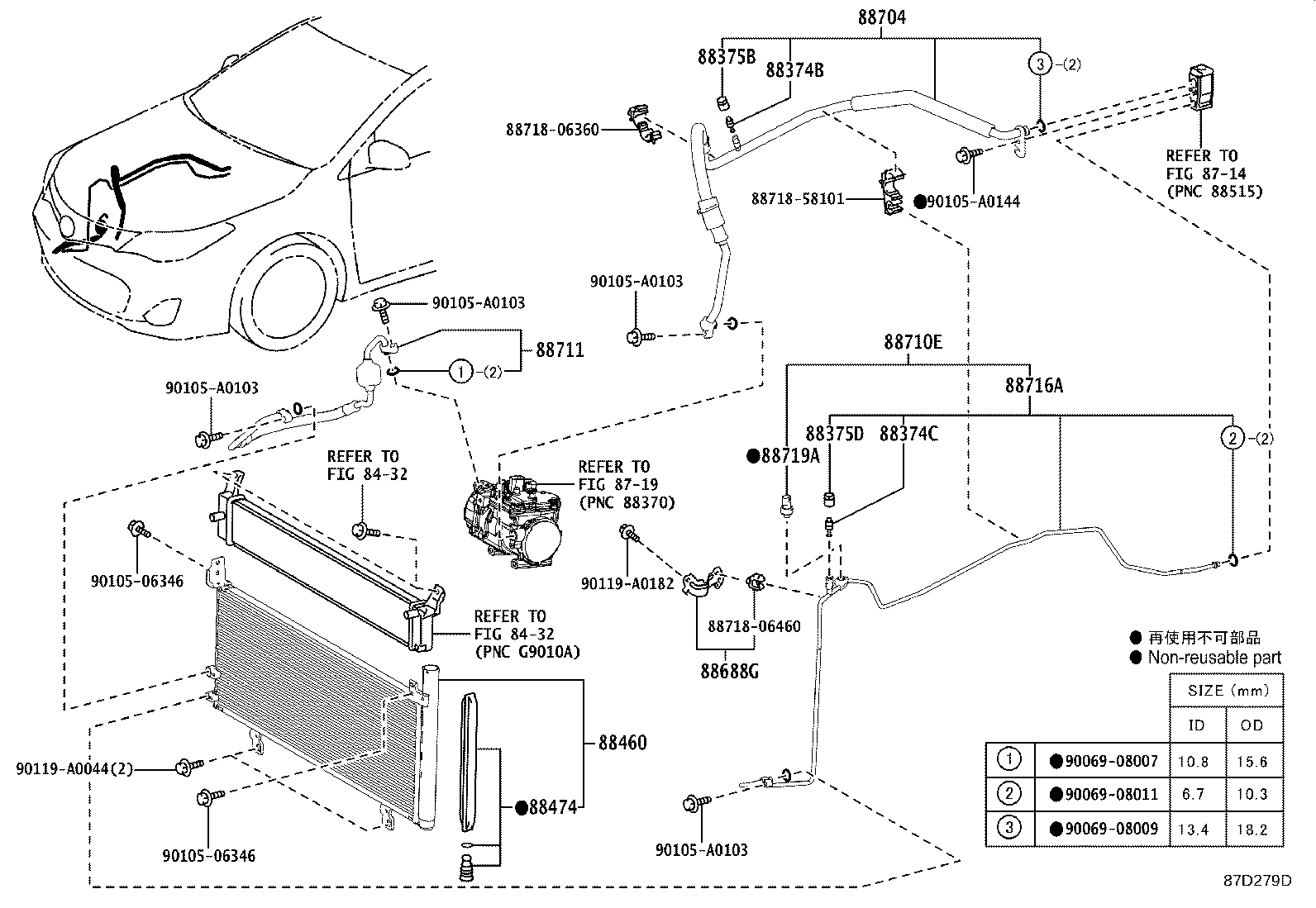

Figure 87D278E 87D278E 2012-10 → — Figure 87D279D 87D279D 2012-11 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88482B Cap, Cooler NO.1
88688G Bracket, Cooler Refrigerant Pipe
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
