Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

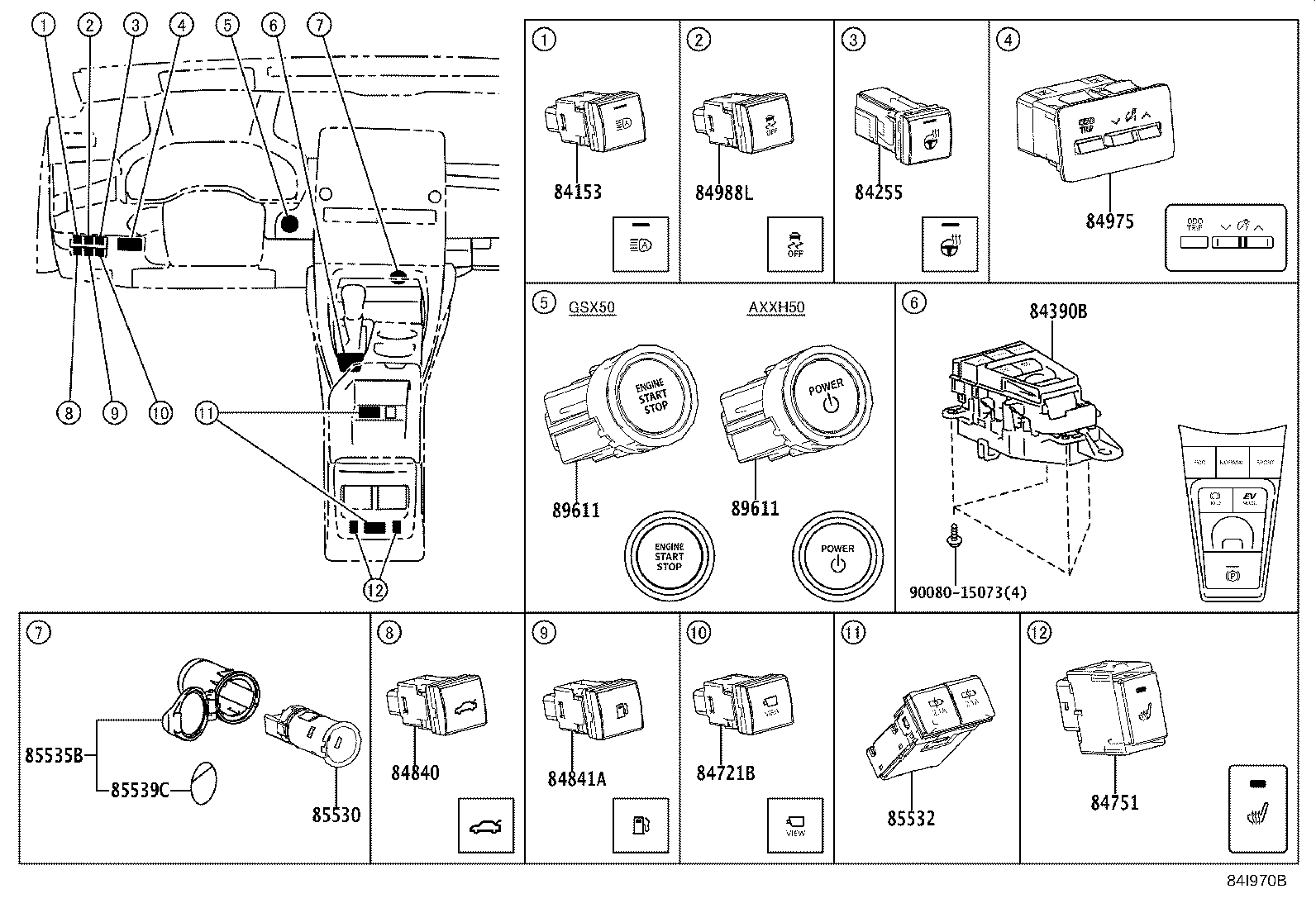

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84153 — Switch, Auto High Beam | ||||
| 84153-06010 note |
Switch, Auto High Beam
2018-05 → 2020-08
ended
|
AXXH50 XLE | — | |
| 84153-06010 |
Switch, Auto High Beam
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 84153-06010 |
Switch, Auto High Beam
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 84255 — Switch, Steering Heater | ||||
| 84255-33010 |
Switch, Steering Heater
2018-04 → 2020-08
ended
|
AXXH50,GSX50 LIMD,TOU | — | |
| 84255-0R020 |
Switch, Steering Heater
2021-06 → —
|
AXXA55;AXXH51,GSX50 LIMD,TOU | — | |
| 84255-0R020 note |
Switch, Steering Heater
2021-06 → —
|
AXXH51 XLE | — | |
| 84255-0R020 note |
Switch, Steering Heater
2021-06 → —
|
GSX50 XSE | — | |
| 84255-33010 |
Switch, Steering Heater
2020-08 → 2021-05
ended
|
AXXA55;AXXH51,GSX50 LIMD,TOU | — | |
| 84255-33010 note |
Switch, Steering Heater
2020-08 → 2021-05
ended
|
AXXH51 XLE | — | |
| 84255-33010 note |
Switch, Steering Heater
2020-08 → 2021-05
ended
|
GSX50 XSE | — | |
| 84390B — Switch Assy, Electric Parking Brake | ||||
| 84390-07010 |
Switch Assy, Electric Parking Brake
2018-05 → 2020-08
ended
|
AXXH50 | — | |
| 84390-07020 |
Switch Assy, Electric Parking Brake
2018-04 → 2020-08
ended
|
GSX50 LIMD,XLE,XSE | — | |
| 84390-07030 |
Switch Assy, Electric Parking Brake
2018-04 → 2020-08
ended
|
GSX50 TOU | — | |
| 84390-07010 |
Switch Assy, Electric Parking Brake
2020-08 → —
|
AXXH51 | — | |
| 84390-07020 |
Switch Assy, Electric Parking Brake
2020-08 → —
|
AXXA55,GSX50 LIMD,XLE,XSE | — | |
| 84390-07030 |
Switch Assy, Electric Parking Brake
2020-08 → —
|
GSX50 TOU | — | |
| 84721B — Switch, Panoramic View Monitor | ||||
| 84721-06020 note |
Switch, Panoramic View Monitor
2018-04 → 2019-08
ended
|
AXXH50,GSX50 LIMD,TOU | — | |
| 84721-06020 note |
Switch, Panoramic View Monitor
2019-08 → 2020-08
ended
|
AXXH50,GSX50 LIMD,TOU | — | |
| 84721-06020 note |
Switch, Panoramic View Monitor
2020-08 → —
|
AXXA55,AXXH51,GSX50 LIMD,TOU | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-33090 |
Switch, Seat Heater
2018-04 → 2020-08
ended
|
AXXH50,GSX50 LIMD,TOU | — | |
| 84751-33090 |
Switch, Seat Heater
2020-08 → —
|
AXXA55,AXXH51,GSX50 LIMD,TOU | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-06020 |
Switch Assy, Luggage Compartment Door Opening
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 84840-06020 |
Switch Assy, Luggage Compartment Door Opening
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 84841A — Switch, Fuel Lid Opener | ||||
| 84841-06020 |
Switch, Fuel Lid Opener
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 84841-06020 |
Switch, Fuel Lid Opener
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 84975 — Switch, Trip | ||||
| 84975-41010 |
Switch, Trip
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 84975-41010 |
Switch, Trip
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 84988L — Switch, Vsc Off | ||||
| 84988-06090 |
Switch, Vsc Off
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 84988-06090 |
Switch, Vsc Off
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-06030 |
Socket Assy, Power Outlet, NO.1
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 85530-06030 |
Socket Assy, Power Outlet, NO.1
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 85532 — Socket, Usb Charger | ||||
| 85532-06010 |
Socket, Usb Charger
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-0C020-C1 note |
Cover, Power Outlet Socket, NO.1
2018-04 → 2020-08
ended
|
AXXH50,GSX50 LIMD | — | |
| 85535-0C020-C1 note |
Cover, Power Outlet Socket, NO.1
2018-04 → 2020-08
ended
|
AXXH50,GSX50 TOU,XSE | — | |
| 85535-0C020-C1 note |
Cover, Power Outlet Socket, NO.1
2018-04 → 2020-08
ended
|
AXXH50,GSX50 XLE | — | |
| 85535-0C020-C1 note |
Cover, Power Outlet Socket, NO.1
2020-08 → —
|
AXXA55,AXXH51,GSX50 LIMD,XLE | — | |
| 85535-0C020-C1 note |
Cover, Power Outlet Socket, NO.1
2020-08 → —
|
AXXH51,GSX50 TOU,XSE | — | |
| 85539C — Label, Power Outlet Notice | ||||
| 85539-60020 |
Label, Power Outlet Notice
2018-04 → 2020-08
ended
|
AXXH50,GSX50 | — | |
| 85539-60020 |
Label, Power Outlet Notice
2020-08 → —
|
AXXA55,AXXH51,GSX50 | — | |
| 89611 — Switch, Push Start | ||||
| 89611-0E022 |
Switch, Push Start
2018-05 → 2020-08
ended
|
AXXH50 | — | |
| 89611-0R022 |
Switch, Push Start
2018-04 → 2020-08
ended
|
GSX50 | — | |
| 89611-0E022 |
Switch, Push Start
2020-08 → —
|
AXXH51 | — | |
| 89611-0R022 |
Switch, Push Start
2020-08 → 2021-07
ended
|
AXXA55;GSX50 XSE | — | |
| 89611-0R022 |
Switch, Push Start
2020-08 → —
|
GSX50 LIMD,TOU,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
