Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

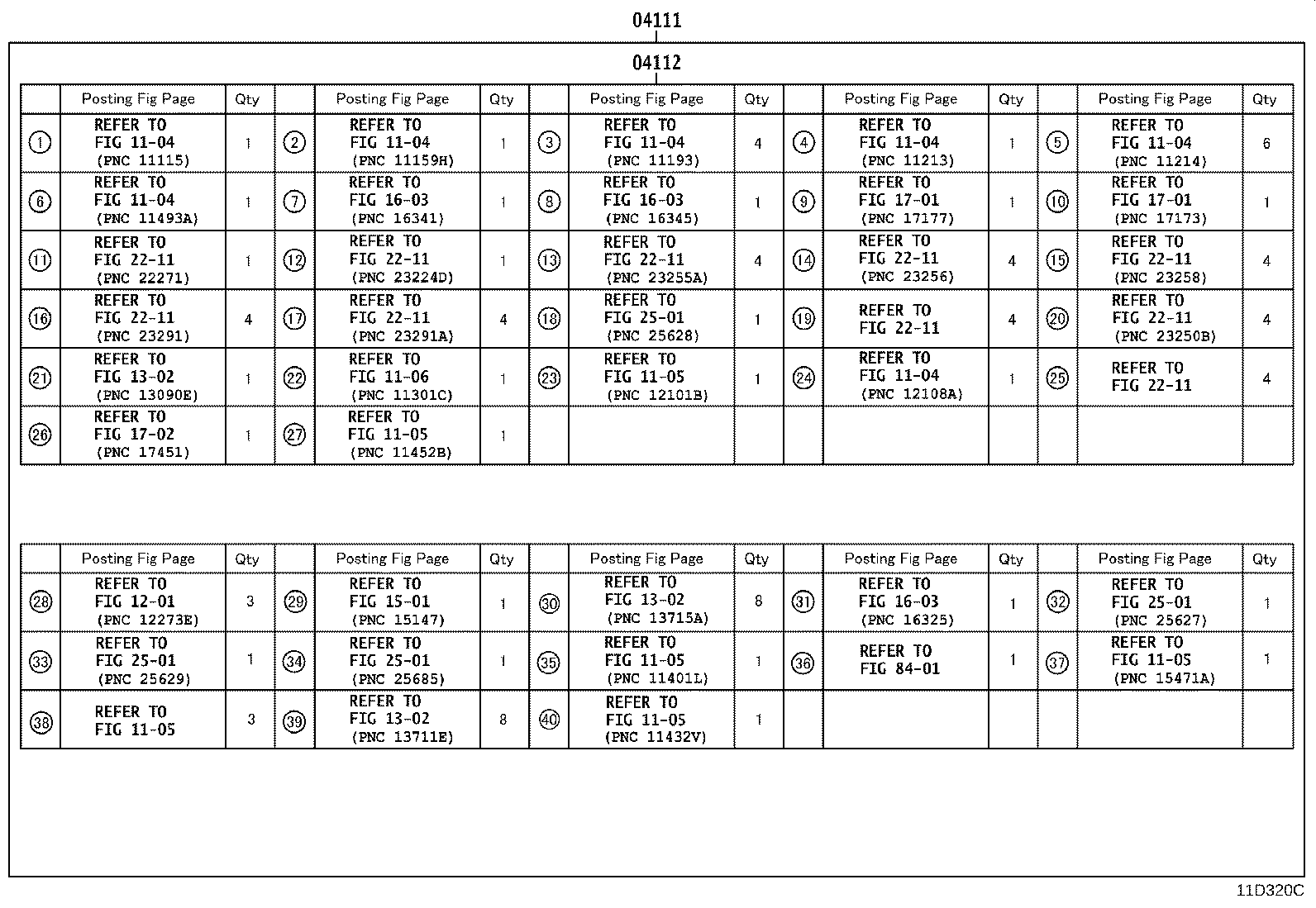

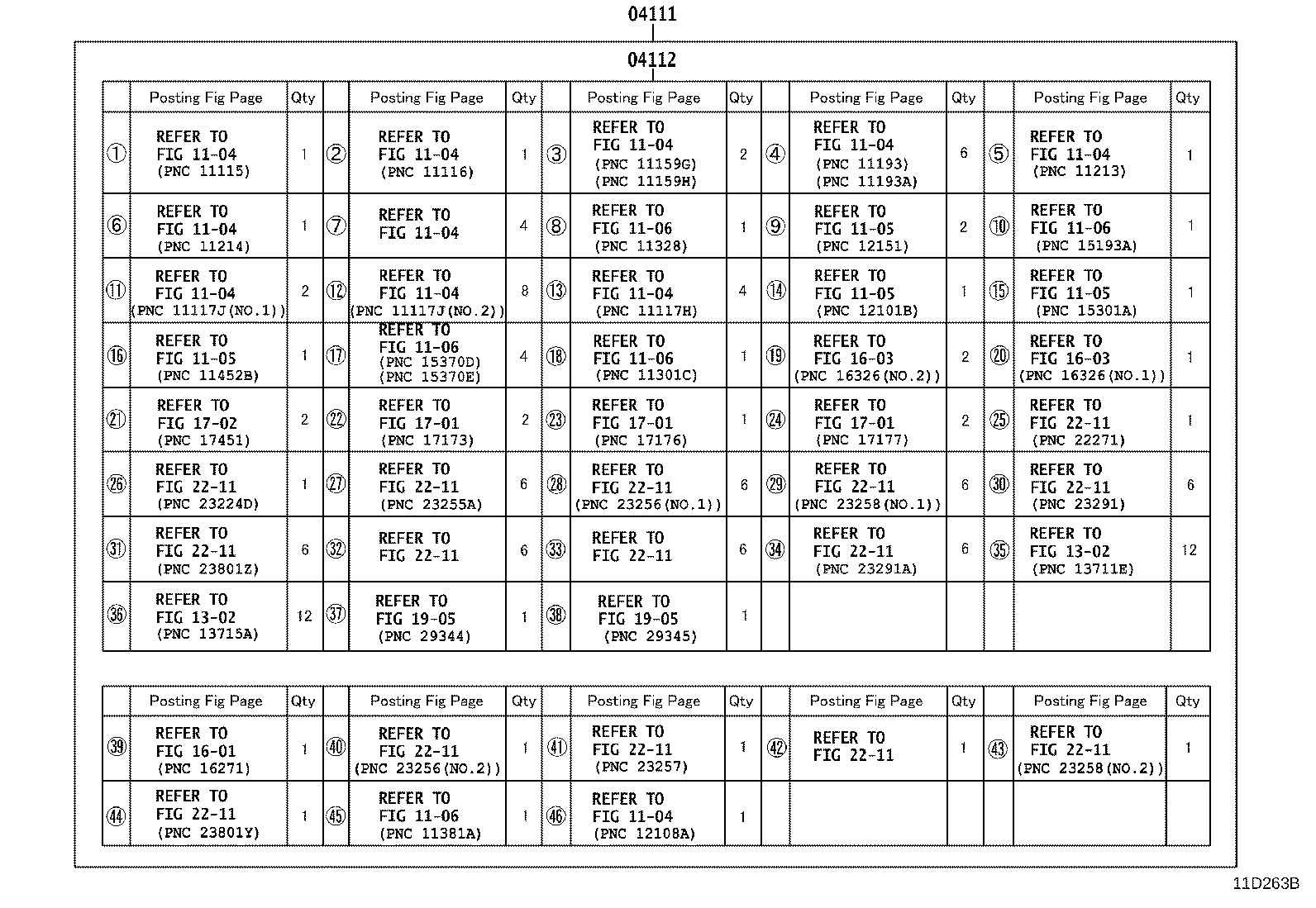

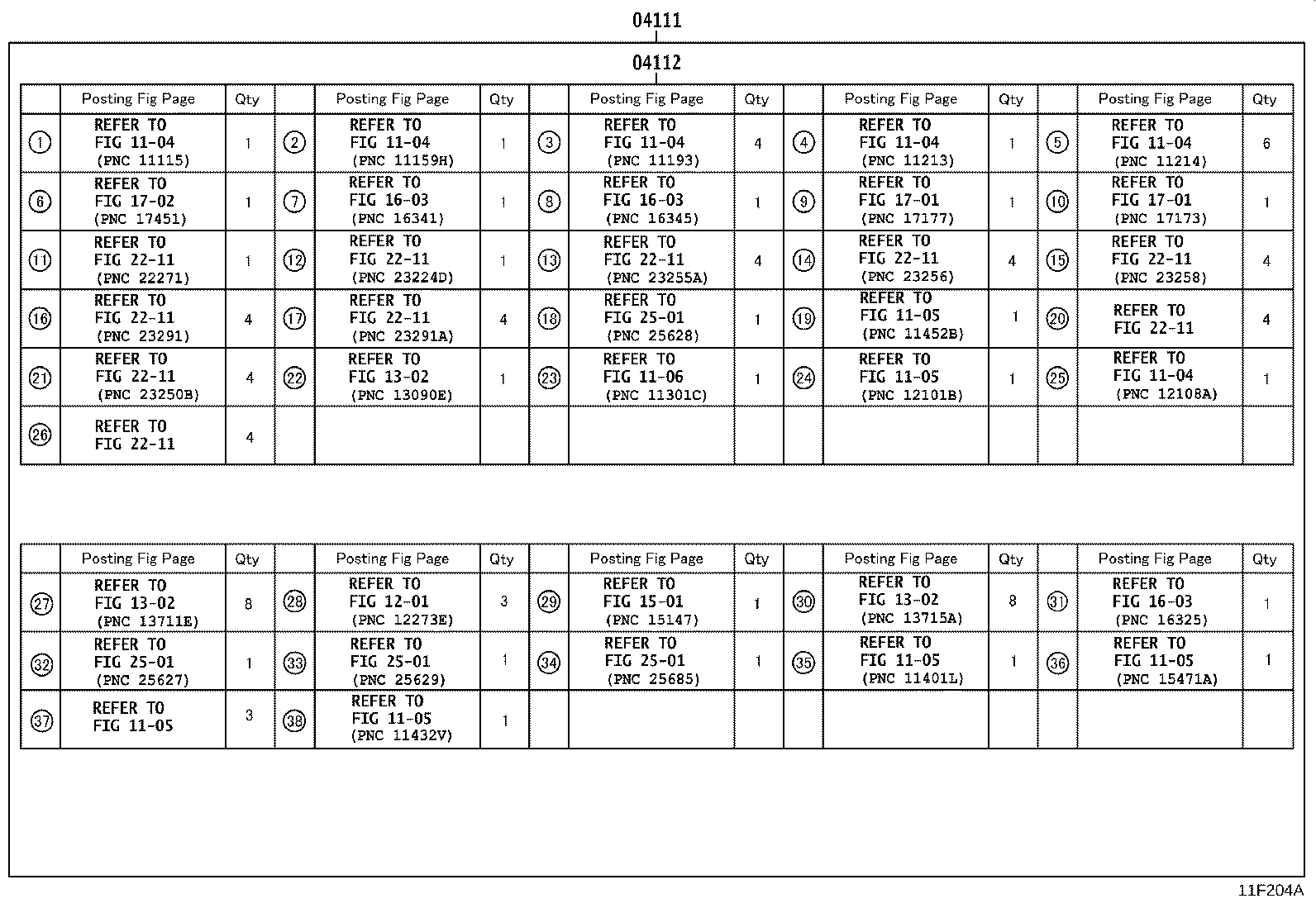

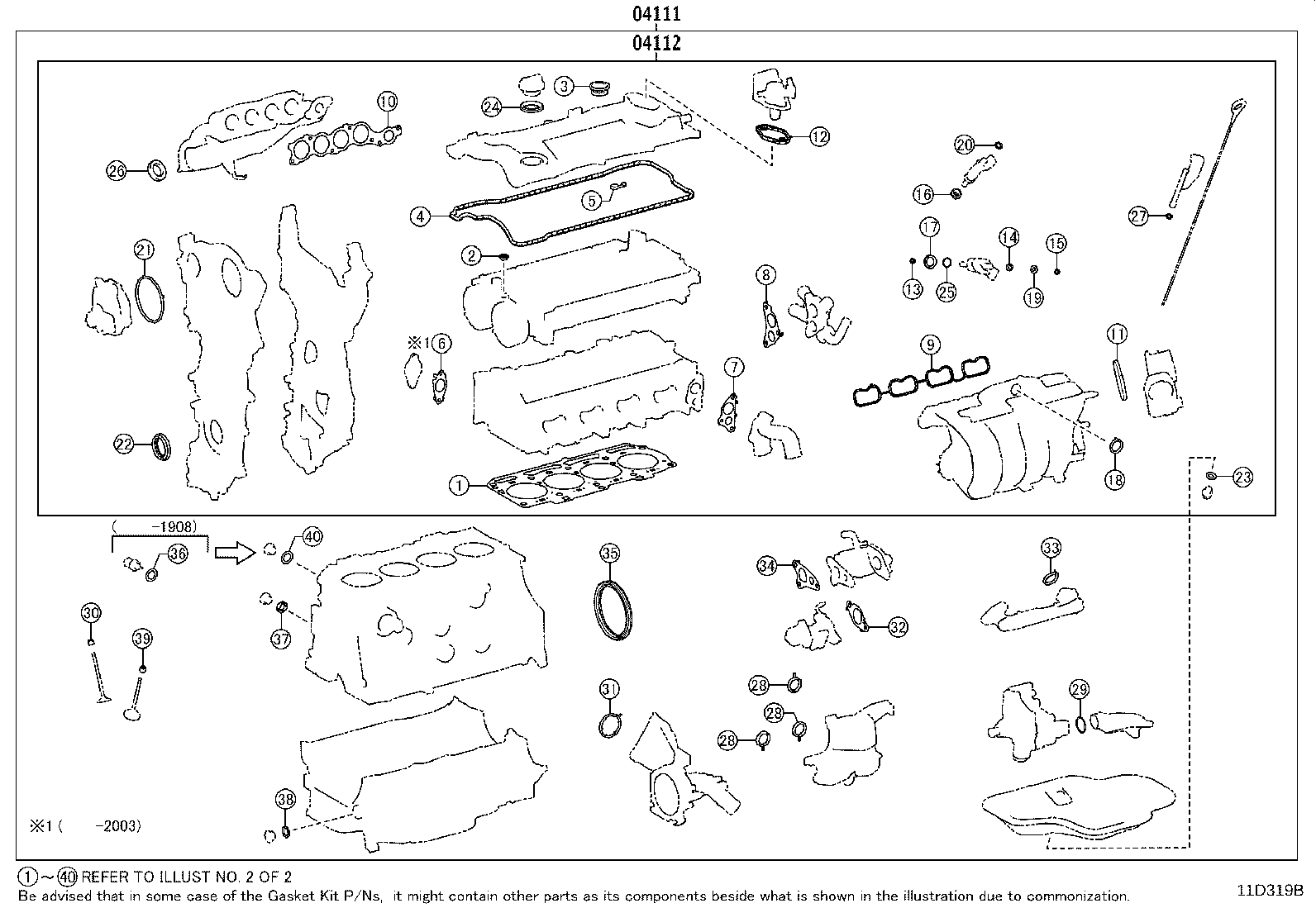

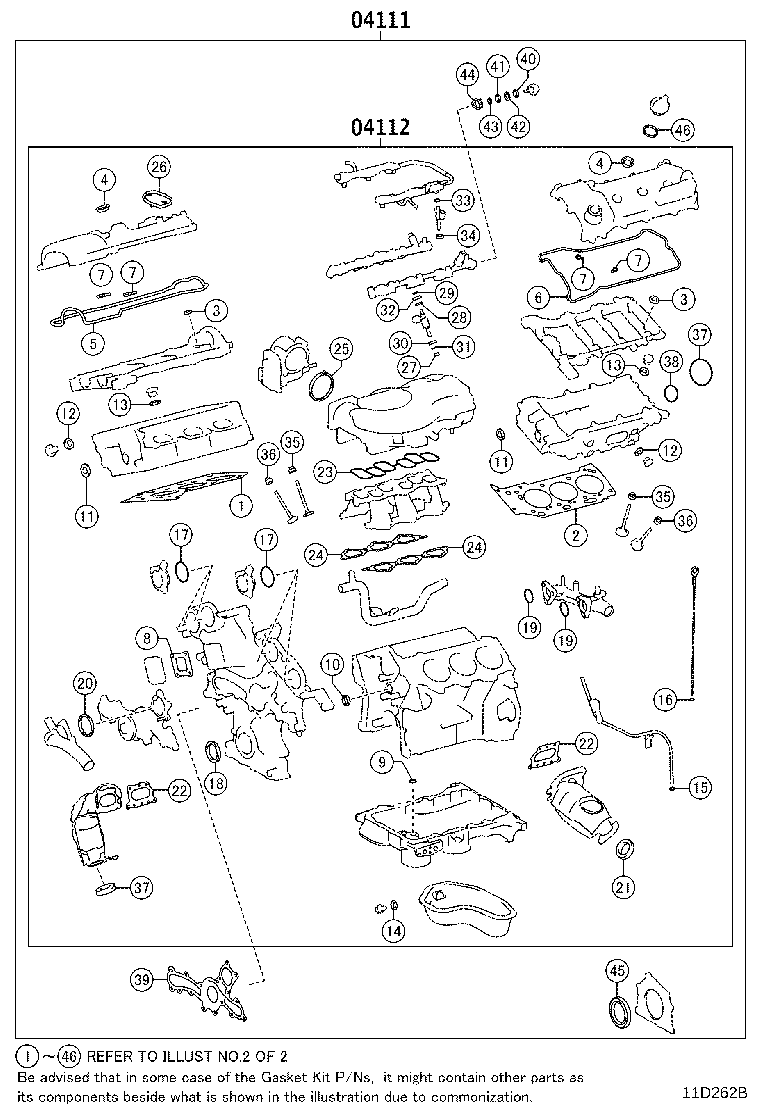

Figure 11F205 11F205 2020-08 → — Figure 11D319B 11D319B 2018-05 → — Figure 11F204A 11F204A 2020-08 → — Figure 11D320C 11D320C 2018-05 → — Figure 11D262B 11D262B 2018-04 → — Figure 11D263B 11D263B 2018-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
