Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

18 part groups · 3 illustrations

Illustrations

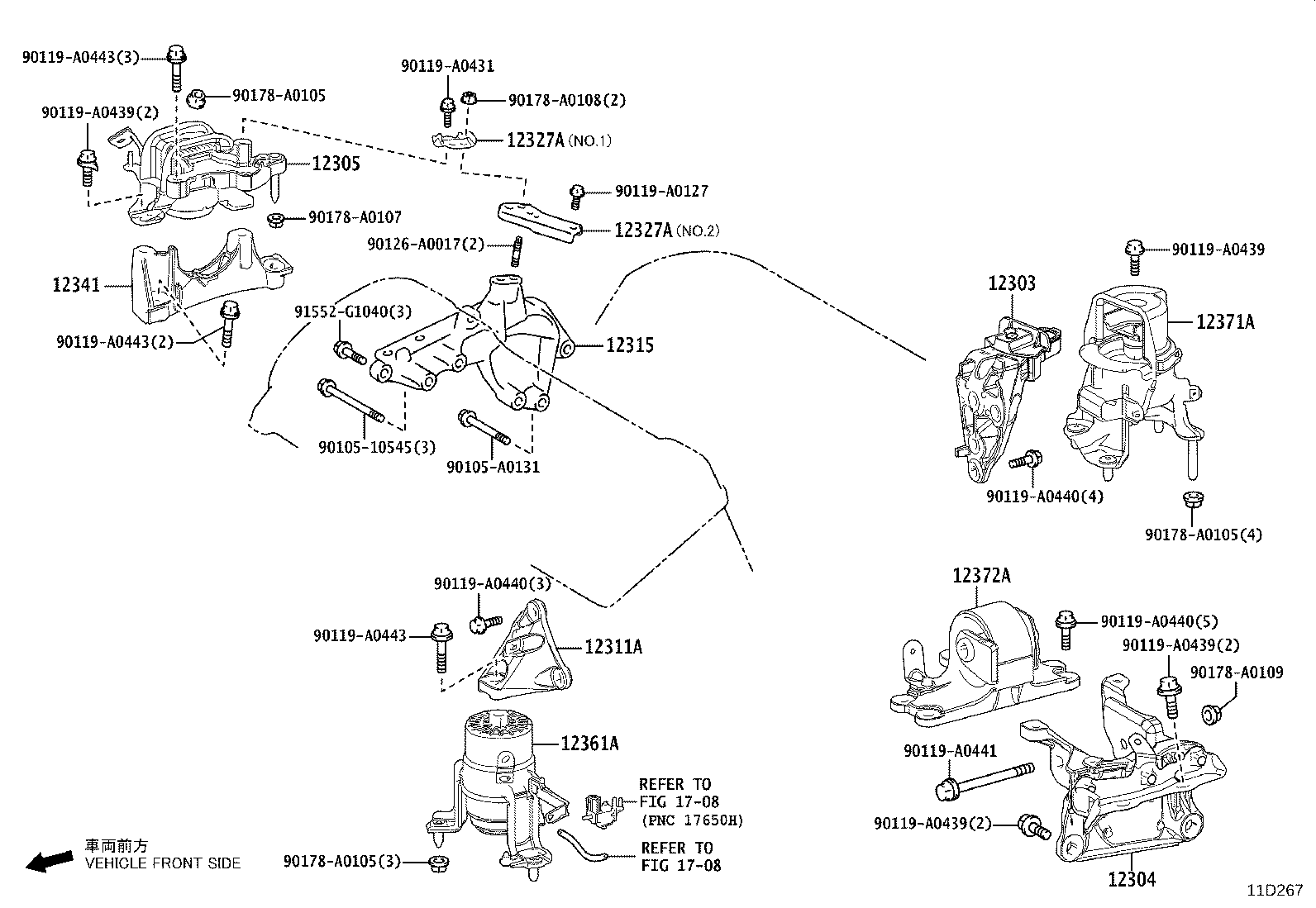

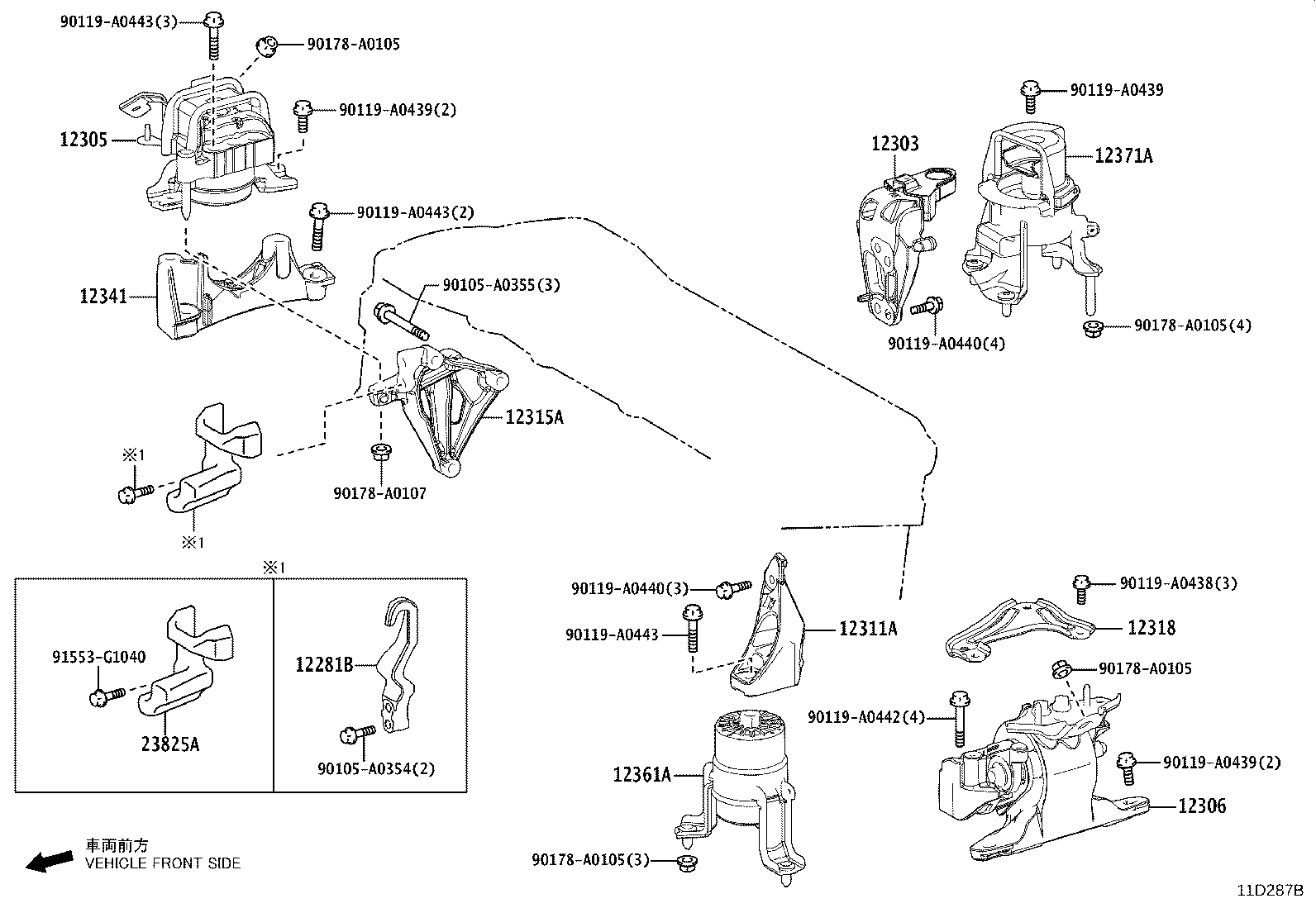

Figure 11F199B 11F199B 2020-08 → — Figure 11D287B 11D287B 2018-05 → — Figure 11D267 11D267 2018-04 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12303 Bracket Sub-assy, Engine Mounting, Rear
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12327A Stay, Engine Mounting, NO.2 RH
12341 Spacer, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
23825A Guard, Fuel Delivery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
