Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 3 illustrations

Illustrations

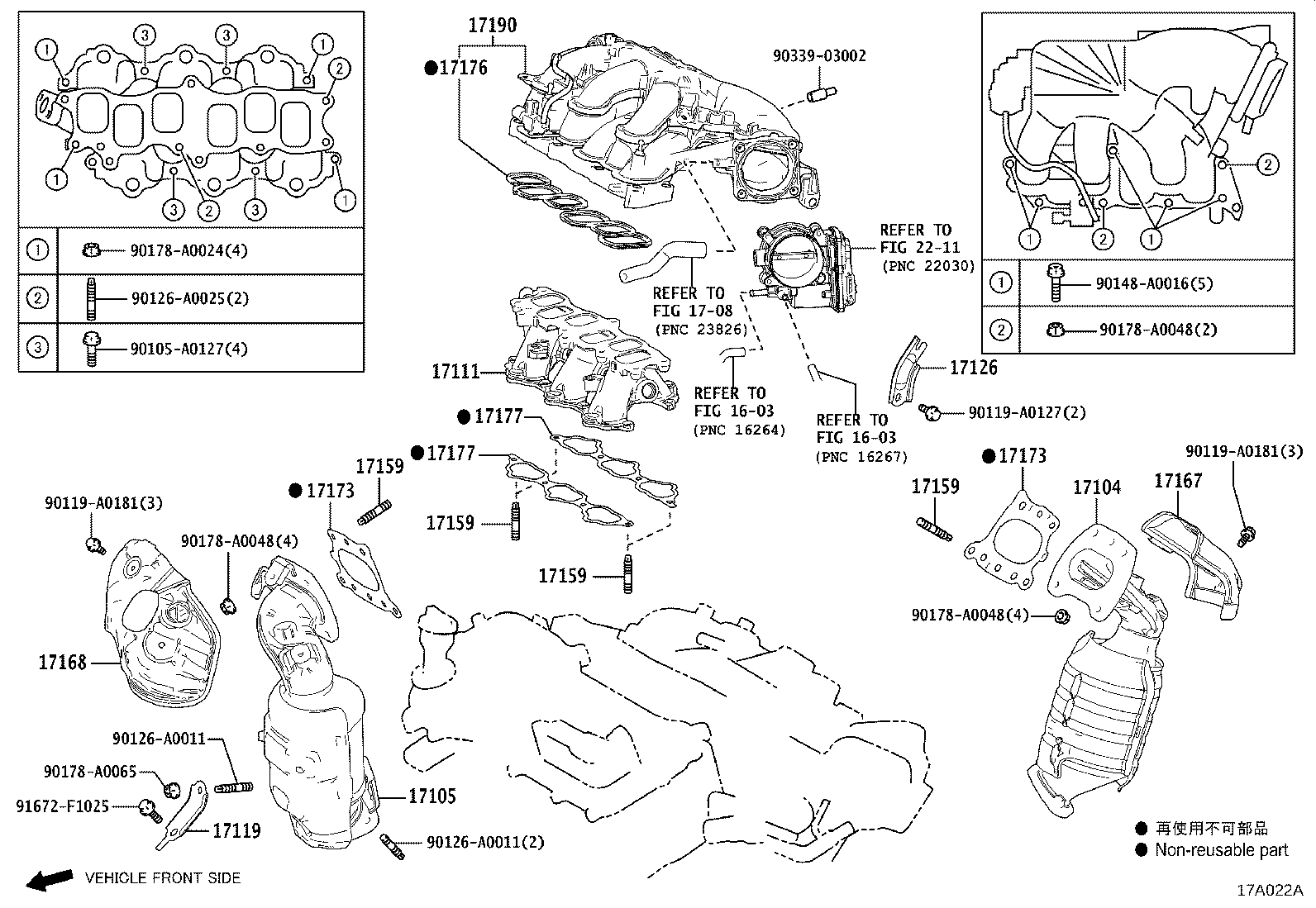

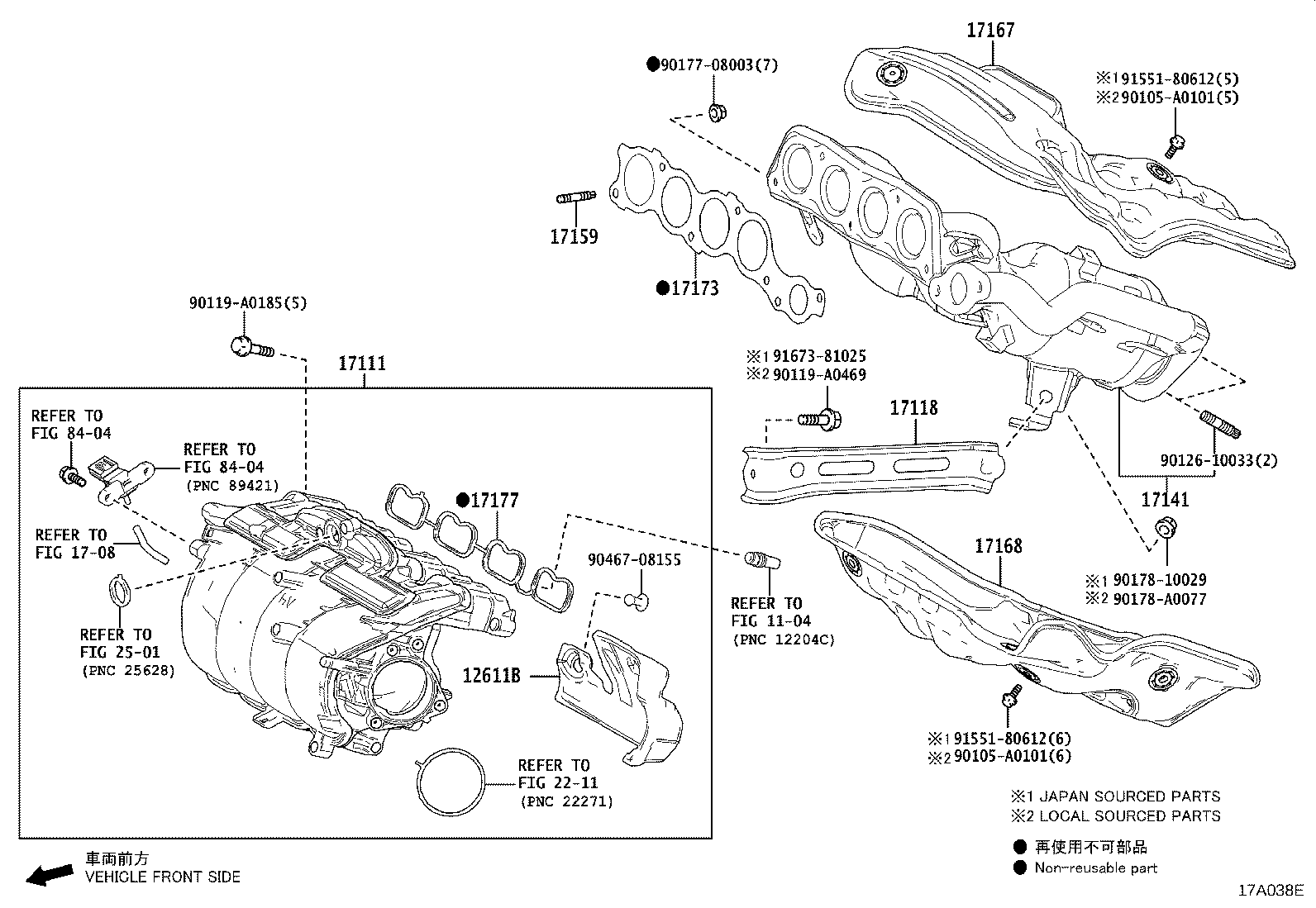

Figure 17B293B 17B293B 2020-08 → — Figure 17A038E 17A038E 2018-05 → — Figure 17A022A 17A022A 2018-04 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17126 Stay, Surge Tank, NO.2
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
