Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

8 part groups · 2 illustrations

Illustrations

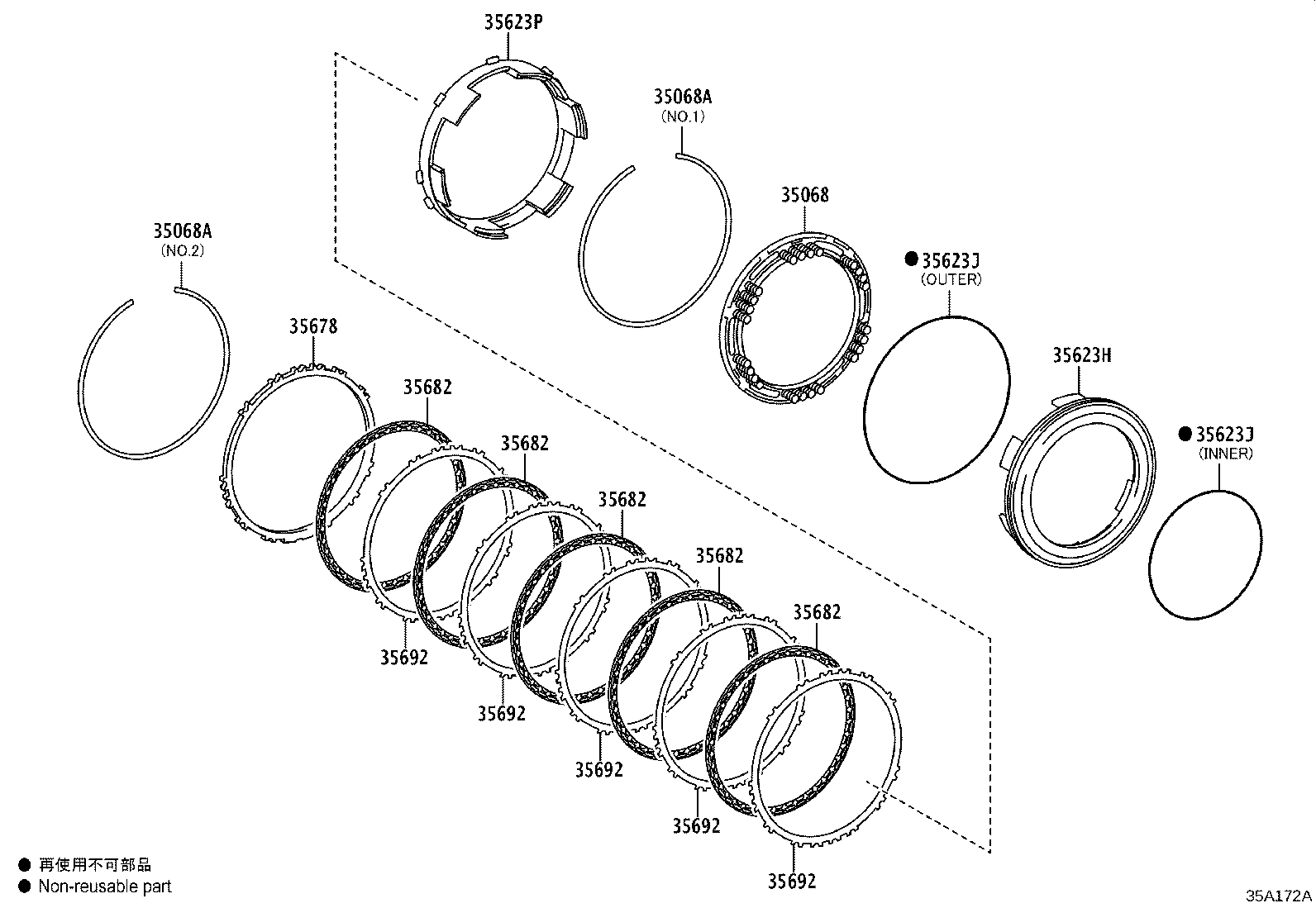

Figure 35A703 35A703 2020-08 → — Figure 35A172A 35A172A 2018-04 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35623P Piston, 1ST & Reverse Brake, NO.2
35678 Flange, Brake(FOR 2ND BRAKE)
35682 Disc, Brake(FOR 2ND BRAKE)
35692 Plate, Brake(FOR 2ND BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
