Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

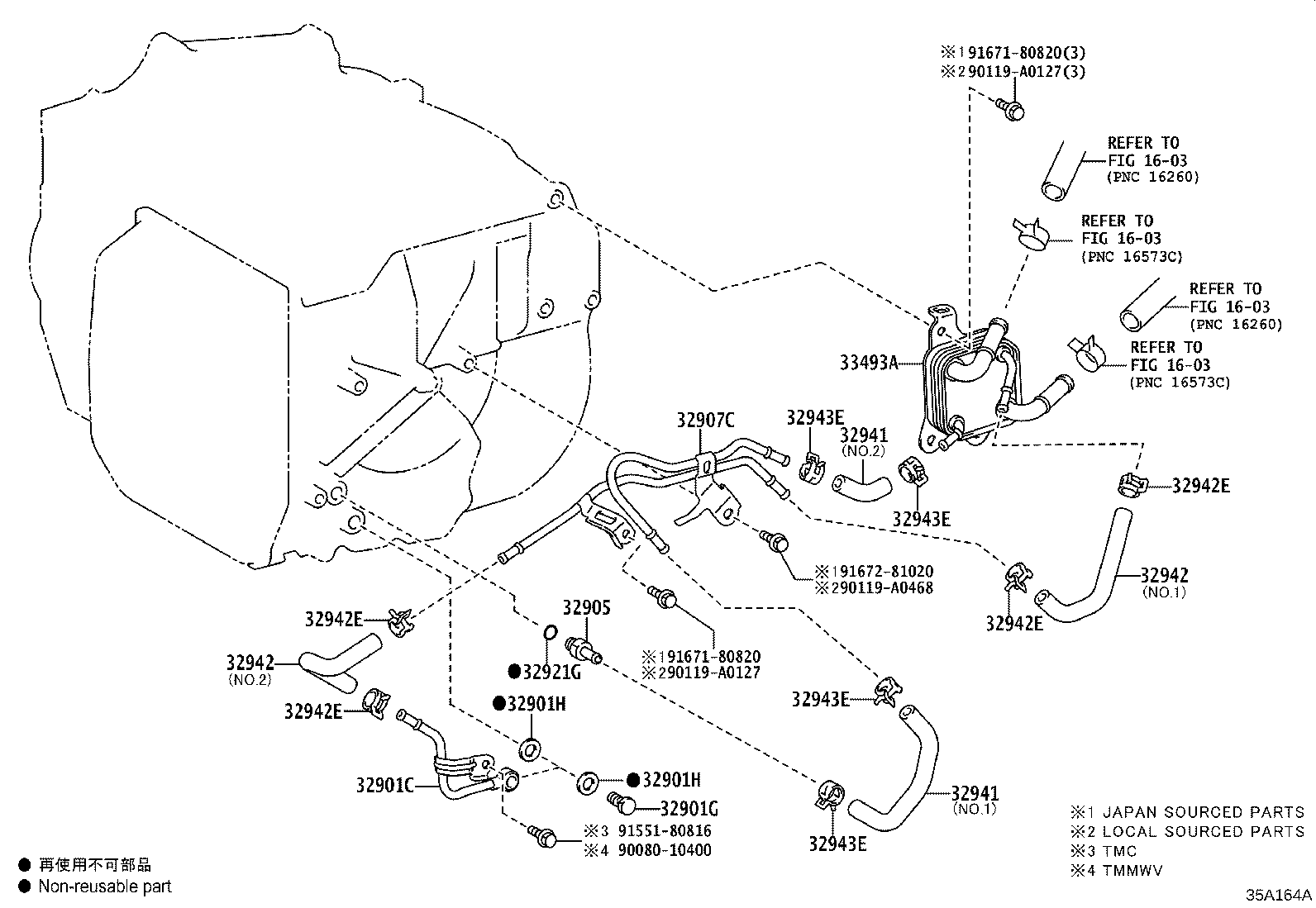

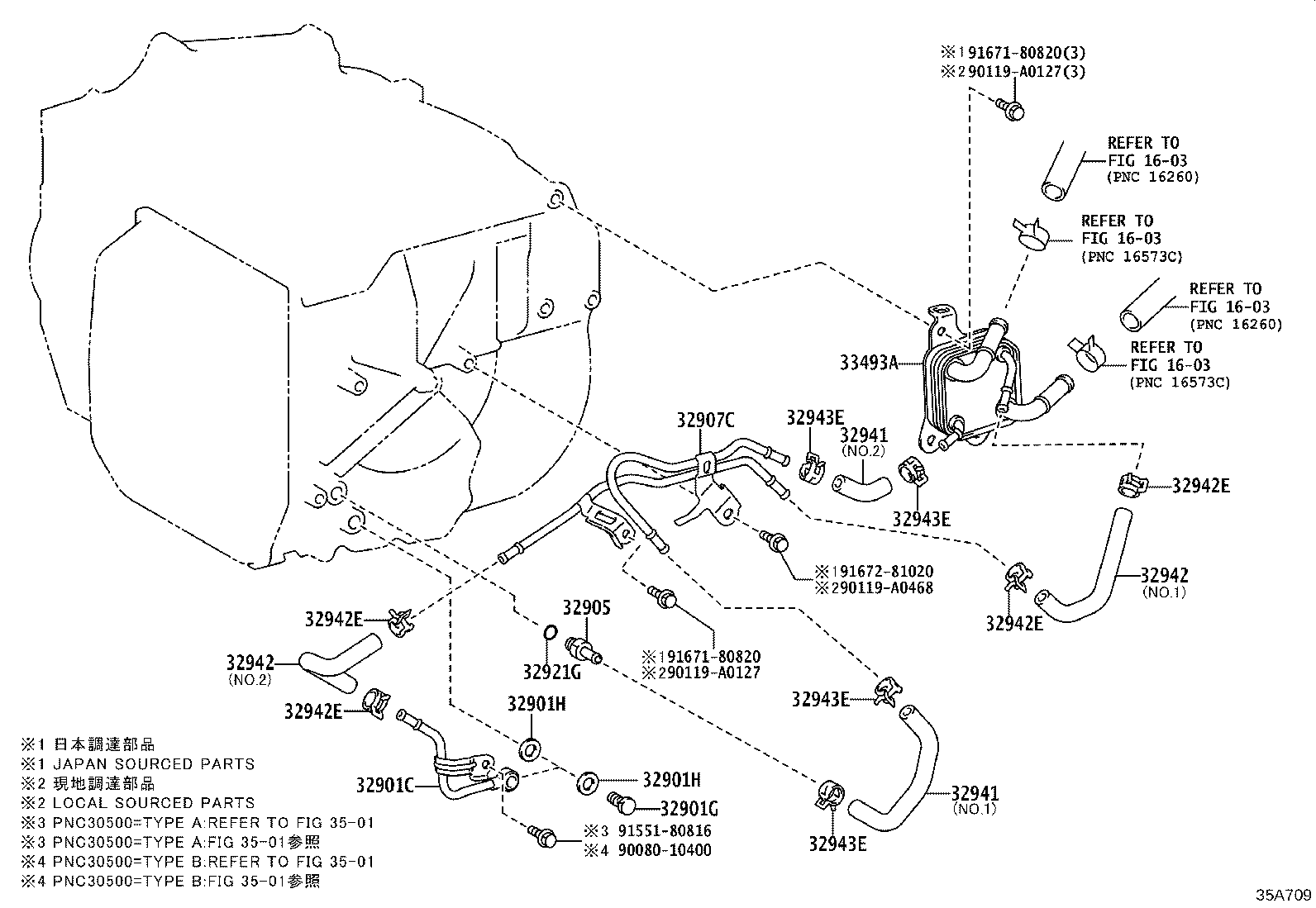

Figure 35A710 35A710 2020-08 → — Figure 35A164A 35A164A 2018-04 → 2020-08 Figure 35A709 35A709 2020-08 → —

Part groups

PNCDescription
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943E Clip, NO.3(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
