Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

8 part groups · 3 illustrations

Illustrations

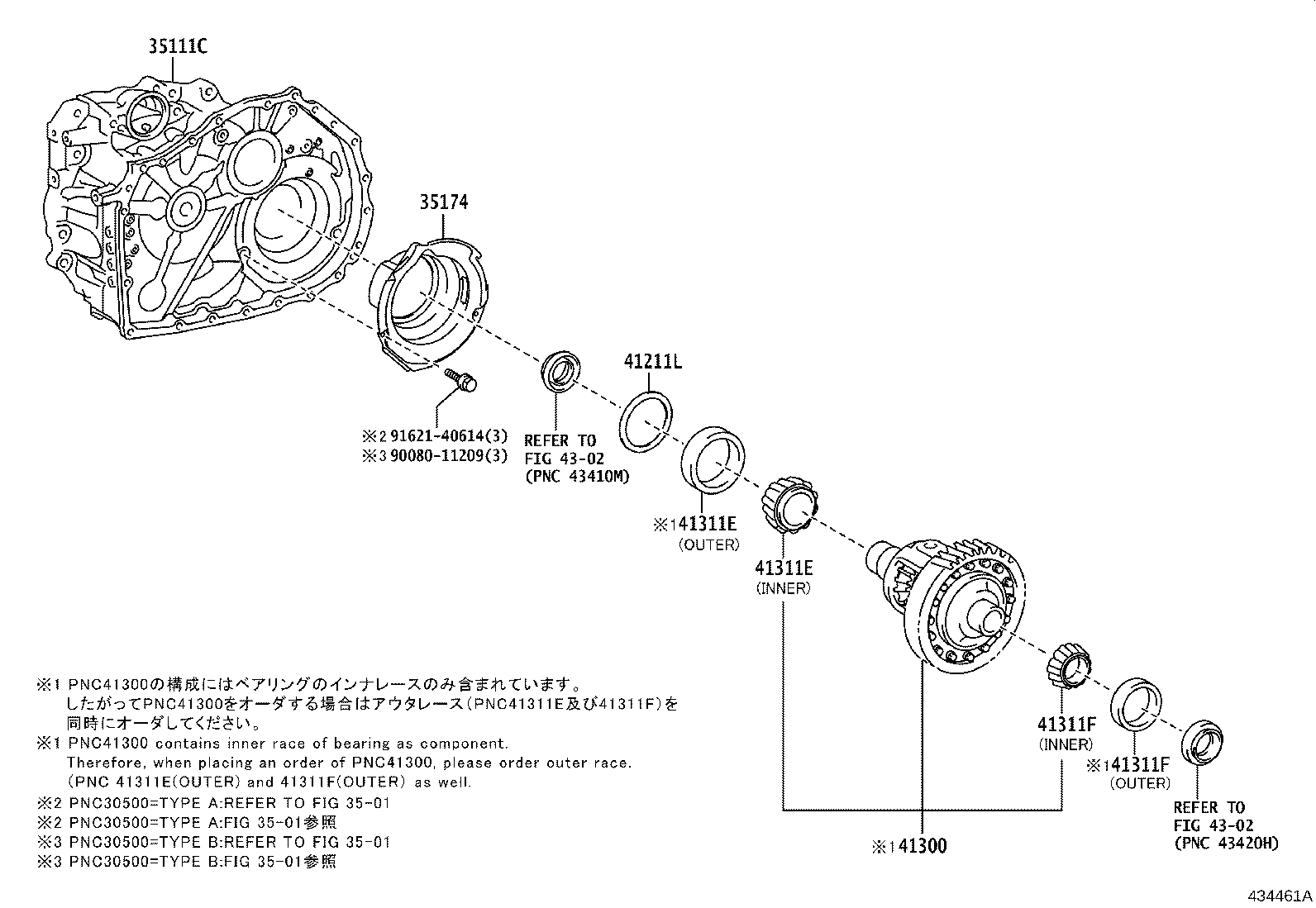

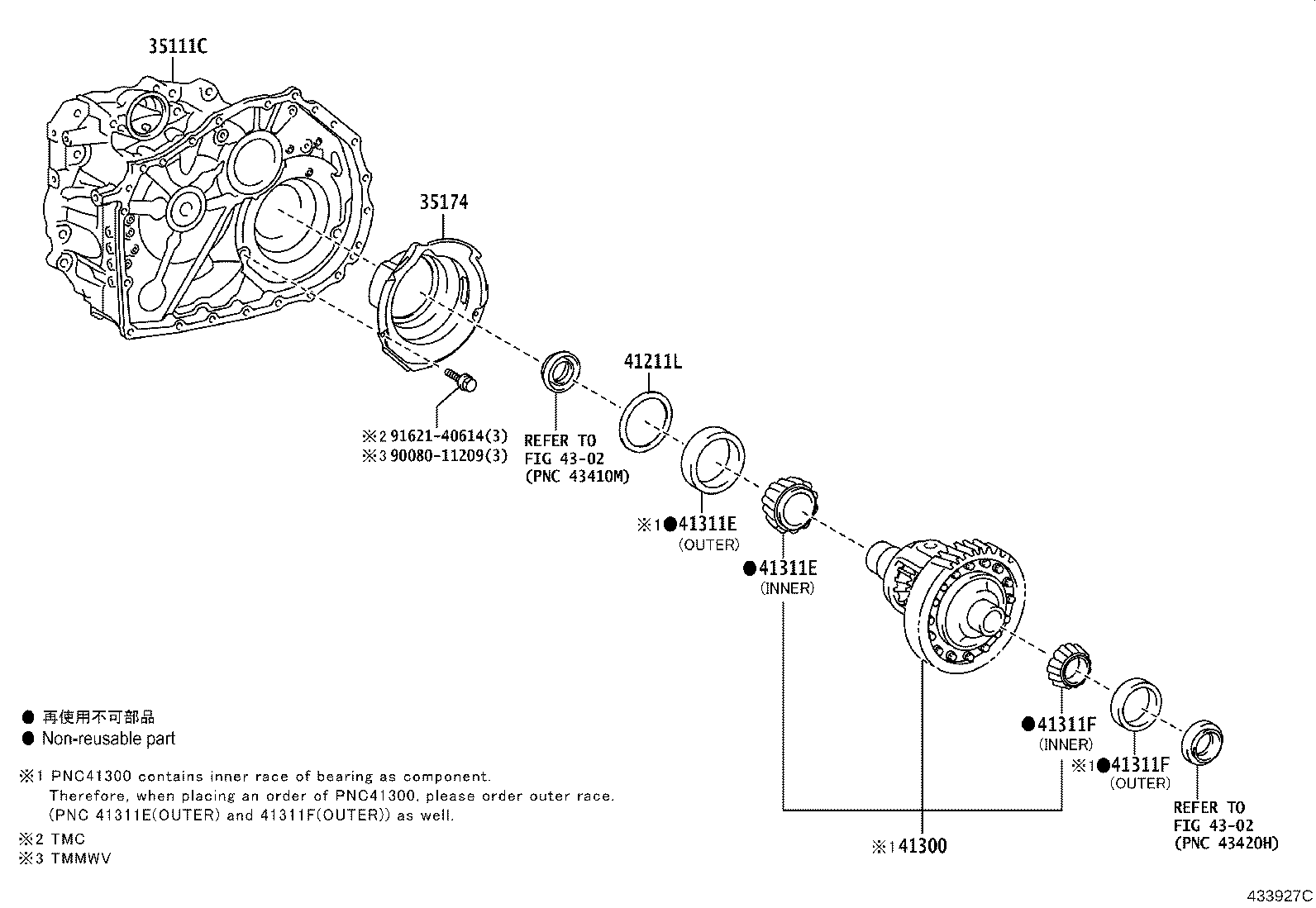

Figure 434462A 434462A 2020-08 → — Figure 433927C 433927C 2018-04 → 2020-08 Figure 434461A 434461A 2020-08 → —

Part groups

PNCDescription
33621D Label, Transaxle Oil Information
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41110G Seal, Oil (FOR DIFFERENTIAL SIDE)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41300 Case Assy, Front Differential, W/Ring Gear
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
