Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 4 illustrations

Illustrations

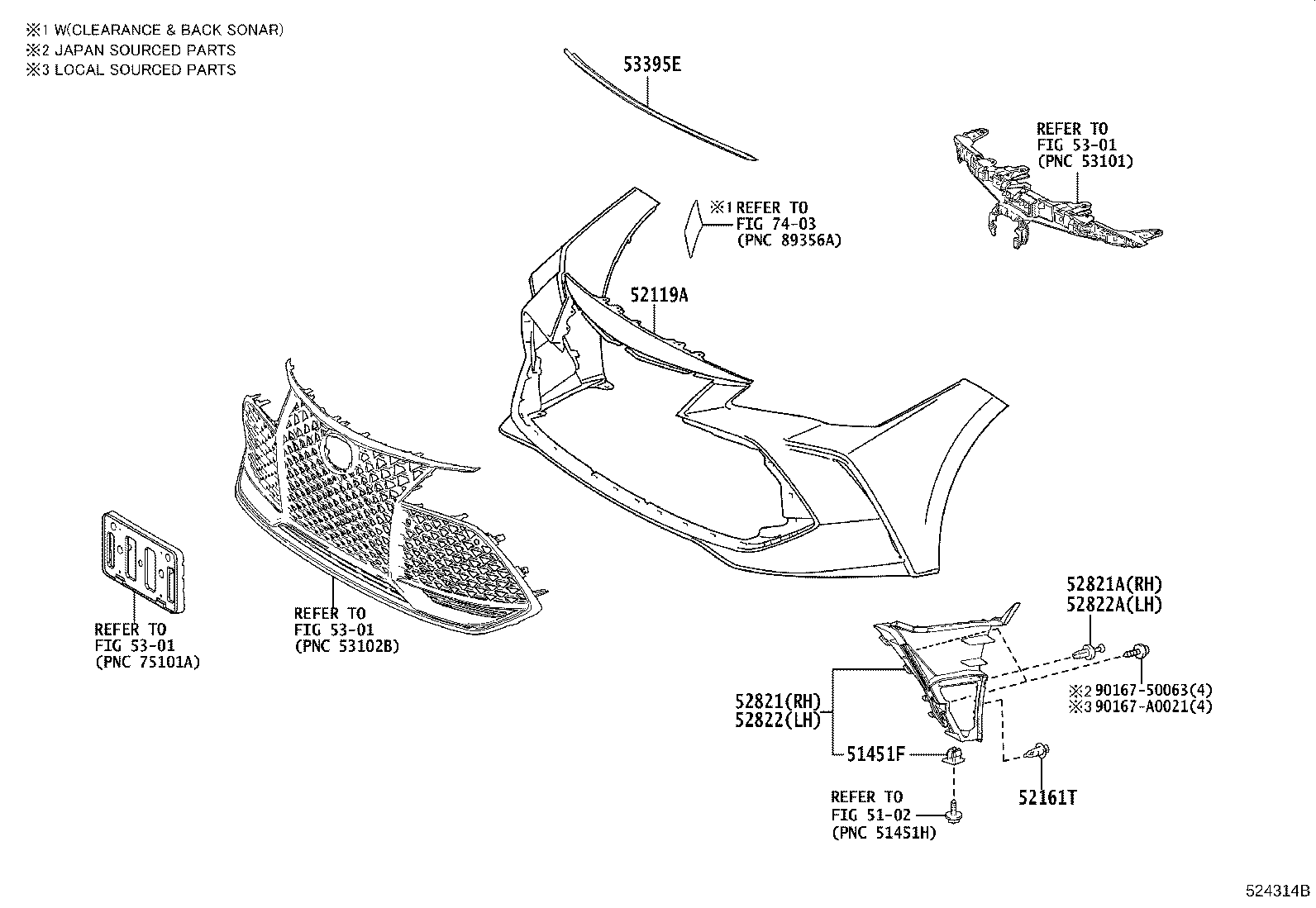

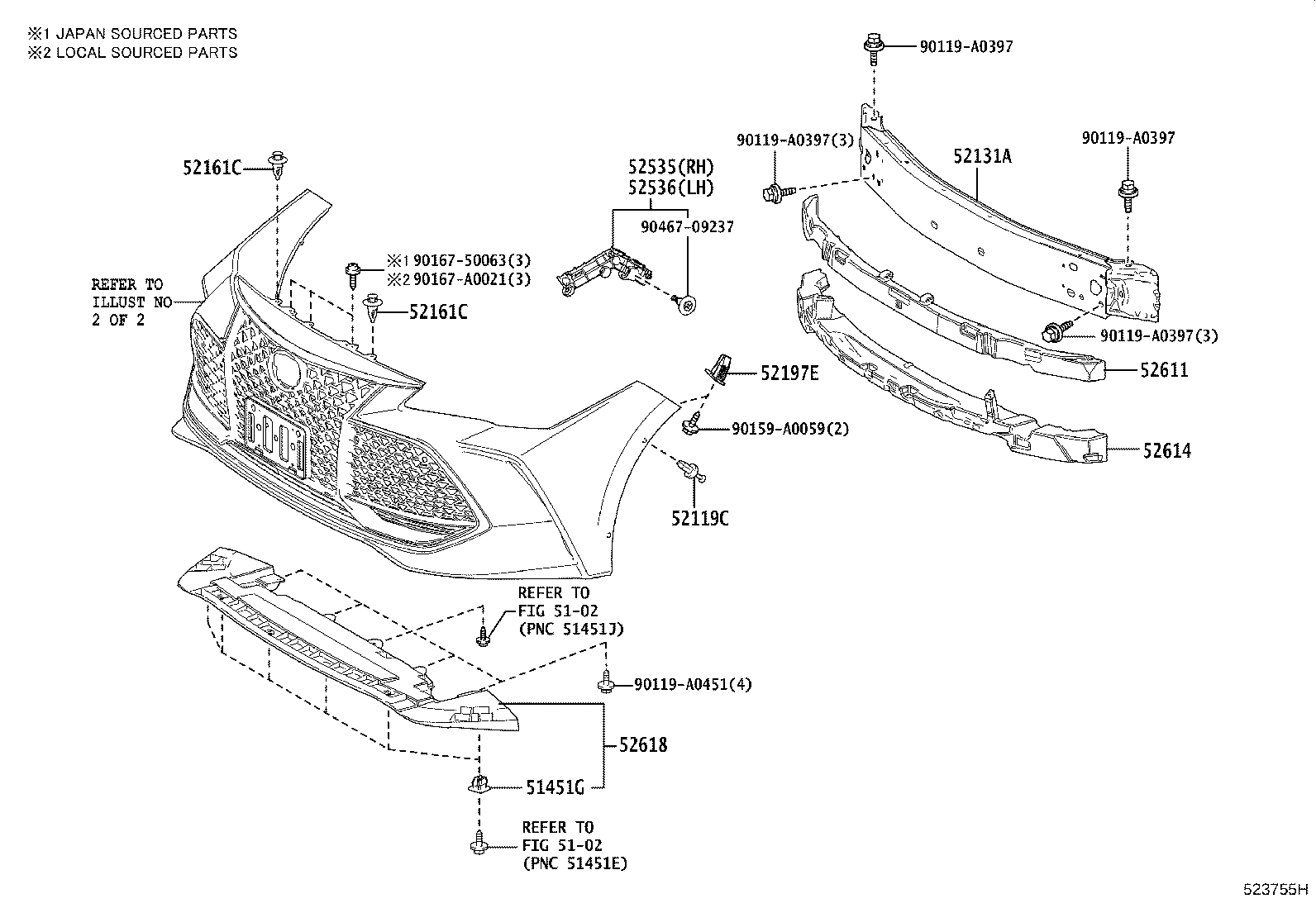

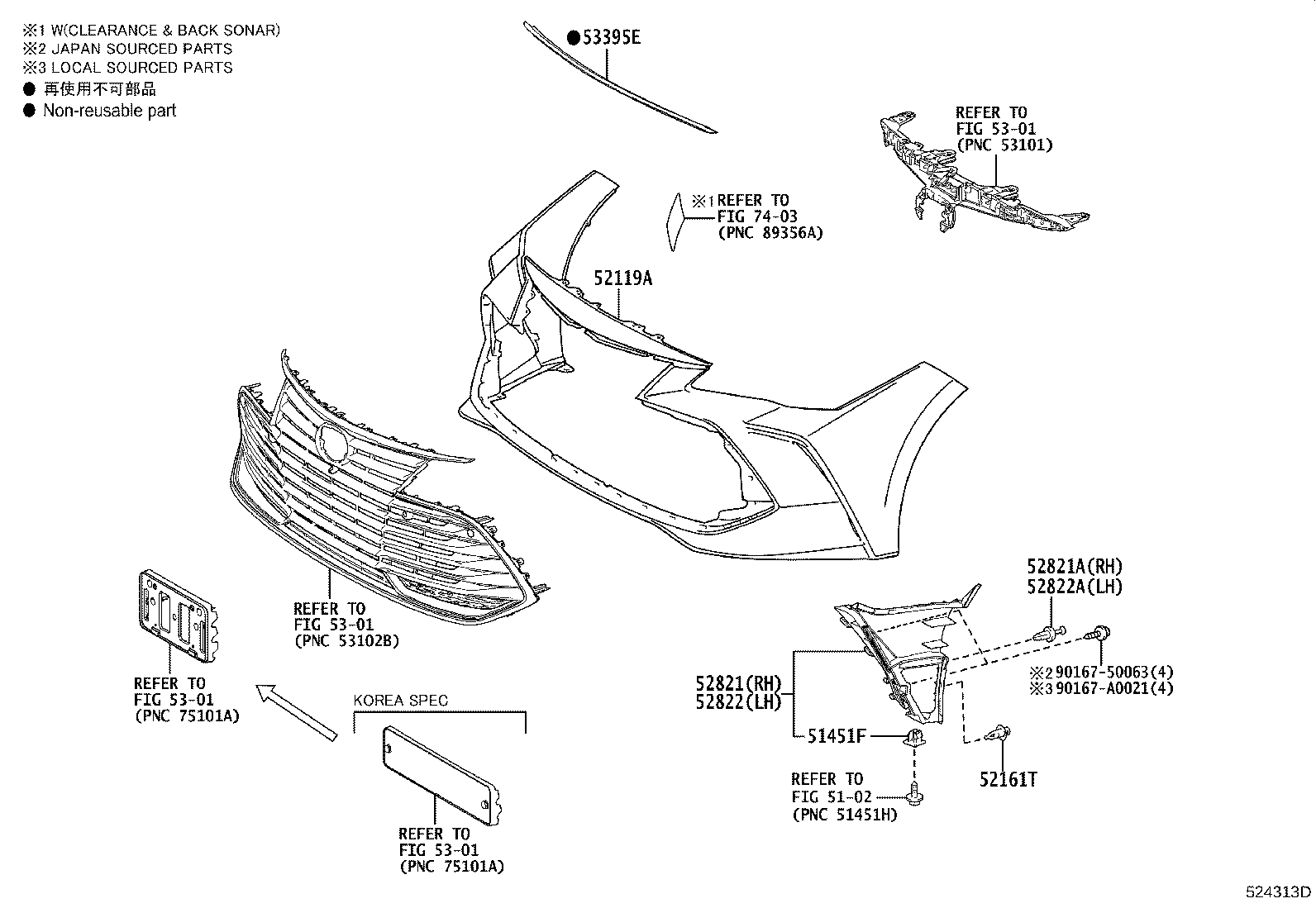

Figure 523754H 523754H 2018-04 → — Figure 524313D 524313D 2018-04 → — Figure 523755H 523755H 2018-04 → — Figure 524314B 524314B 2018-04 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52197E Bracket, Front Bumper Seal
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52614 Absorber, Front Bumper Energy, NO.2
52618 Absorber, Front Bumper, Lower
52821 Duct, Air Intake, RH
52821A Clip, Air Intake Duct
52822 Duct, Air Intake, LH
52822A Clip, Air Intake Duct
53395E Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
