Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

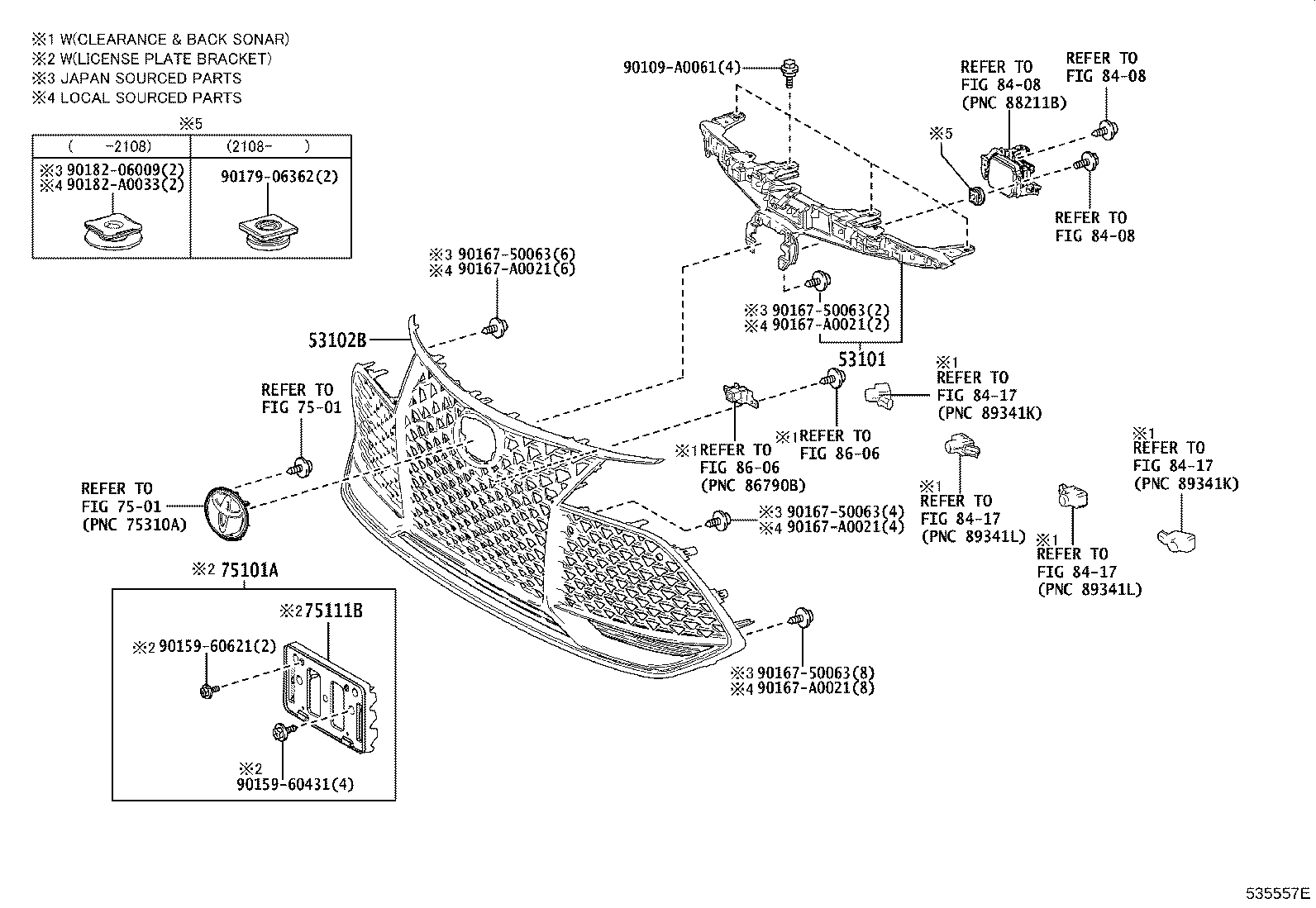

Radiator Grille
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52711C | Moulding, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53102B | Grille Sub-assy, Radiator, Lower |
| 53111 | Grille, Radiator |
| 75101A | Bracket Sub-assy, Front License Plate |
| 75111B | Bracket, Front License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
