Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

5 part groups · 3 illustrations

Illustrations

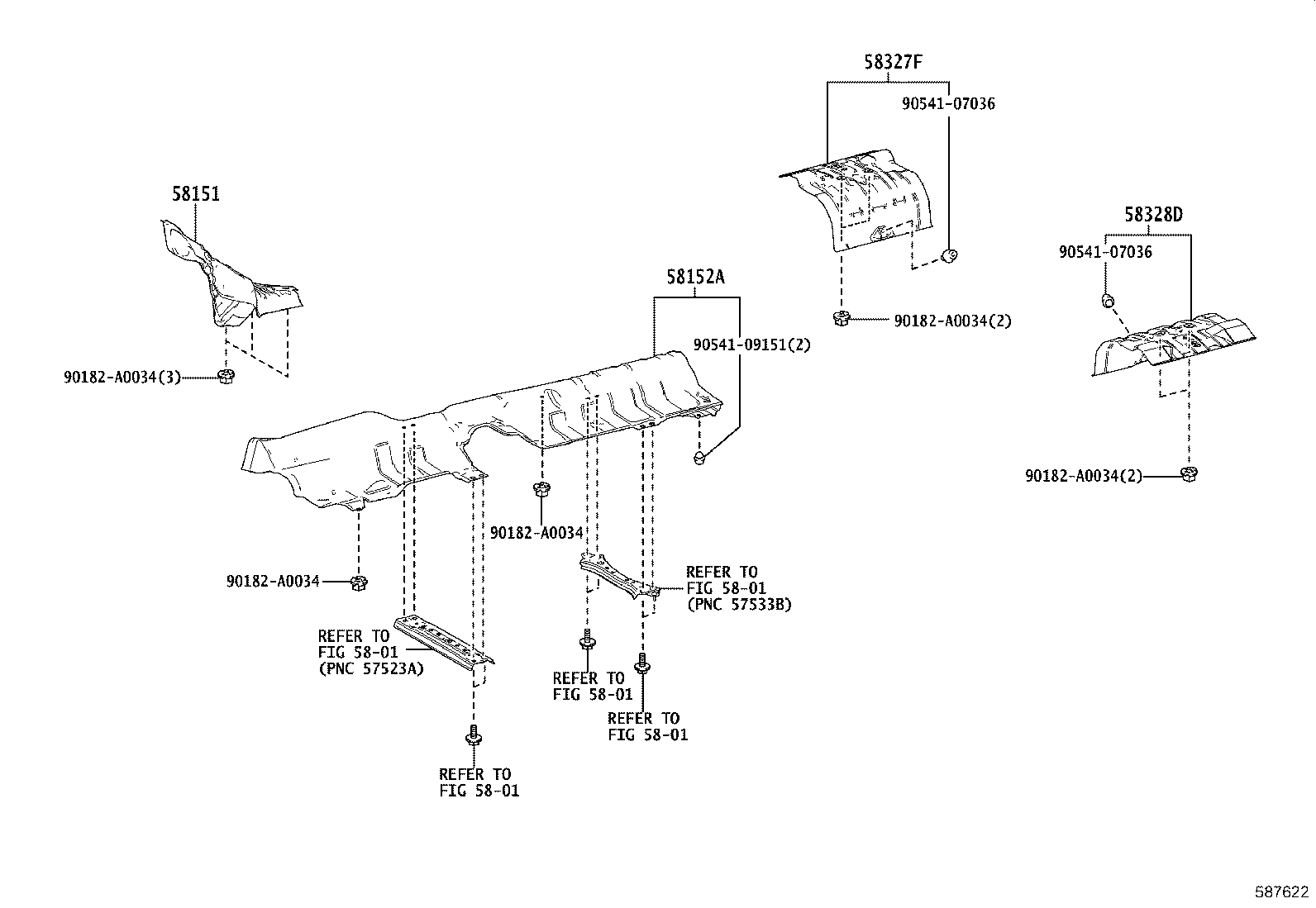

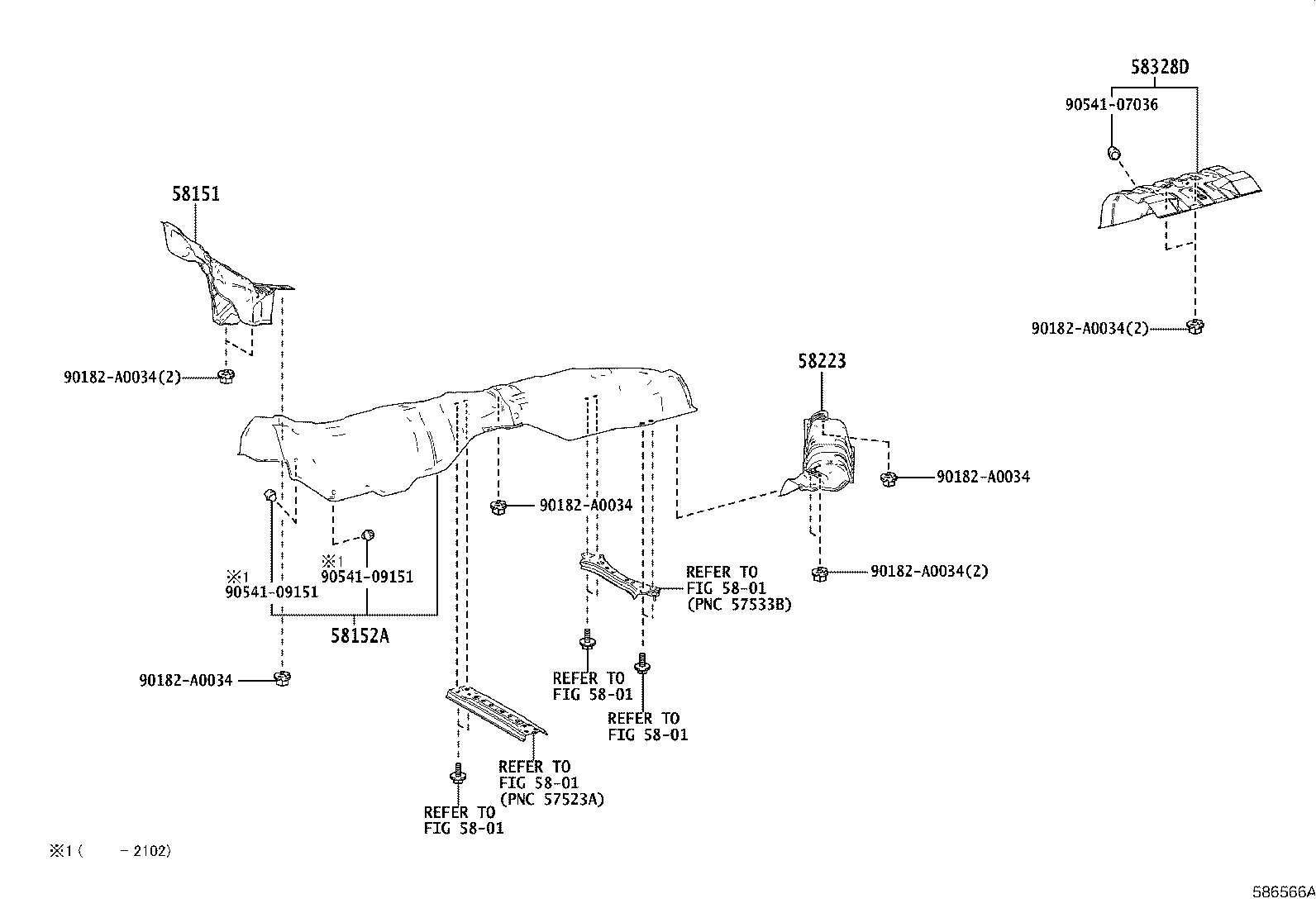

Figure 586565A 586565A 2018-04 → — Figure 586566A 586566A 2018-05 → — Figure 587622 587622 2020-08 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58223 Insulator, Center Floor Heat, NO.2
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
