Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

74 part groups · 5 illustrations

Illustrations

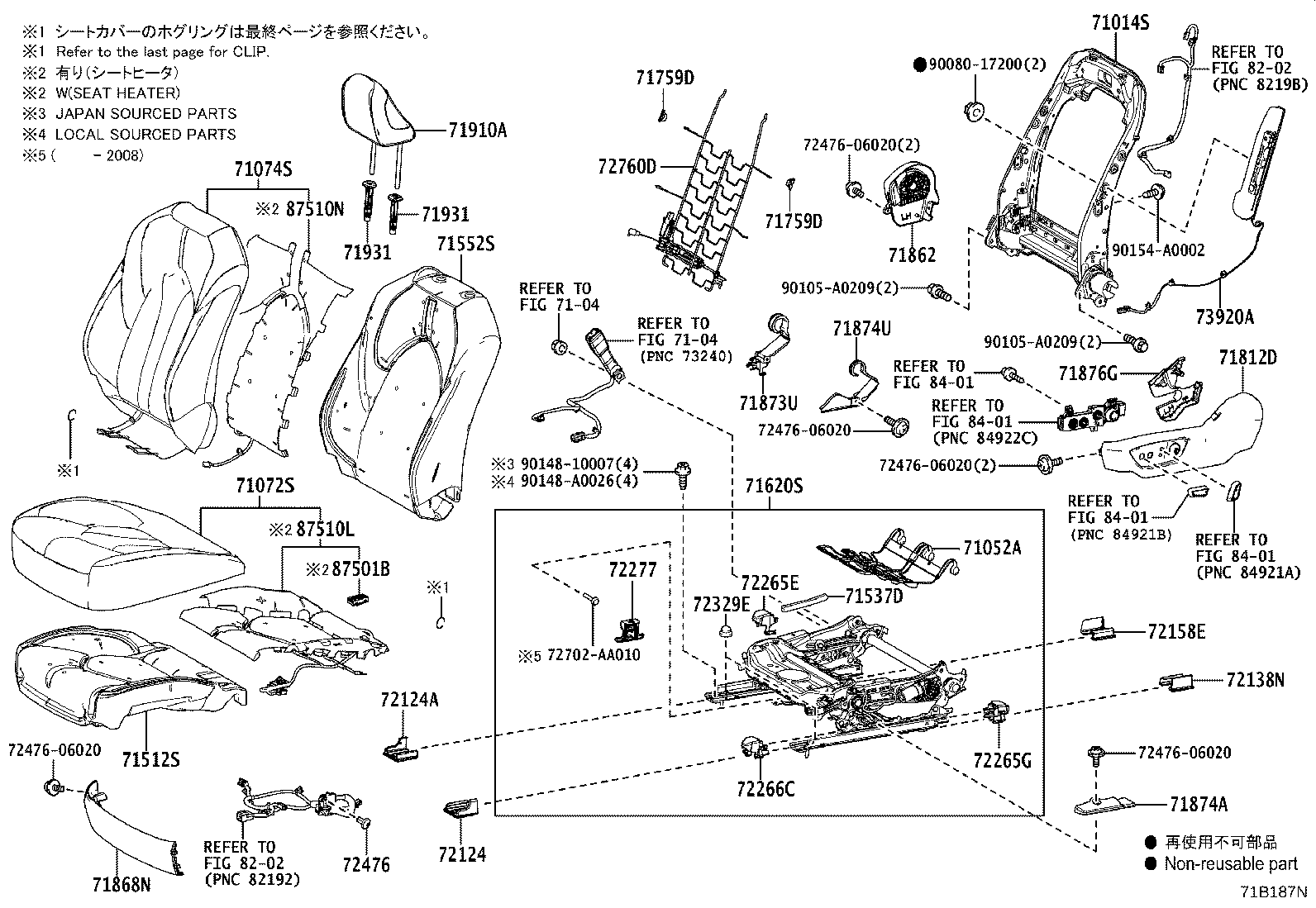

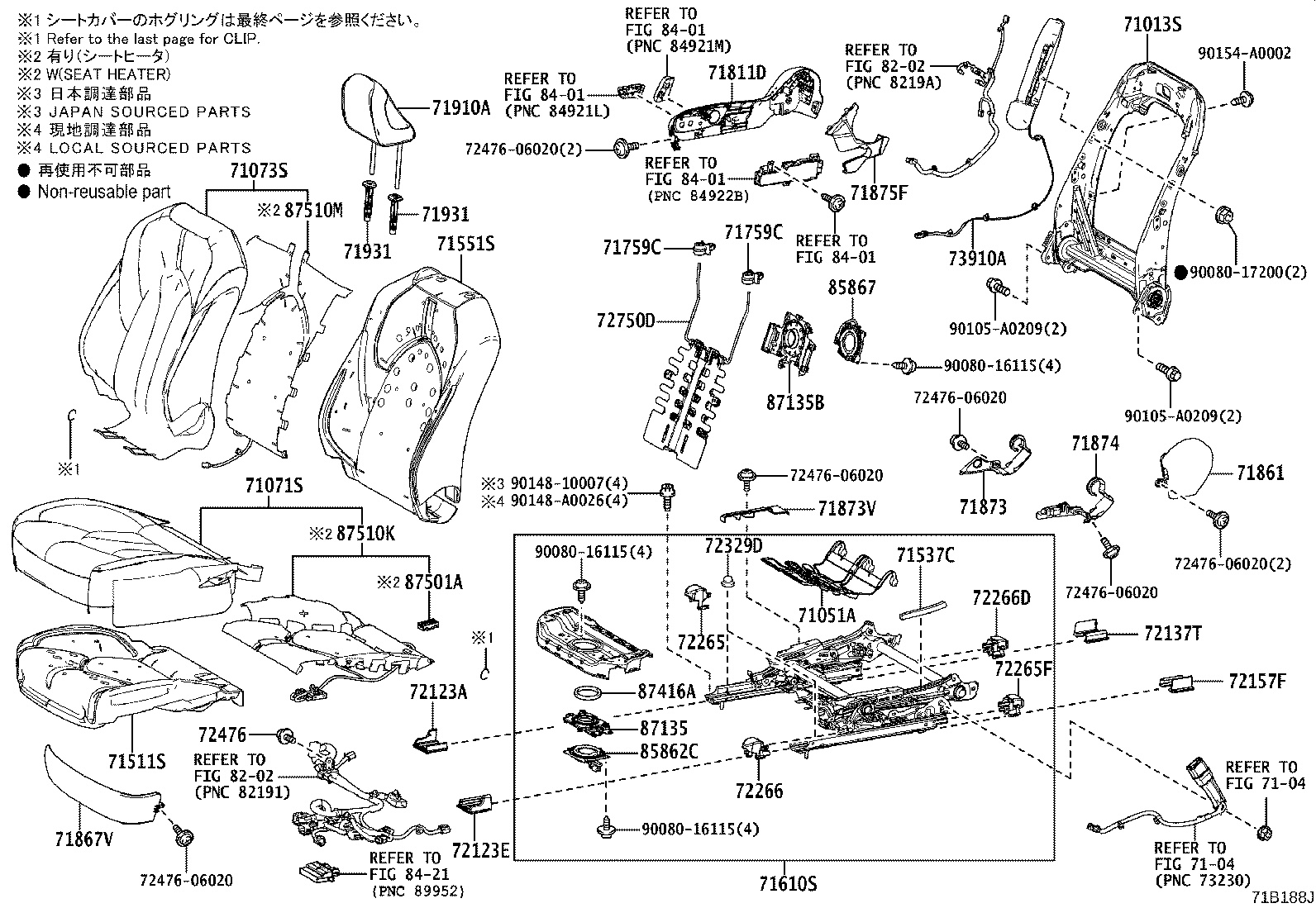

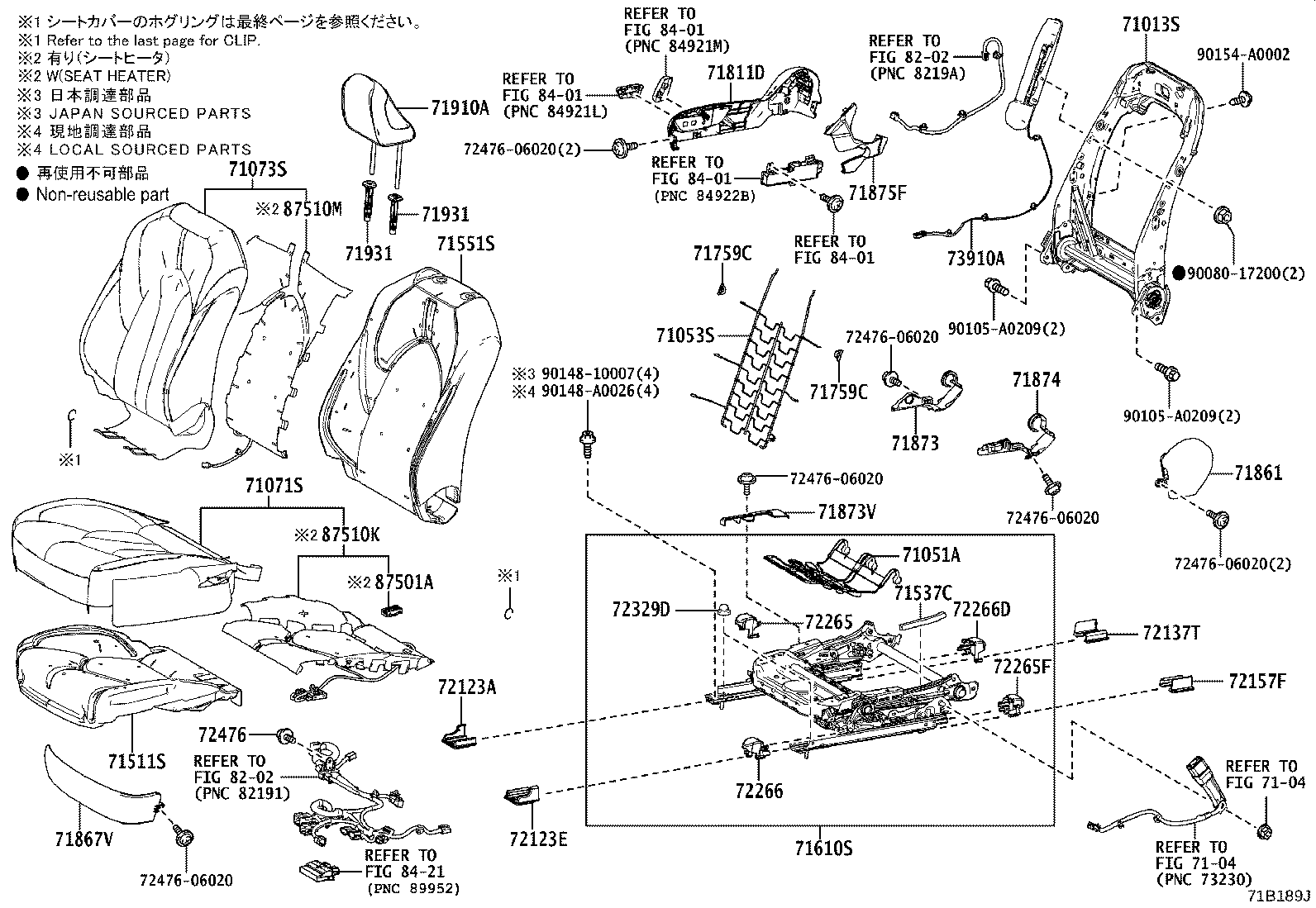

Figure 71B185N 71B185N 2018-04 → — Figure 71B187N 71B187N 2018-04 → — Figure 71B188J 71B188J 2018-04 → — Figure 71B189J 71B189J 2018-04 → — Figure 71A615B 71A615B 2018-04 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873U Shield, Front Seat Cushion, Lower RH
71873V Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72123A Cover, Seat Track Bracket, Outer Front RH
72123E Cover, Seat Track Bracket, Inner Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72124A Cover, Seat Track Bracket, Inner Front LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72265 Cover, Seat Track Upper Rail, RH
72265E Cover, Seat Track Upper Rail, RH
72265F Cover, Seat Track Upper Rail, LH(FOR RH SEAT)
72265G Cover, Seat Track Upper Rail, LH(FOR LH SEAT)
72266 Cover, Seat Track Upper Rail, LH
72266C Cover, Seat Track Upper Rail, LH
72266D Cover, Seat Track Upper Rail, RH(FOR RH SEAT)
72277 Protector, Seat Slide Position Sensor,
72329D Cover, Seat Adjuster Bolt, RH
72329E Cover, Seat Adjuster Bolt, LH
72476 Screw, Horizontal Jack, Inner
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
85862C Blower, Seat Cushion Climate Control, RH
85862D Blower, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87135 Adapter, Blower Fan, RH(FOR SEAT CUSHION)
87135A Adapter, Blower Fan, LH(FOR SEAT CUSHION)
87135B Adapter, Blower Fan, RH(FOR SEATBACK)
87135C Adapter, Blower Fan, LH(FOR SEATBACK)
87416A Gasket, Air Duct, RH
87416B Gasket, Air Duct, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
