Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

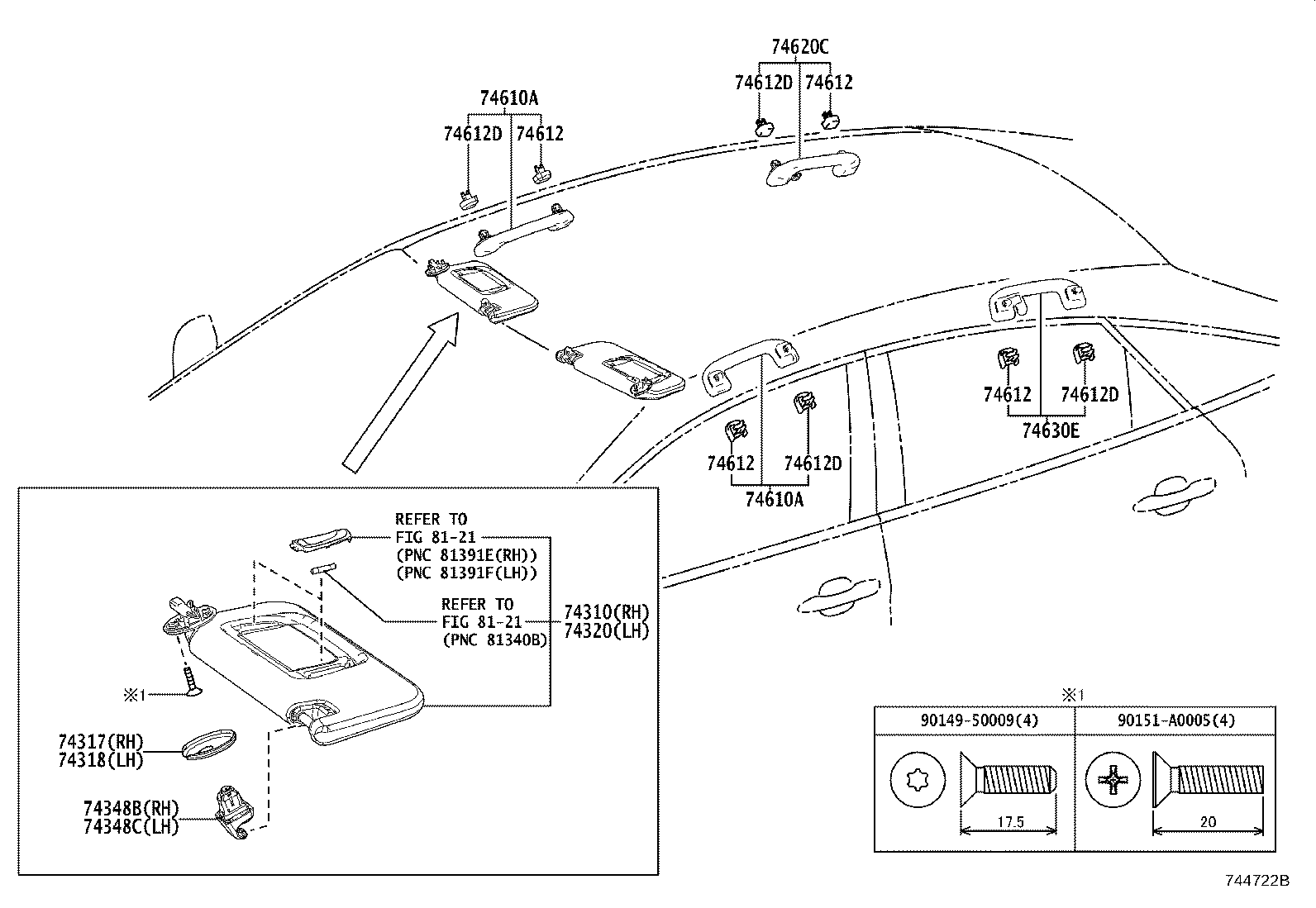

Armrest & Visor
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231C | Panel, Front Door Armrest Base, Upper Driver Side |
| 74232C | Panel, Front Door Armrest Base, Upper Passenger Side |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74612D | Cover, Assist Grip |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
