Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

25 part groups · 2 illustrations

Illustrations

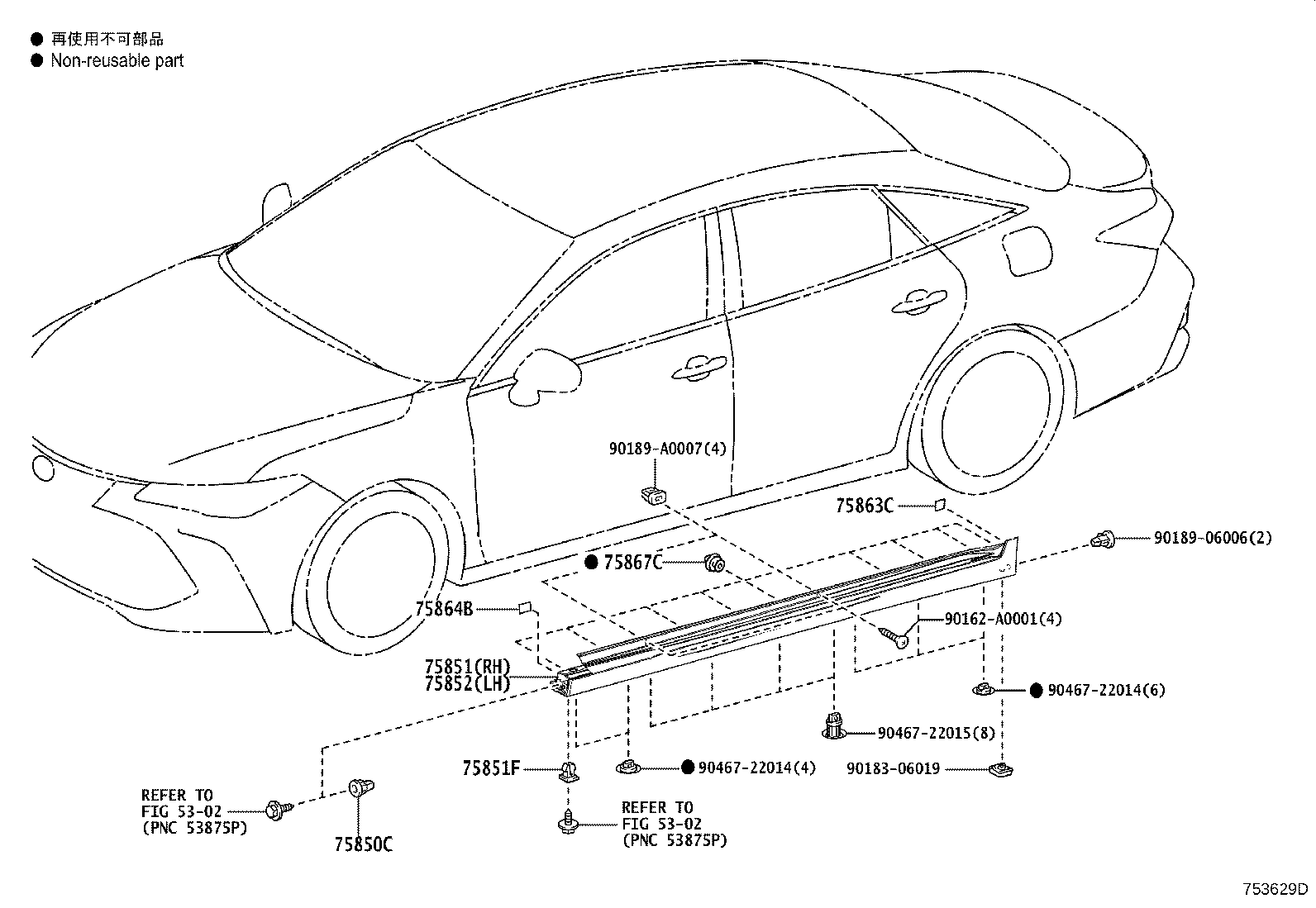

Figure 753627B 753627B 2018-04 → — Figure 753629D 753629D 2018-04 → —

Part groups

PNCDescription
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755A Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE)
75756D Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE)
75761B Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE)
75762B Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE)
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75765A Moulding, Rear Door Window Frame, Rear RH
75766A Moulding, Rear Door Window Frame, Rear LH
75792 Clip, Door Window Frame Moulding
75850C Grommet, NO.1
75851 Moulding, Rocker Panel, RH
75851F Grommet(FOR BODY ROCKER PANEL MOULDING)
75852 Moulding, Rocker Panel, LH
75863C Protector, Rocker Panel Moulding, NO.3
75864B Protector, Rocker Panel Moulding, NO.4
75867C Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
