Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

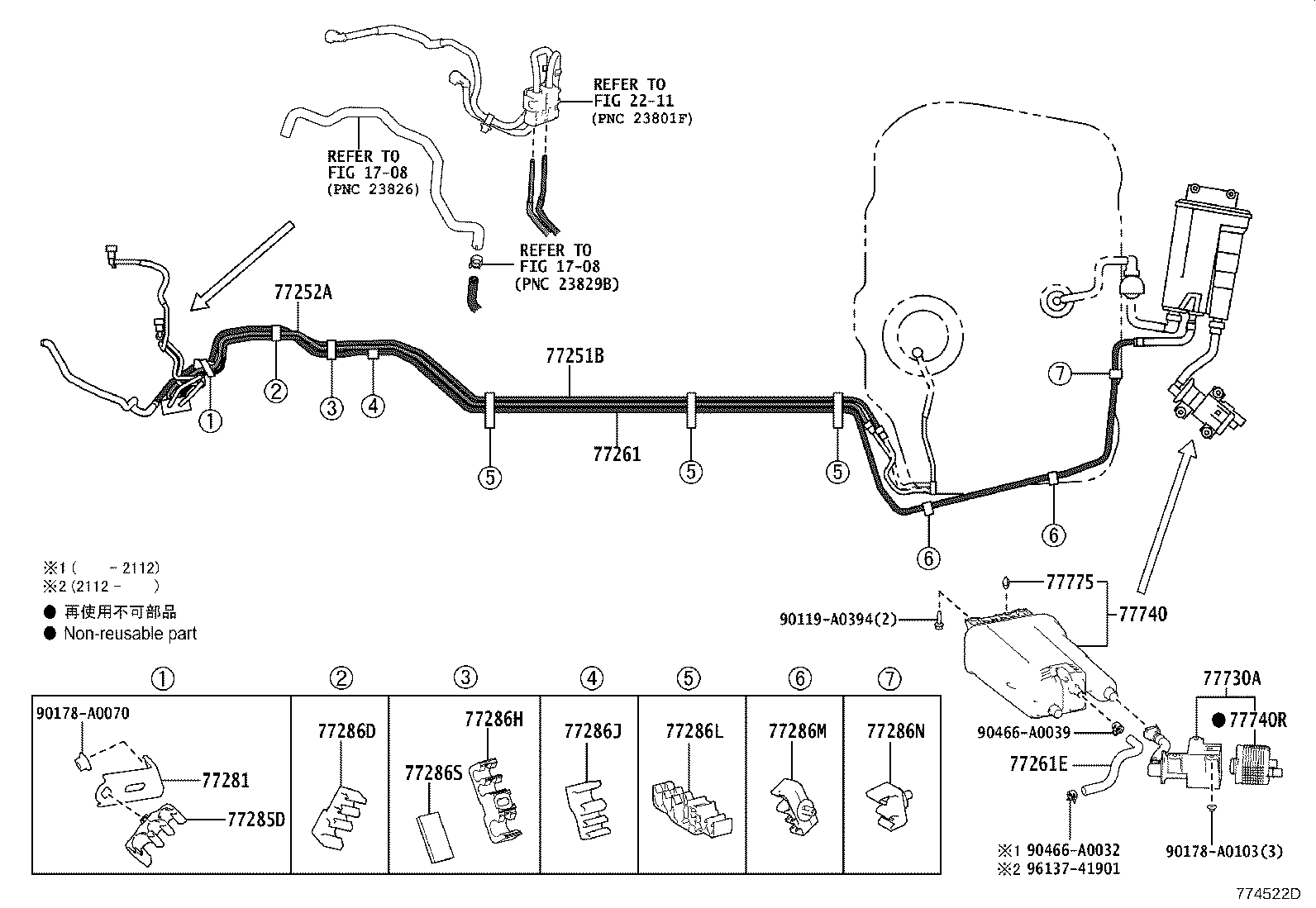

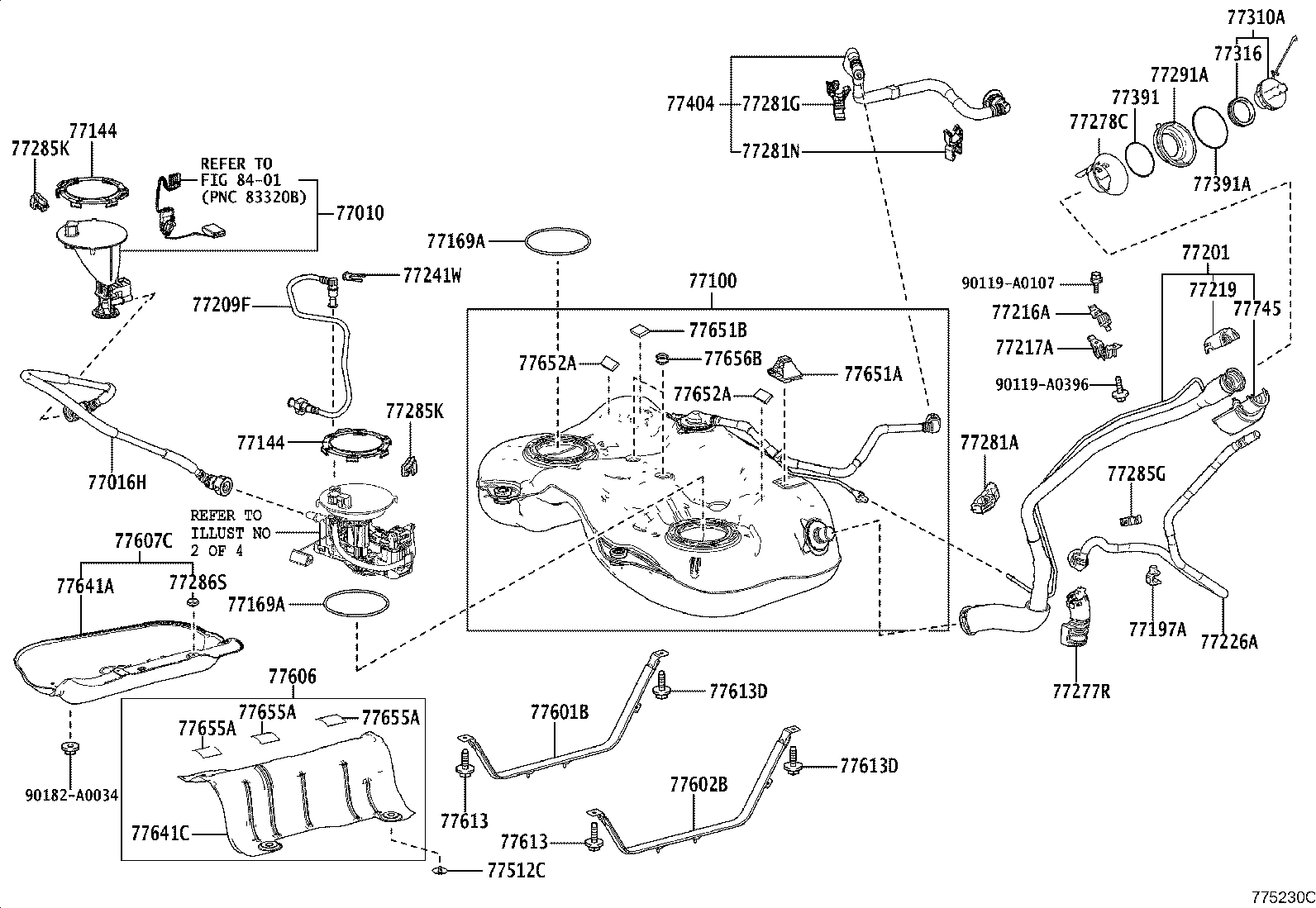

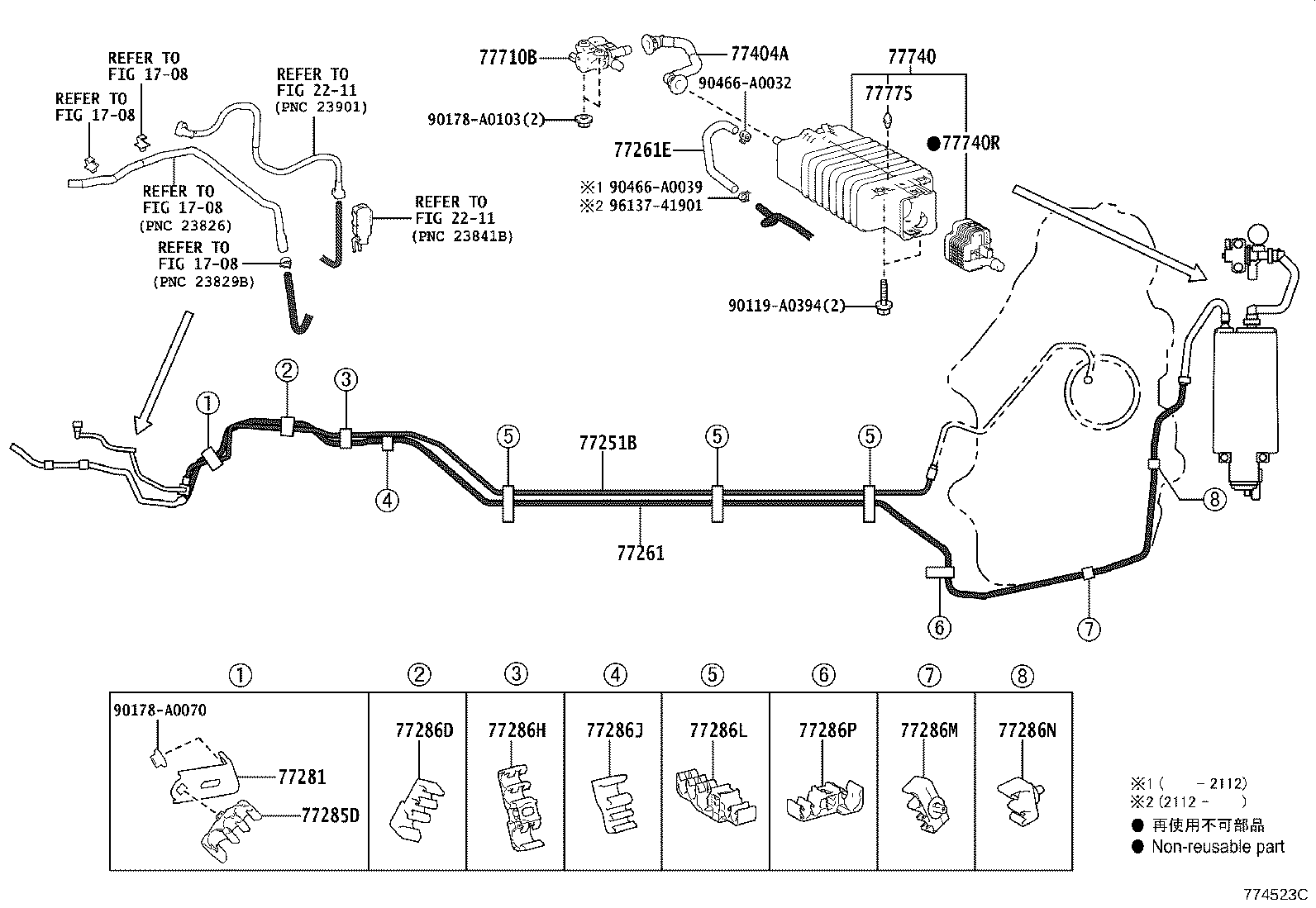

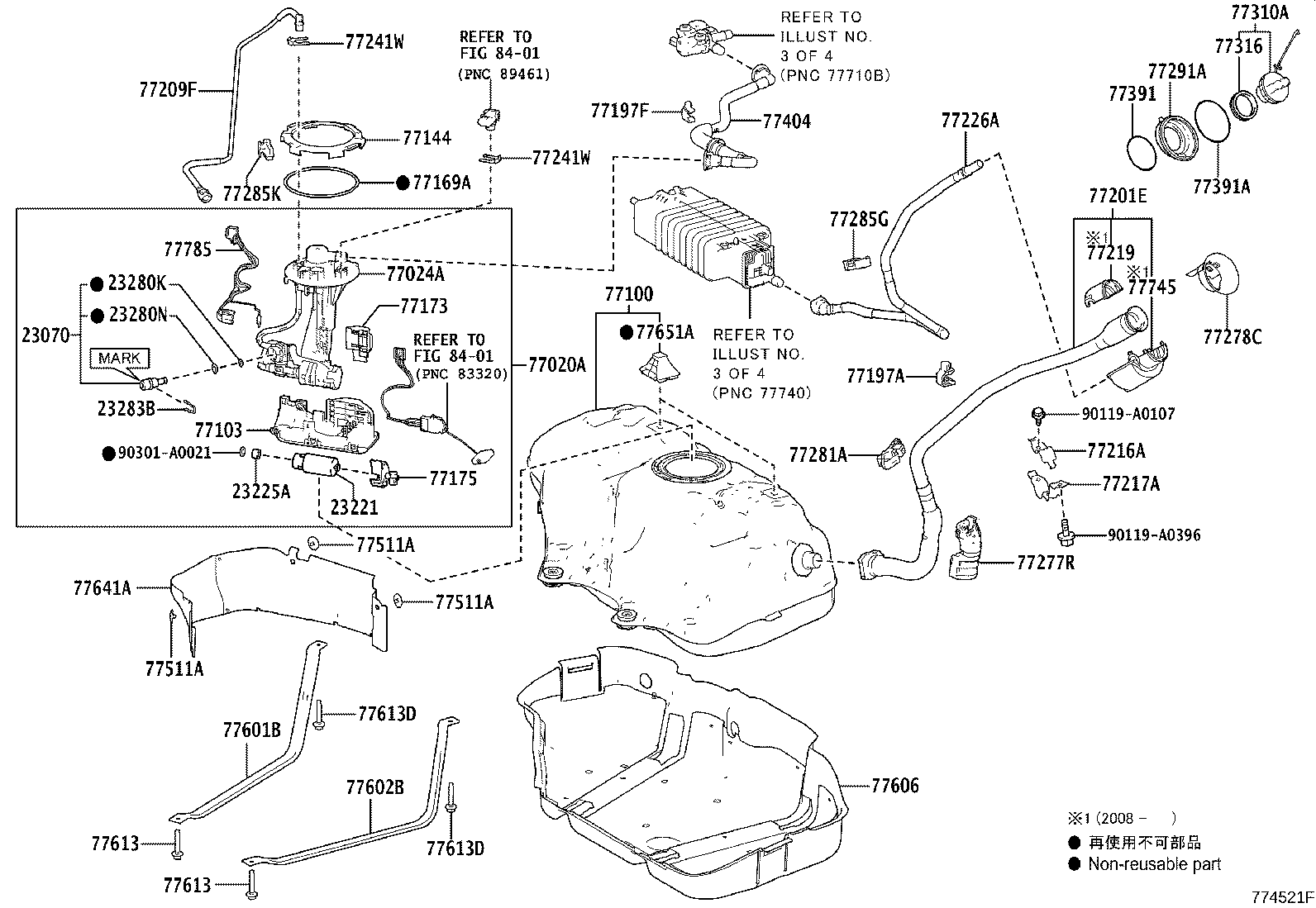

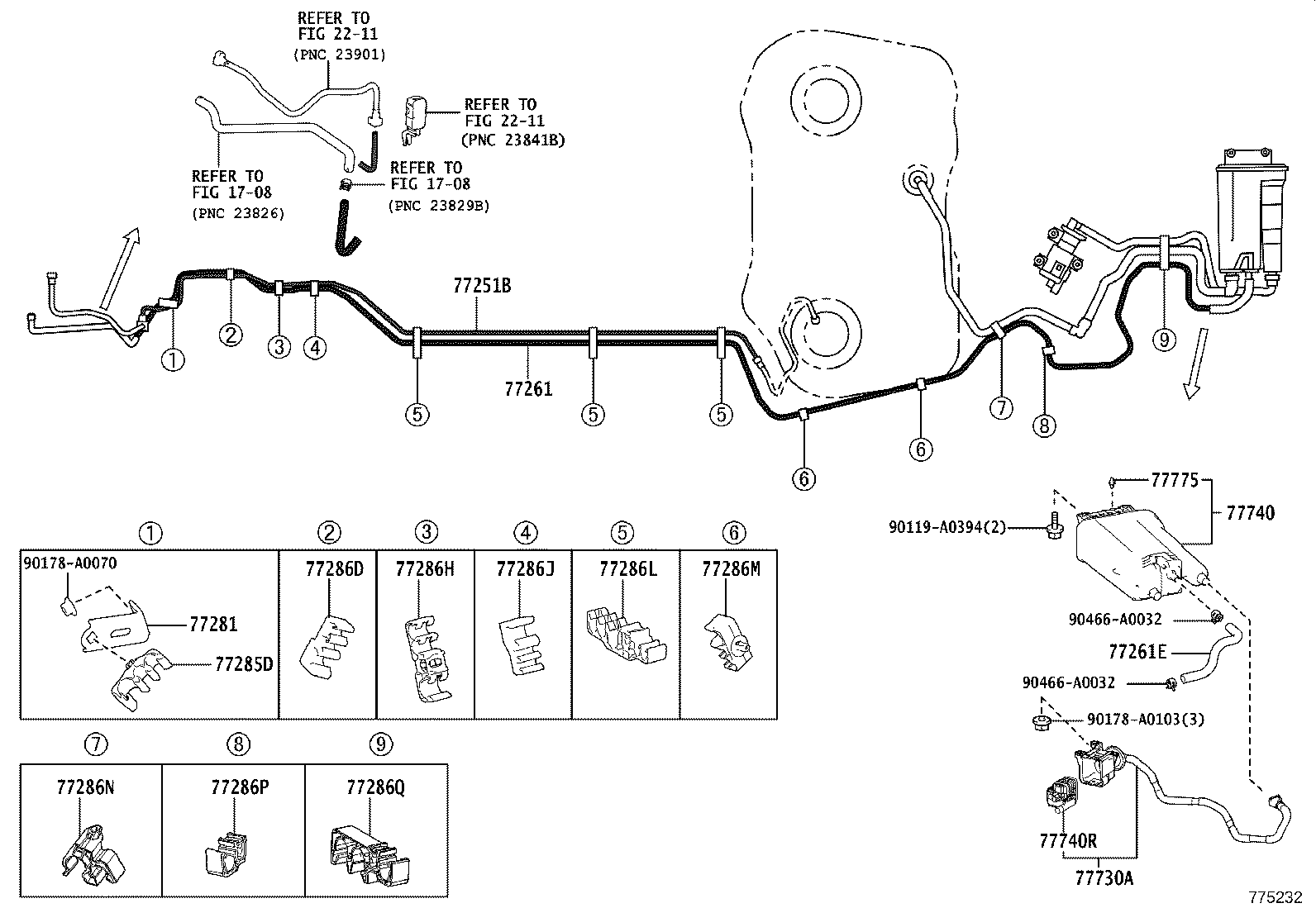

Fuel Tank & Tube
87 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280N | Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2 |
| 23283B | Holder, Fuel Pressure Regulator |
| 77010 | Tube Assy, Fuel Tank Vent |
| 77016H | Tube Sub-assy, Fuel Return Vent |

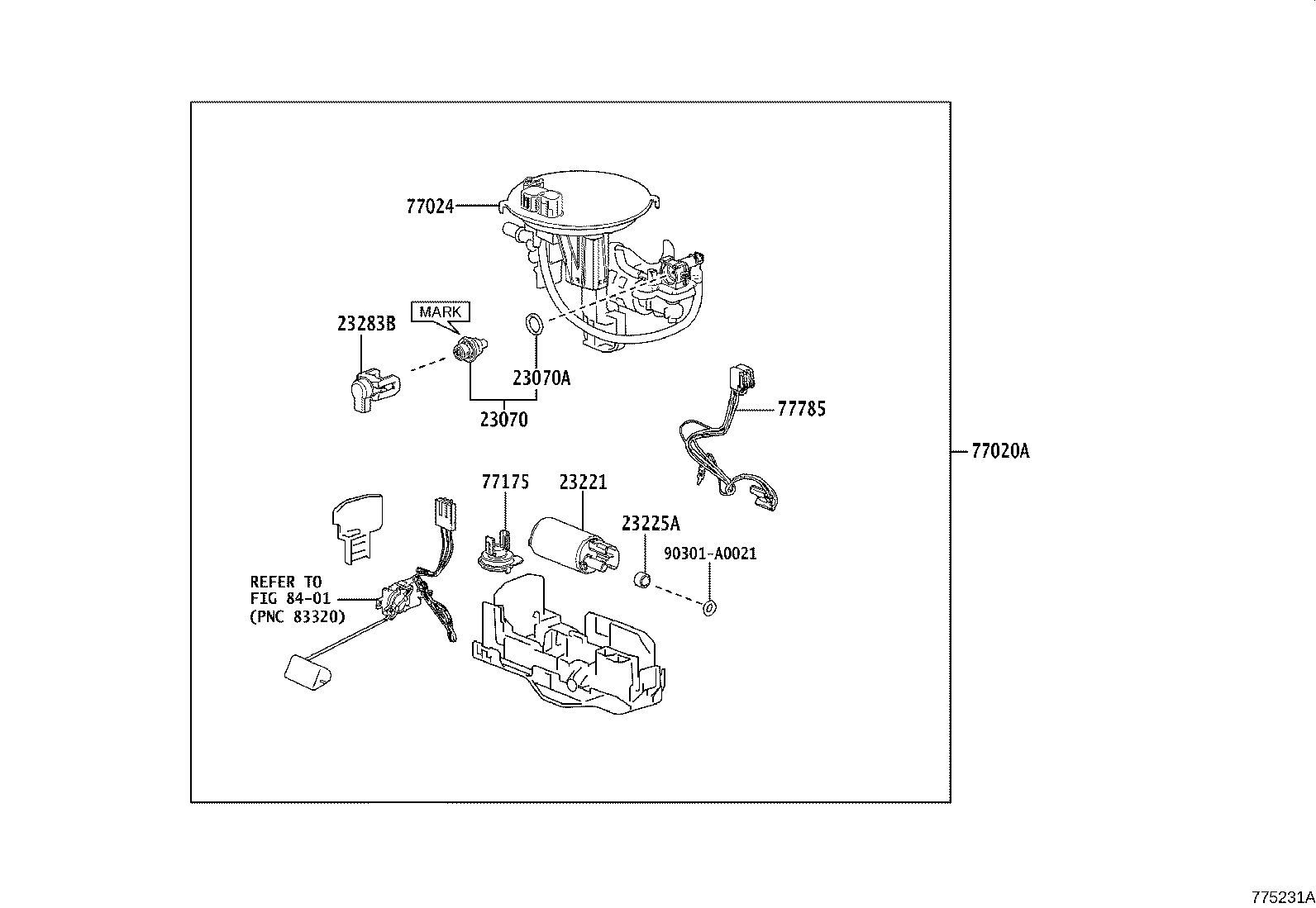

| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024 | Tube Sub-assy, Fuel Main & Return, Front |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77103 | Sub-tank Sub-assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77173 | Bracket, Fuel Gage |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |
| 77197F | Clamp, Evaporation Vent Tube, NO.2 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77281N | Clamp, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77286Q | Clamp, Fuel Tube, NO.9 |
| 77286S | Cushion, Fuel Tank Protector |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |

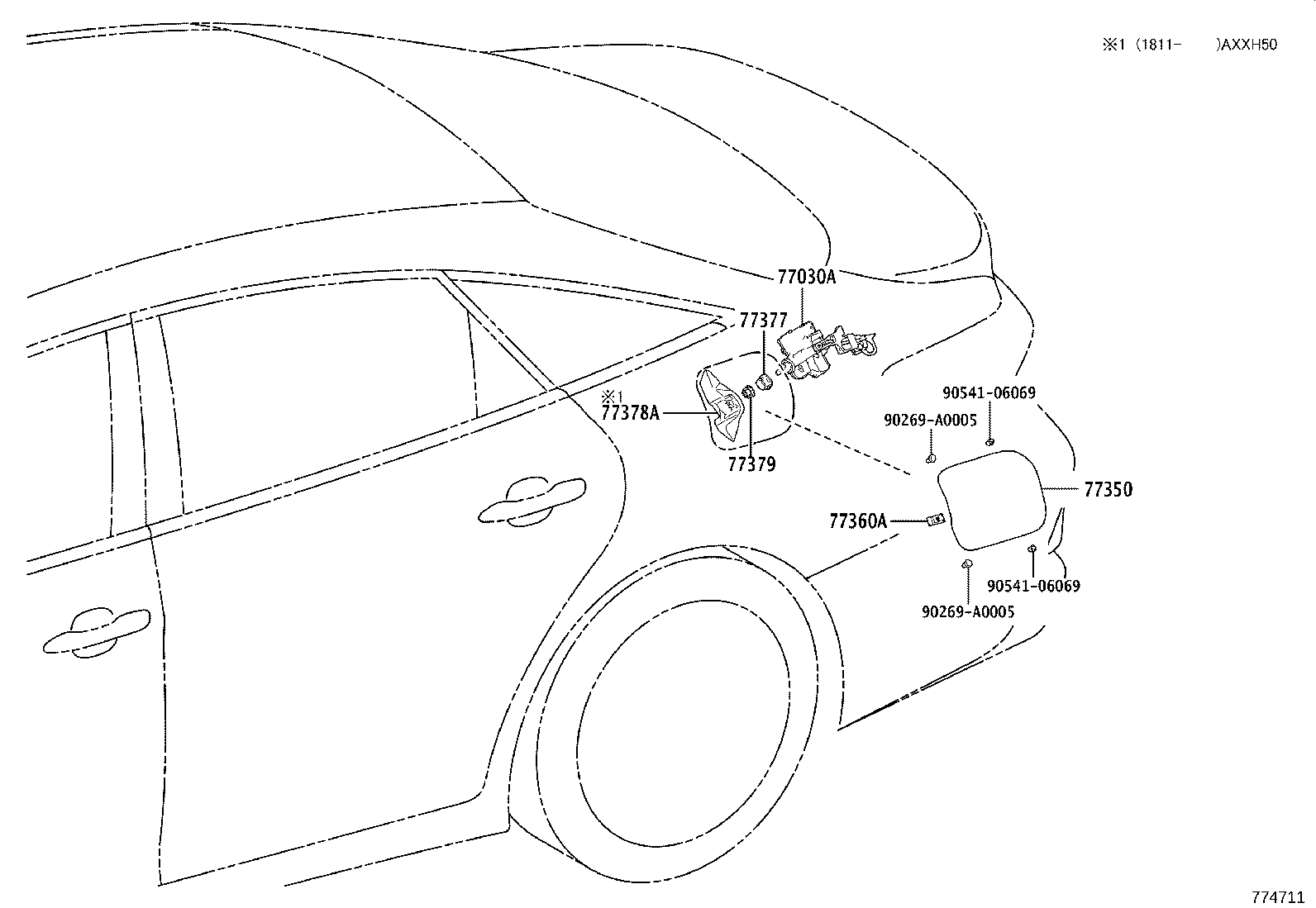

| 77350 | Lid Assy, Fuel Filler Opening |
| 77360A | Spring Assy, Fuel Filler Opening Lid |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77379 | Spacer, Fuel Inlet Box Cover, NO.2 |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77511A | Bracket, Fuel Tank |
| 77512C | Bracket, Fuel Tank |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77607C | Protector Sub-assy, Fuel Tank, NO.2 |
| 77613 | Bolt, Fuel Tank Band Set |
| 77613D | Bolt, Fuel Tank Band Set, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77641C | Protector Assy, Fuel Tank |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77651B | Cushion, Fuel Tank |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77655A | Cushion, Fuel Tank, NO.5 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77710B | Valve Assy, Fuel Tank Solenoid Main |
| 77720H | Valve Assy, Fuel Outlet |
| 77730A | Canister Assy, Trap W/Outlet Valve |
| 77740 | Canister Assy, Charcoal |
| 77740R | Pump Sub-assy, Leak Detection |
| 77745 | Filter, Charcoal Canister, NO.1 |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
