Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

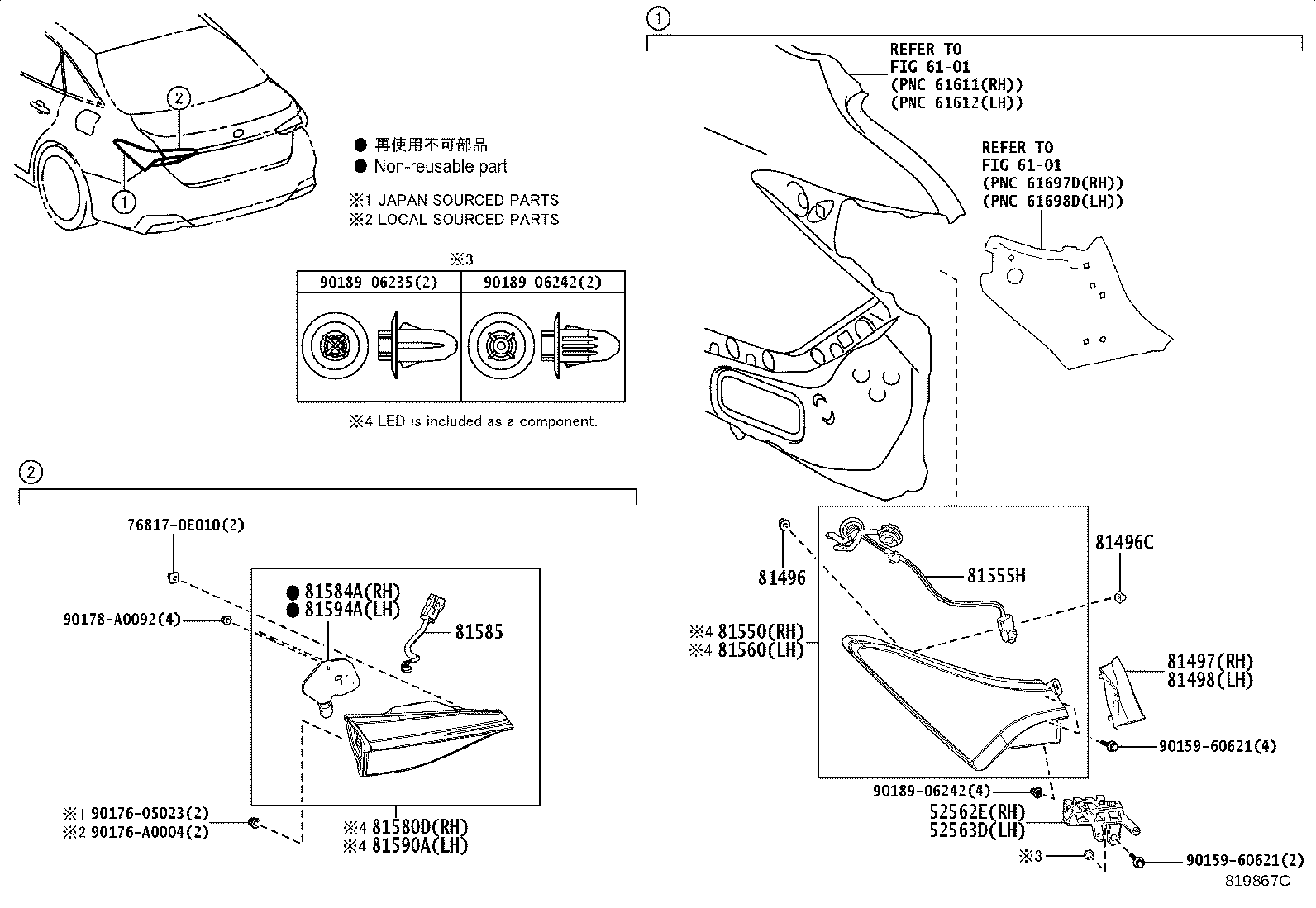

Figure 818521L 818521L 2018-04 → 2020-08 Figure 819867C 819867C 2020-08 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81555H Socket & Wire, Rear Combination Lamp
81560 Lamp Assy, Rear Combination, LH
81580D Lamp Assy, Rear, RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
