Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

107 part groups · 21 illustrations

Illustrations

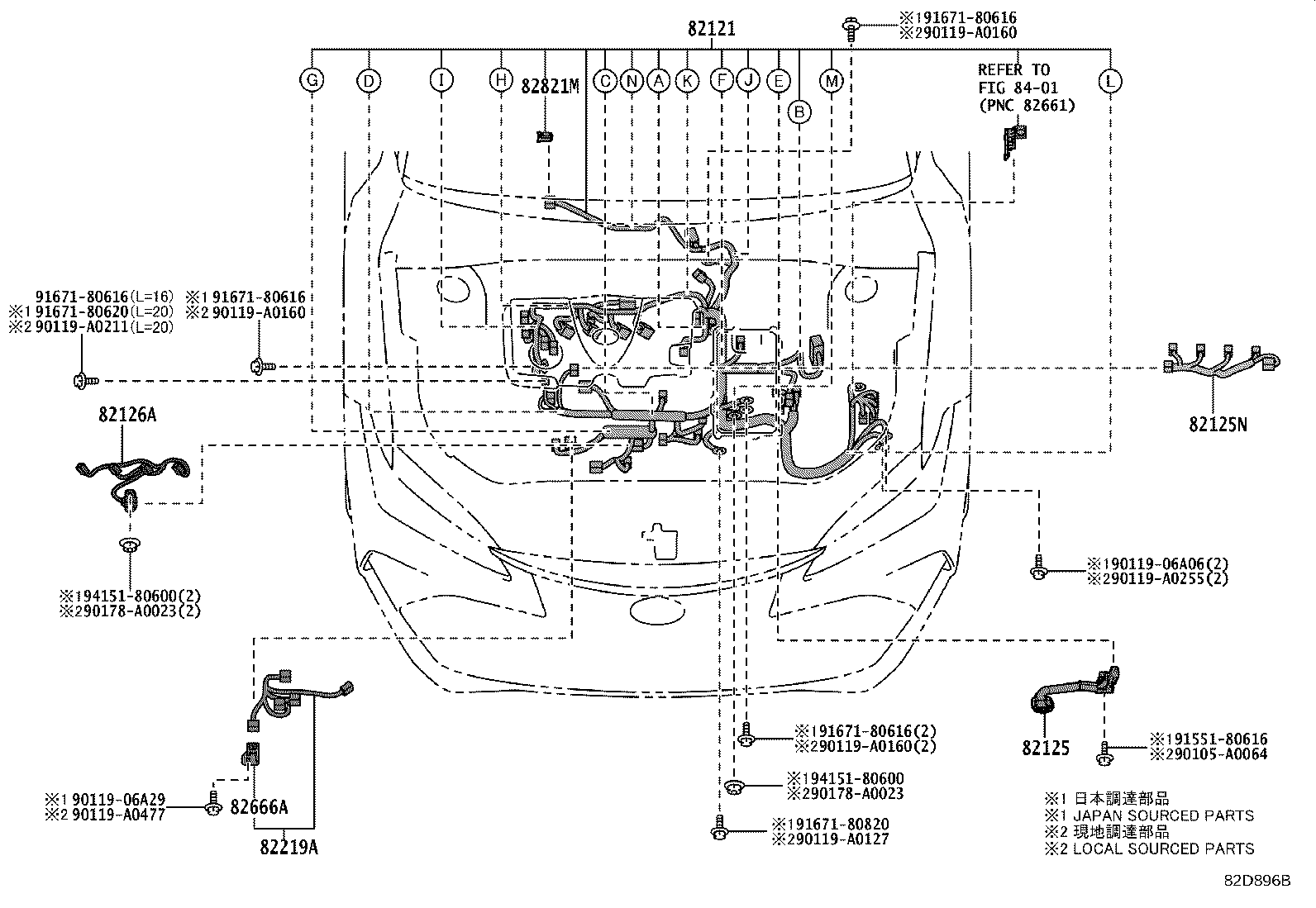

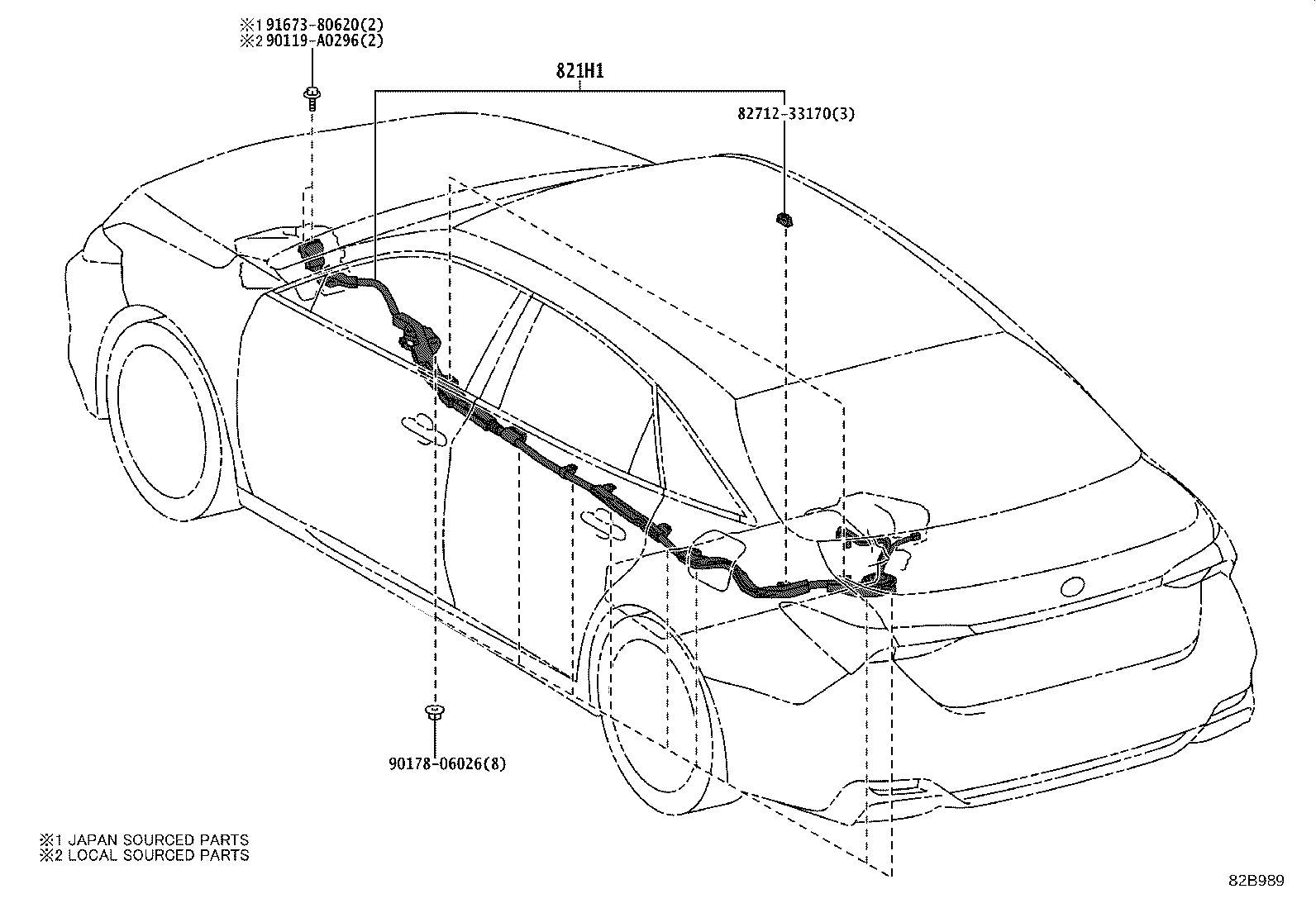

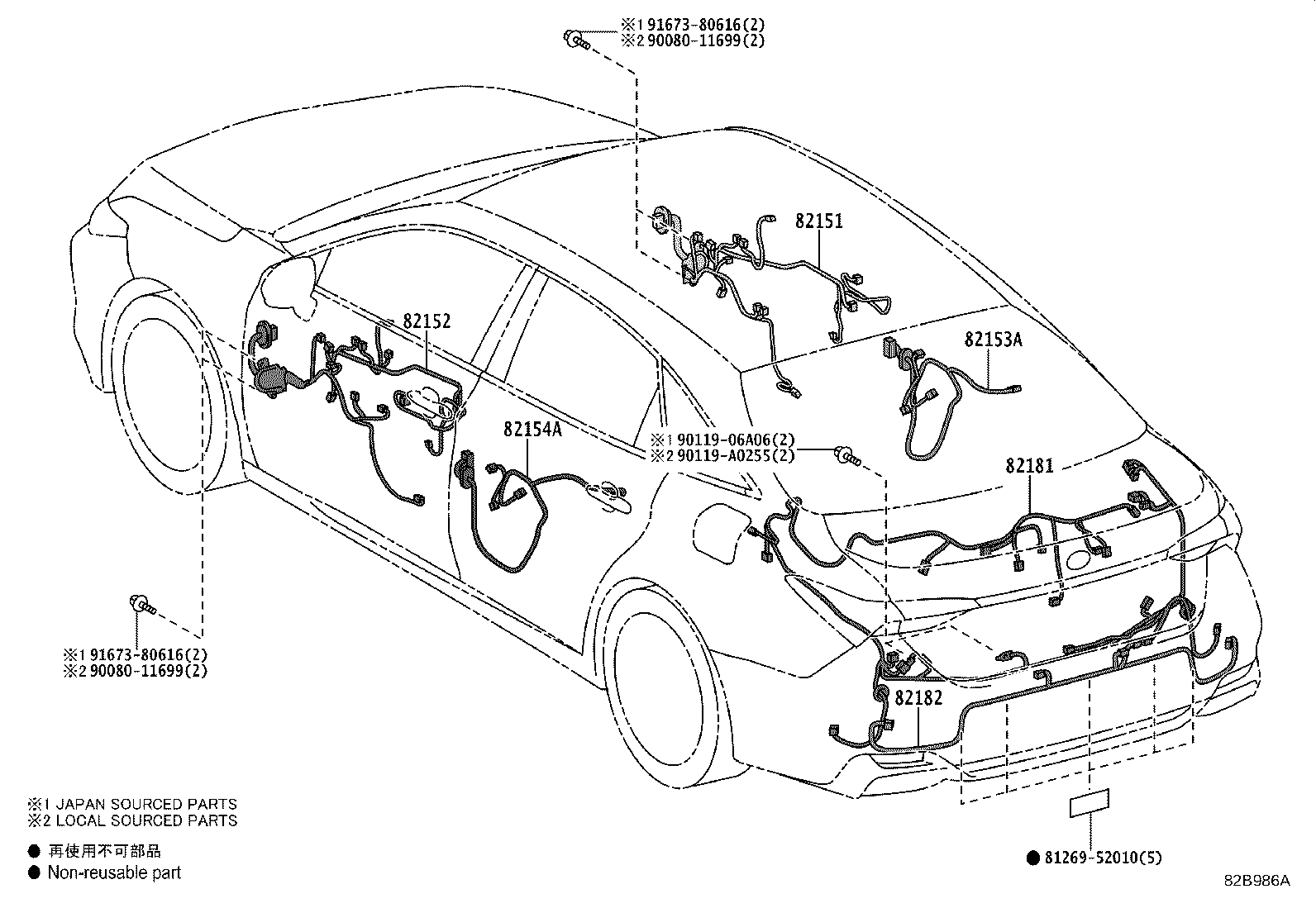

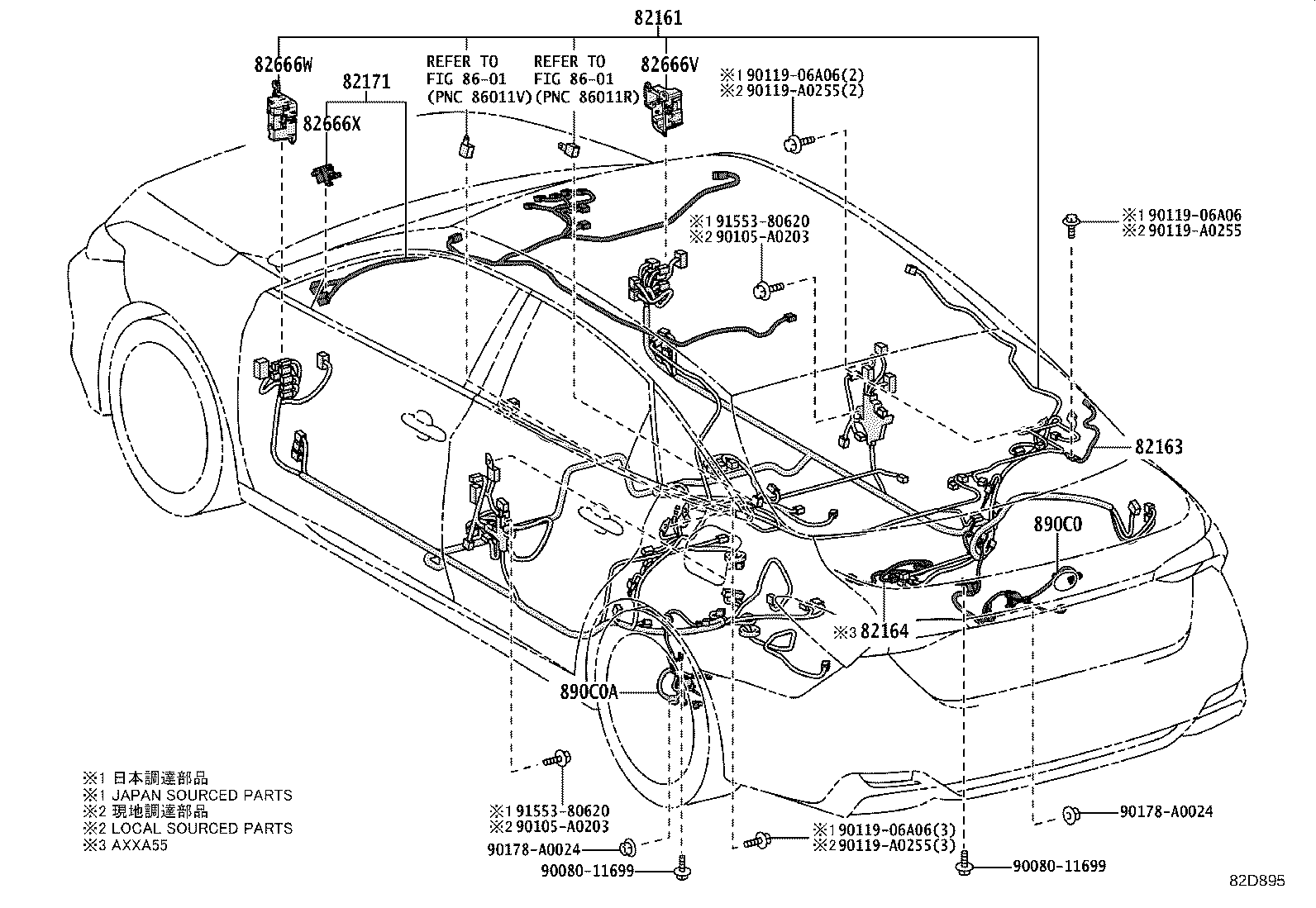

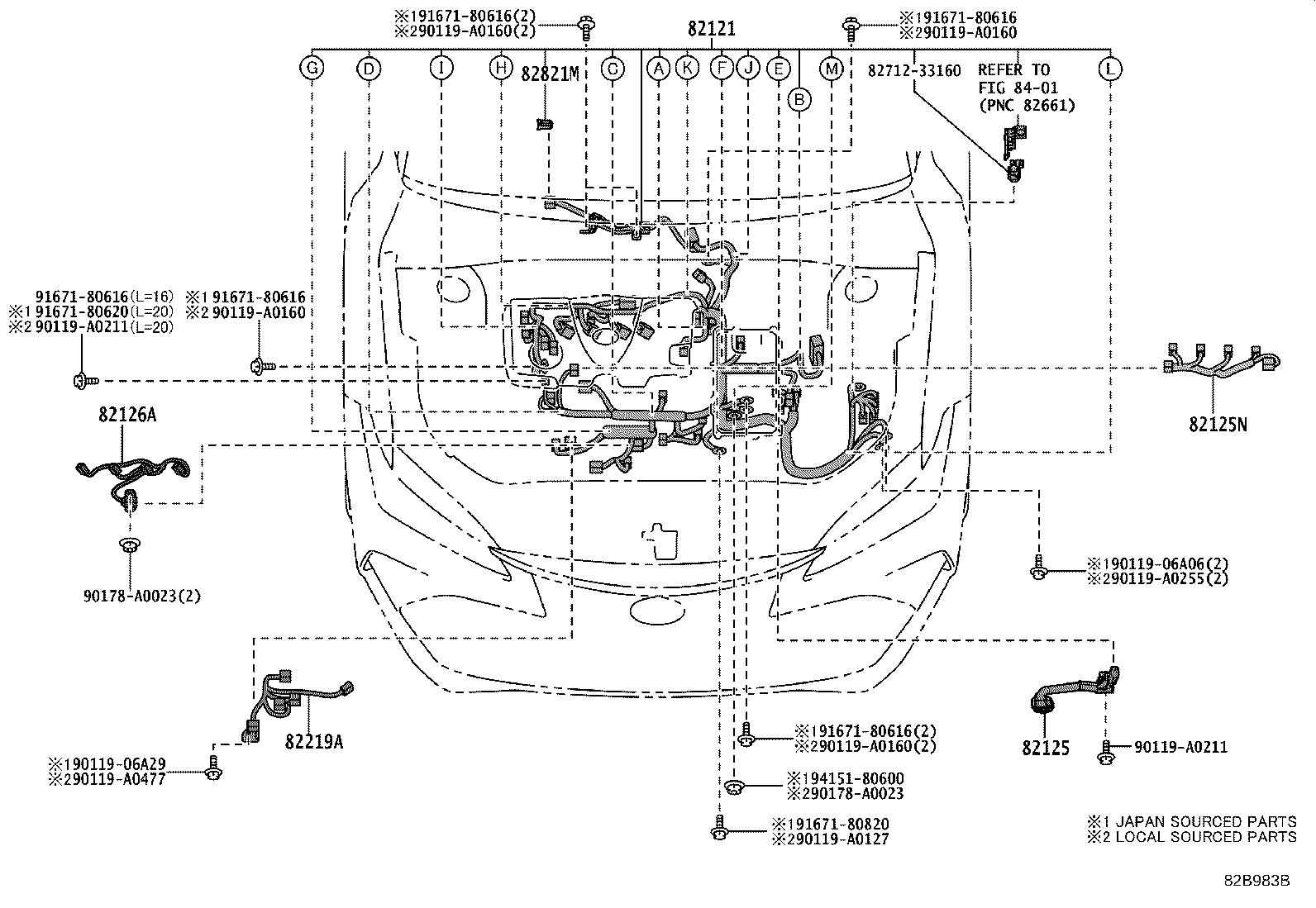

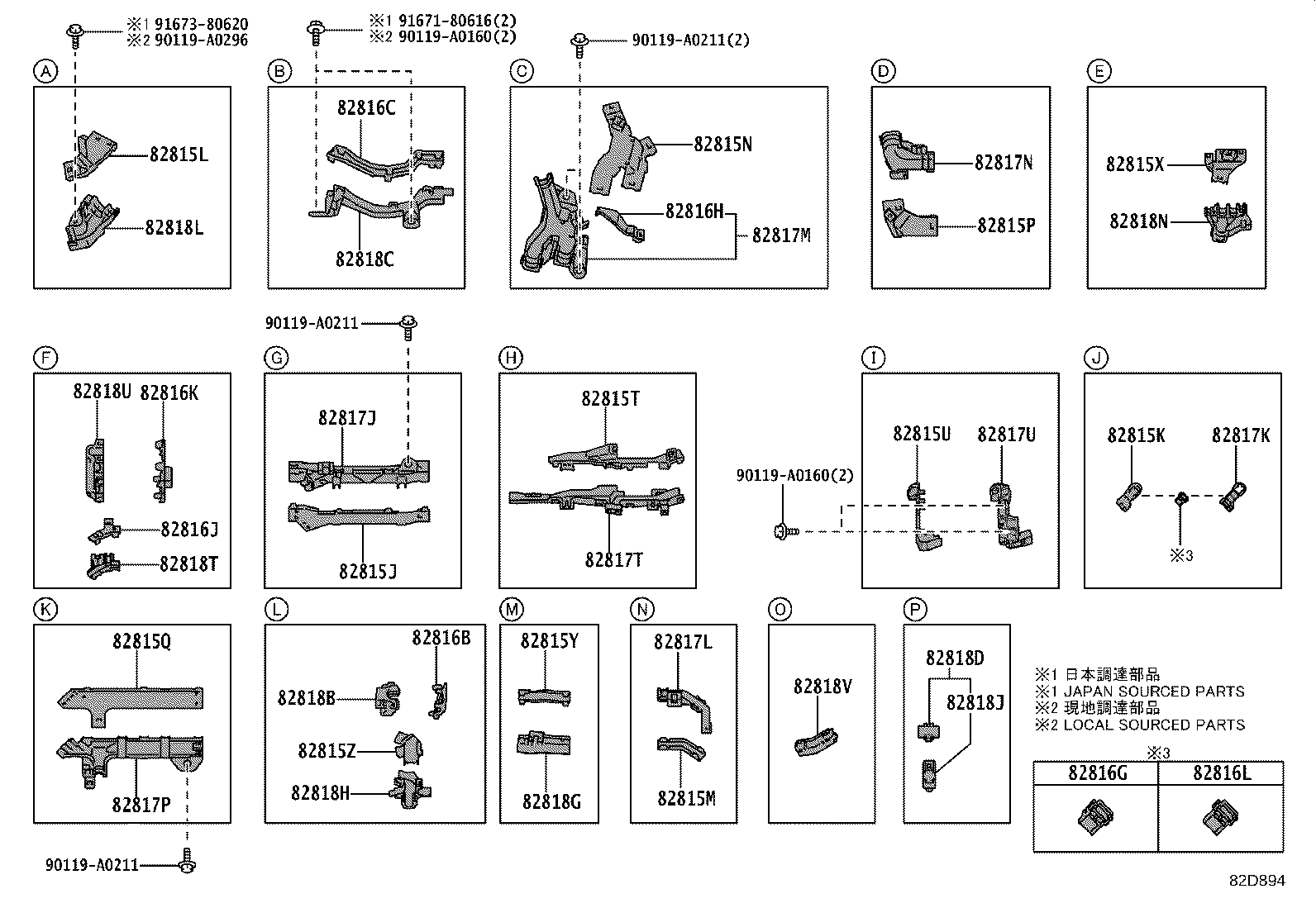

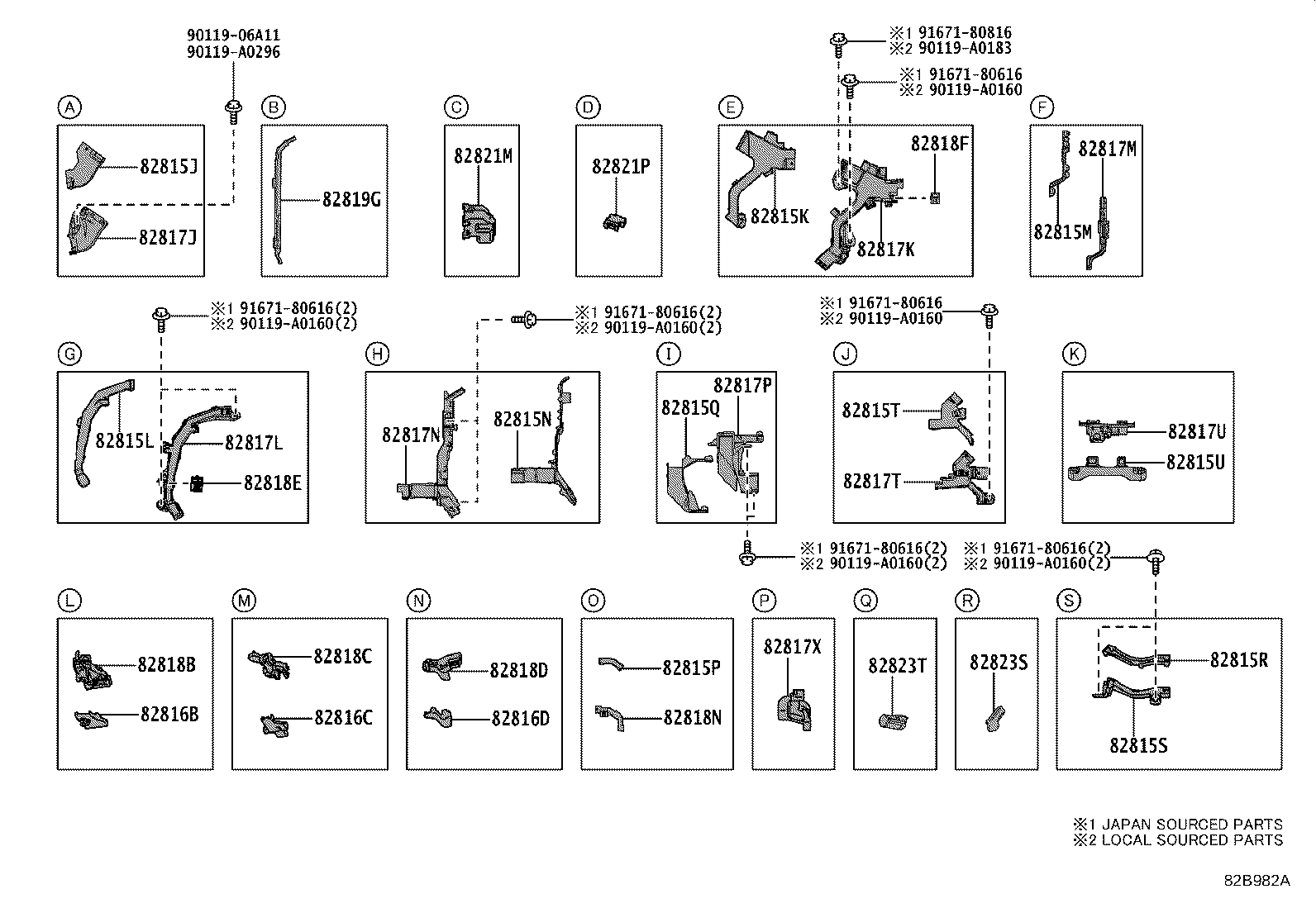

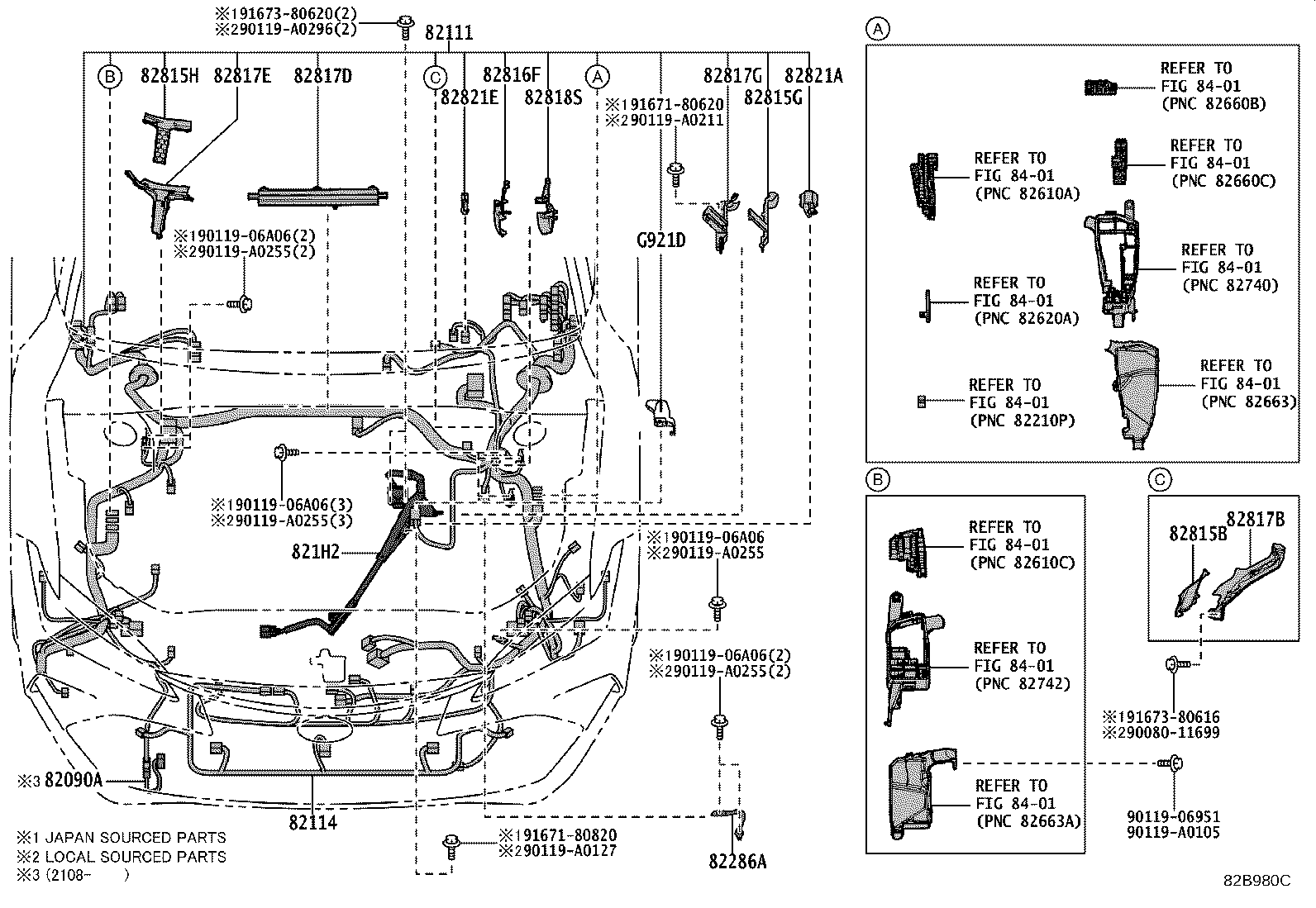

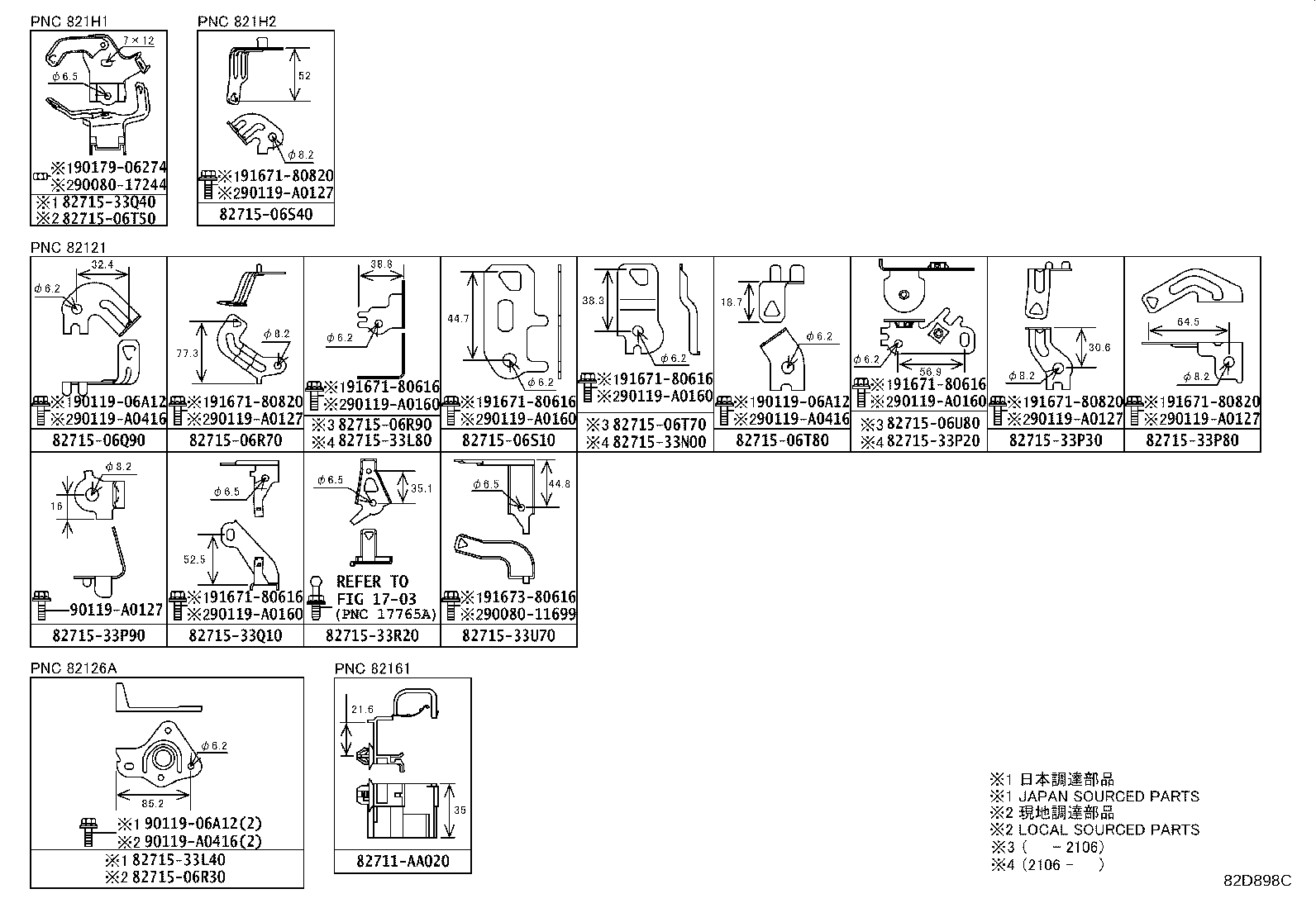

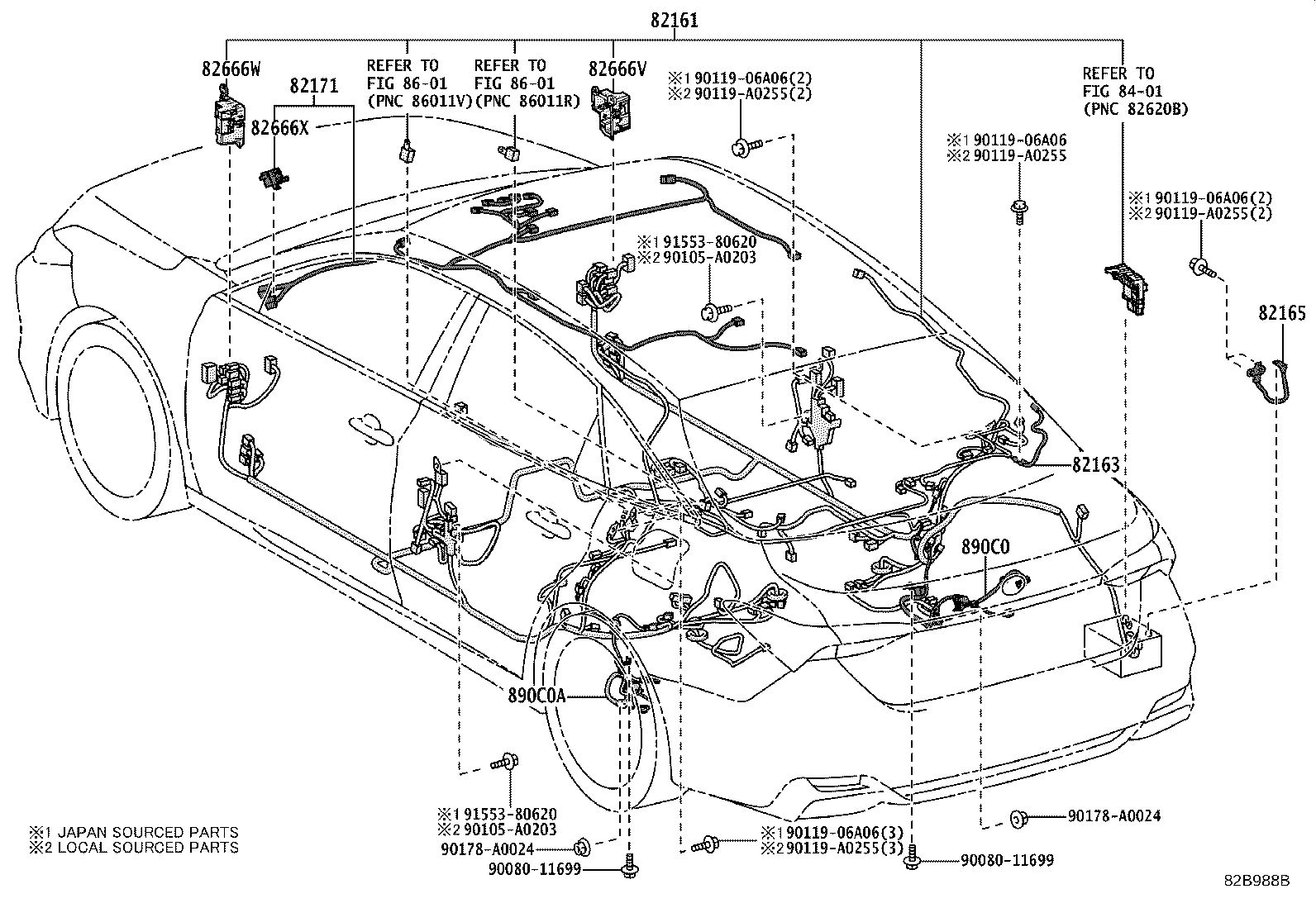

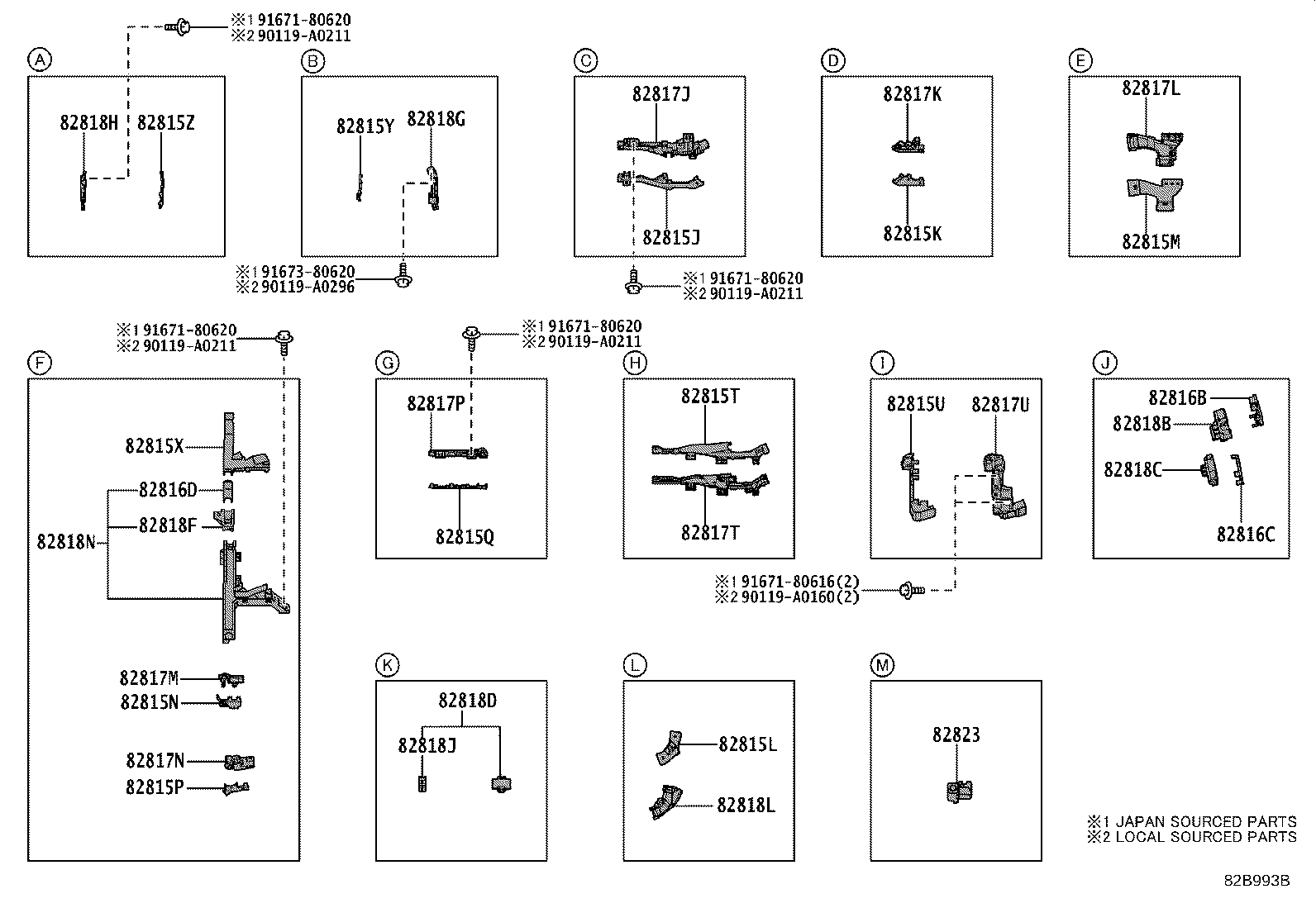

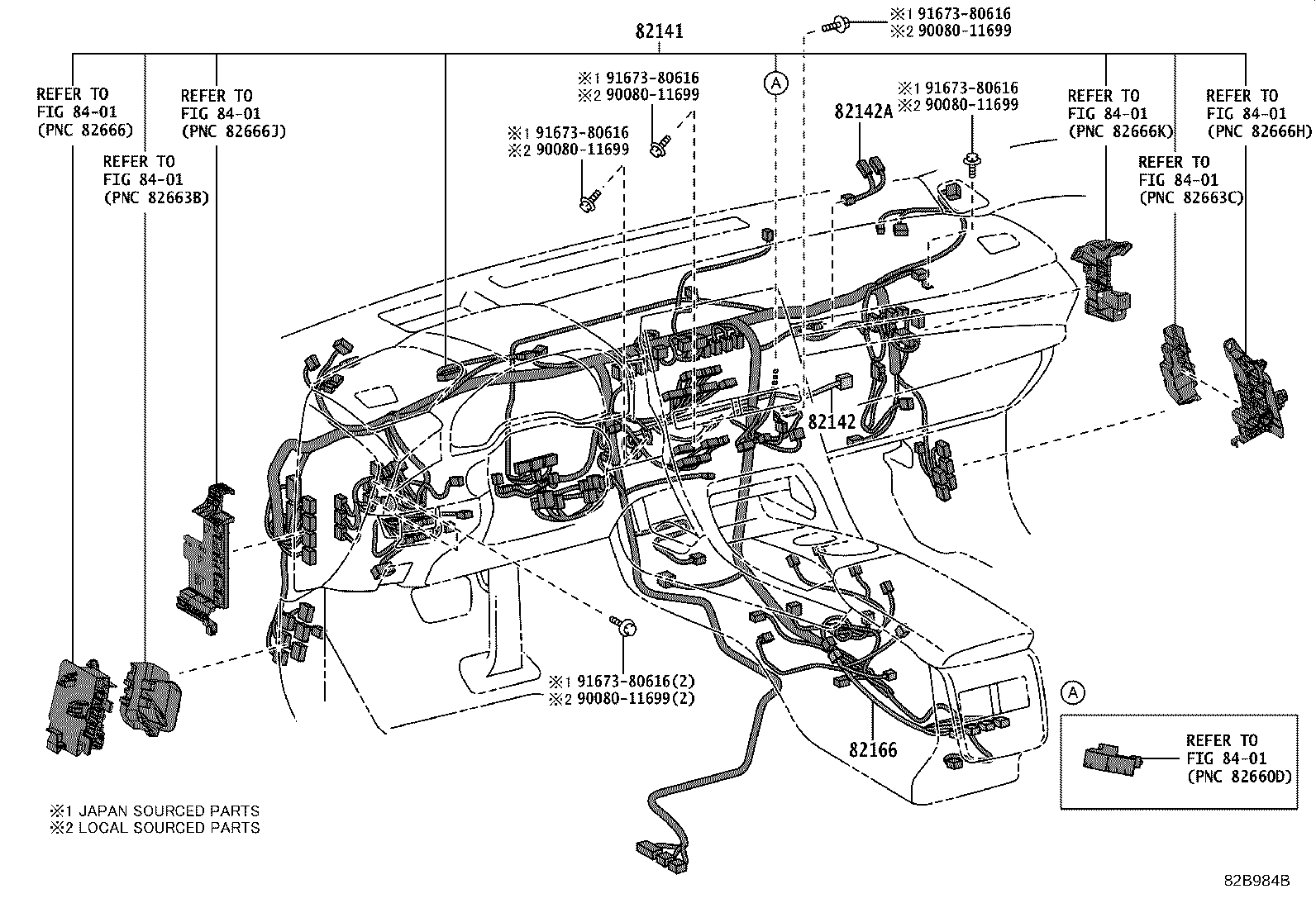

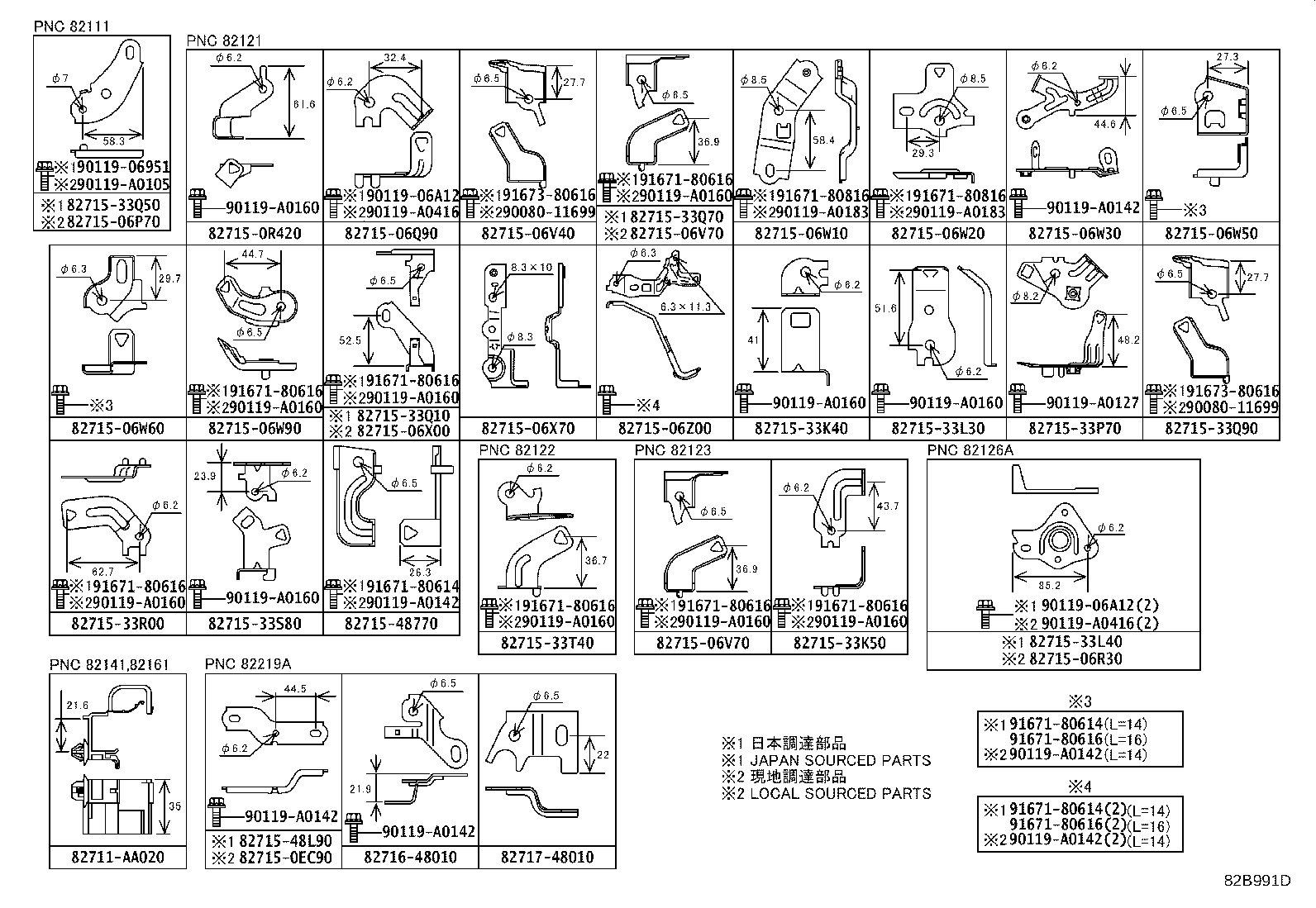

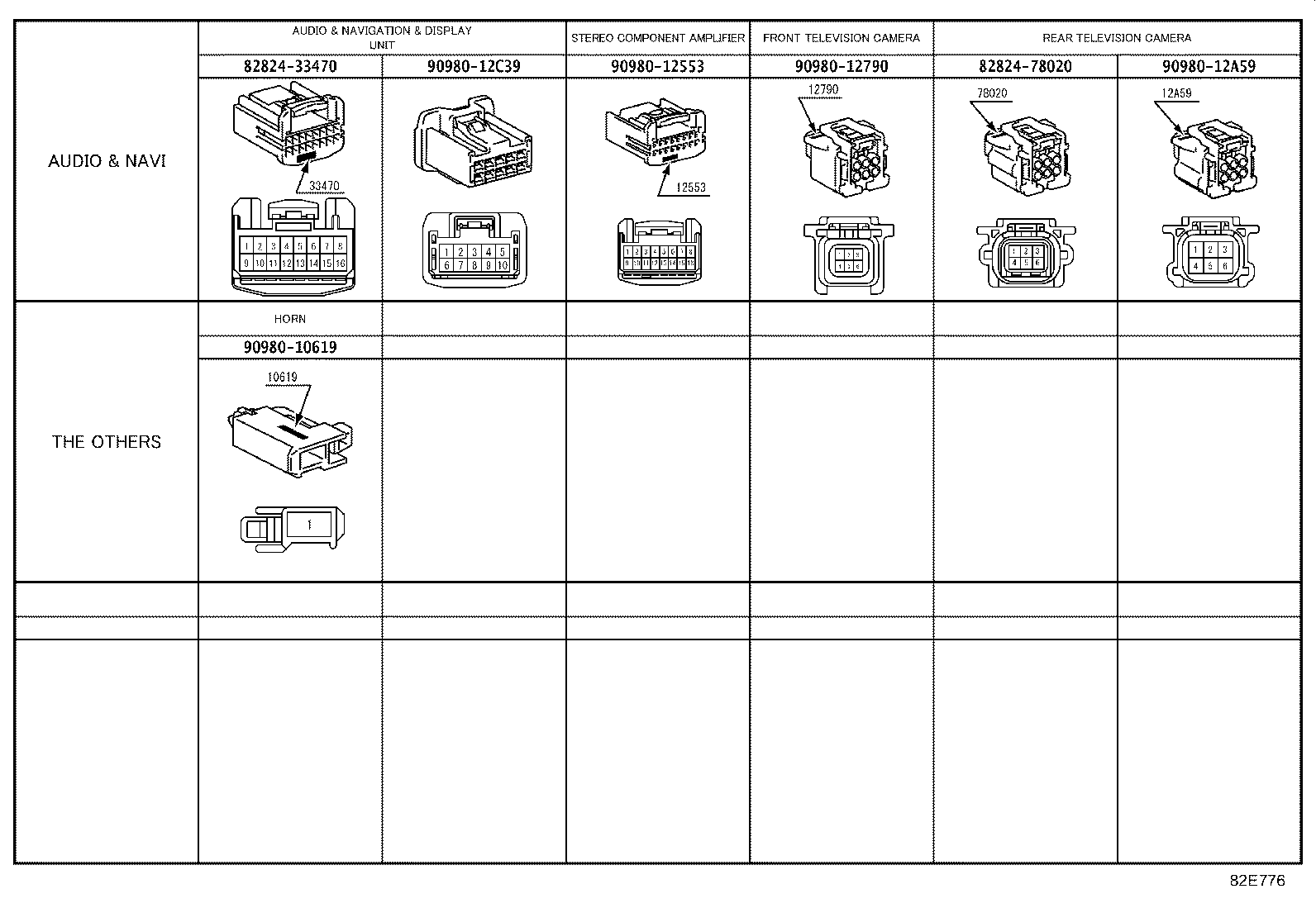

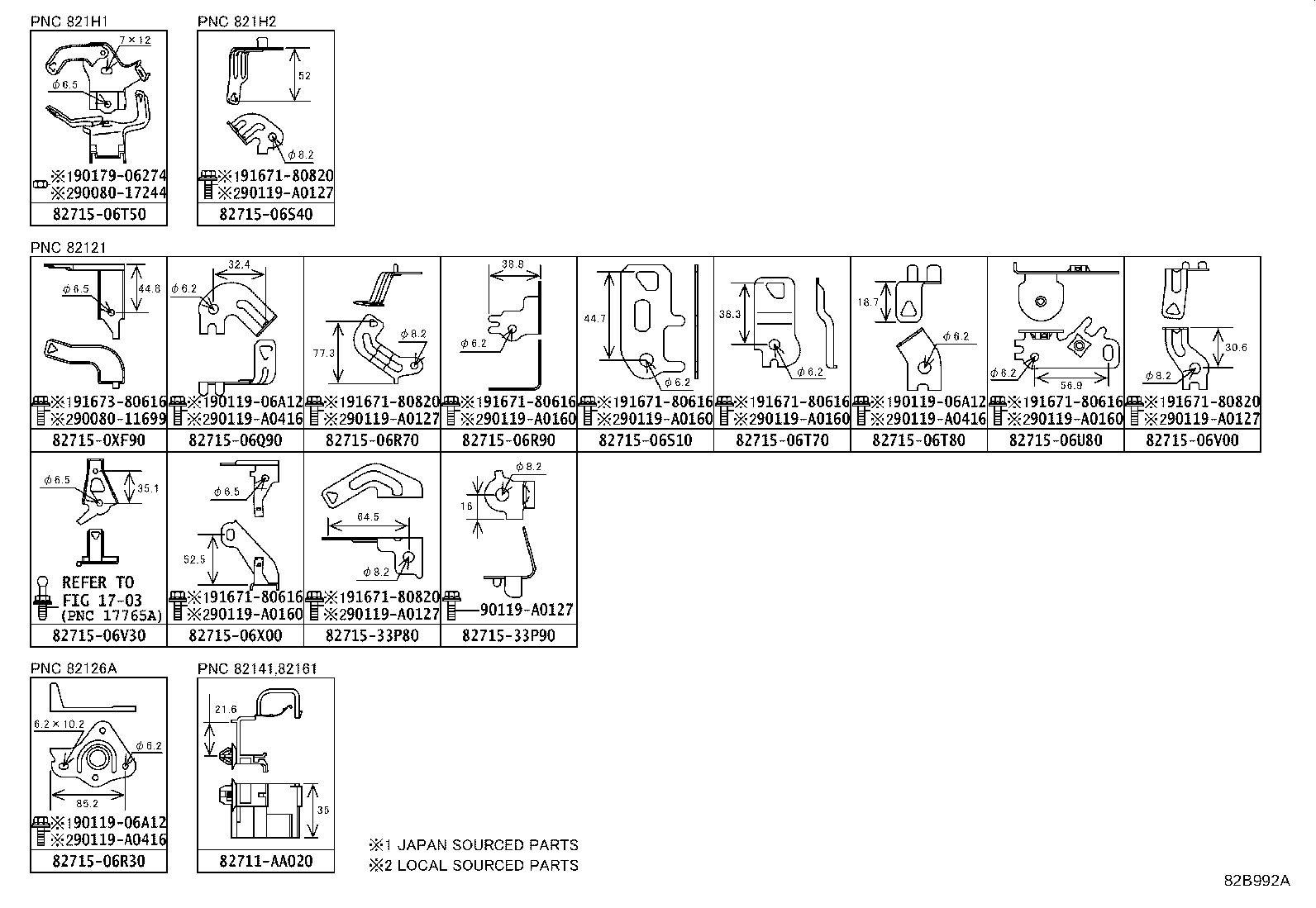

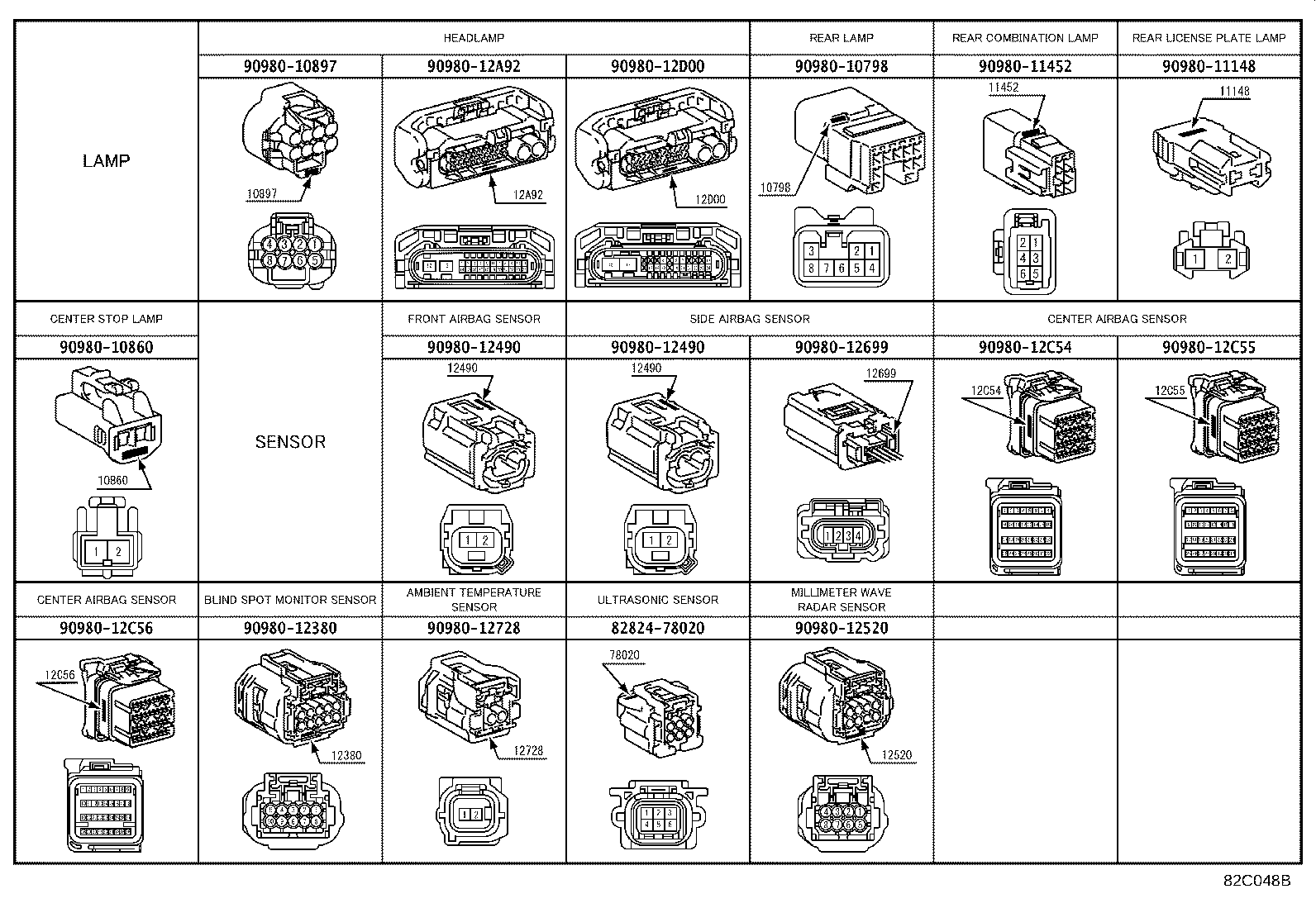

Figure 82B979D 82B979D 2018-04 → — Figure 82B980C 82B980C 2018-05 → — Figure 82B981A 82B981A 2018-04 → — Figure 82B982A 82B982A 2018-04 → — Figure 82B983B 82B983B 2018-05 → 2020-08 Figure 82B993B 82B993B 2018-05 → 2020-08 Figure 82D893A 82D893A 2020-08 → — Figure 82D894 82D894 2020-08 → — Figure 82D896B 82D896B 2020-08 → — Figure 82D897 82D897 2020-08 → — Figure 82B984B 82B984B 2018-04 → — Figure 82B986A 82B986A 2018-04 → — Figure 82D895 82D895 2018-04 → — Figure 82B988B 82B988B 2018-05 → — Figure 82B989 82B989 2018-05 → — Figure 82B990 82B990 2018-04 → — Figure 82B991D 82B991D 2018-04 → — Figure 82B992A 82B992A 2018-05 → 2020-08 Figure 82D898C 82D898C 2020-08 → — Figure 82C048B 82C048B 2018-04 → — Figure 82E776 82E776 2018-04 → —

Part groups

PNCDescription
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4

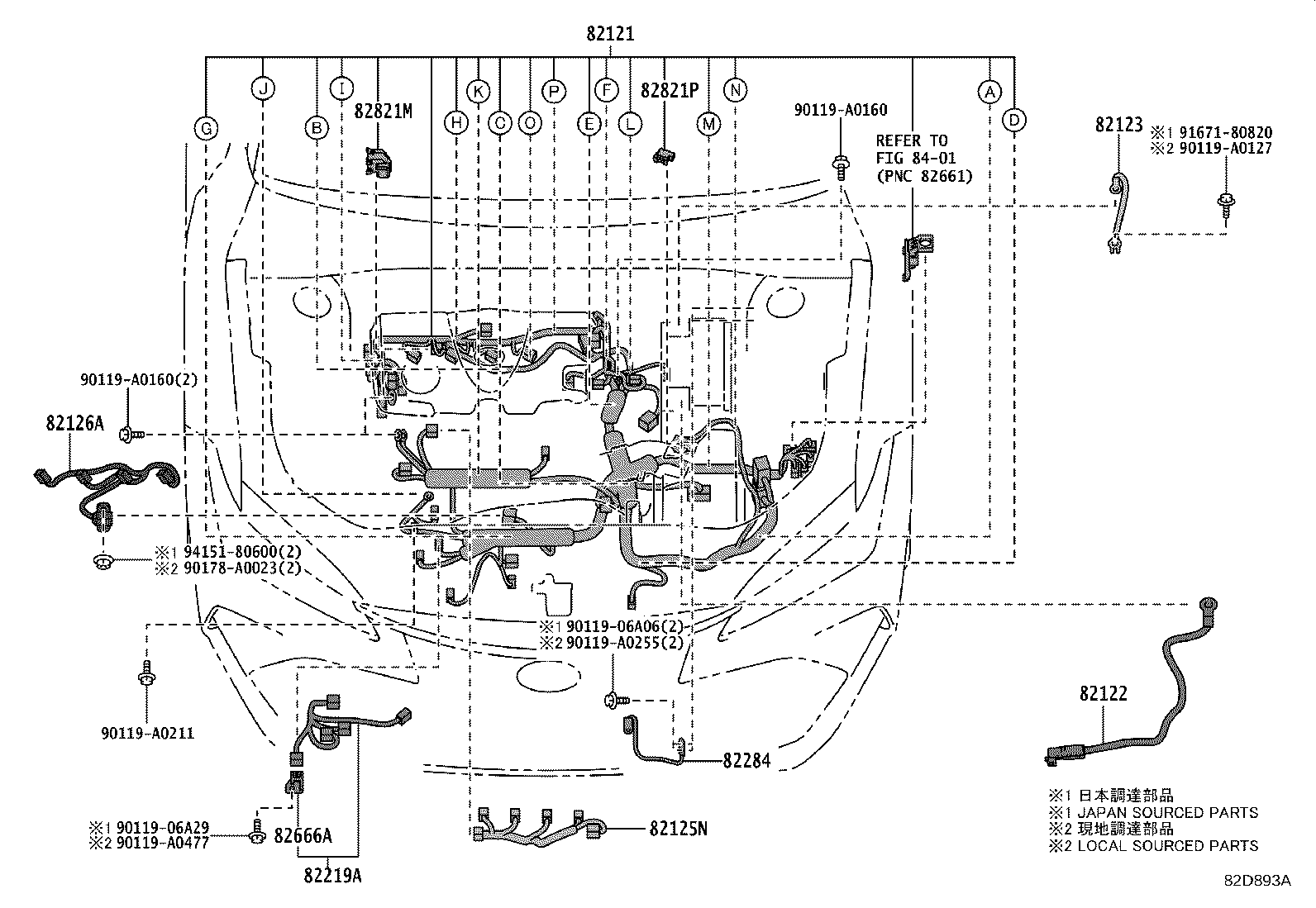

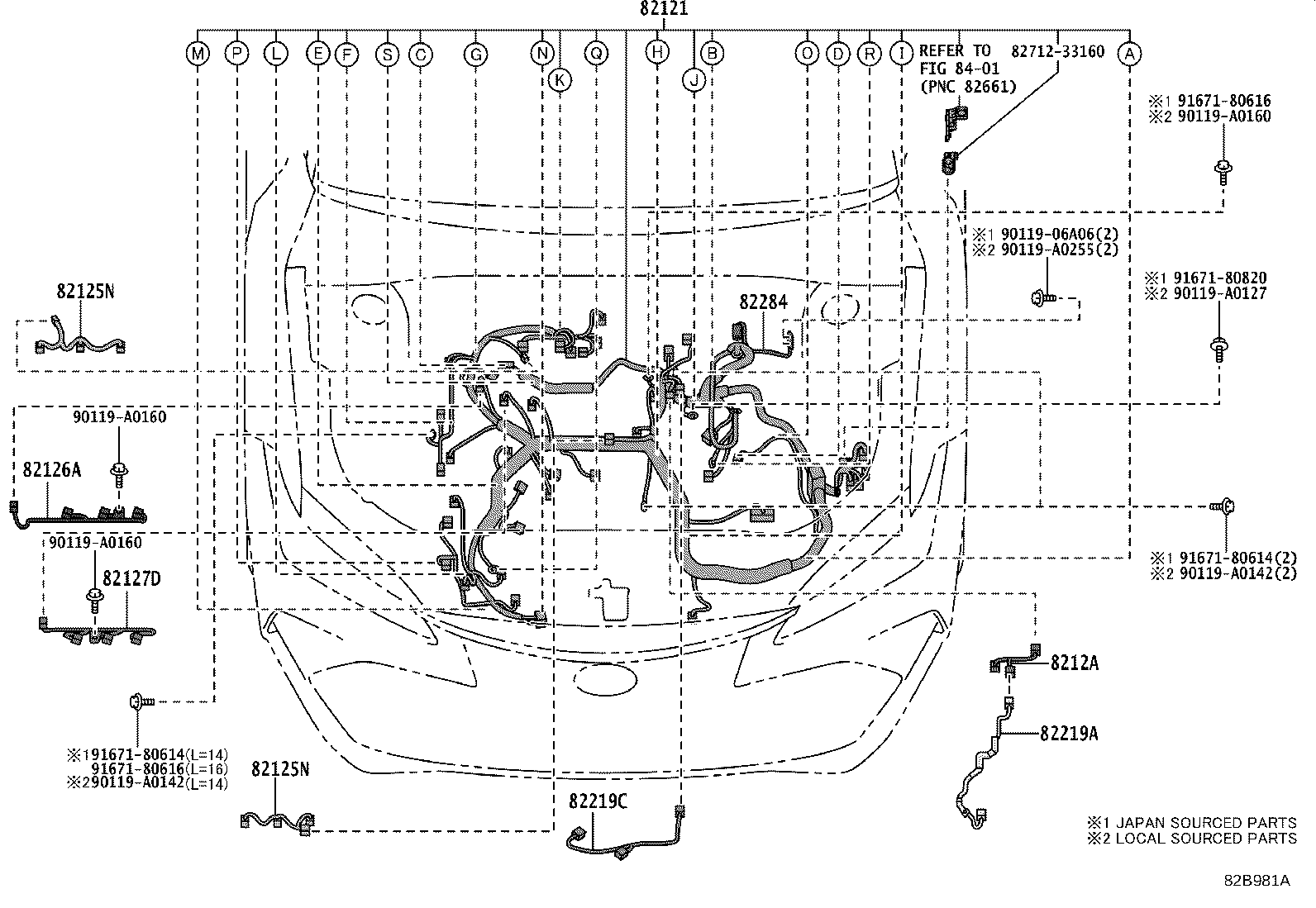

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
8212A Wire, Engine, NO.9
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2

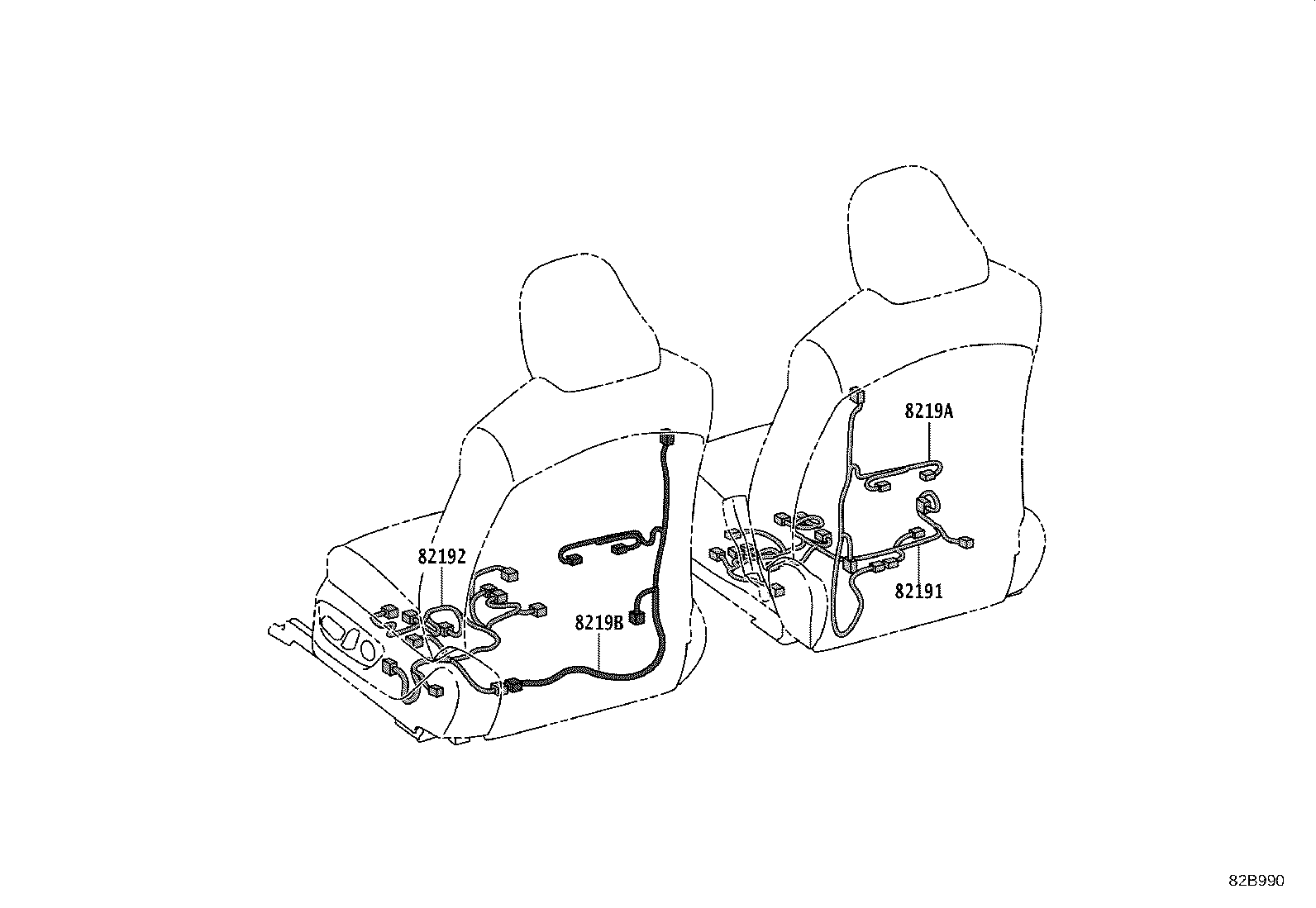

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17

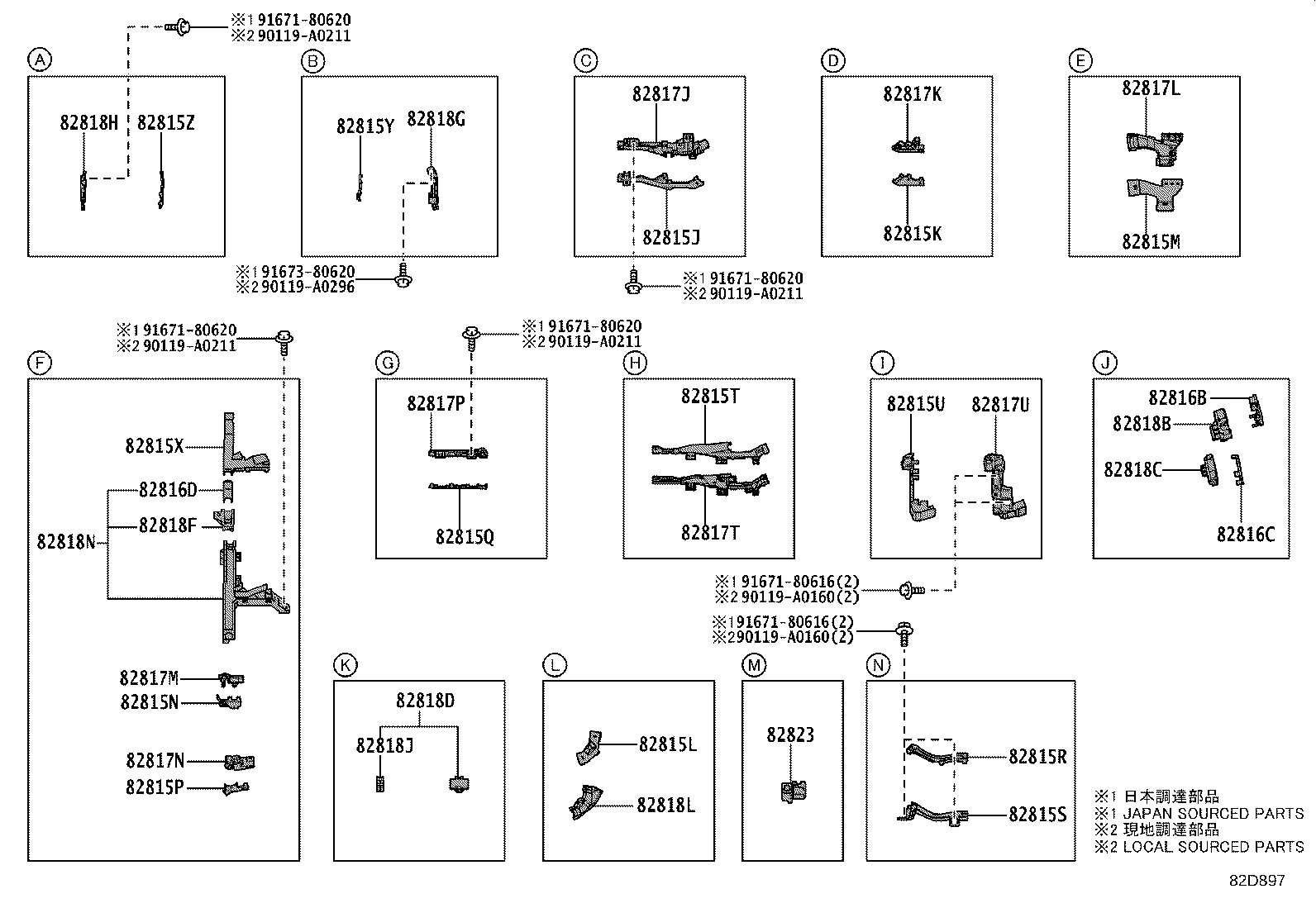

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818L Protector, Wiring Harness, NO.12
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82819G Protector, Wiring Harness, NO.23
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82821P Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
