Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

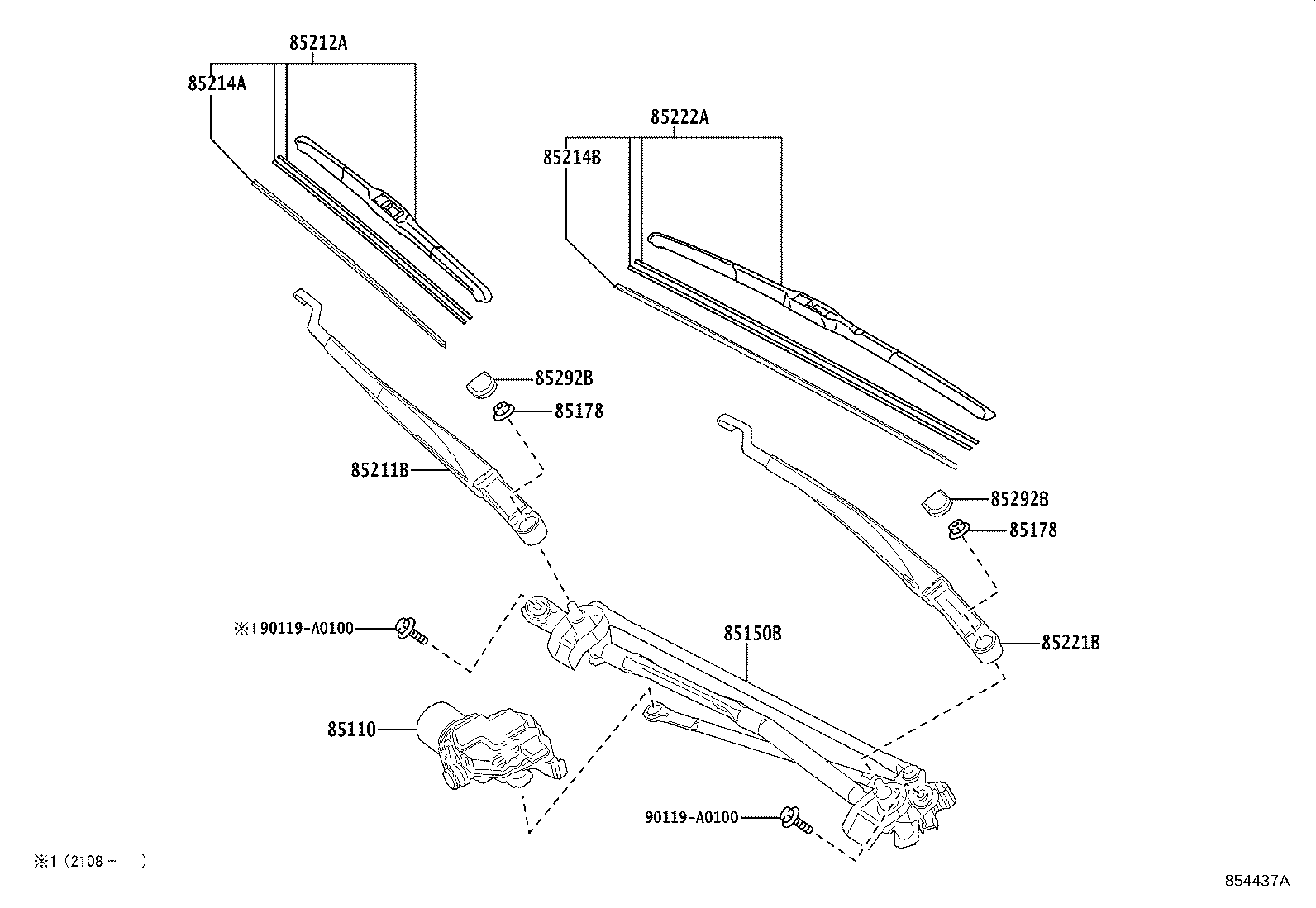

Windshield Wiper
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82046G | Wire Sub-assy, Body Ground |
| 85110 | Motor Assy, Windshield Wiper |
| 85150B | Link Assy, Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85292B | Cap, Front Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
