Toyota Avalon

2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 4 illustrations

Illustrations

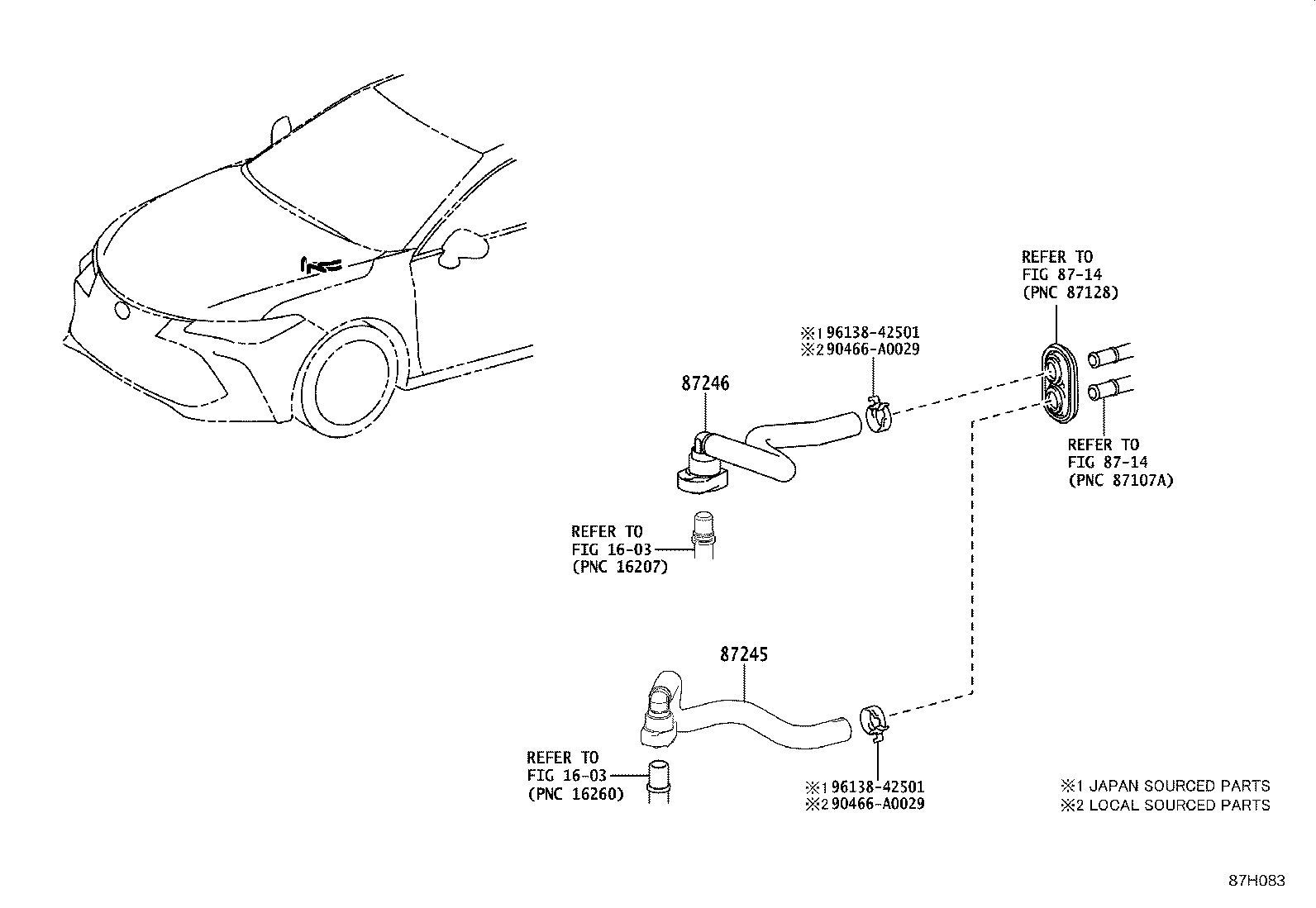

Figure 87H082 87H082 2018-04 → 2020-08 Figure 87H082 87H082 2020-08 → — Figure 87H083 87H083 2018-05 → 2020-08 Figure 87H083 87H083 2020-08 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
