Toyota Avalon
2018-04 → present · chassis AXXA55,AXXH5#,GSX50 · catalogue 361450 · United States
Supported model
Data version 2020-07

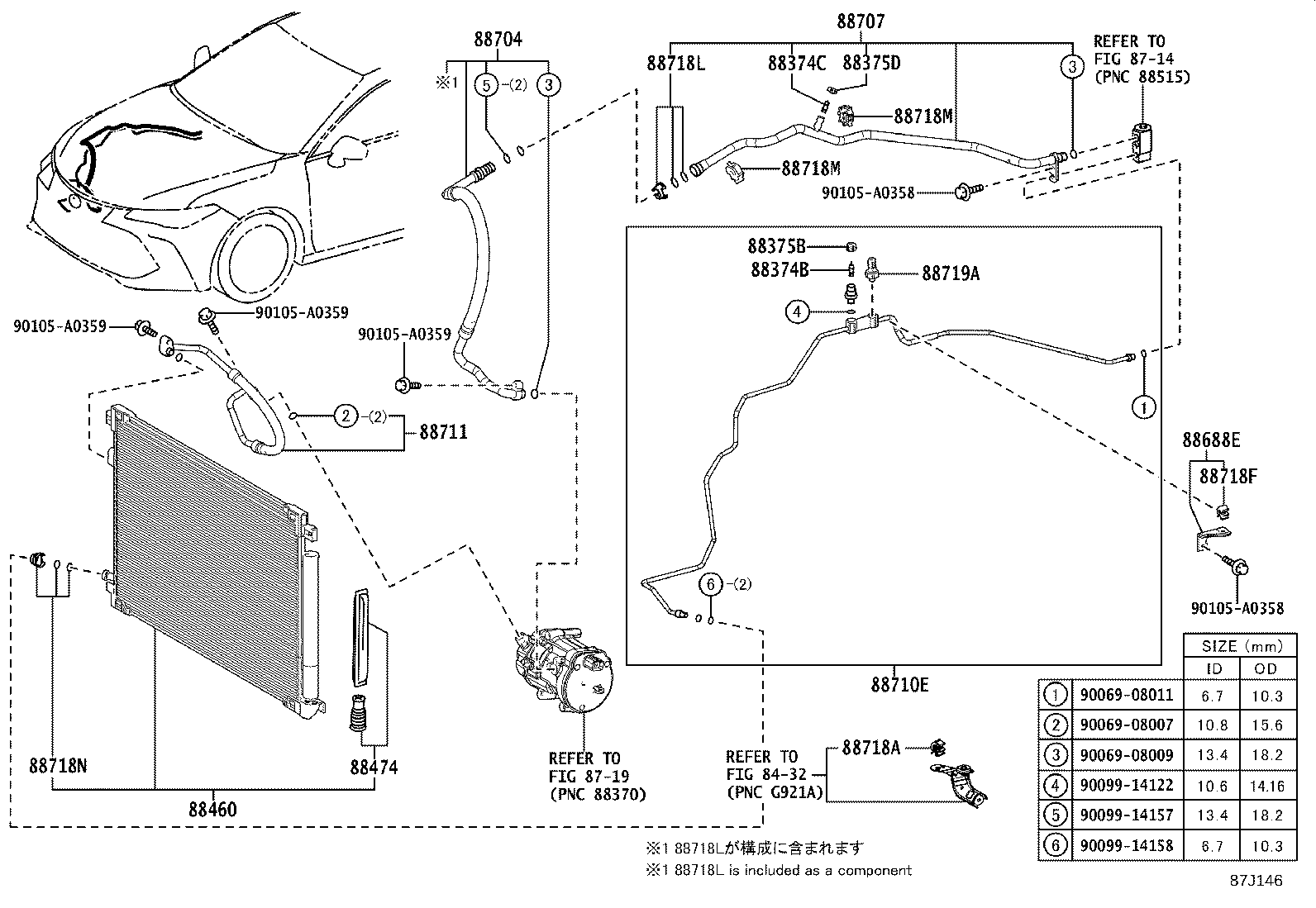

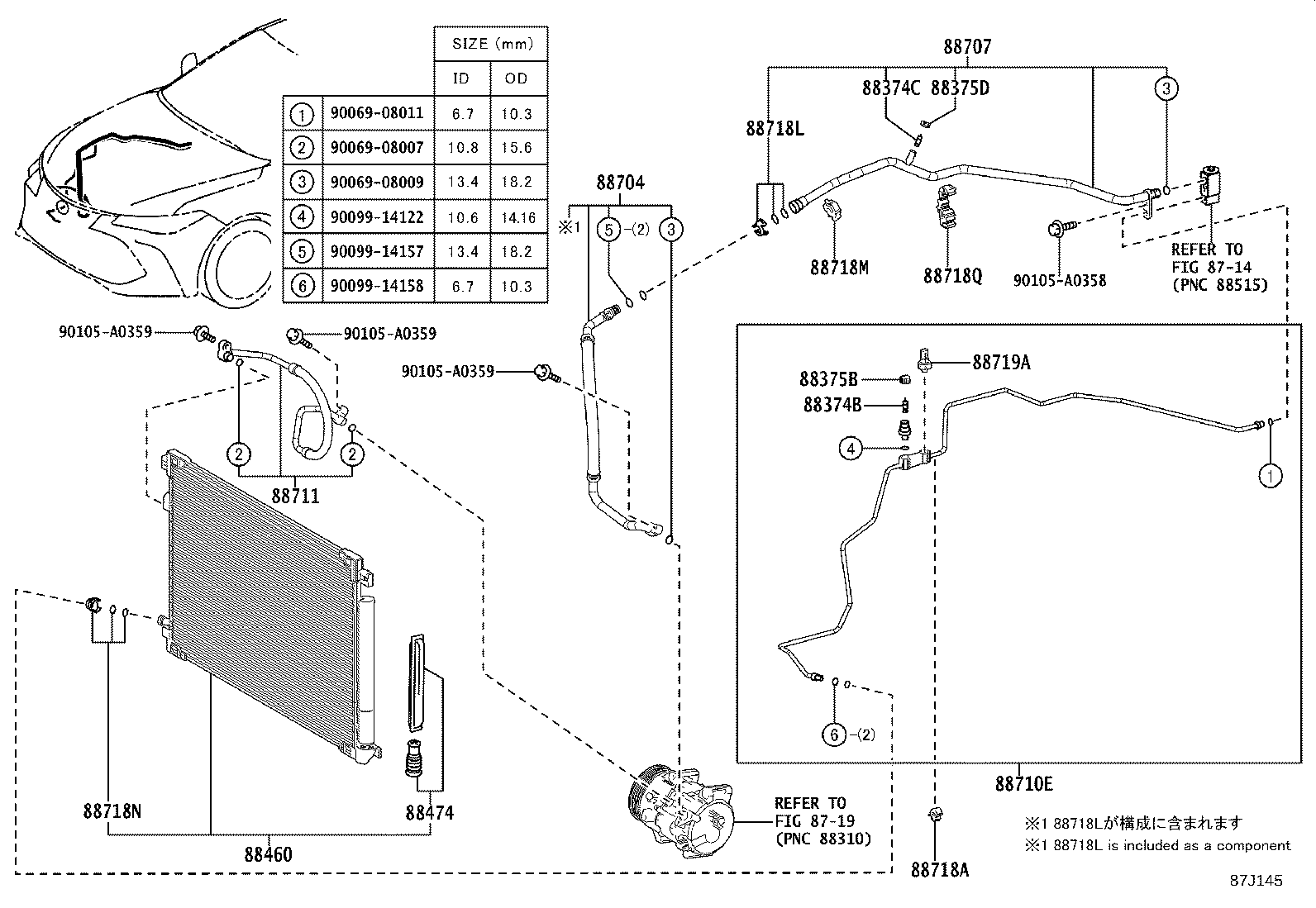

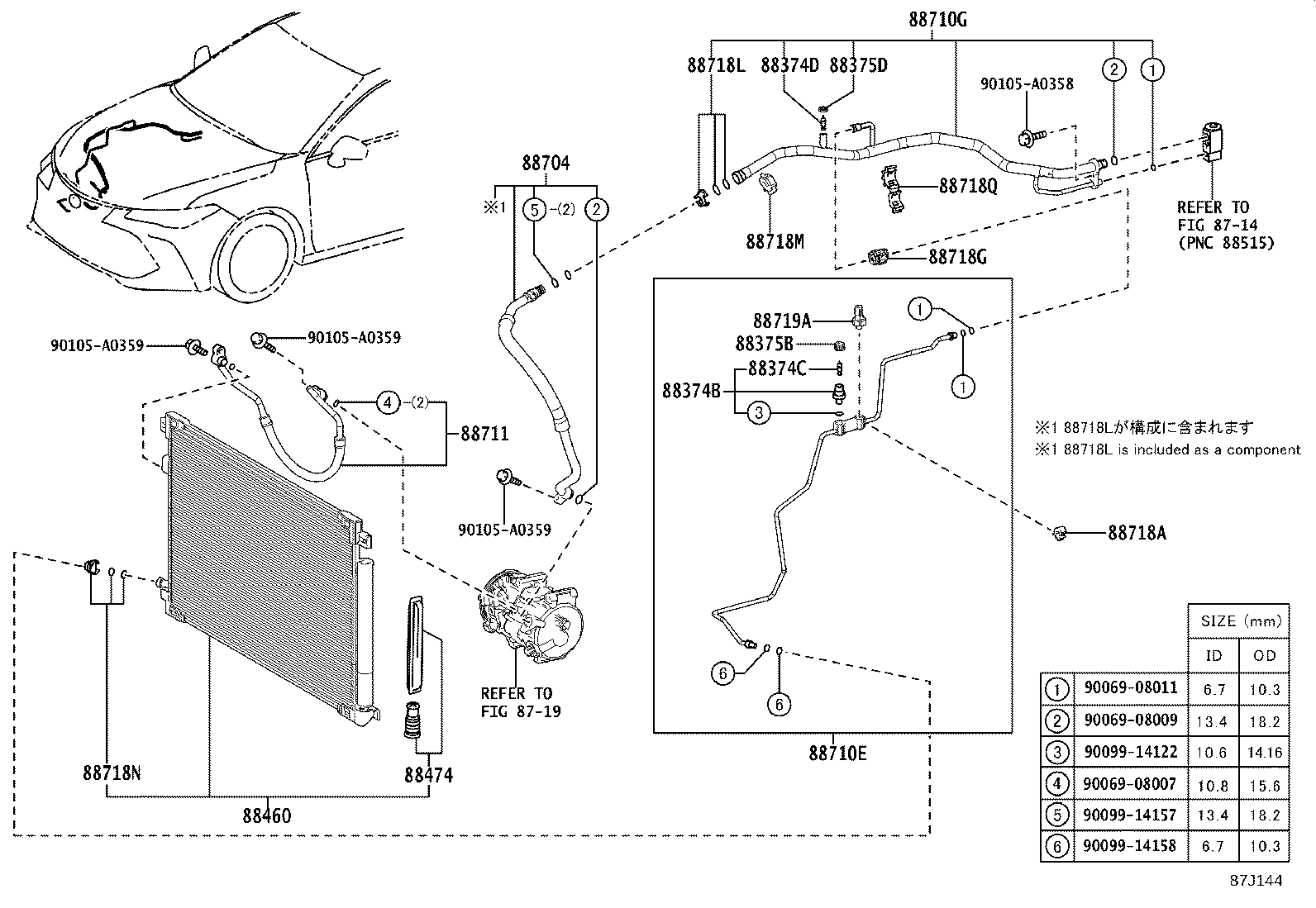

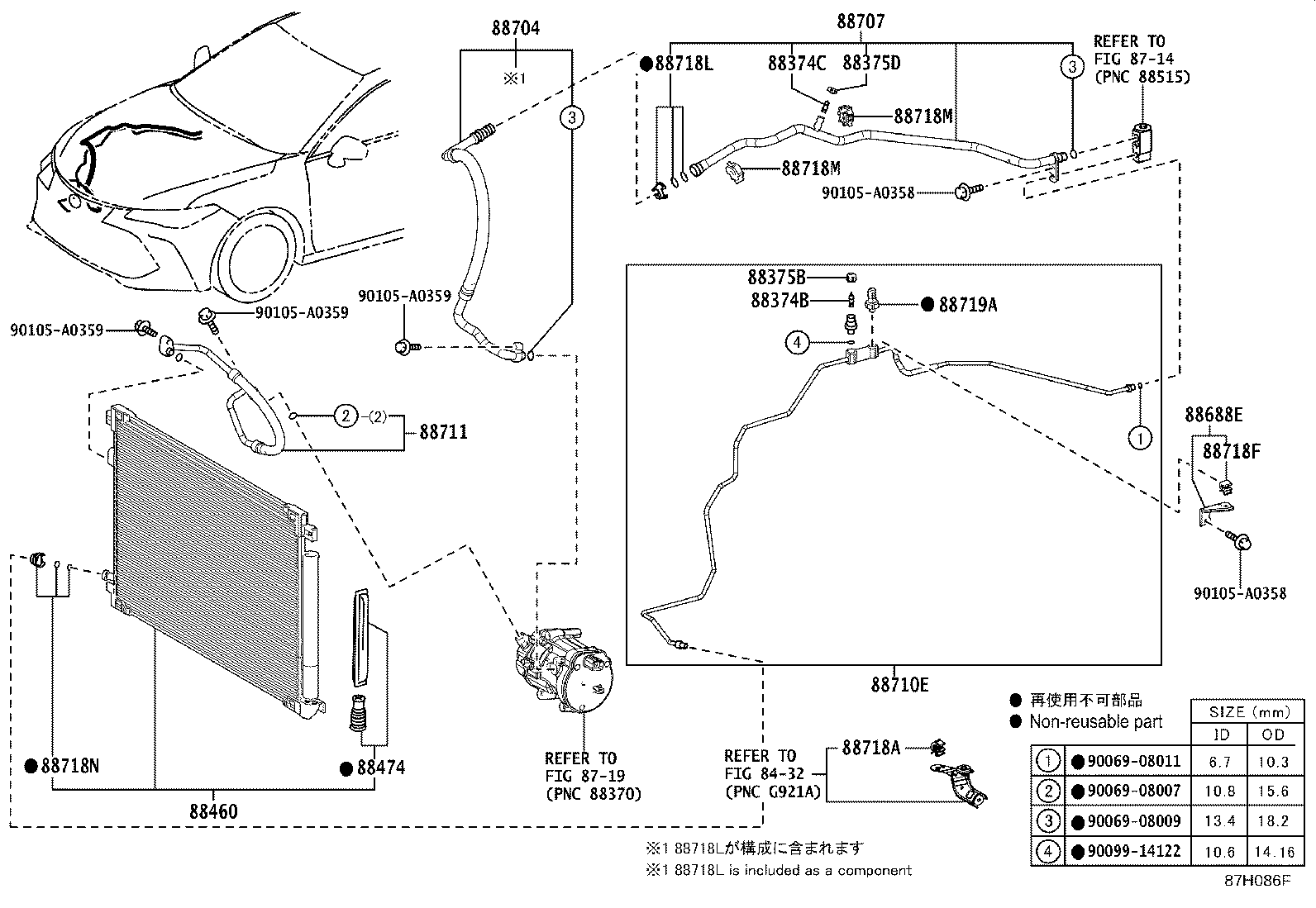

Heating & Air Conditioning - Cooler Piping
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88374D | Valve, Service NO.3 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88710G | Tube & Accessory Assy, Air Conditioner, NO.2 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718F | Clamp, NO.1(FOR COOLER REFRIGERANT HOSE) |
| 88718G | Clamp, NO.2(FOR COOLER REFRIGERANT HOSE) |
| 88718L | Clamp, Piping |
| 88718M | Clamp, Piping |
| 88718N | Clamp, Piping |
| 88718Q | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
