Toyota Lexus LS400
1989-05 → 1994-10 · chassis UCF10 · catalogue 431410 · United States
Discontinued model
Data version 1995-05

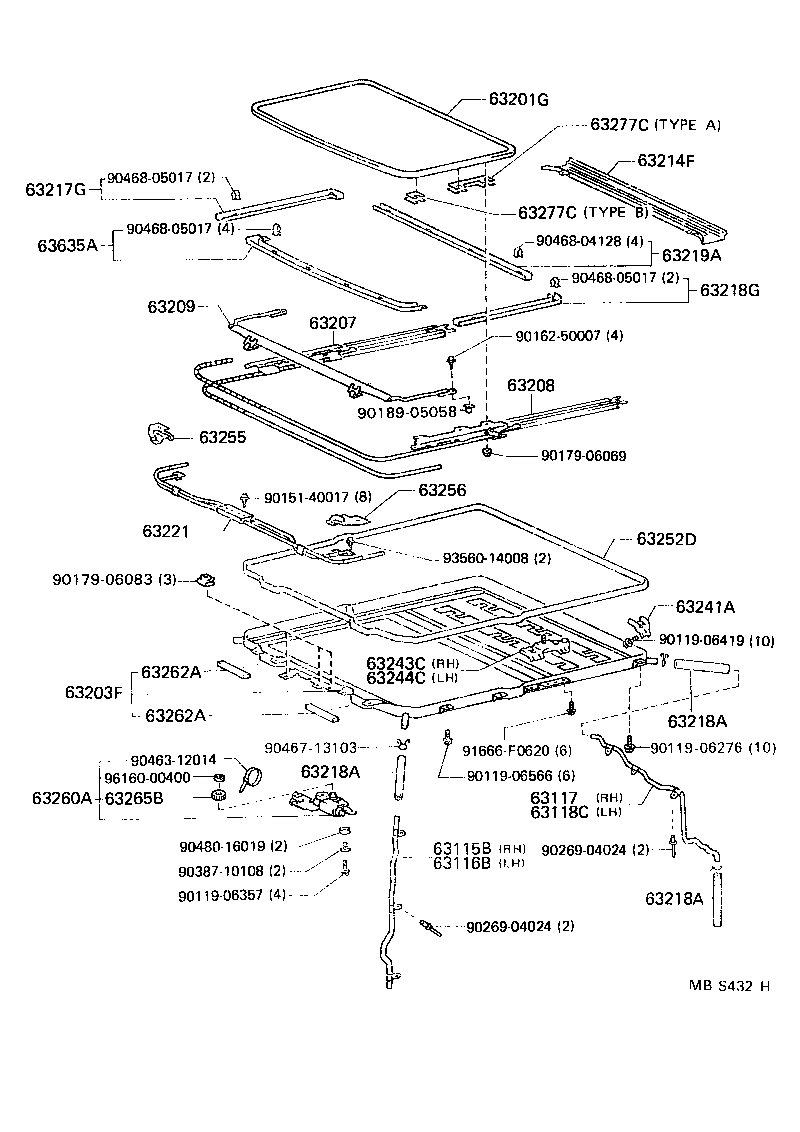

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63115B — Pipe, Sliding Roof Drain, Front RH | ||||
| 63115-50010 |
Pipe, Sliding Roof Drain, Front RH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63116B — Pipe, Sliding Roof Drain, Front LH | ||||
| 63116-50010 |
Pipe, Sliding Roof Drain, Front LH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63117 — Pipe, Sliding Roof Drain, Rear RH | ||||
| 63117-50010 |
Pipe, Sliding Roof Drain, Rear RH
1989-05 → 1991-12
ended
|
UCF10 | — | |
| 63117-50011 |
Pipe, Sliding Roof Drain, Rear RH
1991-12 → 1992-10
ended
|
UCF10 | — | |
| 63117-50012 |
Pipe, Sliding Roof Drain, Rear RH
1992-10 → 1994-10
ended
|
UCF10 | — | |
| 63118C — Pipe, Sliding Roof Drain, Rear LH | ||||
| 63118-50010 |
Pipe, Sliding Roof Drain, Rear LH
1989-05 → 1991-12
ended
|
UCF10 | — | |
| 63118-50011 |
Pipe, Sliding Roof Drain, Rear LH
1991-12 → 1992-10
ended
|
UCF10 | — | |
| 63118-50012 |
Pipe, Sliding Roof Drain, Rear LH
1992-10 → 1994-10
ended
|
UCF10 | — | |
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-50010 note |
Glass Sub-assy, Sliding Roof
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63201-50011 note |
Glass Sub-assy, Sliding Roof
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63201-50020 note |
Glass Sub-assy, Sliding Roof
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63201-50021 note |
Glass Sub-assy, Sliding Roof
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63201-50030 note |
Glass Sub-assy, Sliding Roof
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63201-50031 note |
Glass Sub-assy, Sliding Roof
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63201-50070 note |
Glass Sub-assy, Sliding Roof
1992-08 → 1993-01
ended
|
UCF10 | — | |
| 63201-50071 note |
Glass Sub-assy, Sliding Roof
1993-01 → 1994-10
ended
|
UCF10 | — | |
| 63201-50080 note |
Glass Sub-assy, Sliding Roof
1992-08 → 1993-01
ended
|
UCF10 | — | |
| 63201-50081 note |
Glass Sub-assy, Sliding Roof
1993-01 → 1994-10
ended
|
UCF10 | — | |
| 63201-50090 note |
Glass Sub-assy, Sliding Roof
1992-08 → 1993-01
ended
|
UCF10 | — | |
| 63201-50091 note |
Glass Sub-assy, Sliding Roof
1993-01 → 1994-10
ended
|
UCF10 | — | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-50010 |
Housing Sub-assy, Sliding Roof
1989-05 → 1991-05
ended
|
UCF10 | — | |
| 63203-50011 |
Housing Sub-assy, Sliding Roof
1991-05 → 1992-11
ended
|
UCF10 | — | |
| 63203-50012 |
Housing Sub-assy, Sliding Roof
1992-11 → 1994-10
ended
|
UCF10 | — | |
| 63207 — Rail Sub-assy, Sliding Roof Guide, RH | ||||
| 63603-50010 |
Rail Sub-assy, Sliding Roof Guide, RH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63208 — Rail Sub-assy, Sliding Roof Guide, LH | ||||
| 63604-50010 |
Rail Sub-assy, Sliding Roof Guide, LH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-50010 |
Panel Sub-assy, Roof Wind Deflector
1989-05 → 1990-12
ended
|
UCF10 | — | |
| 63209-50011 |
Panel Sub-assy, Roof Wind Deflector
1990-12 → 1991-05
ended
|
UCF10 | — | |
| 63209-50012 |
Panel Sub-assy, Roof Wind Deflector
1991-05 → 1994-10
ended
|
UCF10 | — | |
| 63214F — Channel, Roof Drip, Rear | ||||
| 63214-50010 |
Channel, Roof Drip, Rear
1989-05 → 1990-11
ended
|
UCF10 | — | |
| 63214-50011 |
Channel, Roof Drip, Rear
1990-11 → 1994-10
ended
|
UCF10 | — | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-50010-02 note |
Garnish, Sliding Roof Side, RH
1989-05 → 1991-03
ended
|
UCF10 | — | |
| 63217-50010-03 note |
Garnish, Sliding Roof Side, RH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63217-50010-04 note |
Garnish, Sliding Roof Side, RH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63217-50010-05 note |
Garnish, Sliding Roof Side, RH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63217-50010-06 note |
Garnish, Sliding Roof Side, RH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63217-50010-C0 note |
Garnish, Sliding Roof Side, RH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63217-50010-E0 note |
Garnish, Sliding Roof Side, RH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63217-50010-K0 note |
Garnish, Sliding Roof Side, RH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63217-50010-P0 note |
Garnish, Sliding Roof Side, RH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63217-50010-W3 note |
Garnish, Sliding Roof Side, RH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-50010 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63249-50020 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63249-50030 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63218-50010-02 note |
Garnish, Sliding Roof Side, LH
1989-05 → 1991-03
ended
|
UCF10 | — | |
| 63218-50010-03 note |
Garnish, Sliding Roof Side, LH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63218-50010-04 note |
Garnish, Sliding Roof Side, LH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63218-50010-05 note |
Garnish, Sliding Roof Side, LH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63218-50010-06 note |
Garnish, Sliding Roof Side, LH
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63218-50010-C0 note |
Garnish, Sliding Roof Side, LH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63218-50010-E0 note |
Garnish, Sliding Roof Side, LH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63218-50010-K0 note |
Garnish, Sliding Roof Side, LH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63218-50010-P0 note |
Garnish, Sliding Roof Side, LH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63218-50010-W3 note |
Garnish, Sliding Roof Side, LH
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-50010-02 note |
Garnish, Sliding Roof, Rear
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63219-50010-03 note |
Garnish, Sliding Roof, Rear
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63219-50010-04 note |
Garnish, Sliding Roof, Rear
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63219-50010-05 note |
Garnish, Sliding Roof, Rear
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63219-50010-06 note |
Garnish, Sliding Roof, Rear
1989-05 → 1989-10
ended
|
UCF10 | — | |
| 63219-50011-02 note |
Garnish, Sliding Roof, Rear
1989-10 → 1991-03
ended
|
UCF10 | — | |
| 63219-50011-03 note |
Garnish, Sliding Roof, Rear
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63219-50011-04 note |
Garnish, Sliding Roof, Rear
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63219-50011-05 note |
Garnish, Sliding Roof, Rear
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63219-50011-06 note |
Garnish, Sliding Roof, Rear
1989-10 → 1992-08
ended
|
UCF10 | — | |
| 63219-50011-C0 note |
Garnish, Sliding Roof, Rear
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63219-50011-E0 note |
Garnish, Sliding Roof, Rear
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63219-50011-K0 note |
Garnish, Sliding Roof, Rear
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63219-50011-P0 note |
Garnish, Sliding Roof, Rear
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63219-50011-W3 note |
Garnish, Sliding Roof, Rear
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63221 — Casing, Sliding Roof Cable Guide | ||||
| 63221-50010 |
Casing, Sliding Roof Cable Guide
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-50010 |
Bracket, Sliding Roof Housing Front Mounting, RH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-50010 |
Bracket, Sliding Roof Housing Center Mounting, RH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-50010 |
Bracket, Sliding Roof Housing Center Mounting, LH
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63252D — Weatherstrip, Sliding Roof Housing | ||||
| 63252-50010 |
Weatherstrip, Sliding Roof Housing
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63255 — Cover, Sliding Roof Guide Rail, RH | ||||
| 63255-50010 |
Cover, Sliding Roof Guide Rail, RH
1989-05 → 1992-01
ended
|
UCF10 | — | |
| 63255-50011 |
Cover, Sliding Roof Guide Rail, RH
1992-01 → 1992-11
ended
|
UCF10 | — | |
| 63255-50012 |
Cover, Sliding Roof Guide Rail, RH
1992-11 → 1994-10
ended
|
UCF10 | — | |
| 63256 — Cover, Sliding Roof Guide Rail, LH | ||||
| 63256-50010 |
Cover, Sliding Roof Guide Rail, LH
1989-05 → 1992-01
ended
|
UCF10 | — | |
| 63256-50011 |
Cover, Sliding Roof Guide Rail, LH
1992-01 → 1992-11
ended
|
UCF10 | — | |
| 63256-50012 |
Cover, Sliding Roof Guide Rail, LH
1992-11 → 1994-10
ended
|
UCF10 | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-50010 |
Gear Sub-assy, Sliding Roof Drive
1989-05 → 1991-02
ended
|
UCF10 | — | |
| 63260-50011 |
Gear Sub-assy, Sliding Roof Drive
1991-02 → 1992-08
ended
|
UCF10 | — | |
| 63260-50020 |
Gear Sub-assy, Sliding Roof Drive
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63262A — Seal, Sliding Roof, Front NO.1 | ||||
| 63262-50010 |
Seal, Sliding Roof, Front NO.1
1991-05 → 1994-10
ended
|
UCF10 | — | |
| 63265B — Gear, Sliding Roof Drive | ||||
| 63265-20010 |
Gear, Sliding Roof Drive
1989-05 → 1994-10
ended
|
UCF10 | — | |
| 63277C — Shim, Sliding Roof Panel | ||||
| 63277-20020 note |
Shim, Sliding Roof Panel
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63277-20020 note |
Shim, Sliding Roof Panel
1992-08 → 1994-02
ended
|
UCF10 | — | |
| 63277-20030 note |
Shim, Sliding Roof Panel
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63277-20030 note |
Shim, Sliding Roof Panel
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63277-20040 note |
Shim, Sliding Roof Panel
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63277-20040 note |
Shim, Sliding Roof Panel
1992-08 → 1994-02
ended
|
UCF10 | — | |
| 63277-20050 note |
Shim, Sliding Roof Panel
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63277-20050 note |
Shim, Sliding Roof Panel
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63277-50010 note |
Shim, Sliding Roof Panel
1992-08 → 1994-02
ended
|
UCF10 | — | |
| 63277-50020 note |
Shim, Sliding Roof Panel
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63635A — Garnish, Sliding Roof, Front | ||||
| 63635-50010-02 note |
Garnish, Sliding Roof, Front
1989-05 → 1991-03
ended
|
UCF10 | — | |
| 63635-50010-03 note |
Garnish, Sliding Roof, Front
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63635-50010-04 note |
Garnish, Sliding Roof, Front
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63635-50010-05 note |
Garnish, Sliding Roof, Front
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63635-50010-06 note |
Garnish, Sliding Roof, Front
1989-05 → 1992-08
ended
|
UCF10 | — | |
| 63635-50010-C0 note |
Garnish, Sliding Roof, Front
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63635-50010-E0 note |
Garnish, Sliding Roof, Front
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63635-50010-K0 note |
Garnish, Sliding Roof, Front
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63635-50010-P0 note |
Garnish, Sliding Roof, Front
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 63635-50010-W3 note |
Garnish, Sliding Roof, Front
1992-08 → 1994-10
ended
|
UCF10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
