Toyota Lexus LS400

1989-05 → 1994-10 · chassis UCF10 · catalogue 431410 · United States

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 4 illustrations

Illustrations

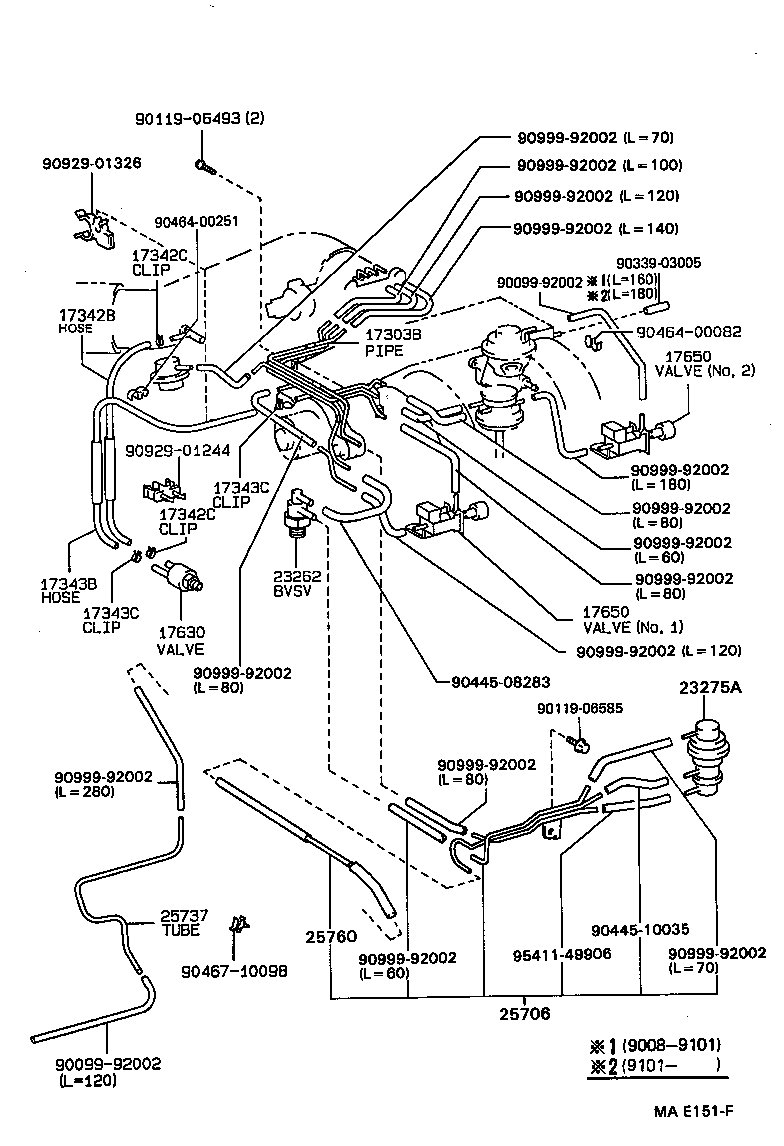

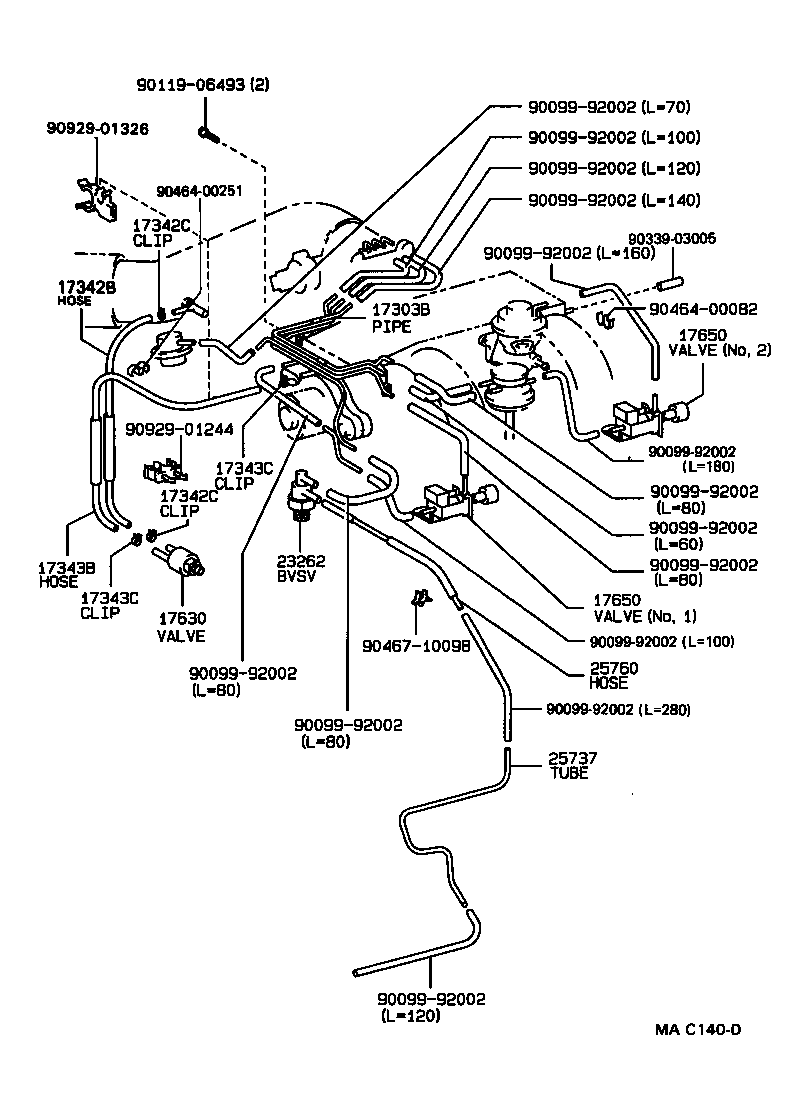

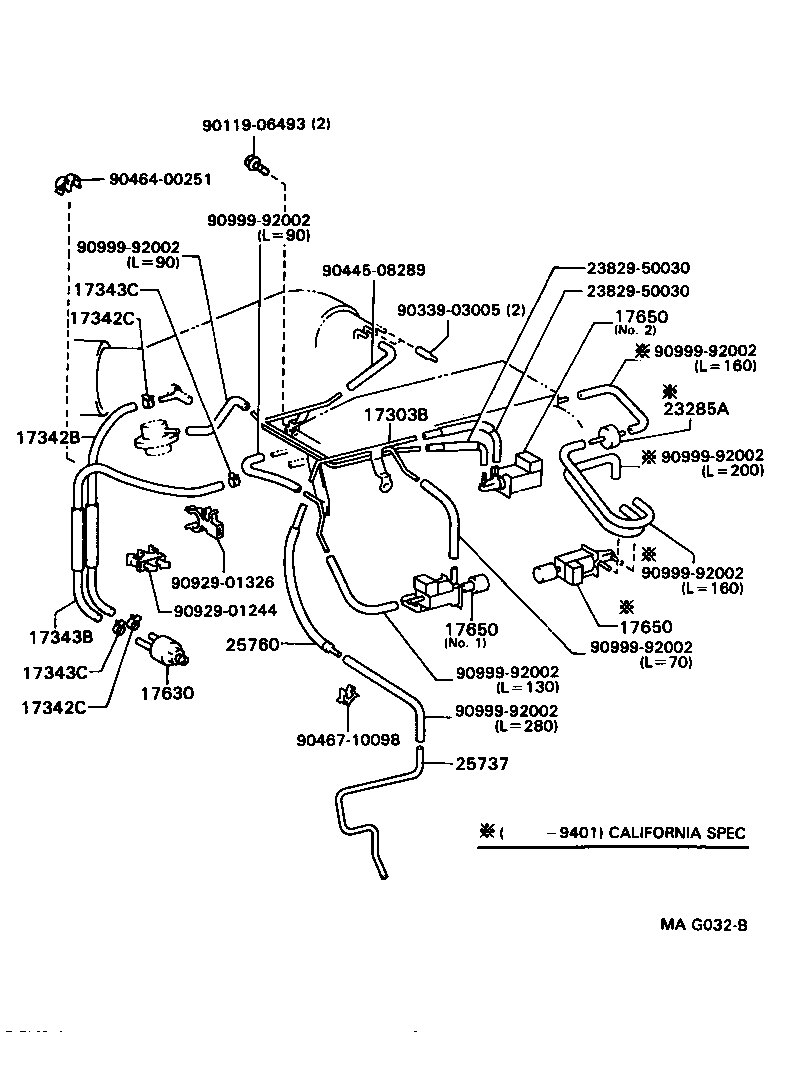

Figure MA9504B MA9504B 1989-05 → — Figure MAC140D MAC140D 1989-05 → 1990-08 Figure MAE151F MAE151F 1990-08 → 1992-08 Figure MAG032B MAG032B 1992-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23275A Valve, Vacuum Control
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25737 Tube, NO.1
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
