Toyota Lexus LS400
1989-05 → 1994-10 · chassis UCF10 · catalogue 431410 · United States
Discontinued model
Data version 1995-05

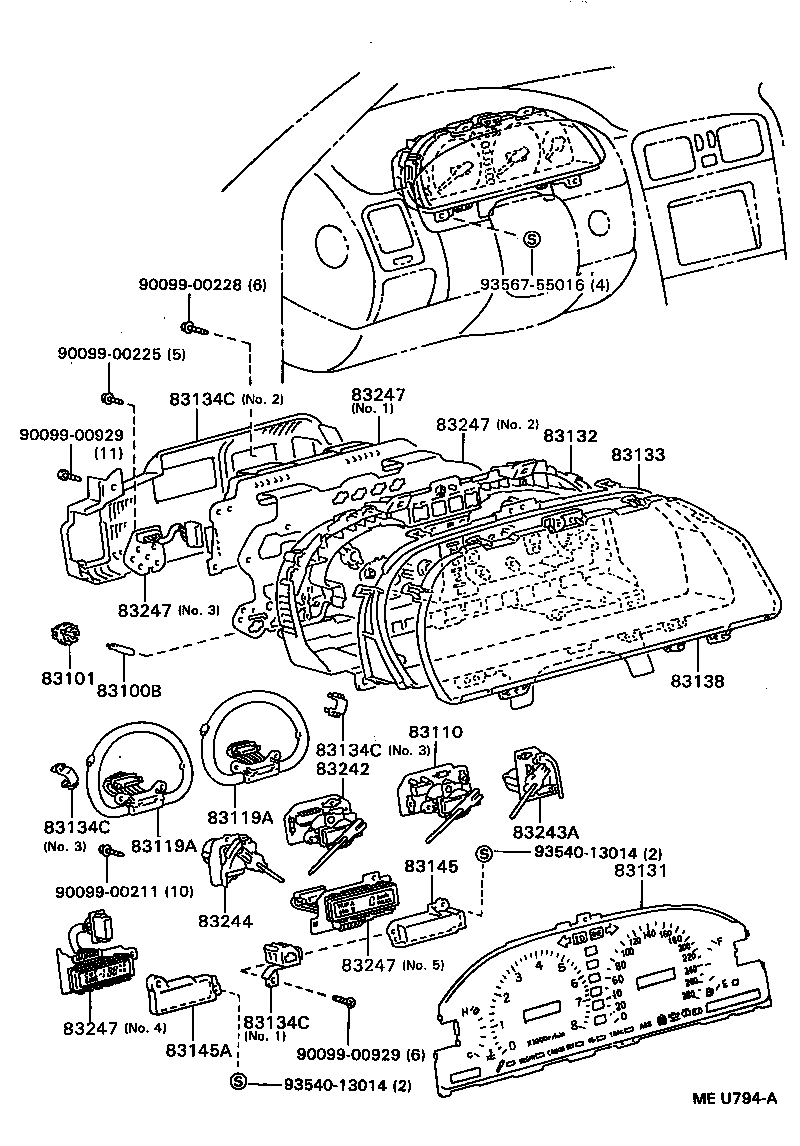

Meter
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83119A | Tube,Cathode |
| 83121C | Odometer Assy |
| 83127B | Computer Assy |
| 83129B | Socket Sub-assy, Meter Bulb |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83134C | Cover, Speedometer |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145S | Terminal |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
