Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431420 · United States

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 2 illustrations

Illustrations

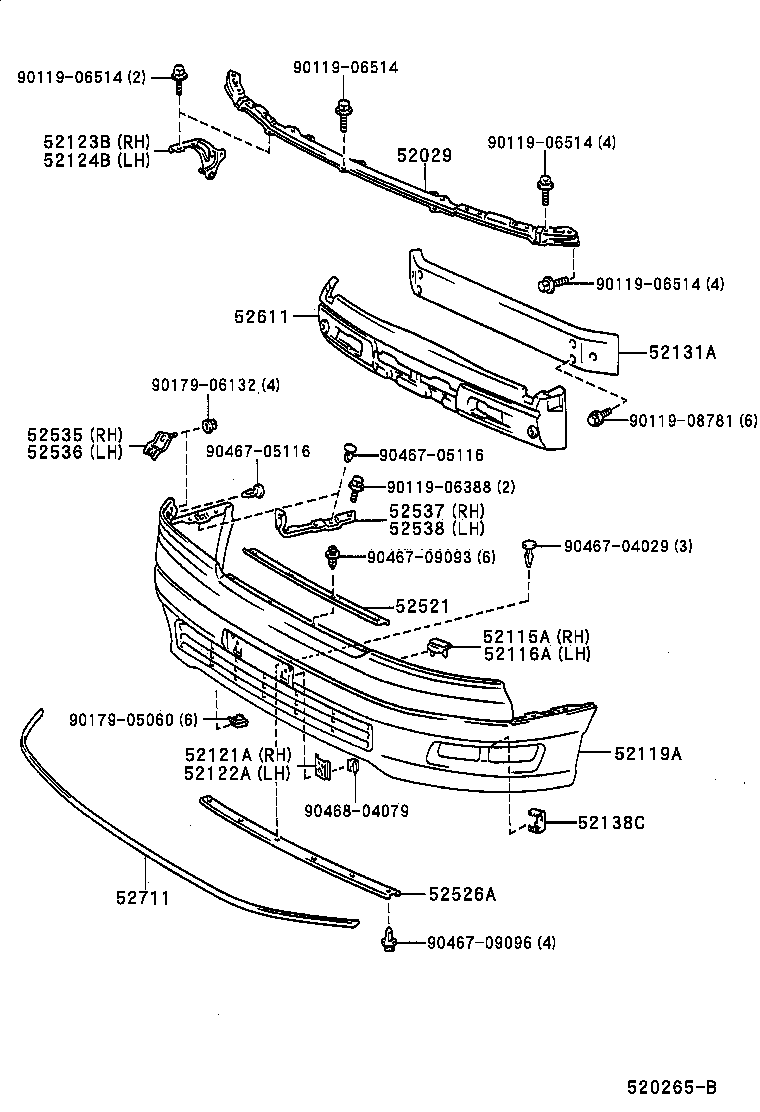

Figure 520235 520235 1994-10 → 1997-07 Figure 520265B 520265B 1997-07 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52122A Bracket, Front License Plate Mounting, LH
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52131A Reinforcement, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52138C Bracket, Front Bumper Arm Mounting, NO.4
52521 Retainer, Front Bumper, Upper Center
52526A Retainer, Front Bumper, Lower NO.1
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
