Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 2 illustrations

Illustrations

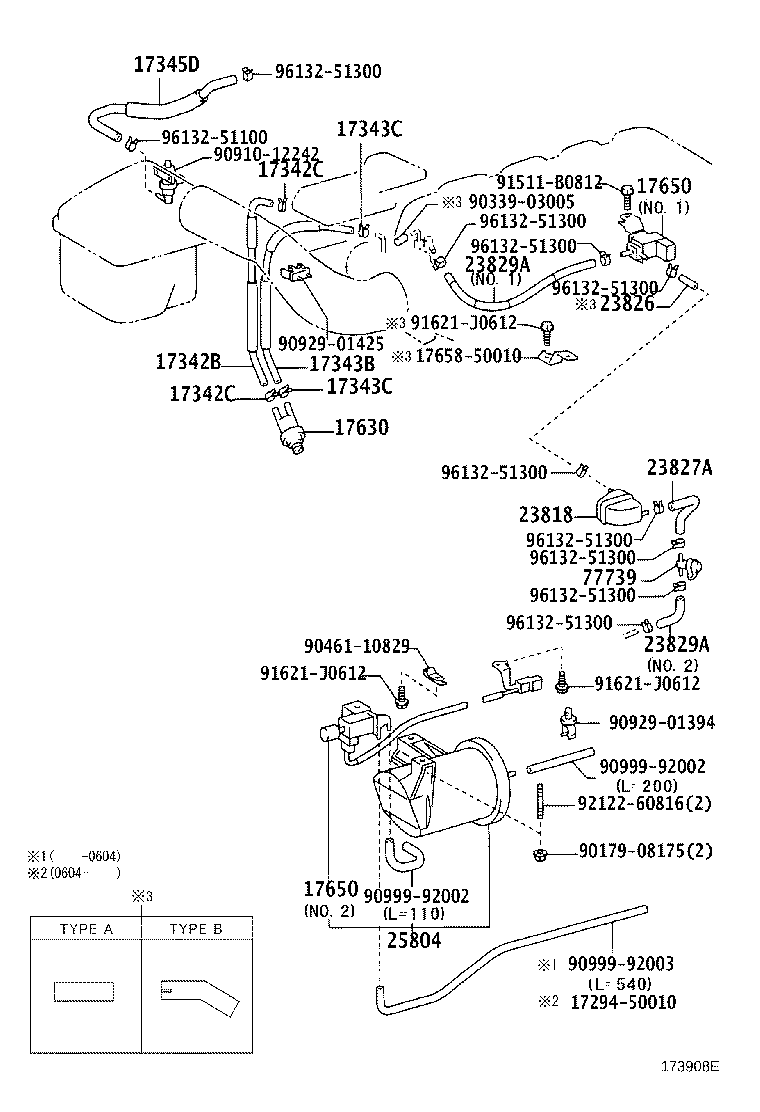

Figure 172618D 172618D 2000-08 → 2003-07 Figure 173908E 173908E 2003-07 → —

Part groups

PNCDescription
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25804 Valve Set, Vacuum Control
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
