Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01
Parking Brake & Cable
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46200 | Pedal Assy, Parking Brake Control |
| 46209 | Cable Sub-assy, Parking Brake Release |
| 46220 | Absorber Assy, Parking Brake Pedal Return |
| 46220B | Bush(FOR PARKING BRAKE PEDAL RETURN ABSORBER) |
| 46220C | Ring, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER) |
| 46252 | Pad, Parking Pedal |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301E | Pin, W/Hole(FOR INTERMEDIATE LEVER) |
| 46305 | Spring, Parking Brake Return W/Damper |
| 46359A | Bracket, Parking Brake Intermediate Lever Support |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46420J | Clamp, NO.3(FOR PARKING BRAKE CABLE) |
| 46420K | Clamp, NO.4(FOR PARKING BRAKE CABLE) |
| 46420L | Clamp, NO.5(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |

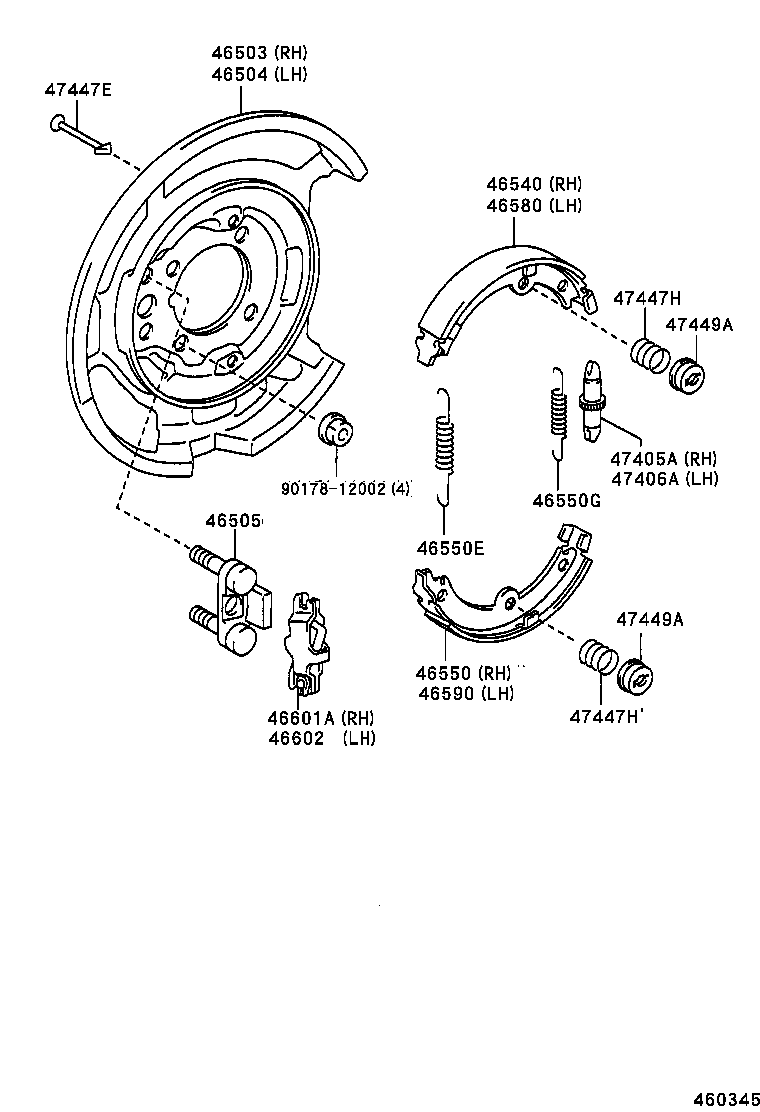

| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46505 | Block Sub-assy, Parking Brake Anchor |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46601A | Lever Sub-assy, Parking Brake Shoe, RH |
| 46602 | Lever Sub-assy, Parking Brake Shoe, LH |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447E | Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47447H | Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
