Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States

Discontinued model Data version 2007-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

82 part groups · 4 illustrations

Illustrations

550747E 2000-08 → 2002-03

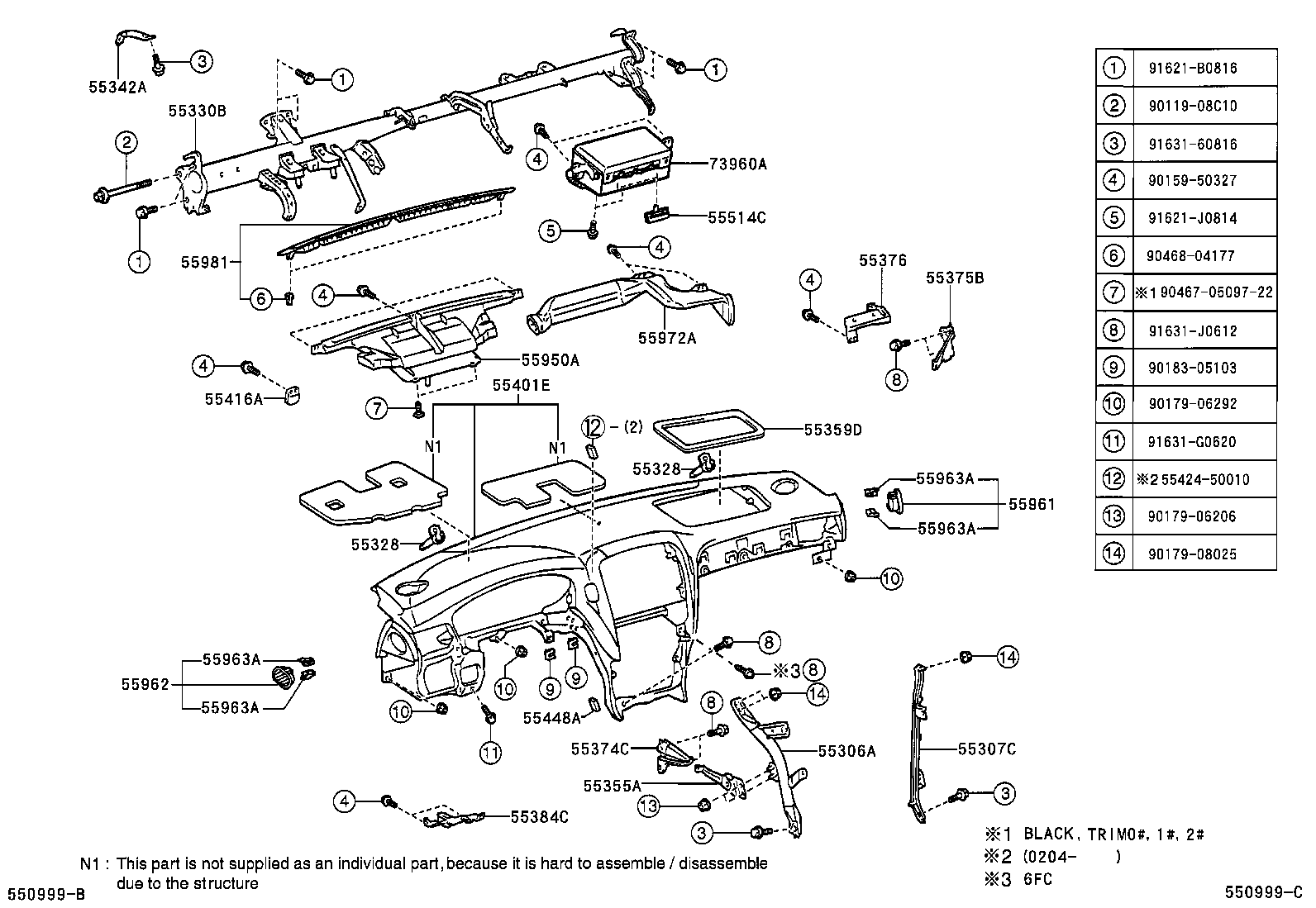

550999C 2002-03 → —

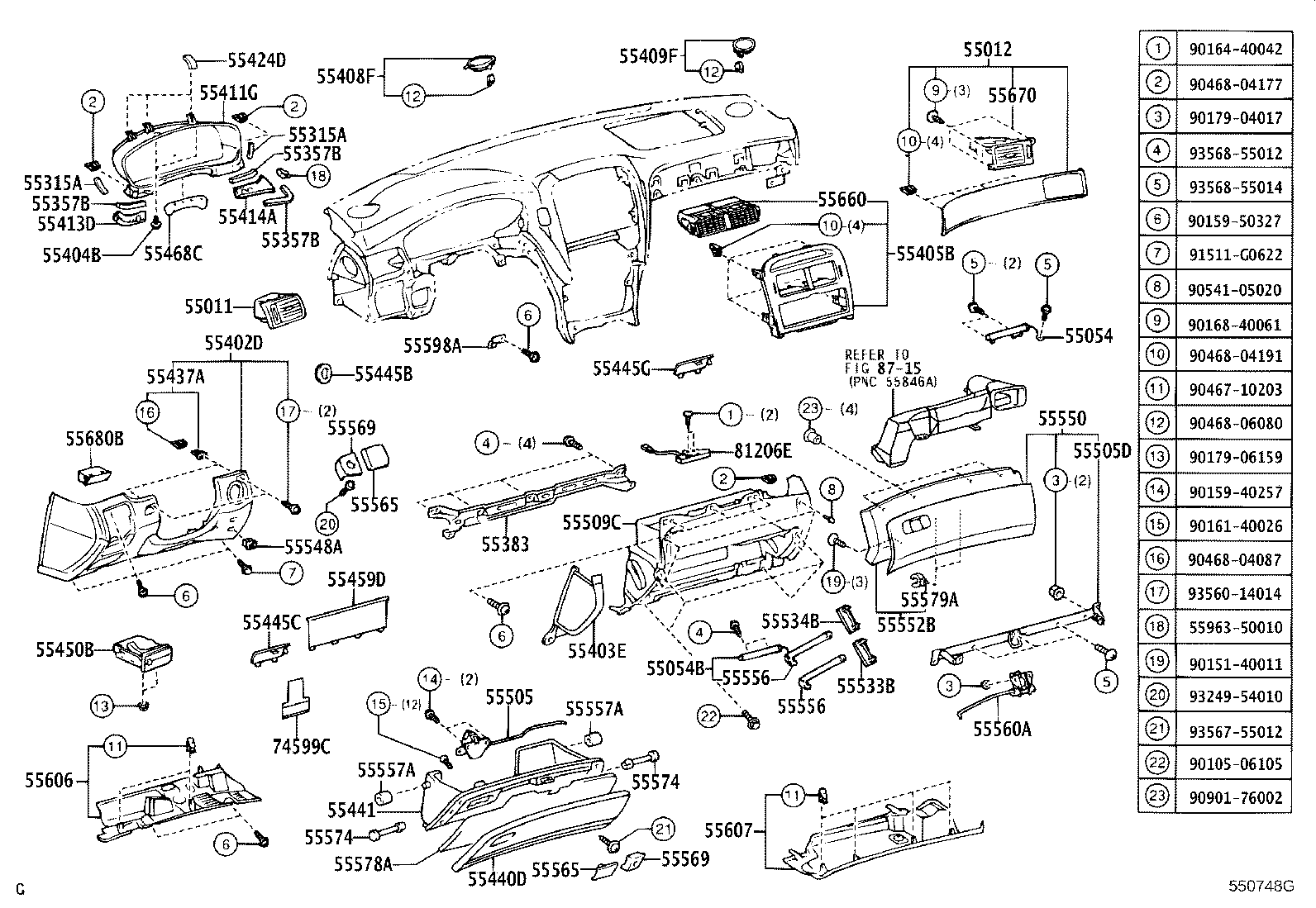

550748G 2000-08 → 2003-07

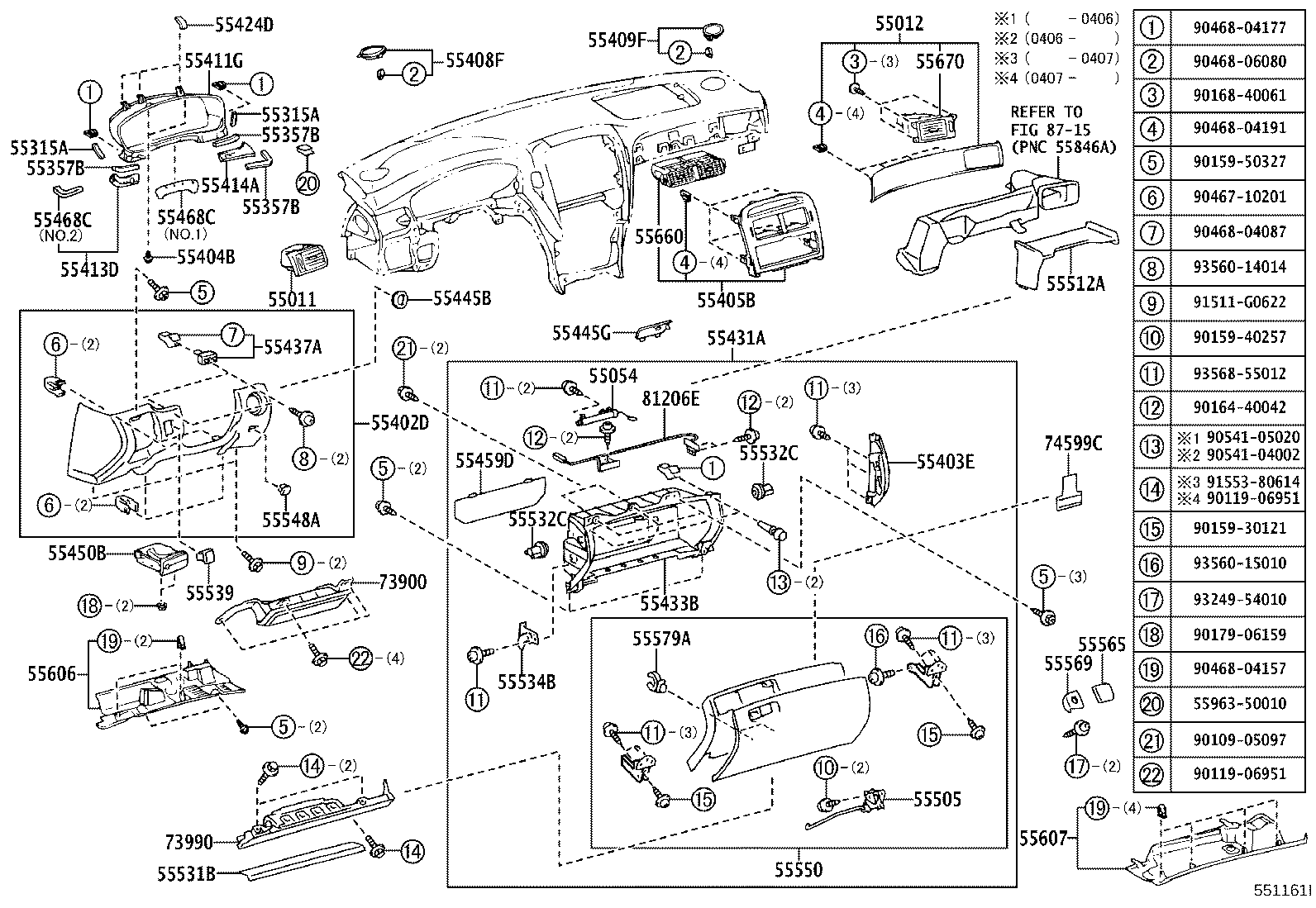

551161I 2003-07 → —

Part groups

PNC	Description
55011	Garnish Sub-assy, Instrument Panel Safety Pad
55012	Garnish Sub-assy, Instrument Panel, LH
55054	Stopper Sub-assy, Glove Compartment Door
55054B	Stopper Sub-assy, Glove Compartment Door
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55315A	Spacer, Instrument Panel, NO.1
55328	Pin, Instrument Panel, NO.1
55330B	Reinforcement Assy, Instrument Panel
55342A	Brace, Instrument Panel TO Cowl, NO.2
55355A	Plate, Instrument Panel
55357B	Cushion, Instrument Panel, NO.3
55359D	Cushion, Instrument Panel, NO.5
55374C	Bracket, Instrument Panel Lower Mounting, NO.1
55375B	Bracket, Instrument Panel Lower Mounting, NO.2
55376	Bracket, Instrument Panel Mounting, NO.1
55383	Bracket, Finish Panel Mounting, NO.3
55384C	Bracket, Finish Panel Mounting, NO.4
55401E	Pad Sub-assy, Instrument Panel Safety
55402D	Pad Sub-assy, Instrument Panel Safety, NO.1
55403E	Pad Sub-assy, Instrument Panel Safety, NO.2
55404B	Clip, Safety Pad Set
55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55413D	Panel, Instrument Cluster Finish, Center Lower
55414A	Panel, Instrument Cluster Finish, End
55416A	Retainer, Meter Hood, NO.1
55418B	Spacer,Meter Hood
55419B	Spacer, Meter Hood, NO.2
55424D	Cushion, Center Cluster, NO.2
55431A	Panel, Instrument Panel Finish
55433B	Panel, Instrument Panel Finish, Lower NO.2
55437A	Retainer, Instrument Panel Finish Panel, NO.1
55440D	Box Assy, Instrument Panel
55441	Box, Instrument Panel
55445B	Plate, Instrument Panel Finish
55445C	Plate, Instrument Panel Box
55445G	Plate, Instrument Panel Box
55448A	Cushion, Instrument Panel Finish, NO.1
55450B	Box Assy, Coin
55459D	Cover, Instrument, Lower LH
55468C	Seal, Instrument Cluster Finish Panel, NO.1
55505	Lock Sub-assy, Glove Compartment Door
55505D	Hinge Sub-assy, Glove Compartment Door
55509C	Panel Sub-assy, Glove Compartment
55512A	Plate, Glove Compartment
55514C	Retainer, Airbag Passenger Door
55531B	Cover, Choke Knob Hole
55532C	Stopper, Glove Door
55533B	Panel, Glove Compartment Side, RH
55534B	Panel, Glove Compartment Side, LH
55539	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55550	Door Assy, Glove Compartment
55552B	Door, Glove Compartment, Inner
55556	Arm, Glove Compartment Door Check
55557A	Cushion, Glove Compartment Door Check
55560A	Lock Assy, Glove Compartment Door
55565	Handle, Glove Compartment Door Lock
55569	Cover, Glove Compartment Door Lock
55574	Shaft, Glove Compartment Door Hinge
55578A	Silencer, Glove Compartment Door
55579A	Band, Glove Compartment Box
55598A	Bracket, Glove Compartment Door Hinge
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55680B	Register Assy, Instrument Panel, Lower NO.1
55950A	Nozzle Assy, Defroster
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55963A	Retainer, Side Defroster
55972A	Duct, Side Defroster Nozzle, NO.2
55981	Garnish, Defroster Nozzle, NO.1
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
73990	Airbag Assy, Instrument Panel, Lower NO.2
74599C	Label, Driver & Passenger Airbag Information
81206E	Lamp Sub-assy, Console Box

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
