Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01

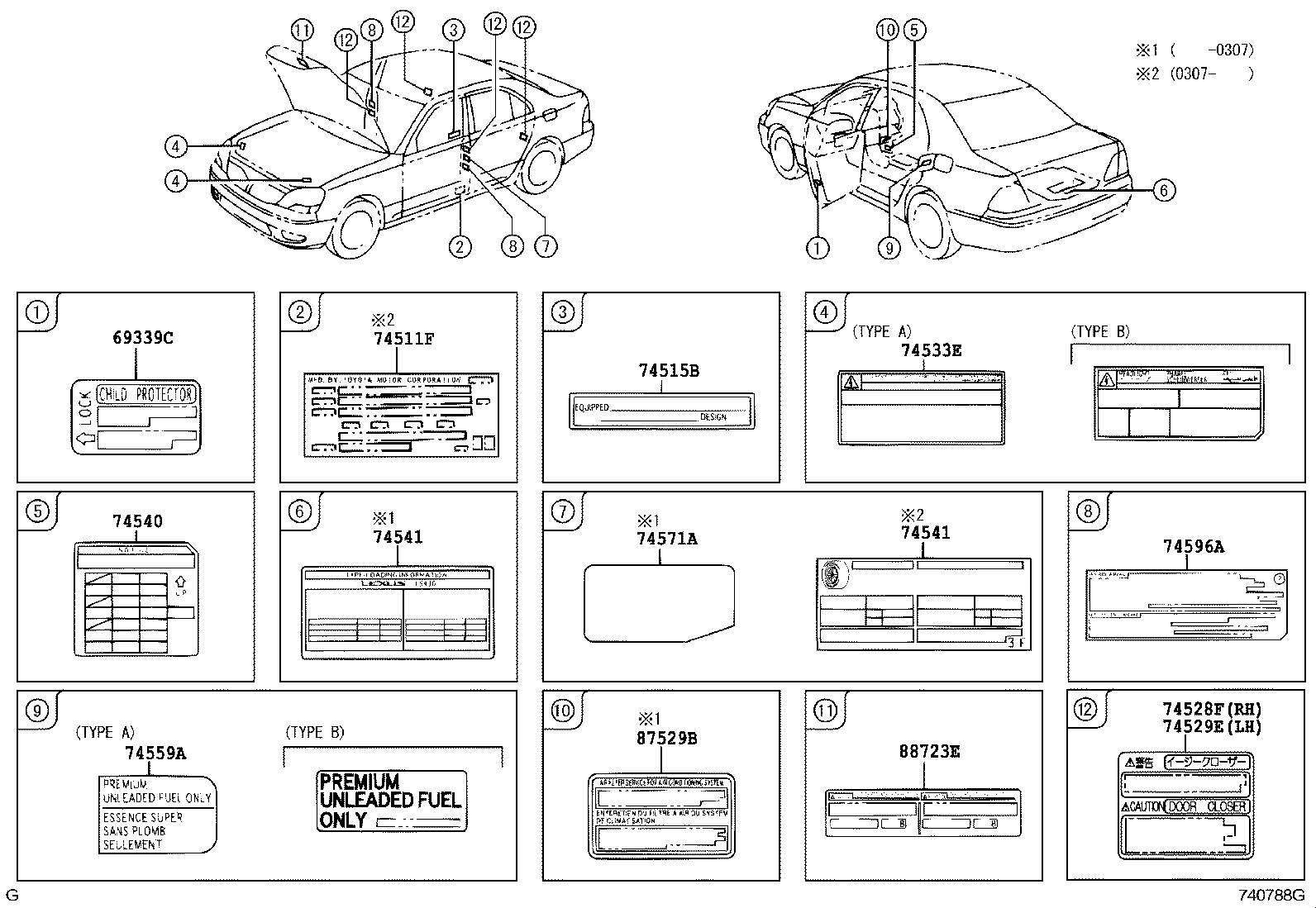

Caution Plate (EXTERIOR & INTERIOR)
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11297C | Label, Engine Service Information, NO.2 |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 17792C | Label, Engine Vacuum Hose Information |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74528F | Label, Door Closer Caution, RH |
| 74529E | Label, Door Closer Caution, LH |

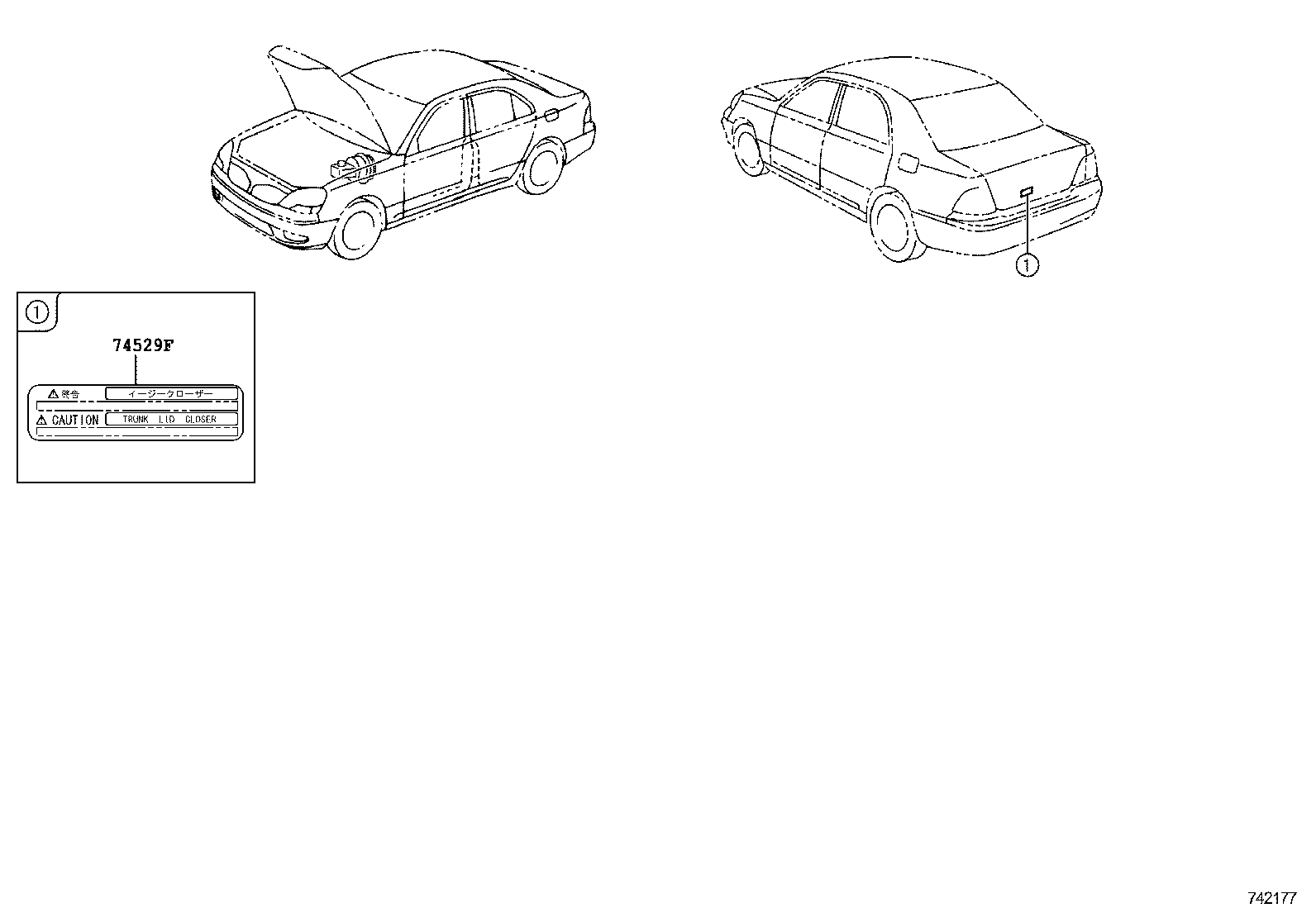

| 74529F | Label, Luggage Compartment Door |
| 74533E | Label, Headlamp Voltage Caution |
| 74540 | Plate, Fuse Block Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 86995E | Label, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
