Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01

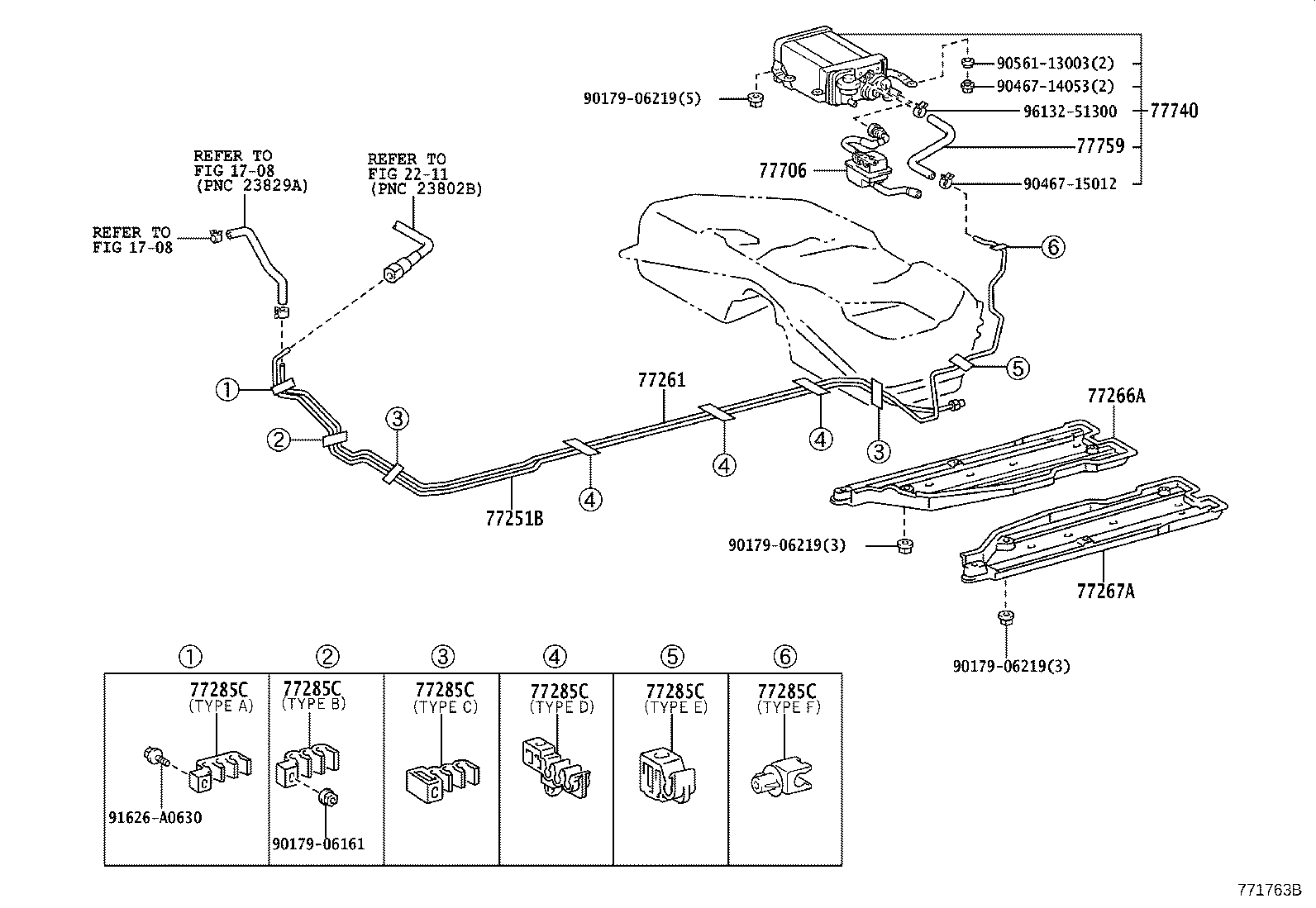

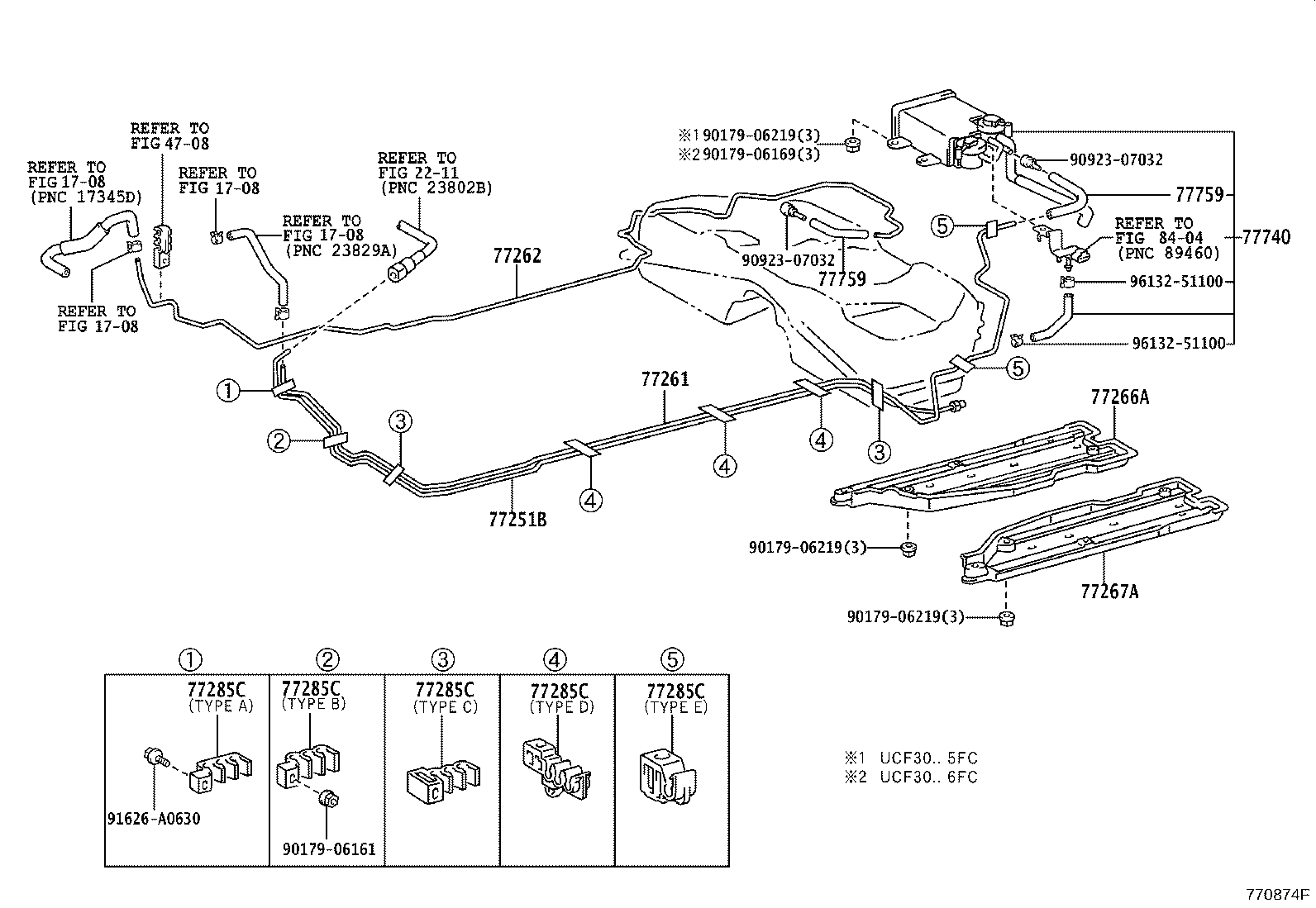

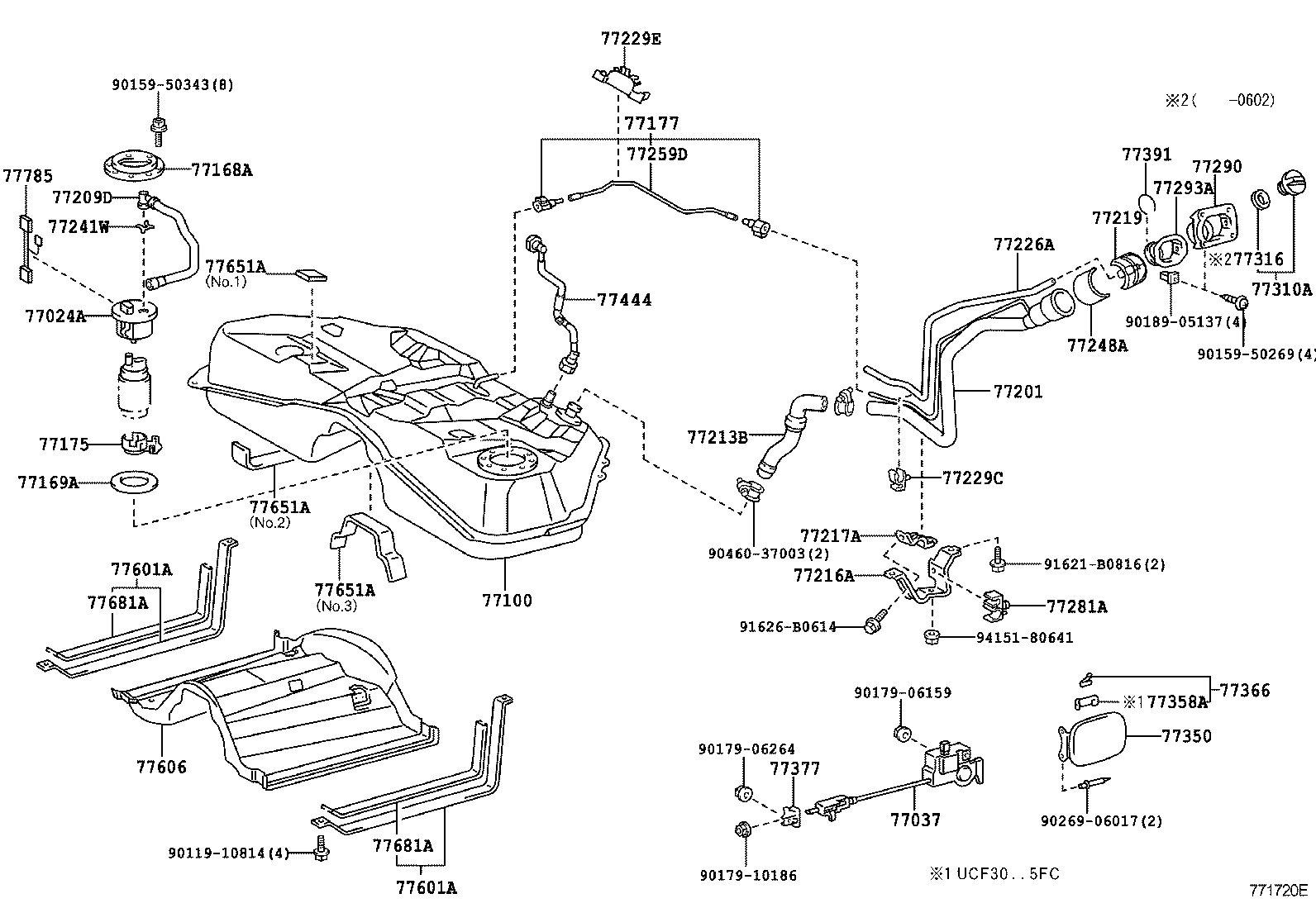

Fuel Tank & Tube
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77024A | Plate Sub-assy, Fuel Suction |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77227A | Tube, Fuel Tank Evaporation Vent |
| 77229C | Clamp, Breather Tube |
| 77229E | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77251F | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285C | Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN) |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77393 | Protector, Check Valve |
| 77409 | Hose Sub-assy, Fuel, NO.3 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77681A | Seat, Fuel Tank Band |
| 77706 | Filter Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77759 | Hose, Charcoal Canister |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
