Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01

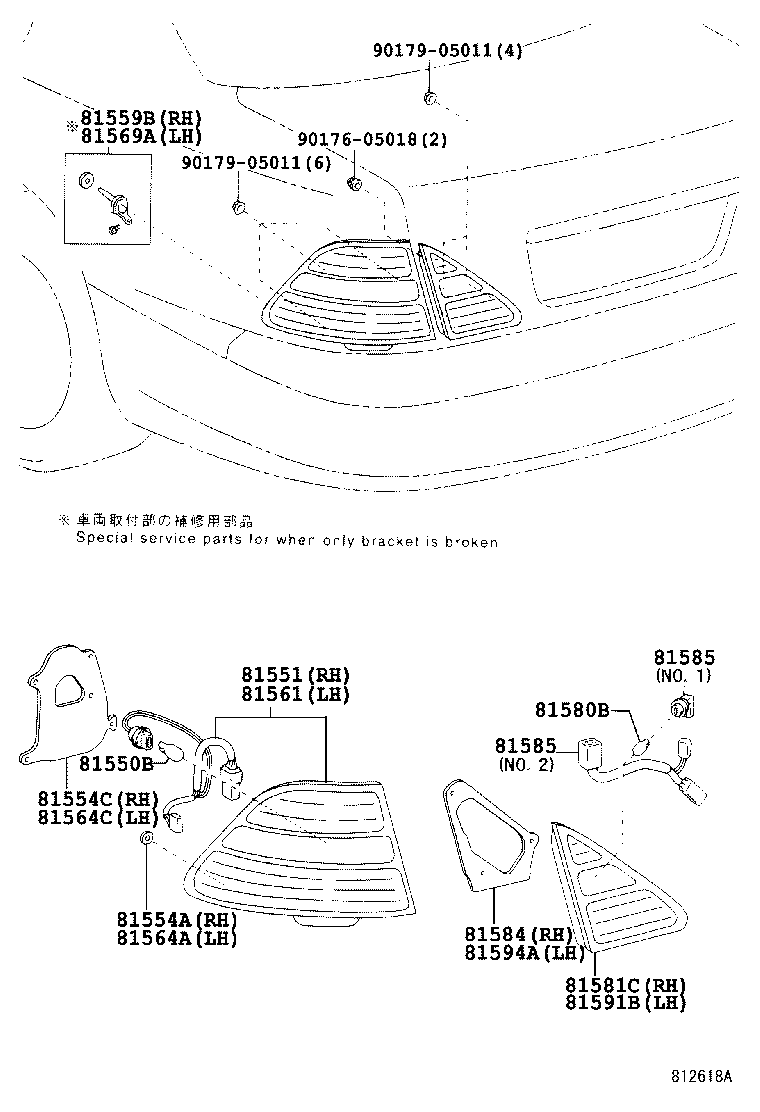

Rear Combination Lamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81554A | Gasket, Rear Combination Lamp Body, NO.1 RH |
| 81554C | Packing, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81559B | Bracket, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81564A | Gasket, Rear Combination Lamp Body, NO.1 LH |
| 81564C | Packing, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81569A | Bracket, Rear Combination Lamp, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
