Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01

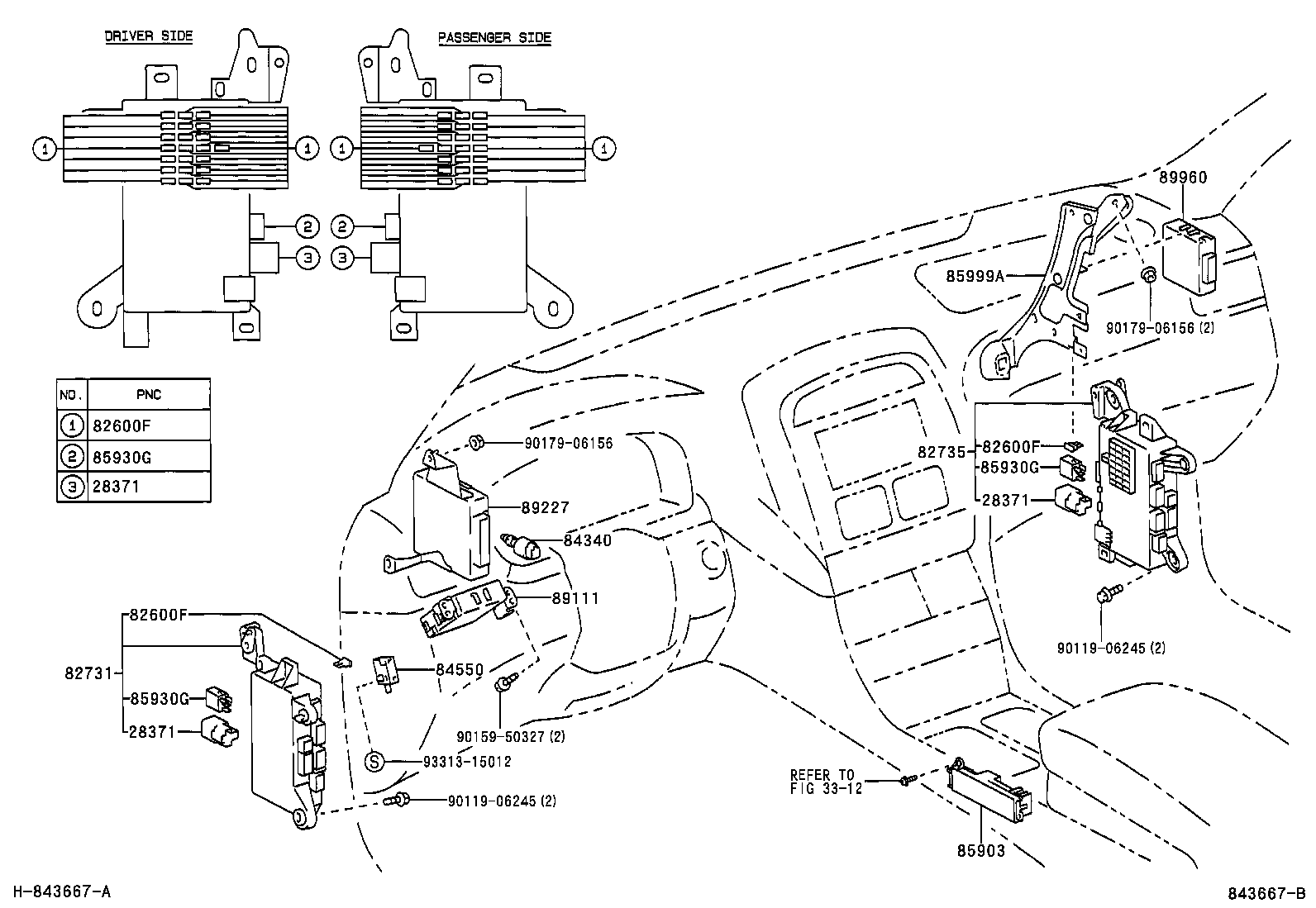

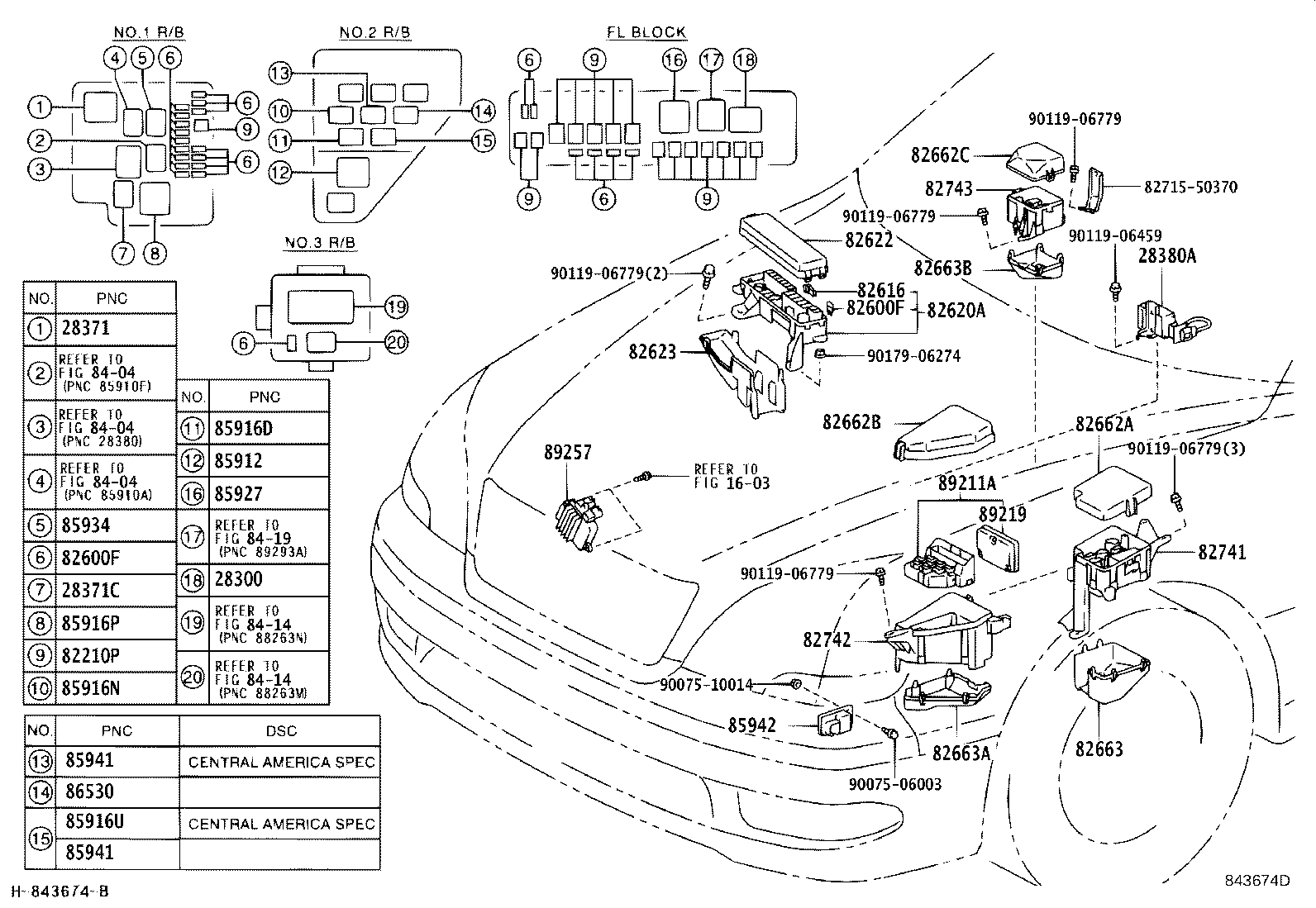

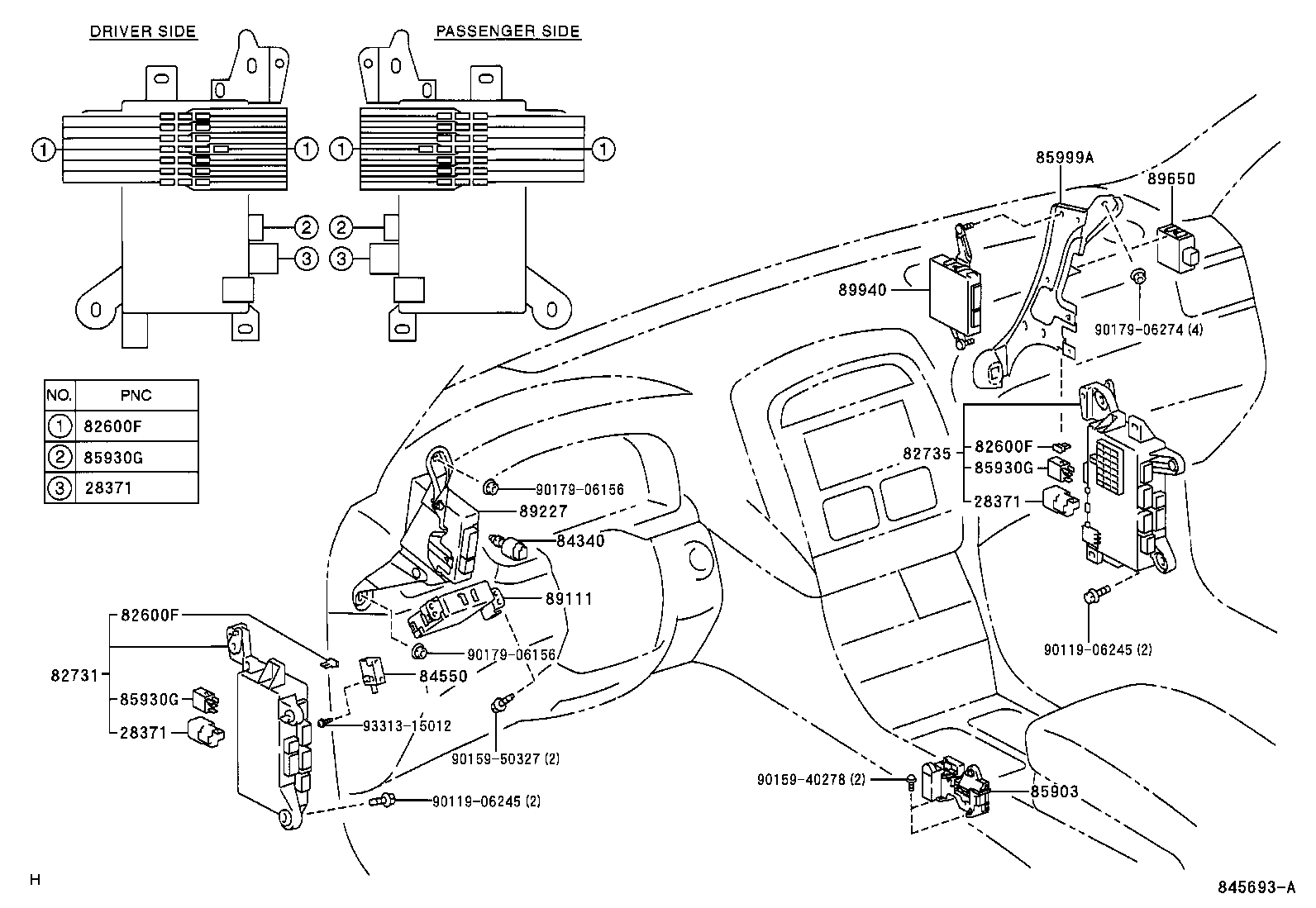

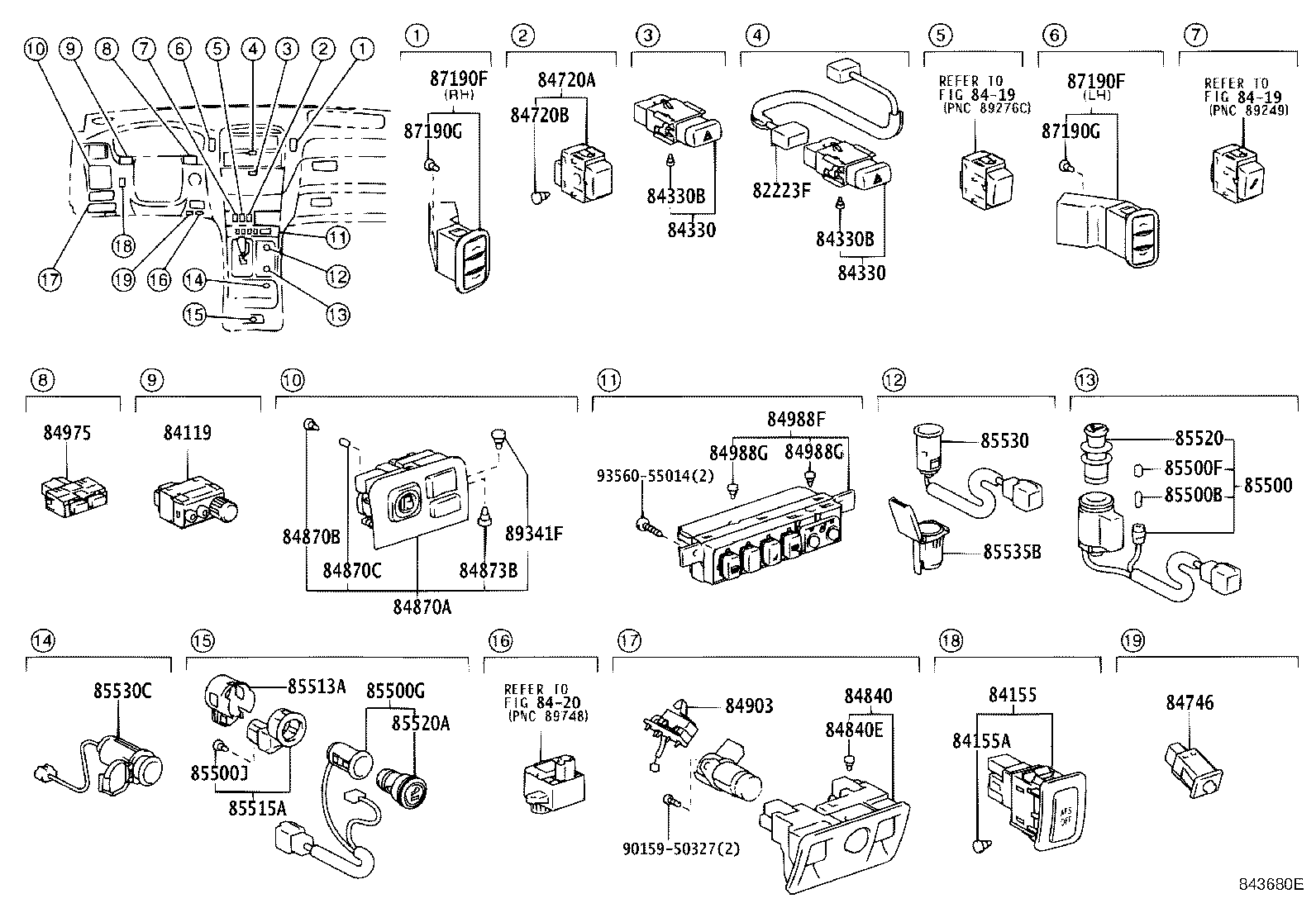

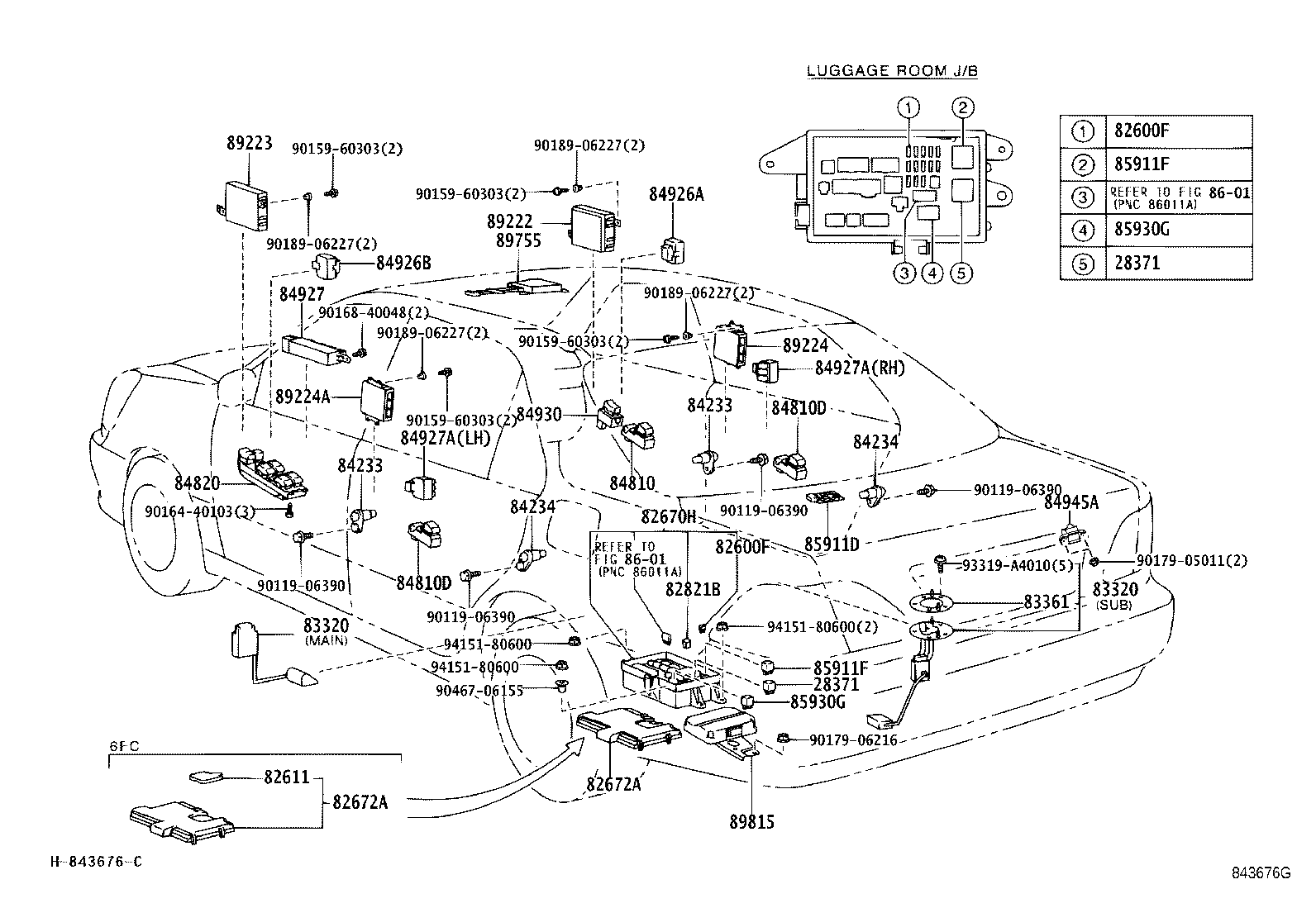

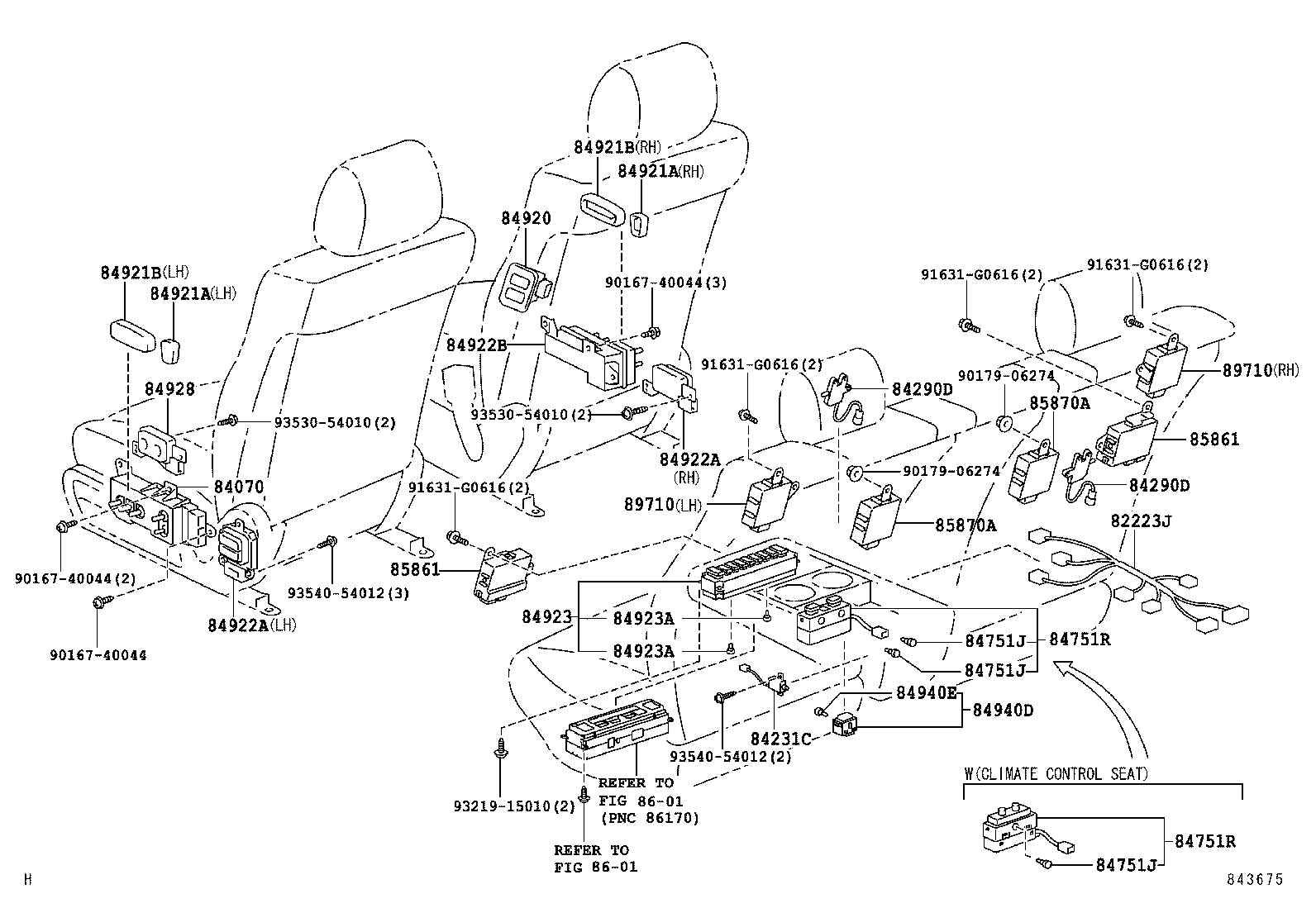

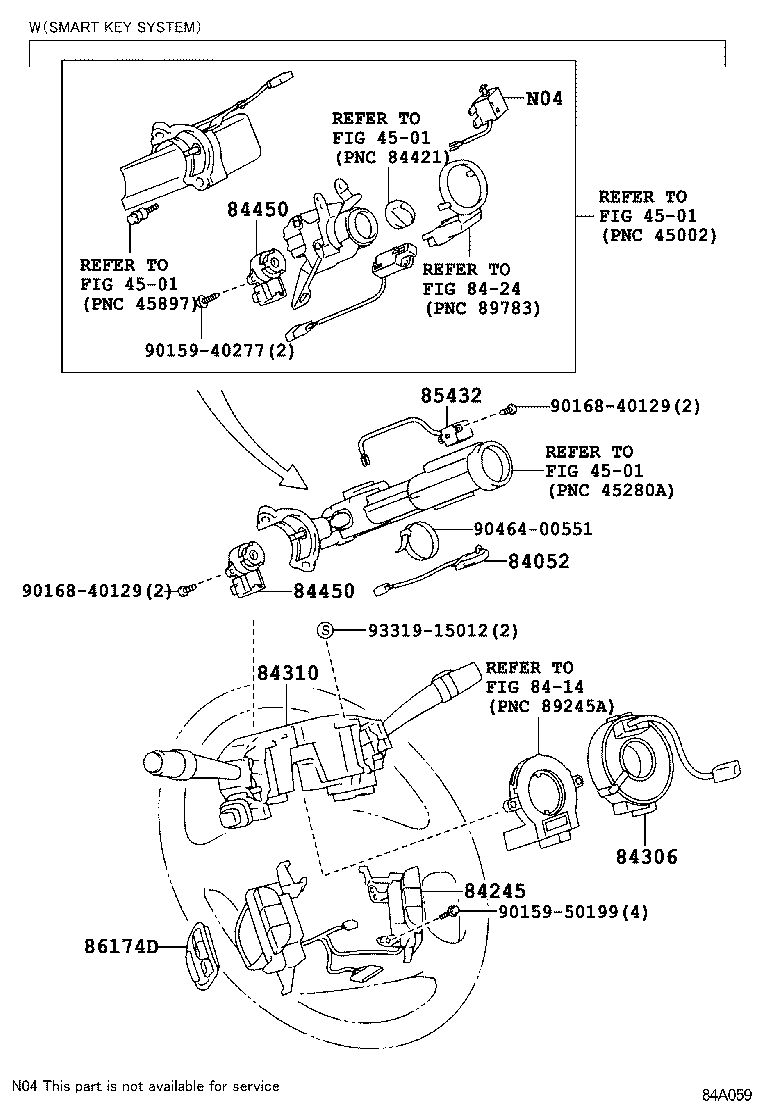

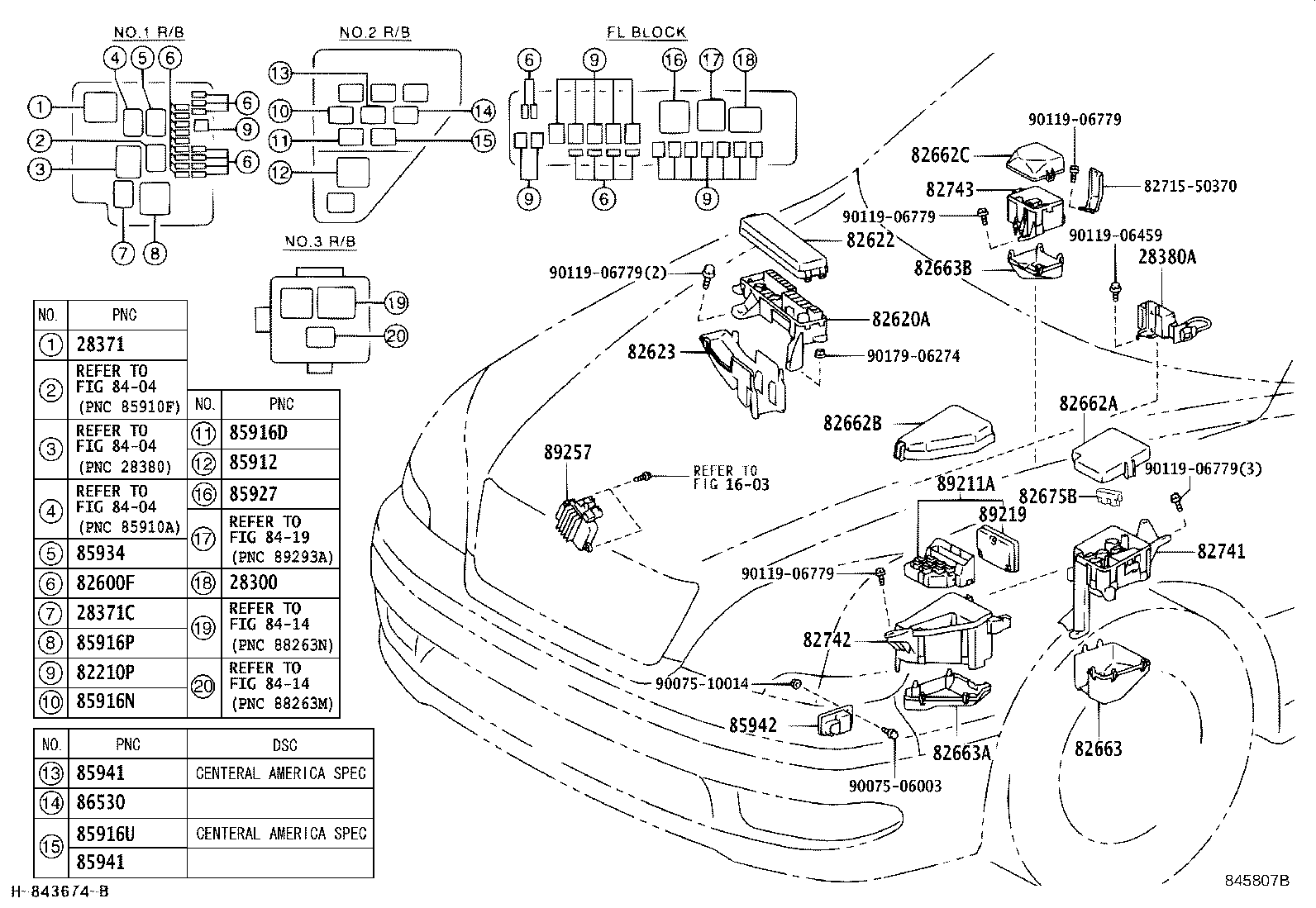

Switch & Relay & Computer
136 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 82210P | Engine Room Fusible Link |
| 82223F | Wire, Switch |
| 82223J | Wire, Switch |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82622 | Cover, Fusible Link, Upper |
| 82623 | Cover, Fusible Link, Lower |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82670H | Block Assy, Luggage Room Junction |
| 82672A | Cover, Junction Block |
| 82675B | Terminal, Junction |
| 82731 | Block, Driver Side Junction |
| 82735 | Block, Passenger Side Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84070 | Computer & Switch Assy, Position Control |
| 84119 | Rheostat, Light Control |
| 84155 | Switch, Headlamp Swivel Main |
| 84155A | Bulb, Hdeadlamp Swivel Main Switch |
| 84231C | Switch, Courtesy Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84245 | Modulator, Steering Pad Switch |
| 84290D | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84746 | Switch, Tire Pressure Warning |
| 84751J | Bulb, Seat Heater Switch(REAR) |
| 84751R | Switch, Seat Heater(REAR) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840E | Blub, Luggage Door Opening, Switch Assy |
| 84870A | Switch Assy, Outer Mirror |
| 84870B | Bulb, Outer Mirror Switch |
| 84870C | Cap, Outer Mirror Switch Bulb |
| 84873B | Bulb, Retractable Outer Mirror Switch |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84923 | Switch, Rear Power Seat |
| 84923A | Bulb, Rear Power Seat Switch |
| 84926A | Switch, Height Adjustable Anchor |
| 84926B | Switch, Height Adjustable Anchor |
| 84927 | Switch, Seat Memory |
| 84927A | Switch, Rear Seat Memory |
| 84928 | Switch, Seat Variable Cushion |
| 84930 | Switch Assy, Door Control |
| 84940D | Switch Assy, Rear Sun Shade |
| 84940E | Bulb, Rear Sun Shade |
| 84945A | Switch, Luggage Electrical Key |
| 84975 | Switch, Trip |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85500G | Lighter Assy, Cigarette, Rear |
| 85500J | Bulb, Cigarette Lighter, Rear |
| 85513A | Cover, Cigarette Lighter, Rear |
| 85515A | Stay, Cigarette Lighter Bezel, Rear |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85520A | Knob & Element Assy, Cigarette Lighter, Rear |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530C | Socket Assy, Power Outlet, Center |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85861 | Computer, Seat Climate Control |
| 85870A | Computer Assy, Vibration Seat |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85911D | Relay, Rear Sunshade |
| 85911F | Relay, Rear Sunshade, NO.2 |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85916U | Relay, Headlamp, NO.2 |
| 85927 | Relay, Cooling Fan |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 85941 | Relay, Windshield Washer |
| 85942 | Relay, Headlamp Cleaner Control |
| 85999A | Bracket, Relay, NO.2 |
| 86174D | Case, Switch & Volume |
| 86530 | Relay Assy, Horn |
| 87190F | Switch Assy, Temperature Control |
| 87190G | Bulb, Temperature Control |
| 89111 | Computer, Network Gateway |
| 89211A | Computer, Multiplex Network Body |
| 89219 | Computer, Multiplex Network Front Lamp |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89224A | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89257 | Computer, Cooling Fan |
| 89341F | Bulb, Clearance Sonar Switch |
| 89465 | Sensor, Oxygen |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89710 | Computer Assy, Position Control |
| 89755 | Transmitter, Garage Door Opener |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
