Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

27 part groups · 4 illustrations

Illustrations

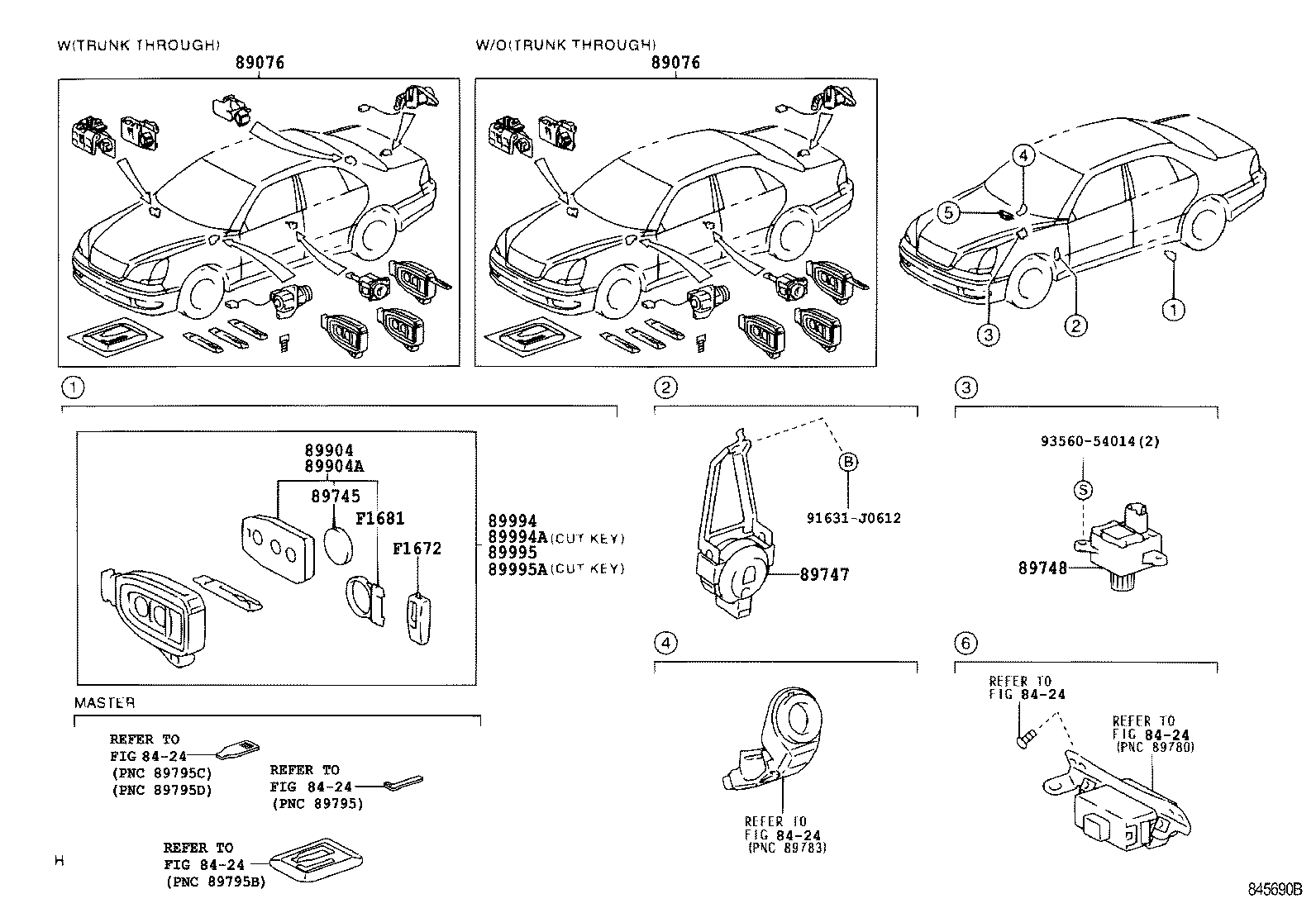

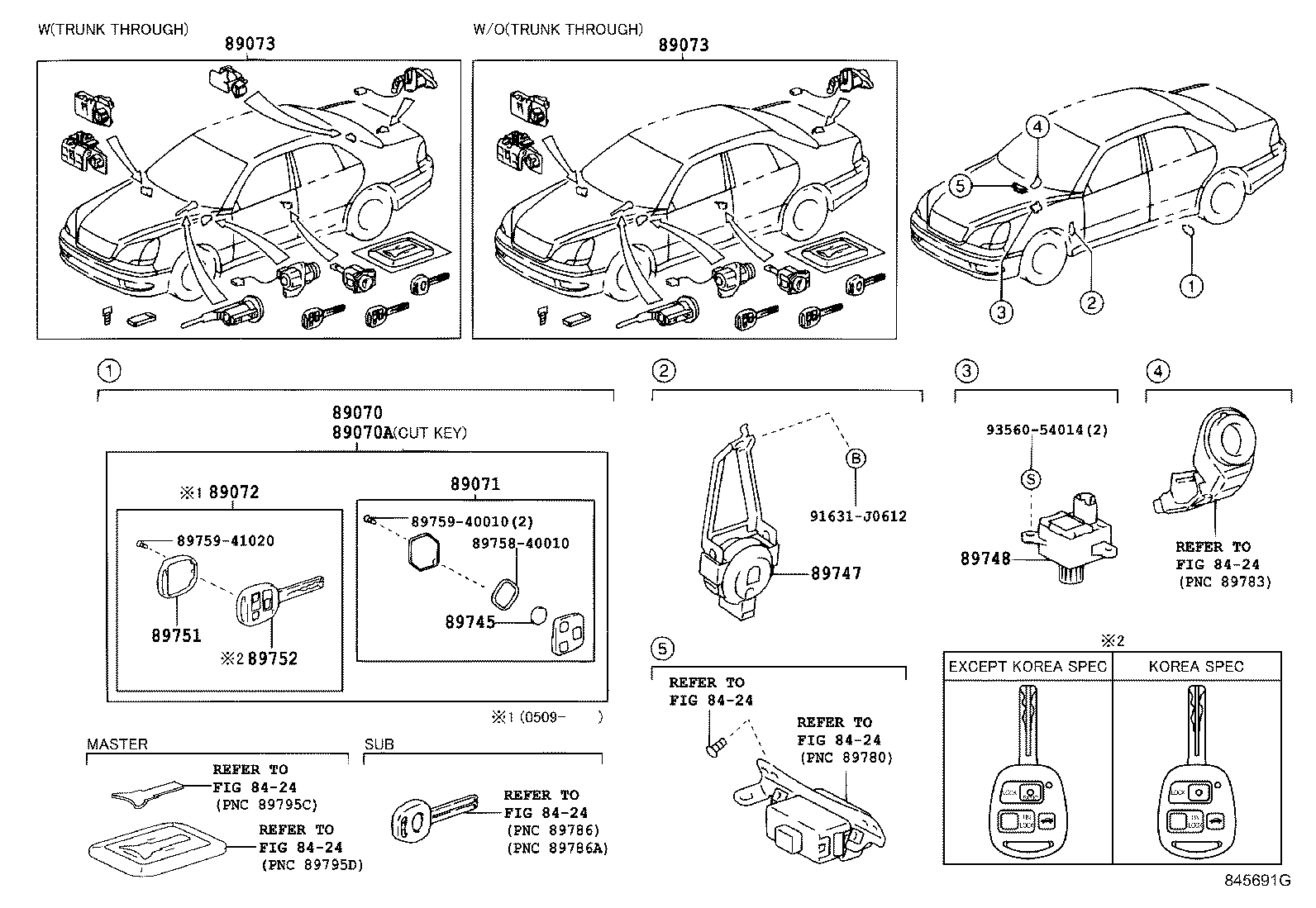

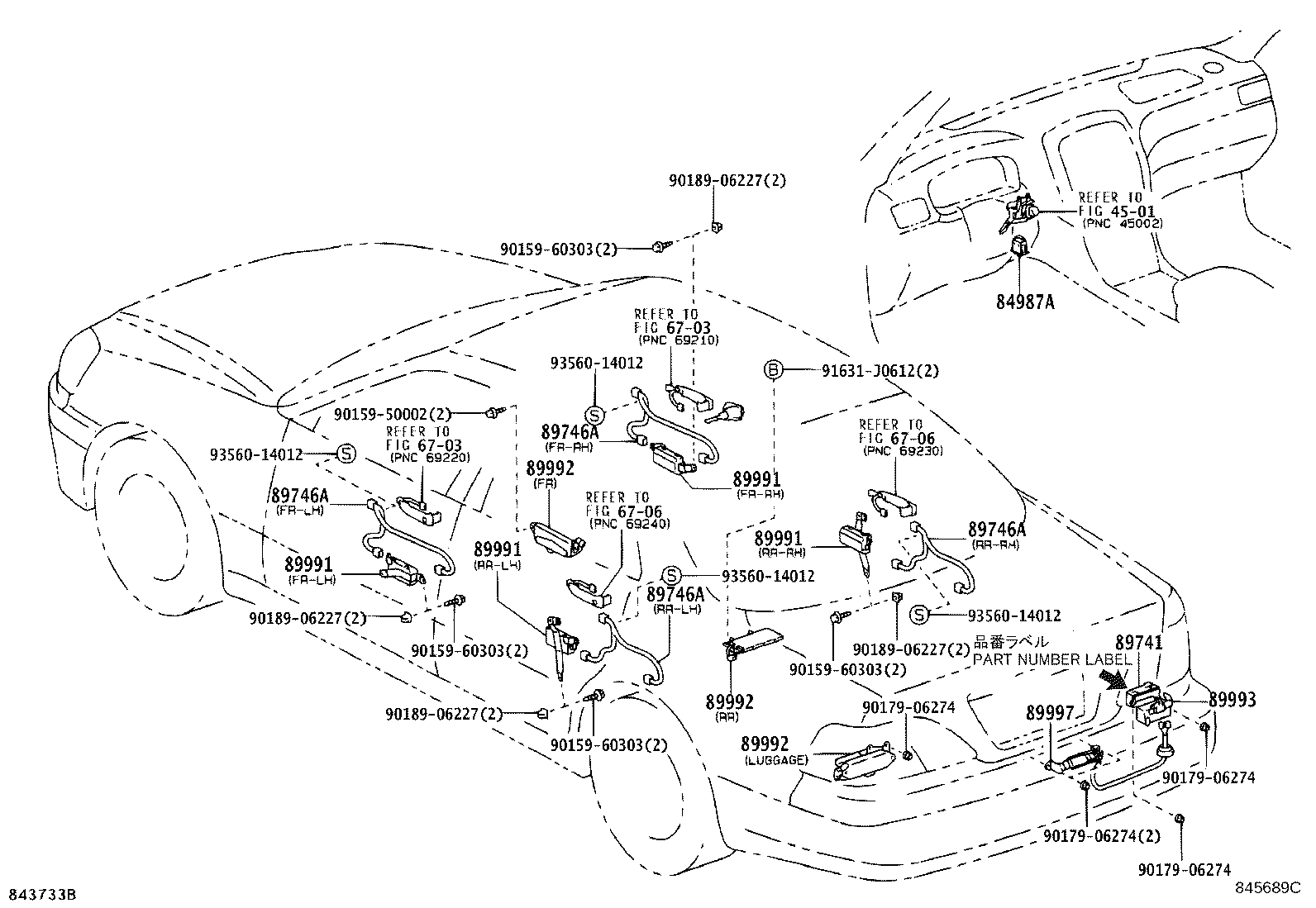

Figure 843734F 843734F 2000-08 → 2003-07 Figure 845691G 845691G 2003-07 → — Figure 845690B 845690B 2003-07 → — Figure 845689C 845689C 2003-07 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89072 Housing Set, Door Control Transmitter
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89076 Cylinder Set, Lock W/Transmitter Case
89741 Receiver, Door Control
89745 Battery, Transmitter
89746A Harness, Electrical Key Wire
89747 Buzzer, Wireless Door Lock
89748 Controller, Wireless Door Lock Buzzer
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
89904 Transmitter Sub-assy, Electrical Key
89904A Transmitter Sub-assy, Electrical Key(SUB KEY)
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89993 Oscillator, Luggage Electrical Key
89994 Transmitter, Electrical Key
89994A Transmitter, Electrical Key(CUT KEY)
89995 Transmitter, Electrical Key Sub
89995A Transmitter, Electrical Key Sub(CUT KEY)
89997 Antenna, Electrical Key
F1672 Cover, Door Control Transmitter, NO.1
F1681 Cover, Door Control Transmitter Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
