Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01

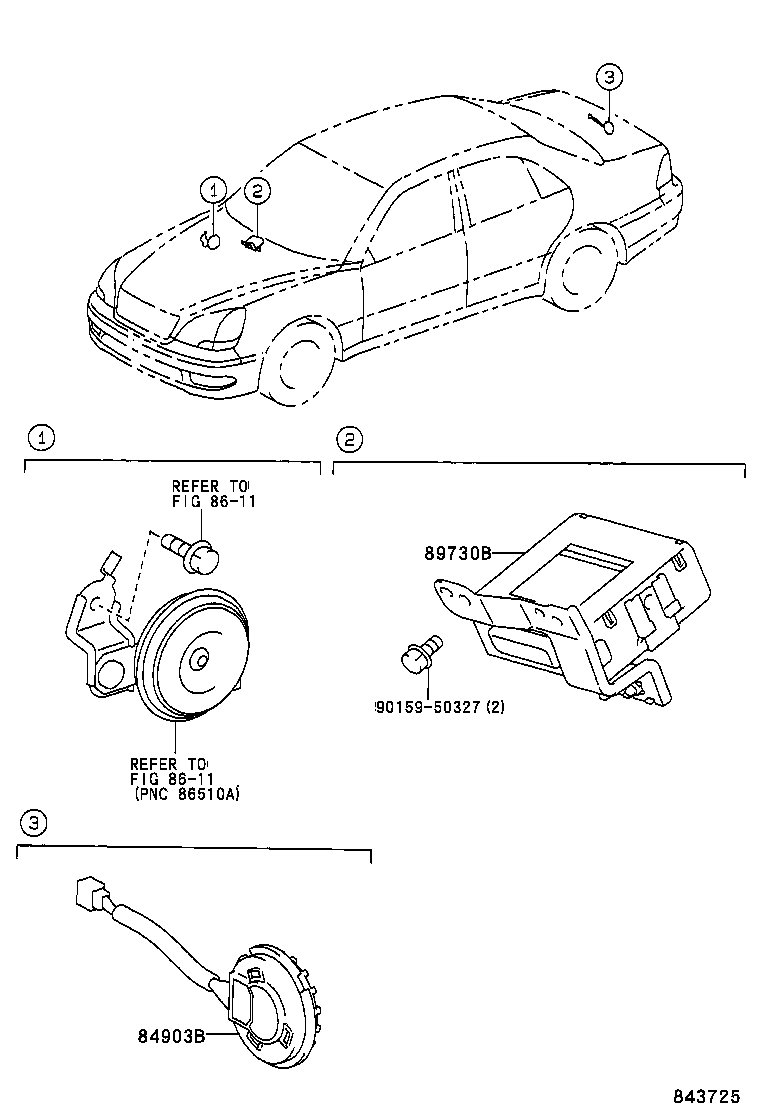

Anti-theft Device
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 84903B | Switch Sub-assy, Door Unlock |
| 89730B | Computer Assy, Theft Warning |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89786 | Transmitter, Transponder Key Sub |
| 89786A | Transmitter, Transponder Cut Key Sub |
| 89795 | Card, Transponder Key |
| 89795B | Base, Transponder Card Key |
| 89795C | Key, Transponder Key Card Cut |
| 89795D | Key, Transponder Card Blank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
