Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431430 · United States
Discontinued model
Data version 2007-01
Telephone & Mayday

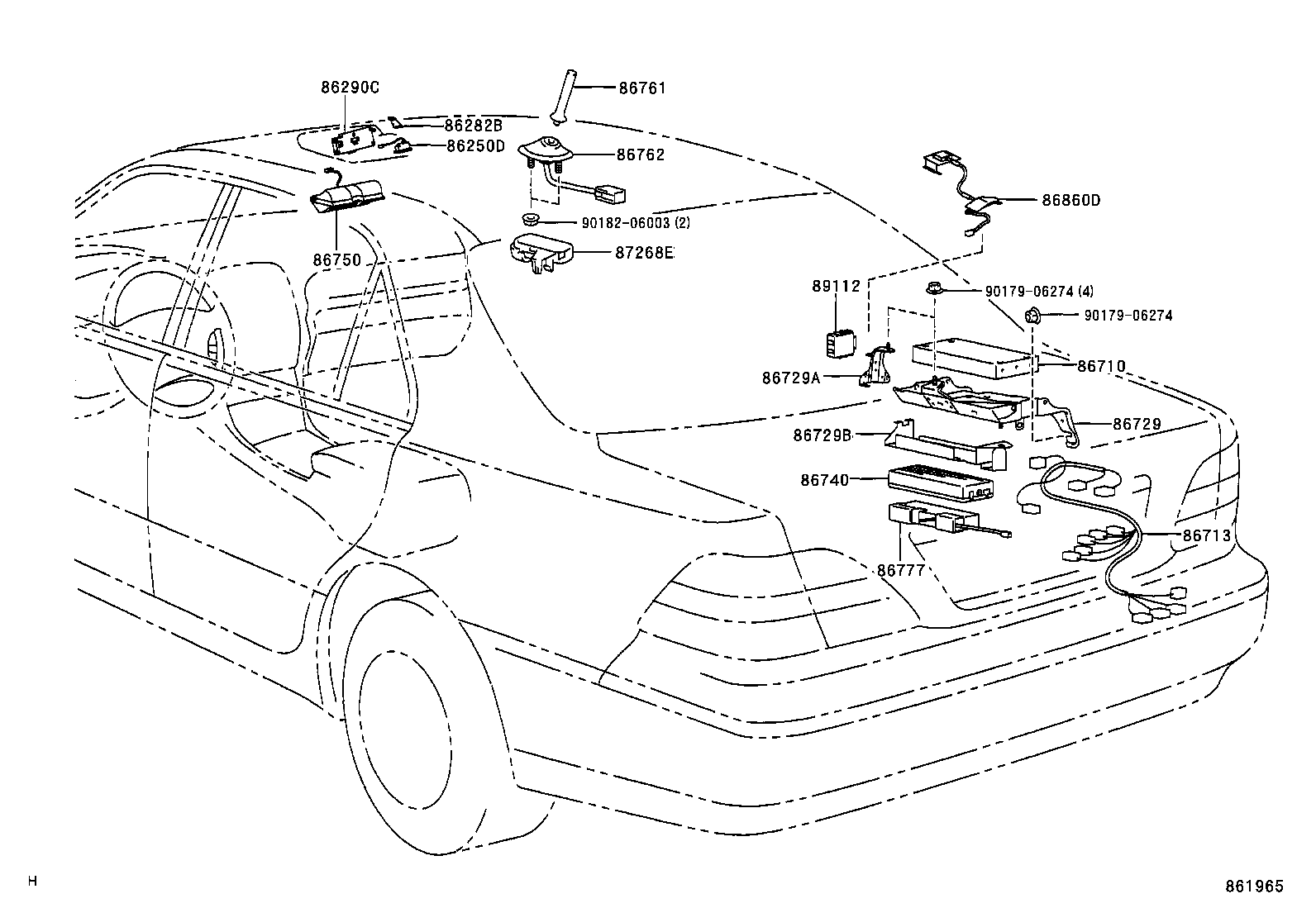

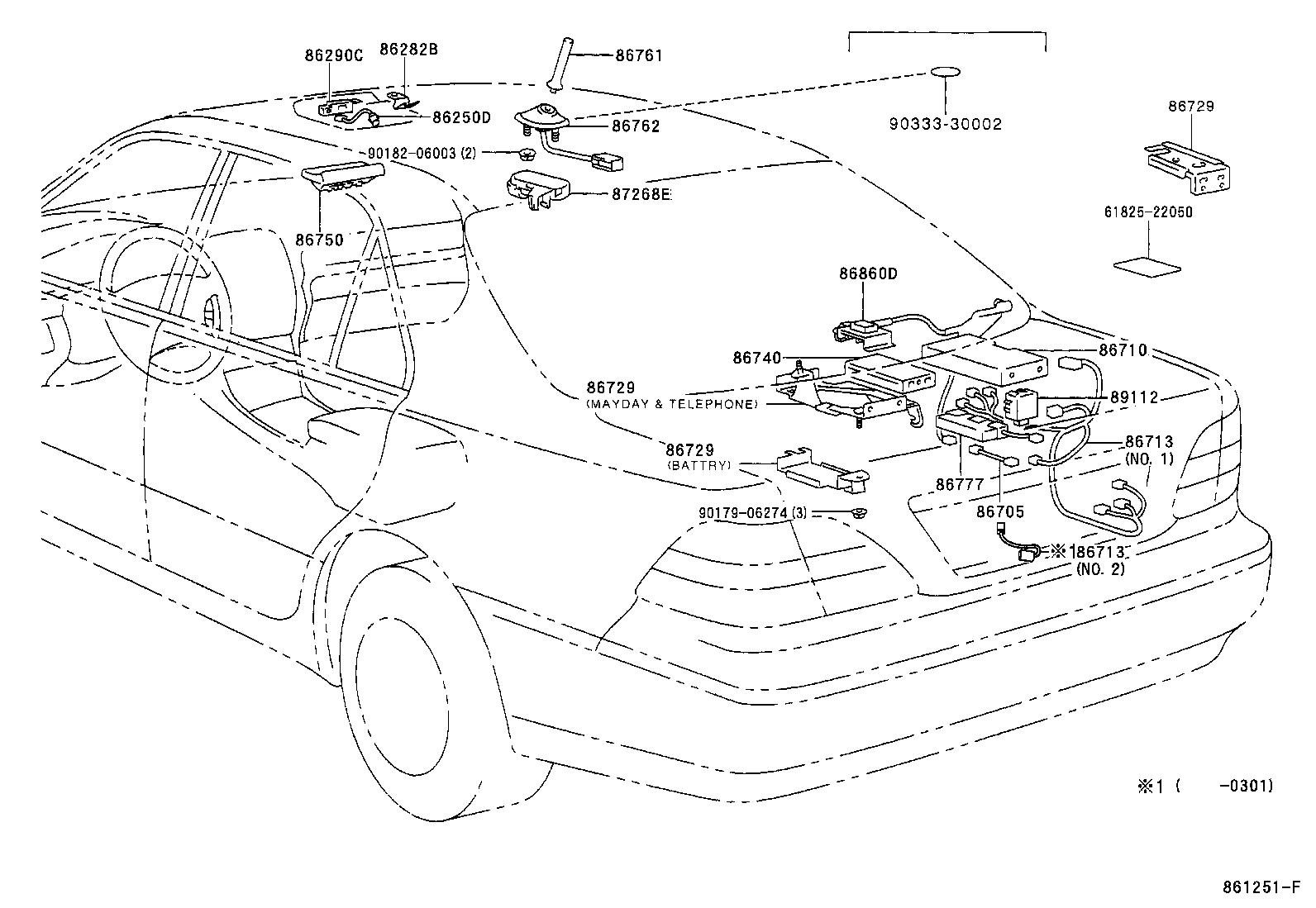

17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86250D | Microphone Assy, Amplifier |
| 86282B | Bracket, Microphone |
| 86290C | Amplifier Assy, Microphone |
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86710 | Computer Assy, Telephone |
| 86713 | Wire, Telephone Computer |
| 86729 | Bracket, Mobilephone |
| 86729A | Bracket, Mobilephone, NO.1 |
| 86729B | Bracket, Mobilephone, NO.2 |
| 86740 | Transceiver Assy, Telephone |
| 86750 | Switch Assy, Telephone |
| 86761 | Rod, Telephone Antenna |
| 86762 | Base, Telephone Antenna |
| 86777 | Battery, Mayday |
| 86860D | Antenna, Navigation |
| 87268E | Protector, Telephone Antenna |
| 89112 | Computer, Bus Buffer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
