Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States
Supported model
Data version 2012-10

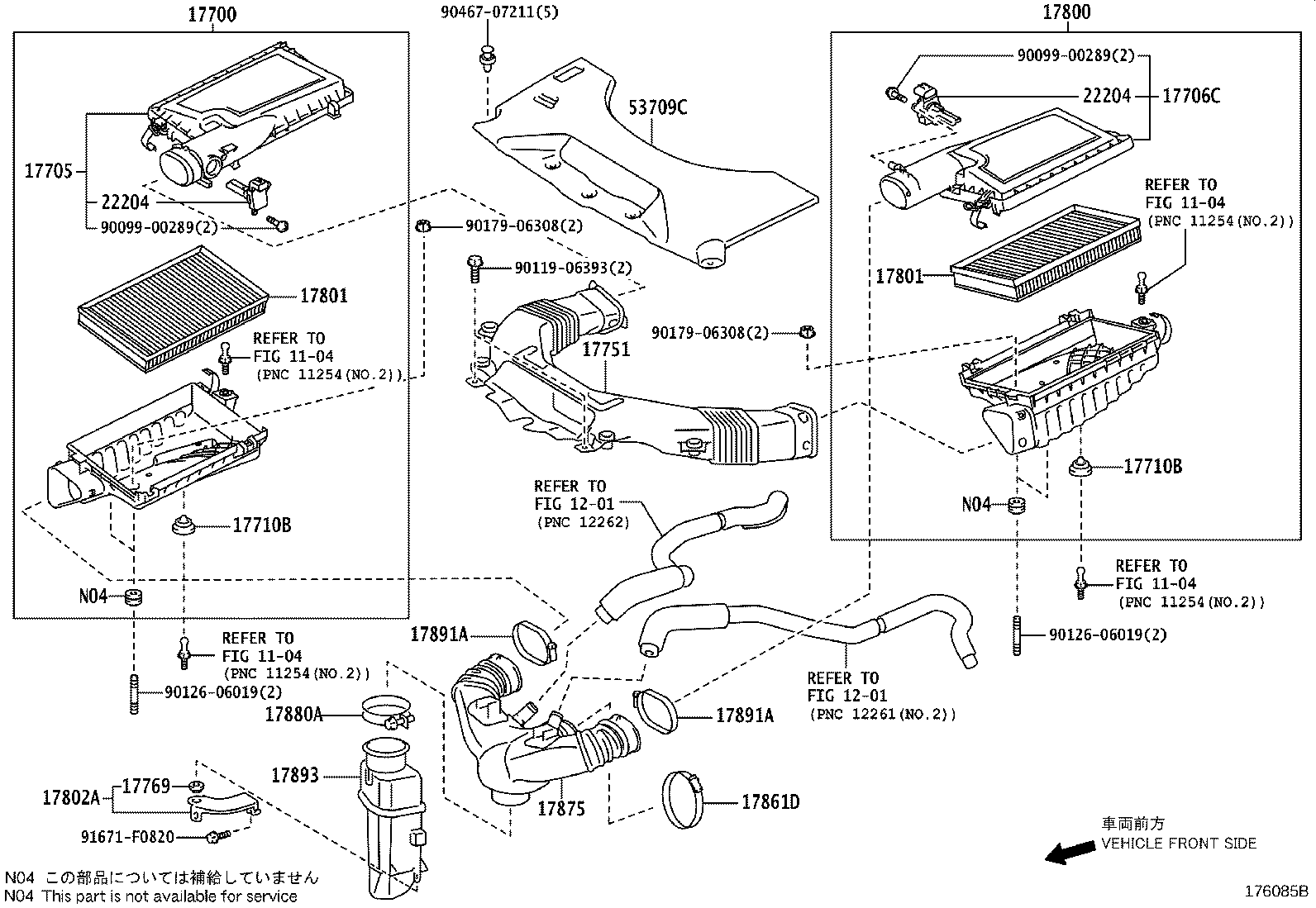

Air Cleaner
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17706C | Cap Sub-assy, Air Cleaner, LH |
| 17710B | Grommet |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17769 | Support, Air Cleaner |
| 17800 | Cleaner Assy, Air W/Element, LH |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17802A | Bracket Sub-assy, Resonator |
| 17861D | Clamp(FOR INTAKE AIR CONNECTOR) |
| 17875 | Pipe, Intake Air Connector |
| 17880A | Clamp, Hose |
| 17891A | Clamp, Air Cleaner Hose |
| 17893 | Resonator, Intake Air |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 53709C | Cover Sub-assy, Air Cleaner Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
