Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States
Supported model
Data version 2012-10

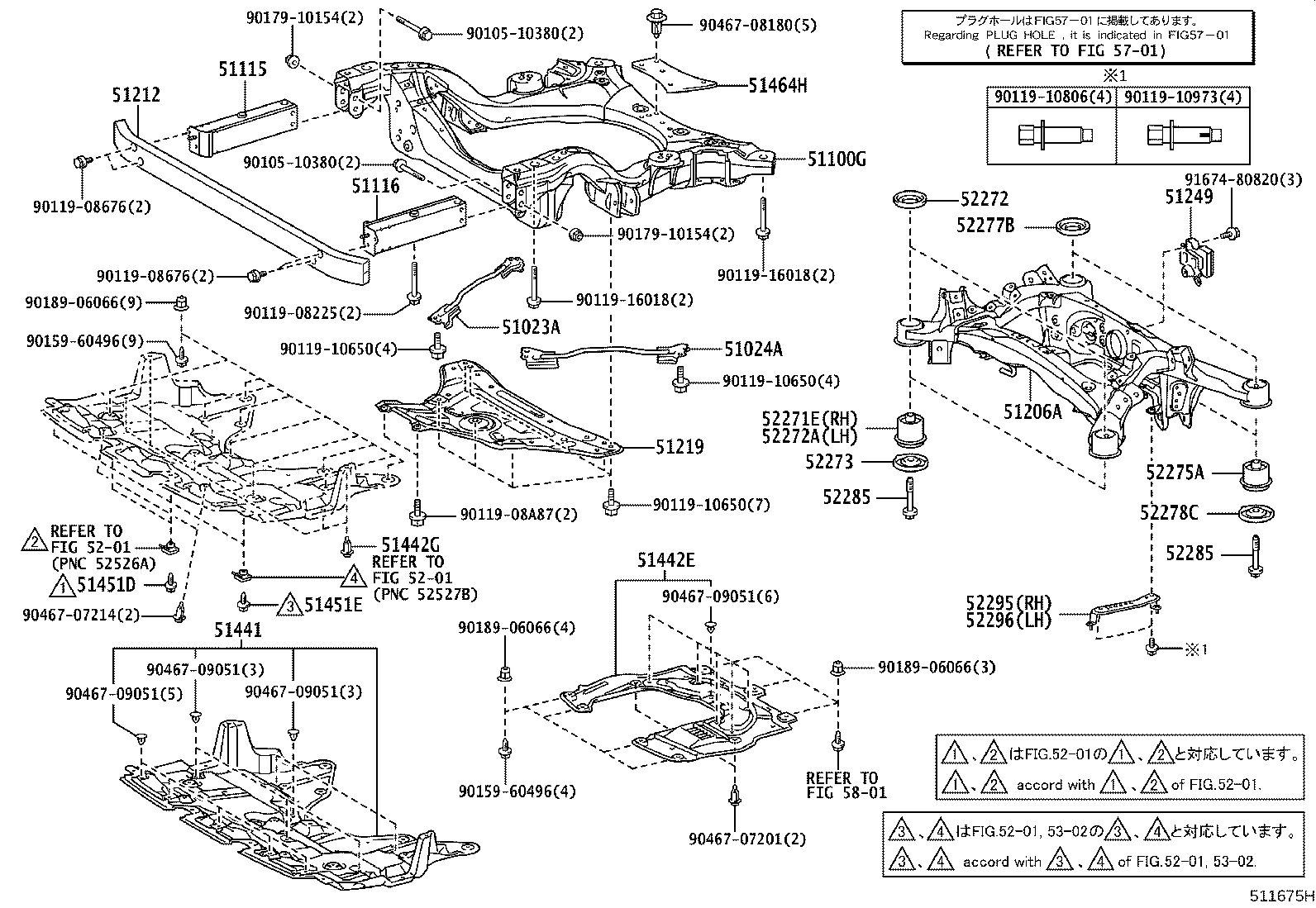

Suspension Crossmember & Under Cover
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51023A | Bracket Sub-assy, Front Suspension Member, RH |
| 51024A | Bracket Sub-assy, Front Suspension Member, LH |
| 51100G | Frame Assy, Front |
| 51115 | Rail, Frame Side, Rear RH |
| 51116 | Rail, Frame Side, Rear LH |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51212 | Crossmember, Front Suspension, Lower |
| 51215A | Reinforcement, Front Suspension Member, RH |
| 51216A | Reinforcement, Front Suspension Member, LH |
| 51219 | Protector, Front Suspension Member, Lwr |
| 51249 | Damper, Rear Suspension Member |
| 51408B | Cover Sub-assy, Engine Under, RH |
| 51409B | Cover Sub-assy, Engine Under, LH |
| 51441 | Cover, Engine Under, NO.1 |
| 51442E | Cover, Engine Under, NO.2 |
| 51442G | Clip, Engine Under Cover, NO.1 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51464H | Silencer, Transmission Under |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52272A | Cushion, Rear Suspension Member Body Mounting, Front LH |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52277B | Stopper, Rear Suspension Member, Rear Upper |
| 52278C | Stopper, Rear Suspension Member, Rear Lower |
| 52285 | Bolt, Differential Support Member Mounting, NO.1 |
| 52295 | Brace, Rear Suspension Member, RH |
| 52296 | Brace, Rear Suspension Member, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
