Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States
Supported model
Data version 2012-10

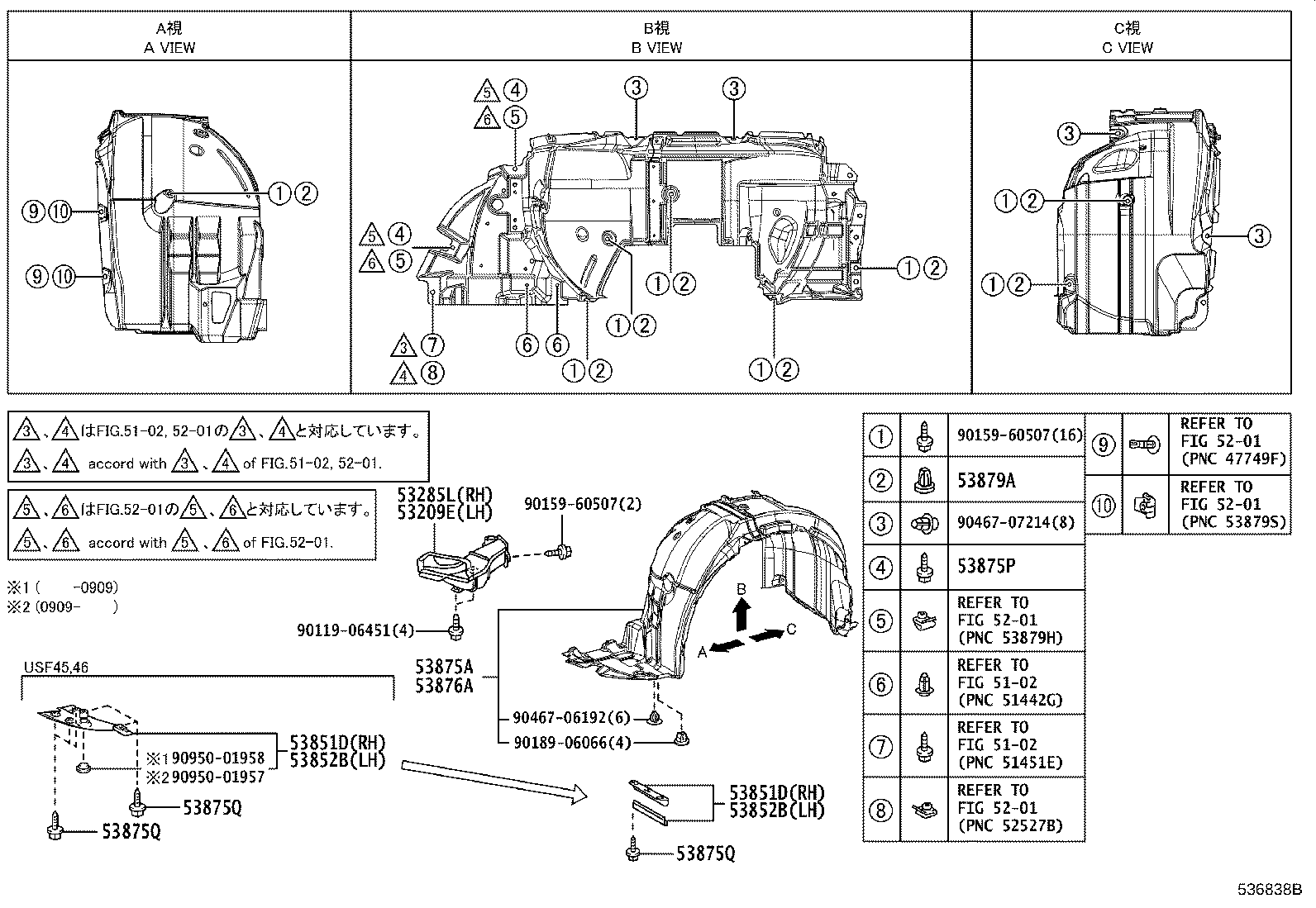

Hood & Front Fender
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53209E | Duct Sub-assy, Cool Air Intake, NO.3 |
| 53285L | Duct, Cool Air Intake, NO.2 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53378C | Seal, Hood Air Intake Duct |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53383A | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53803A | Bracket Sub-assy, Front Side Panel, RH |
| 53804A | Bracket Sub-assy, Front Side Panel, LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53829A | Protector, Front Fender, Lower |
| 53831A | Panel, Front Fender Side, Upper RH |
| 53832A | Panel, Front Fender Side, Upper LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53878C | Spacer, Front Fender |
| 53878P | Spacer, Front Fender |
| 53879A | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
