Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

9 part groups · 2 illustrations

Illustrations

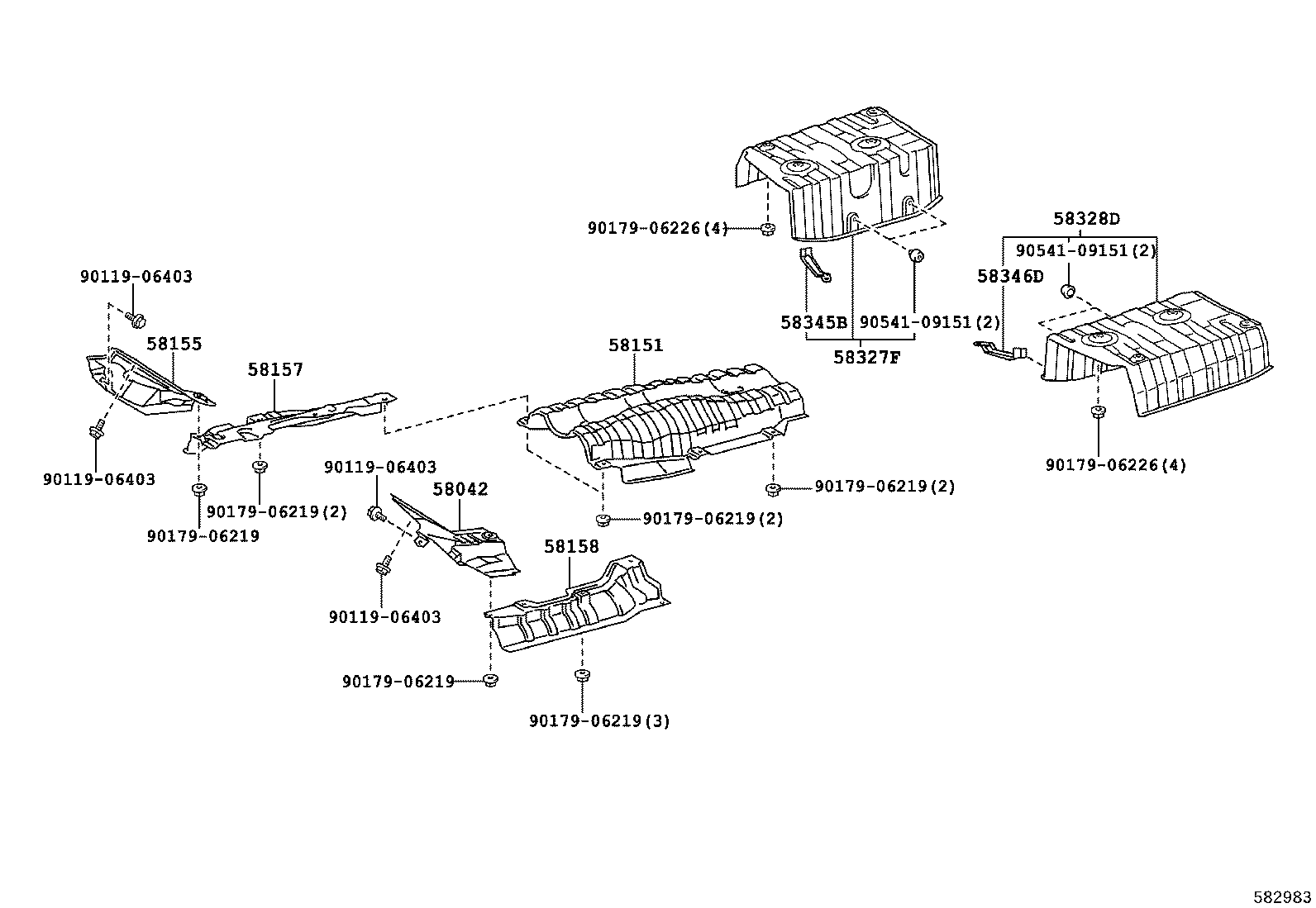

Figure 582749A 582749A 2006-08 → — Figure 582983A 582983A 2008-09 → —

Part groups

PNCDescription
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58151 Insulator, Front Floor Heat, NO.1
58155 Insulator, Front Floor Heat, NO.3
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
58345B Bracket, Rear Floor Heat Insulator, NO.1
58346D Bracket, Rear Floor Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
