Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

5 part groups · 2 illustrations

Illustrations

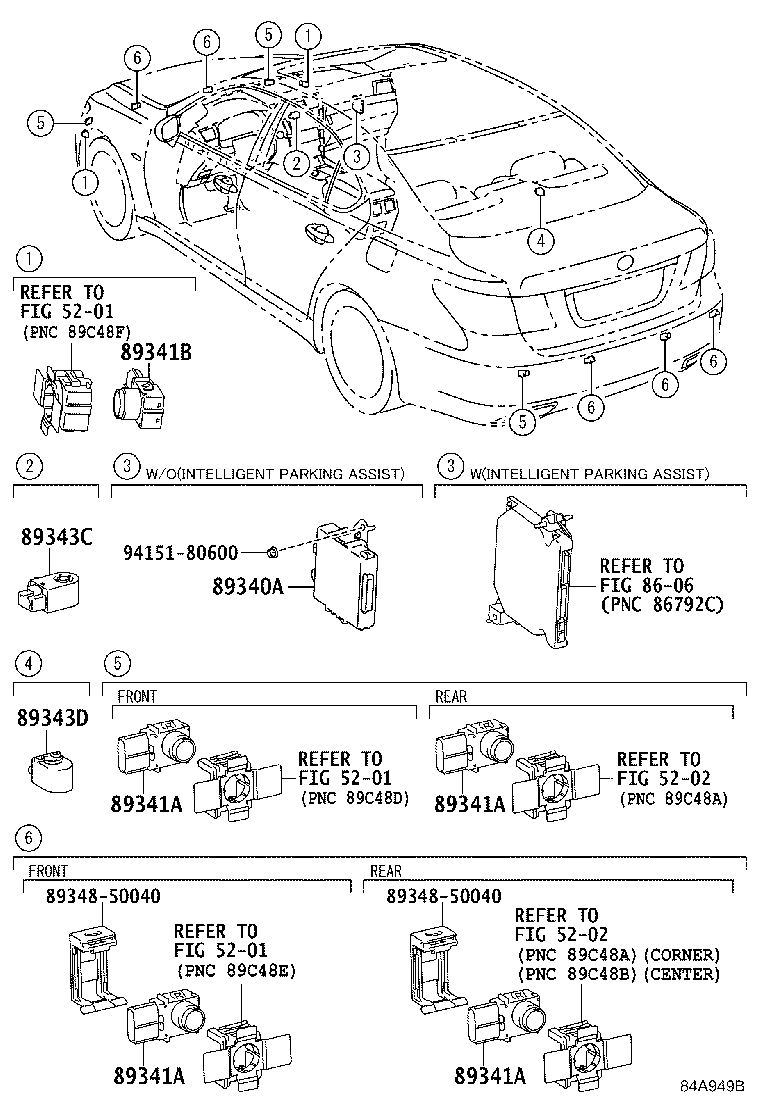

Figure 848190D 848190D 2006-08 → 2009-09 Figure 84A949B 84A949B 2009-09 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89343D Buzzer, Clearance Warning, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
