Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States
Supported model
Data version 2012-10

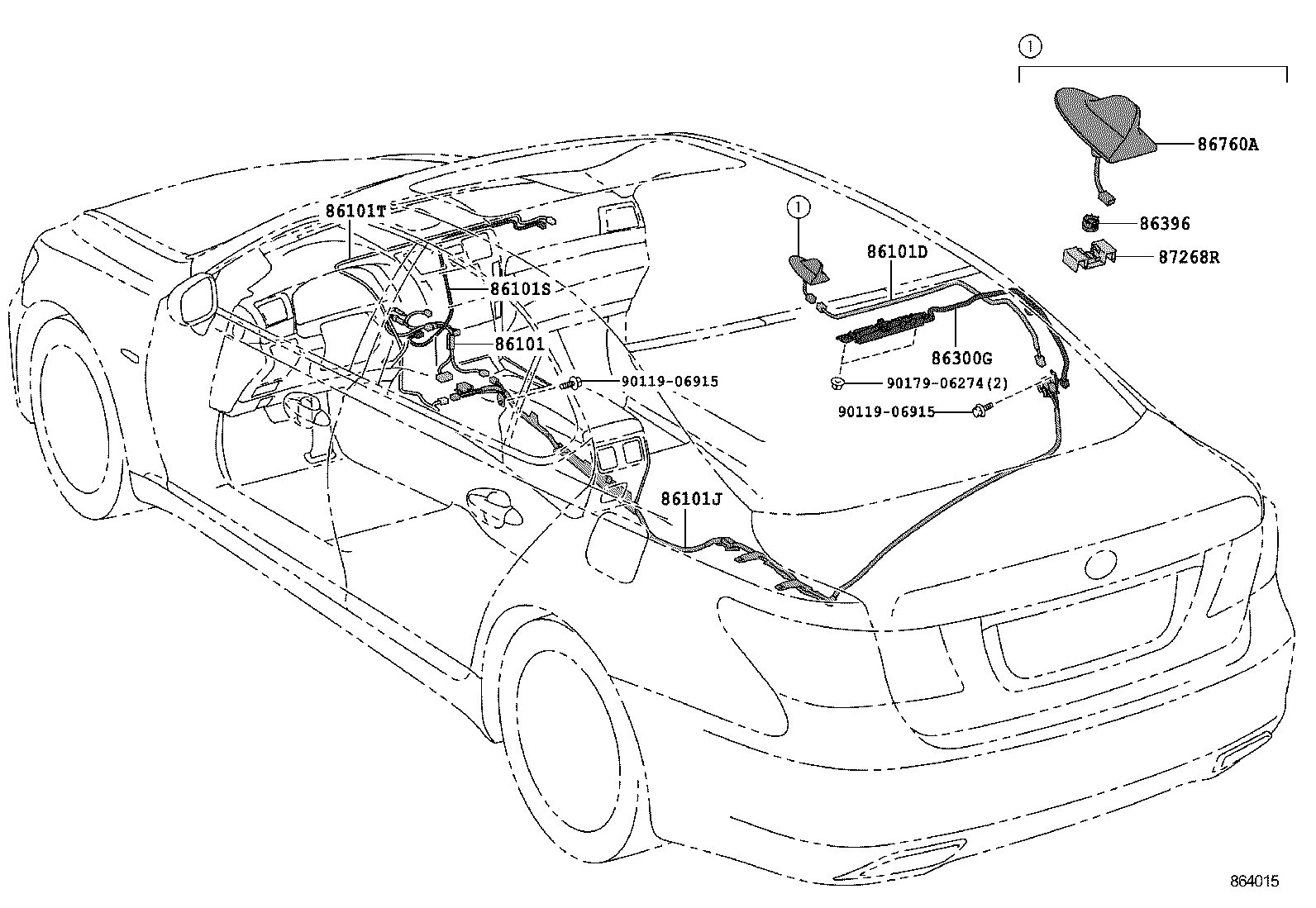

Antenna
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101S | Cord Sub-assy, Antenna |
| 86101T | Cord Sub-assy, Antenna |
| 86300G | Antenna Assy, Television Amplifier |
| 86396 | Nut, Antenna |
| 86760A | Antenna Assy, Telephone |
| 87268R | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
