Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

10 part groups · 2 illustrations

Illustrations

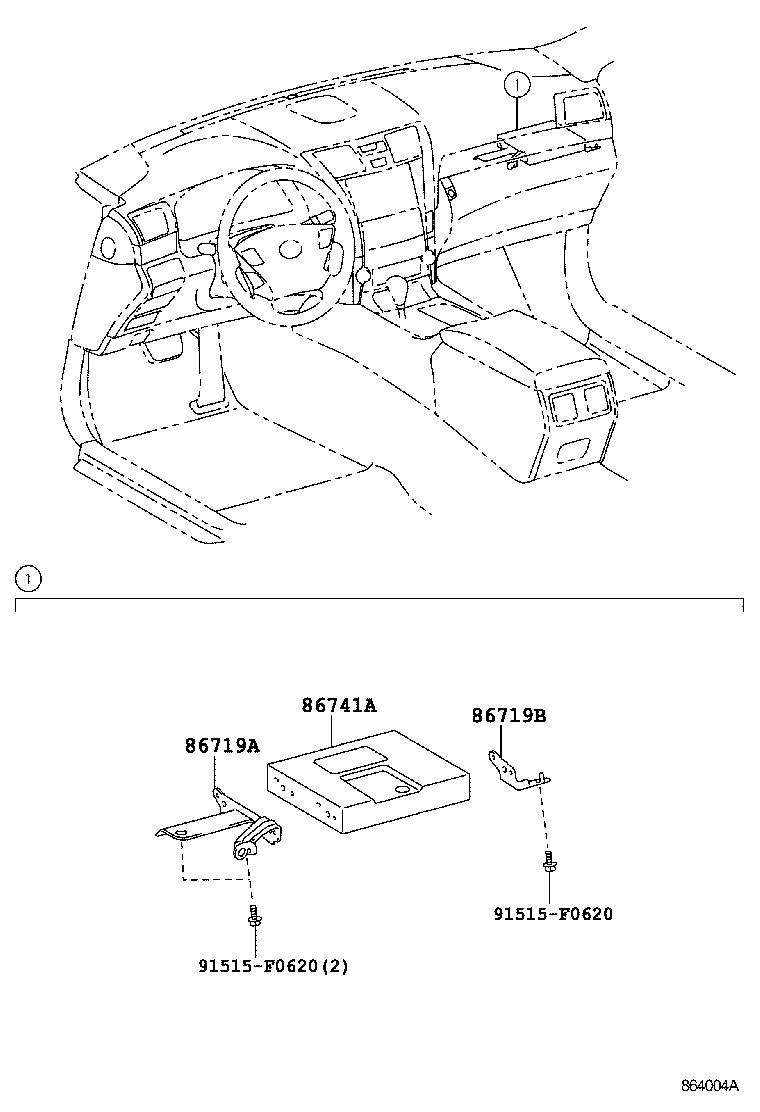

Figure 862946 862946 2006-08 → 2009-09 Figure 864004A 864004A 2009-09 → —

Part groups

PNCDescription
86710 Computer Assy, Telephone
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86729A Bracket, Mobilephone, NO.1
86729B Bracket, Mobilephone, NO.2
86729C Bracket, Mobilephone, NO.3
86729F Bracket, Mobilephone, NO.4
86741A Transceiver, Telematics
86777 Battery, Mayday
89112 Computer, Bus Buffer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
