Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431440 · United States

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 8 illustrations

Illustrations

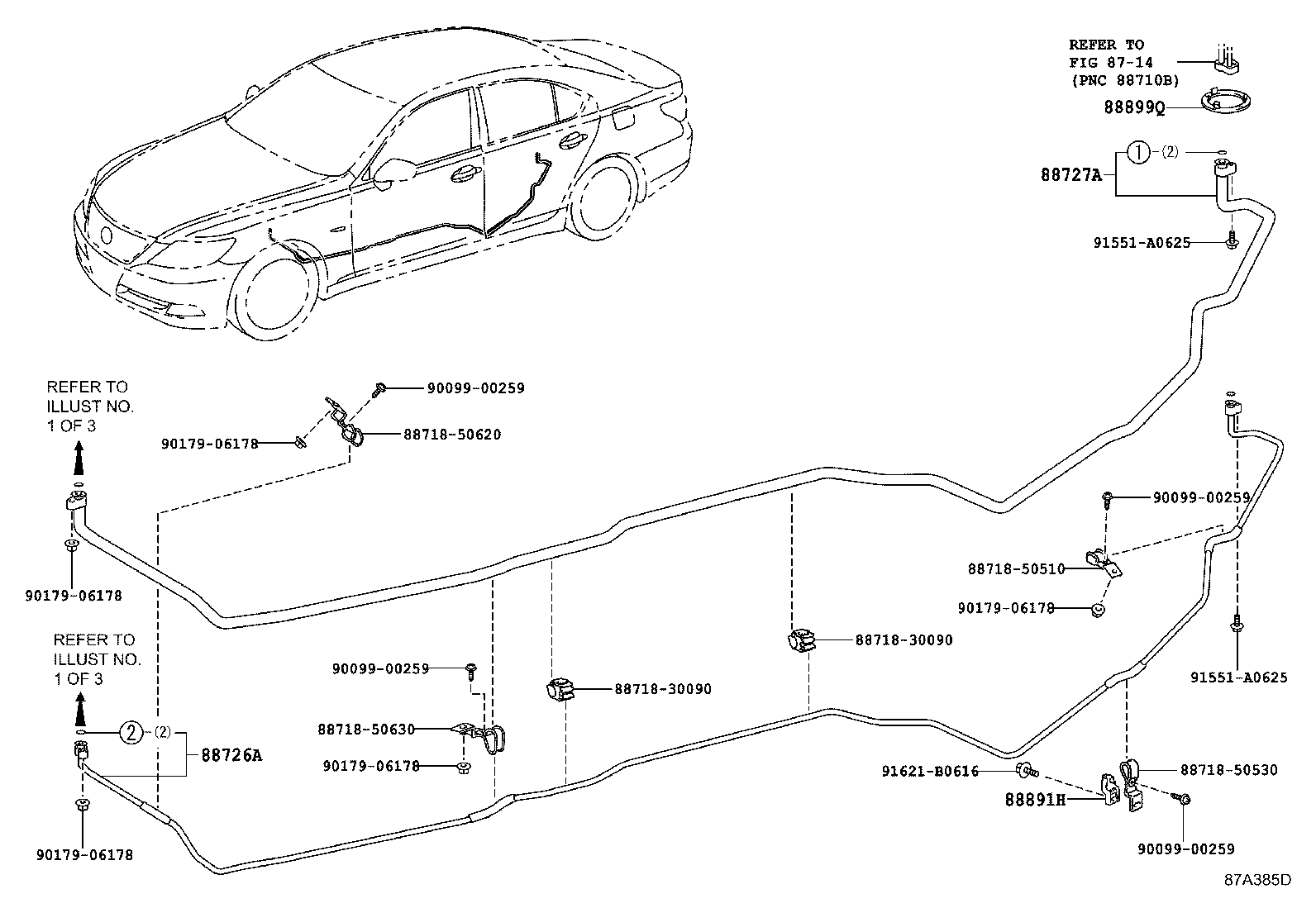

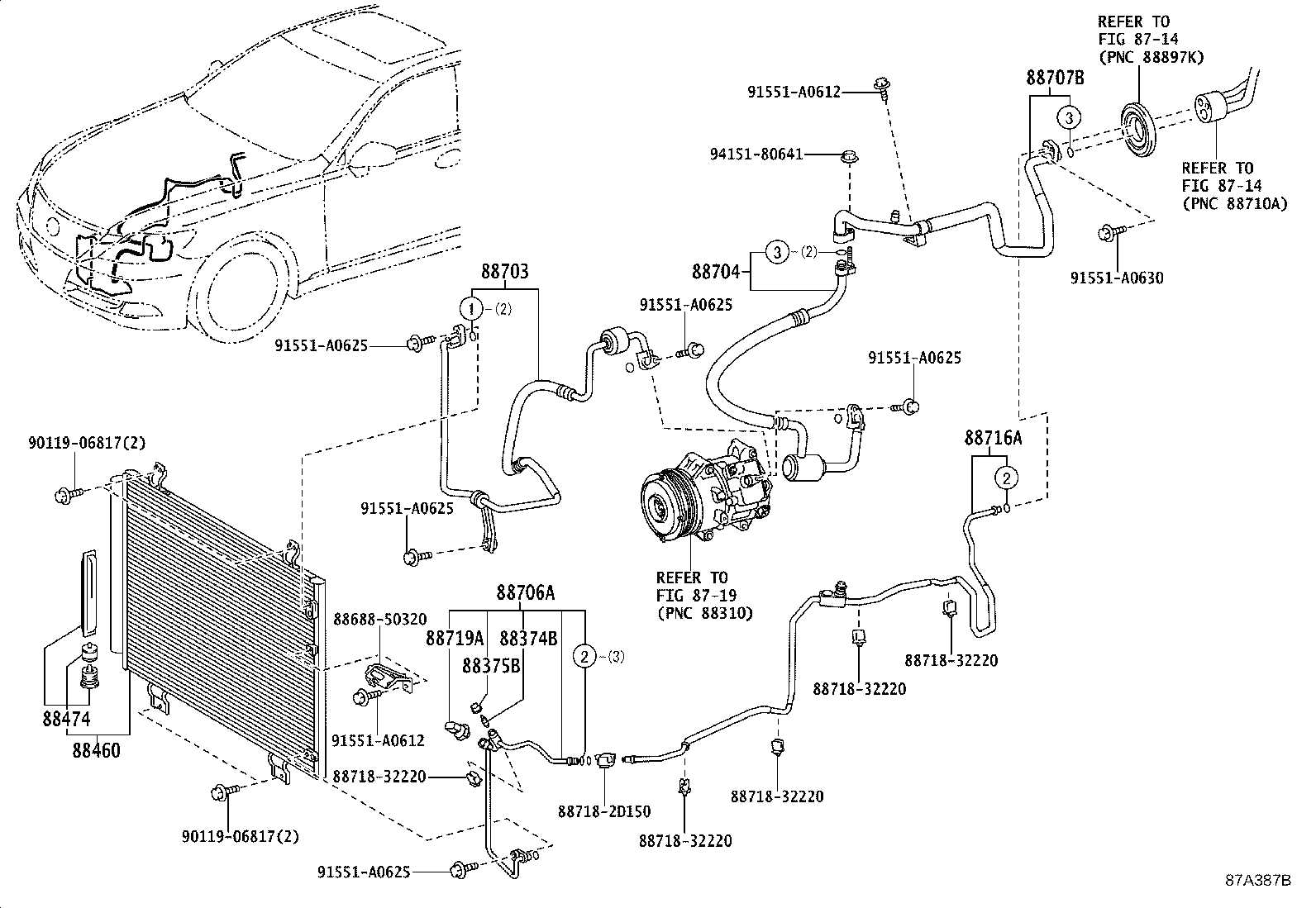

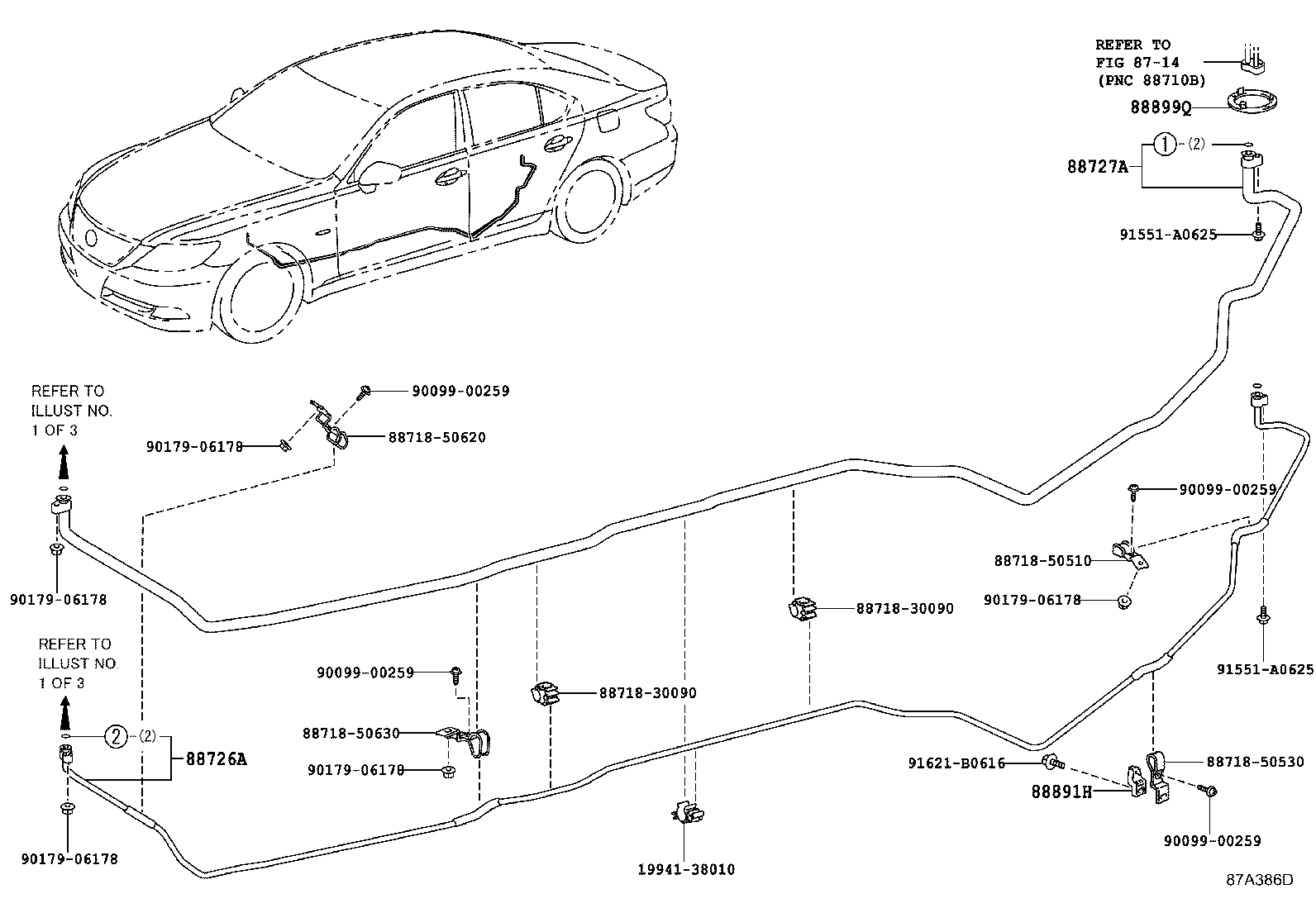

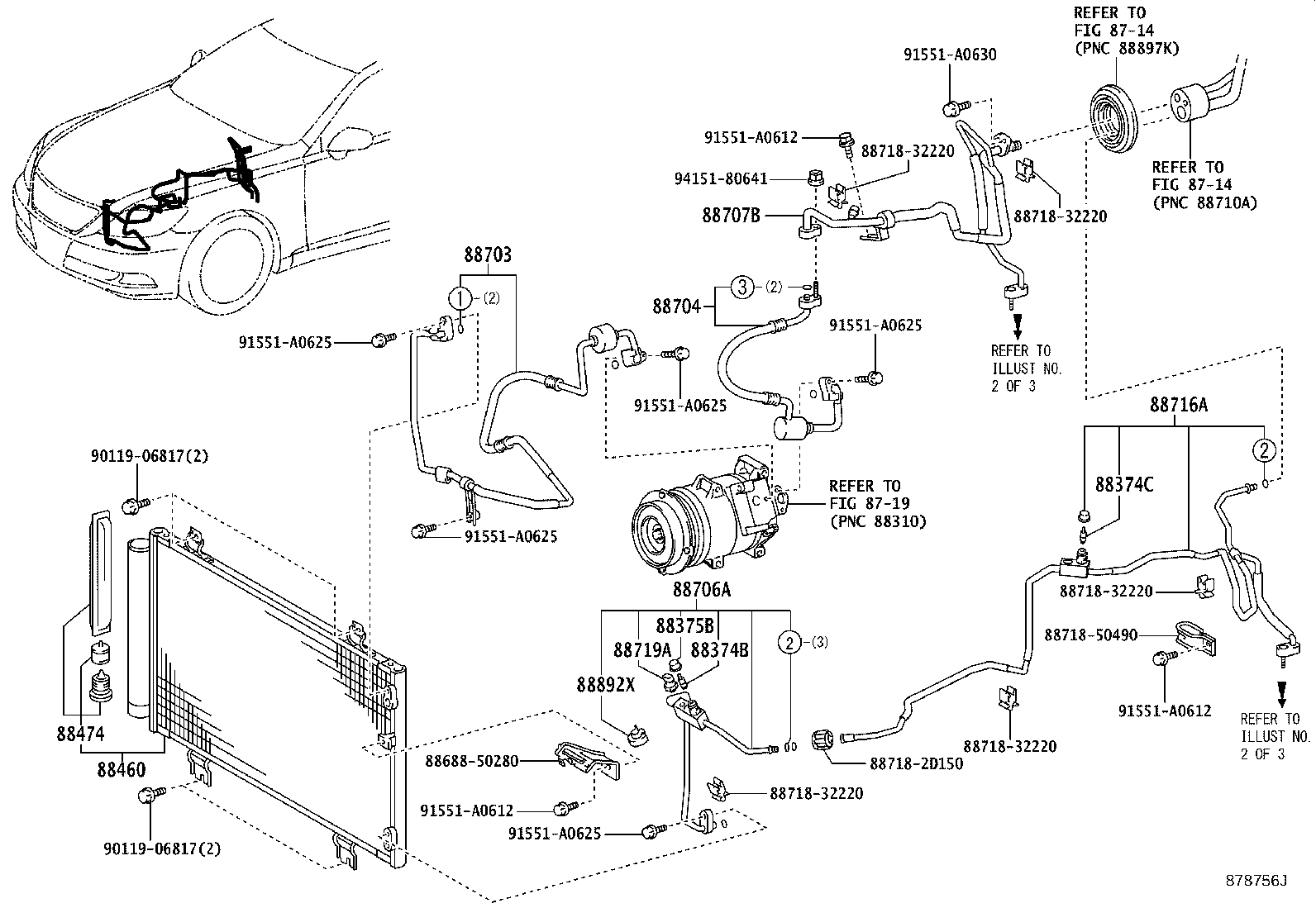

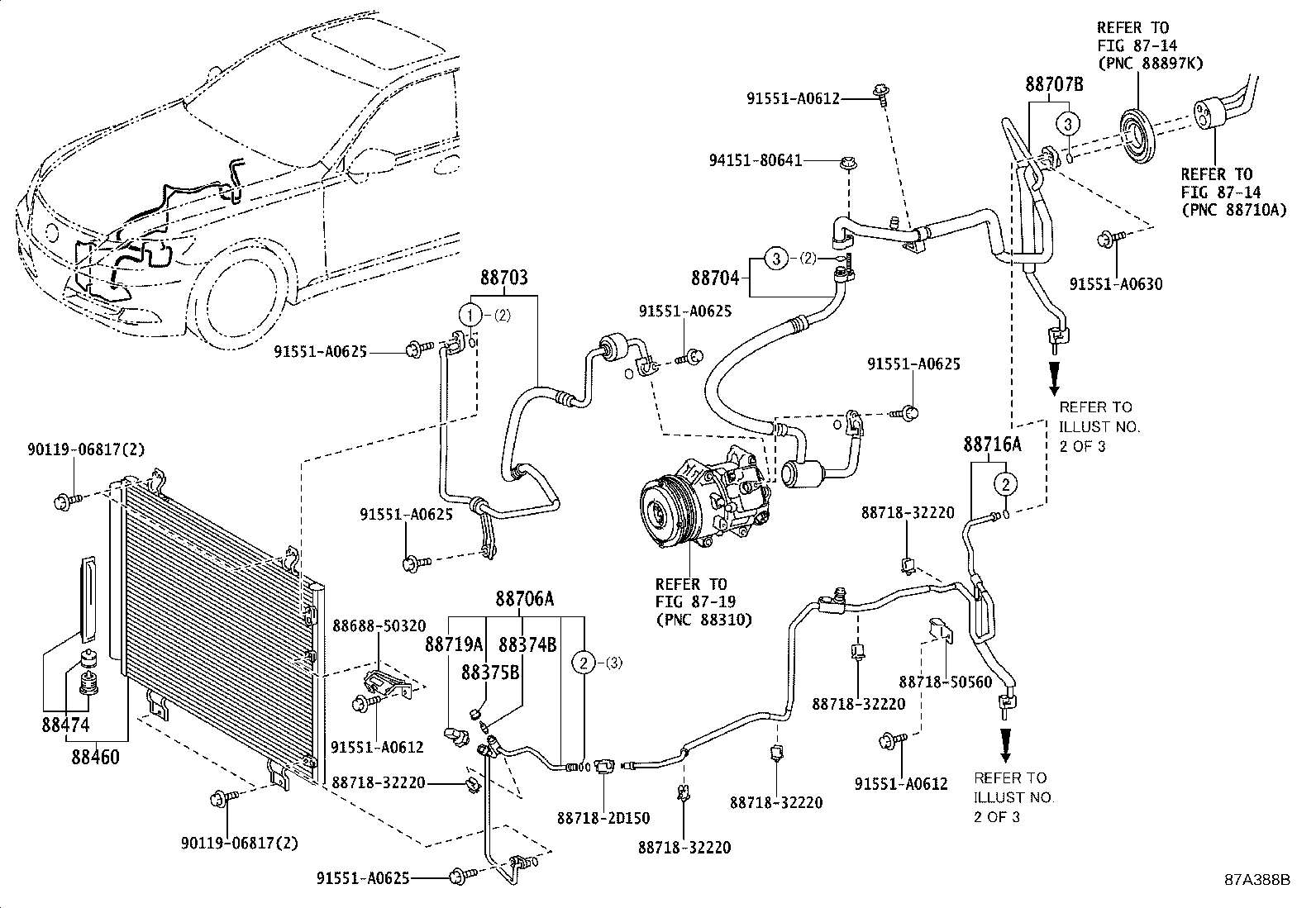

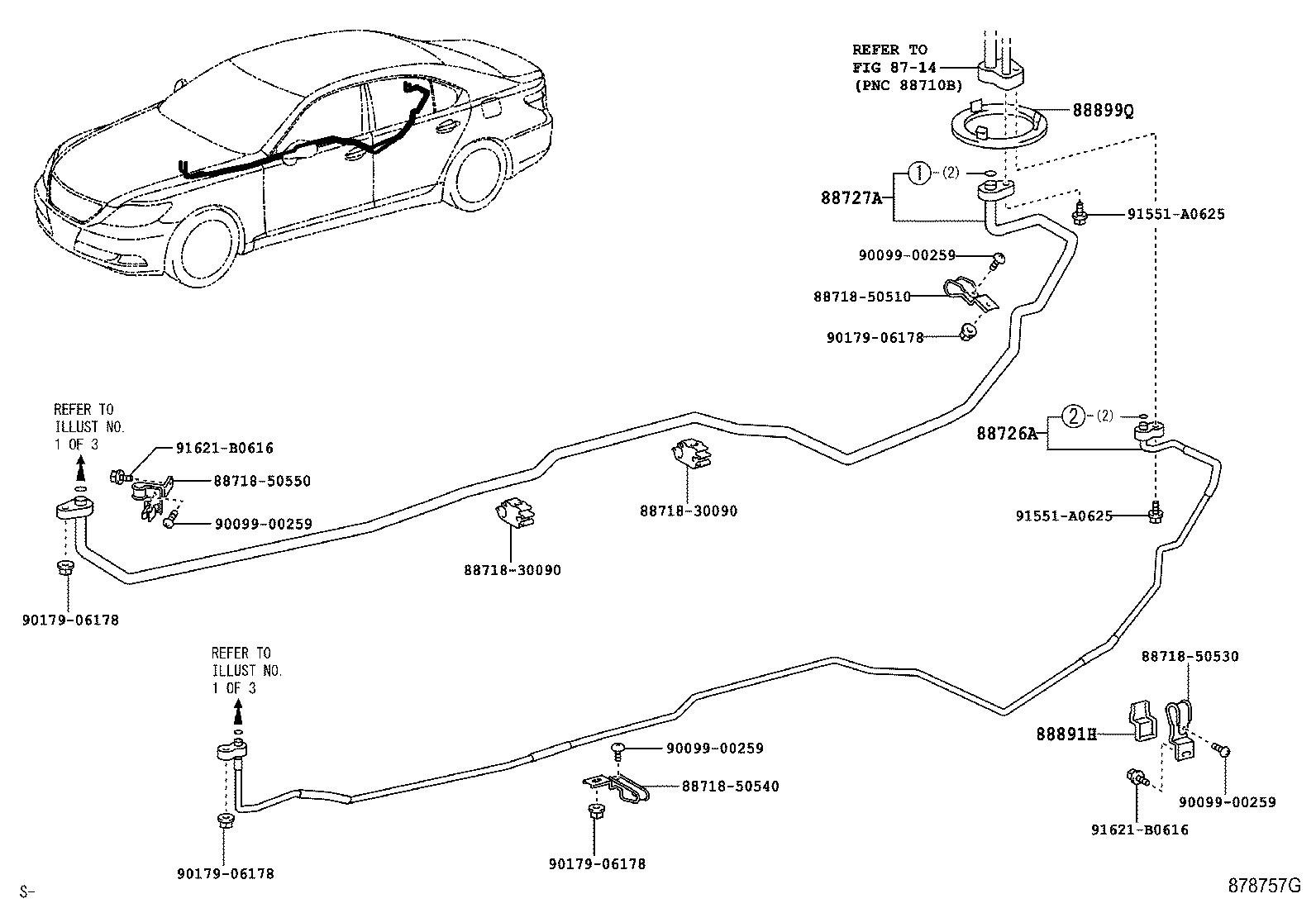

Figure 878754J 878754J 2006-08 → — Figure 878756J 878756J 2006-08 → — Figure 87A387B 87A387B 2008-09 → — Figure 87A388B 87A388B 2008-09 → — Figure 878757G 878757G 2006-08 → — Figure 87A385D 87A385D 2008-09 → — Figure 87A386D 87A386D 2008-09 → — Figure 874585 874585 2006-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88726A Pipe, Cooler Refrigerant Liquid, A
88727A Pipe, Cooler Refrigerant Suction, A
88891H Cover, Cooler, NO.1
88892X Cover, Cooler, NO.2
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
