Toyota Lexus LS460/460L

2012-09 → 2017-08 · chassis USF4# · catalogue 431450 · United States

Supported model Data version 2018-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

146 part groups · 12 illustrations

Illustrations

Part groups

PNC	Description

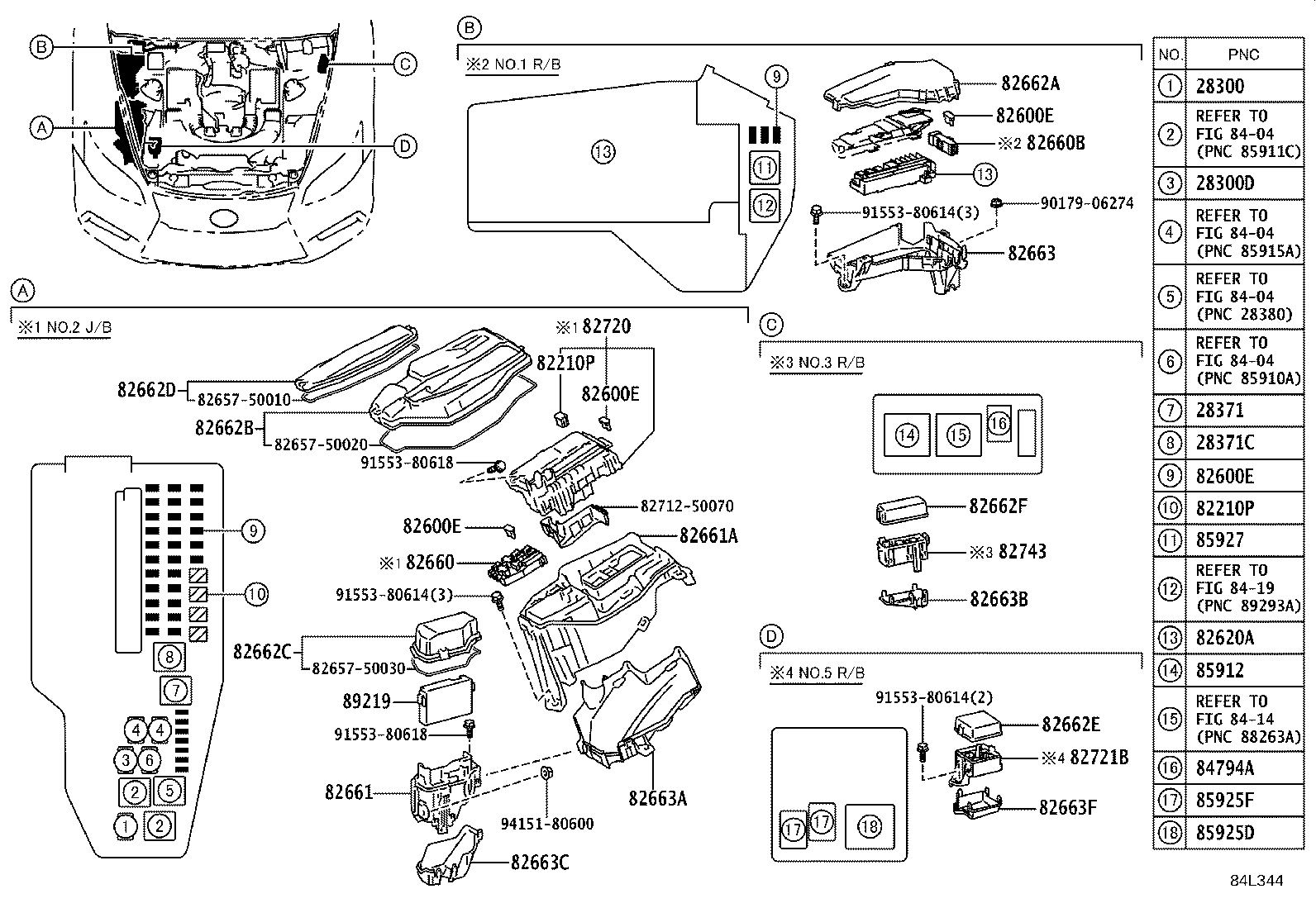

28300	Relay Assy, Starter
28300D	Relay, Starter Cut
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2

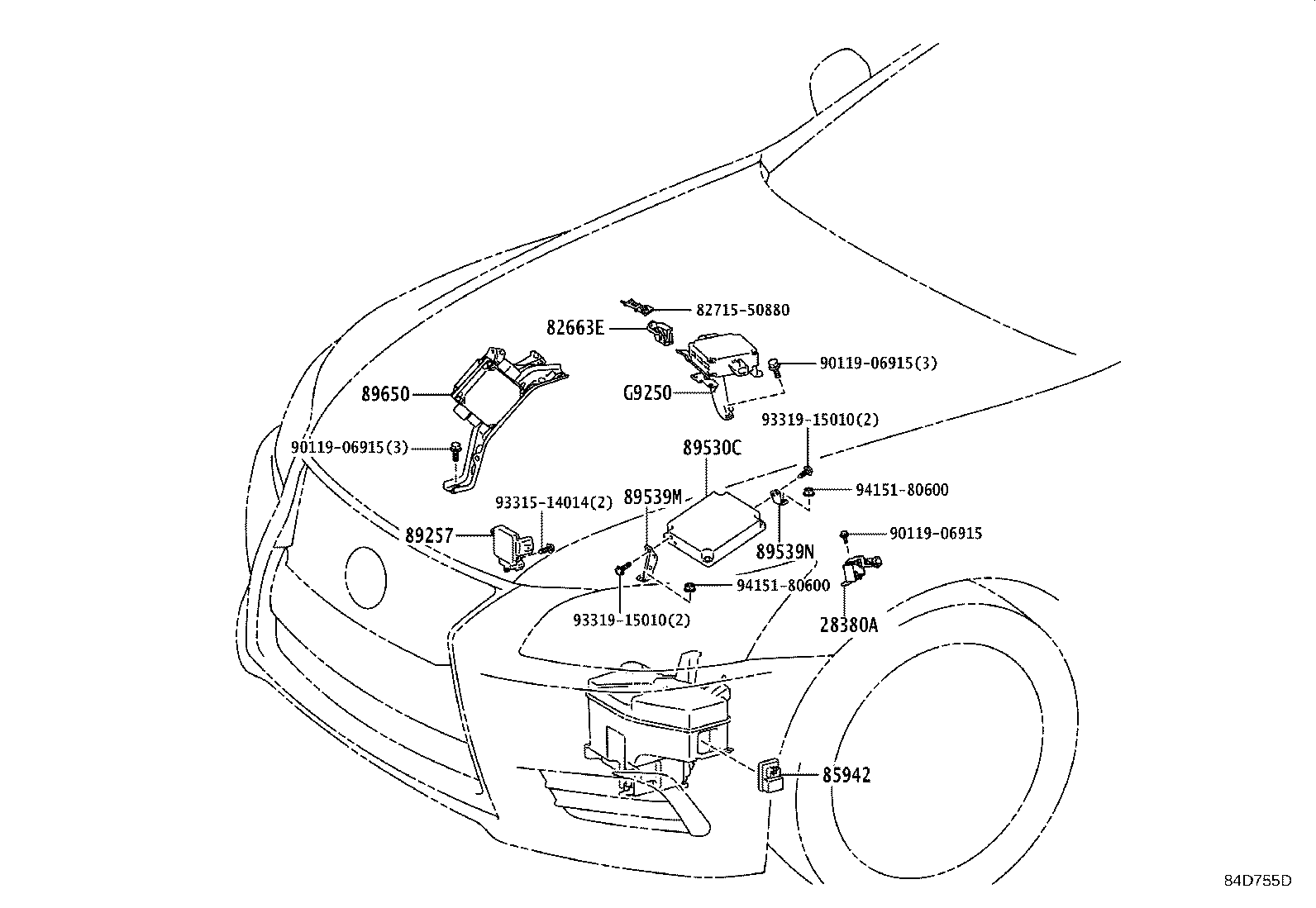

28380A	Resister, Fuel Pump
55524J	Cover, Switch Base Hole

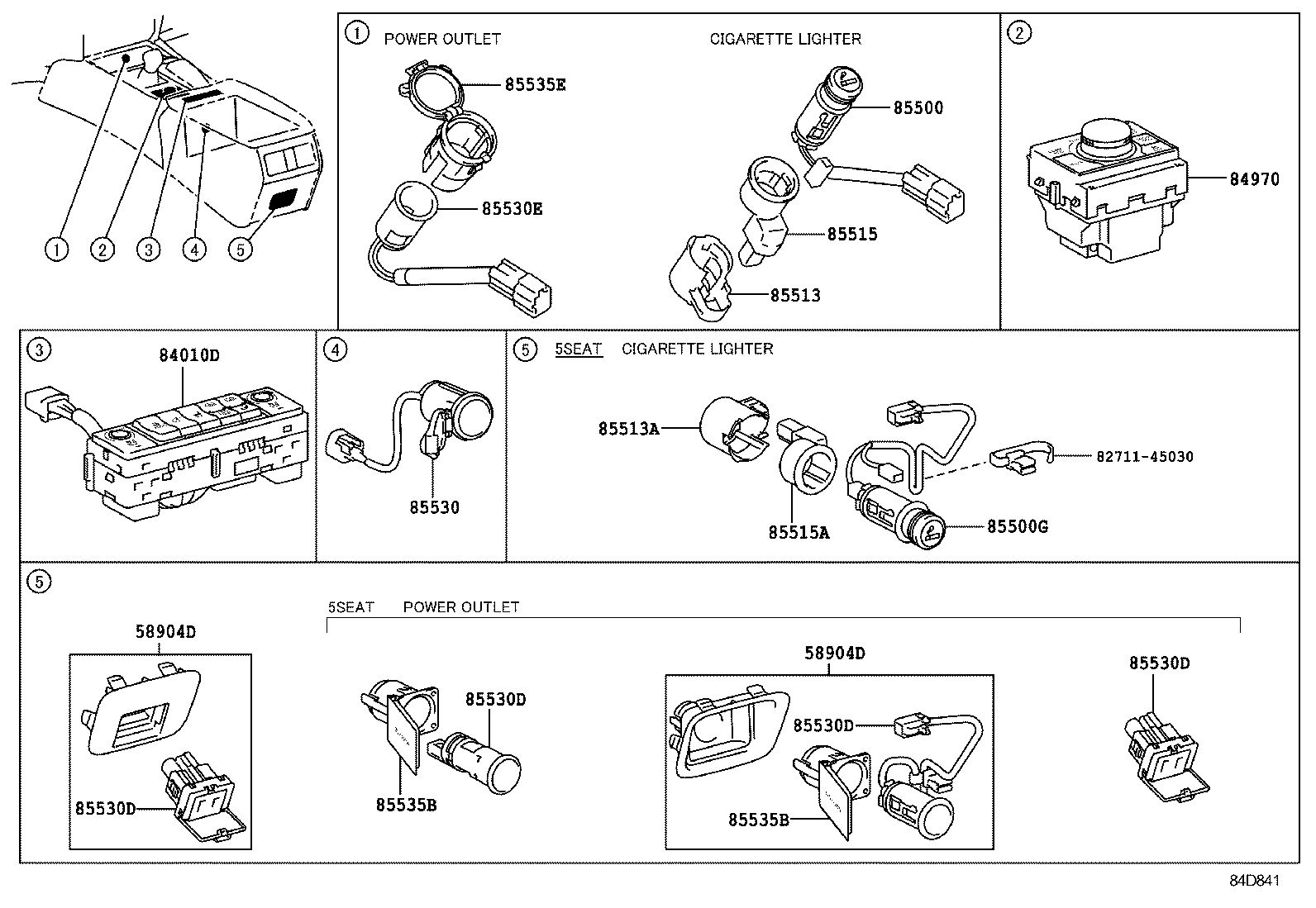

58904D	Panel Sub-assy, Console Rear End, NO.2

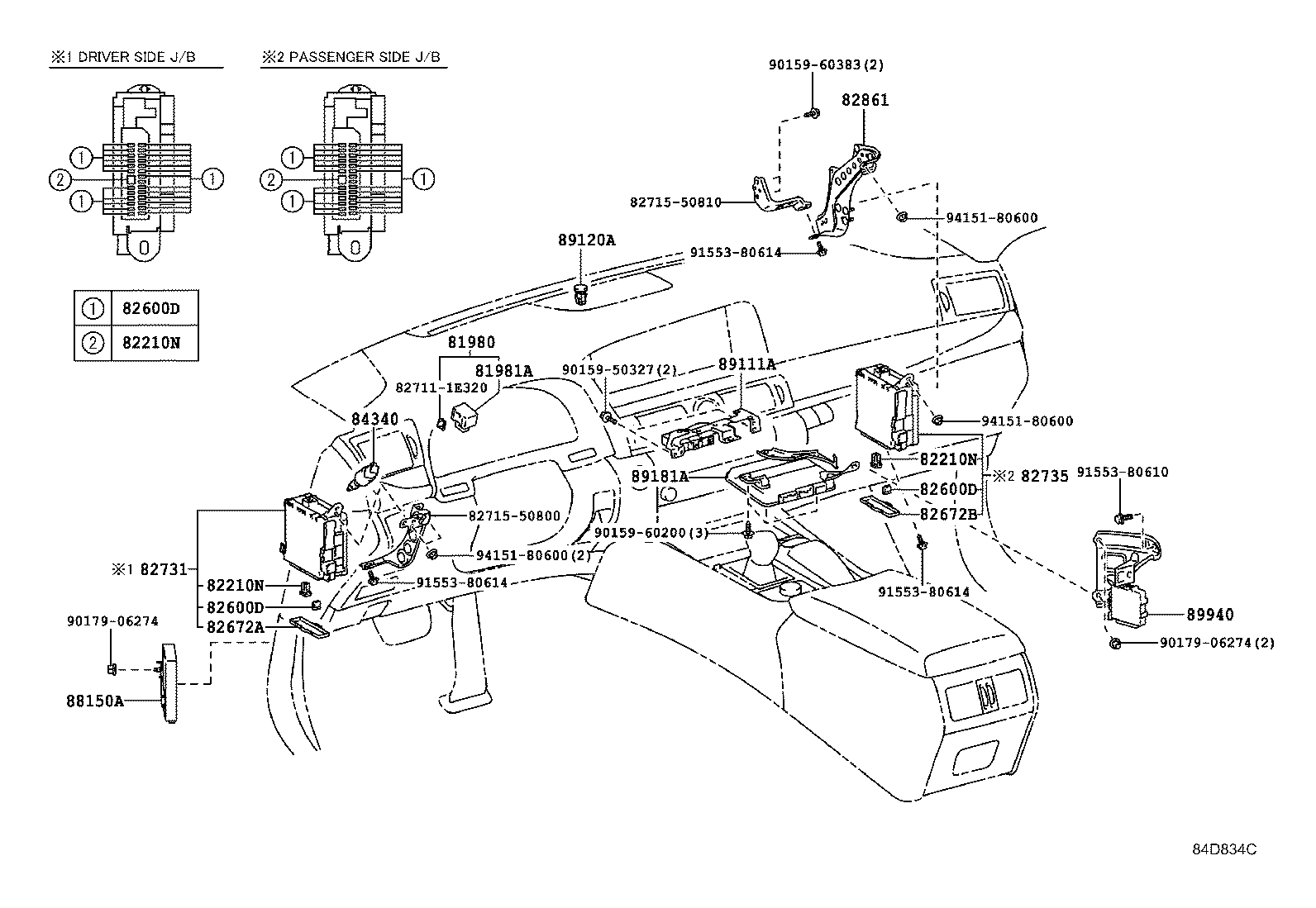

81980	Flasher Assy, Turn Signal
81981A	Flasher, Turn Signal
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link

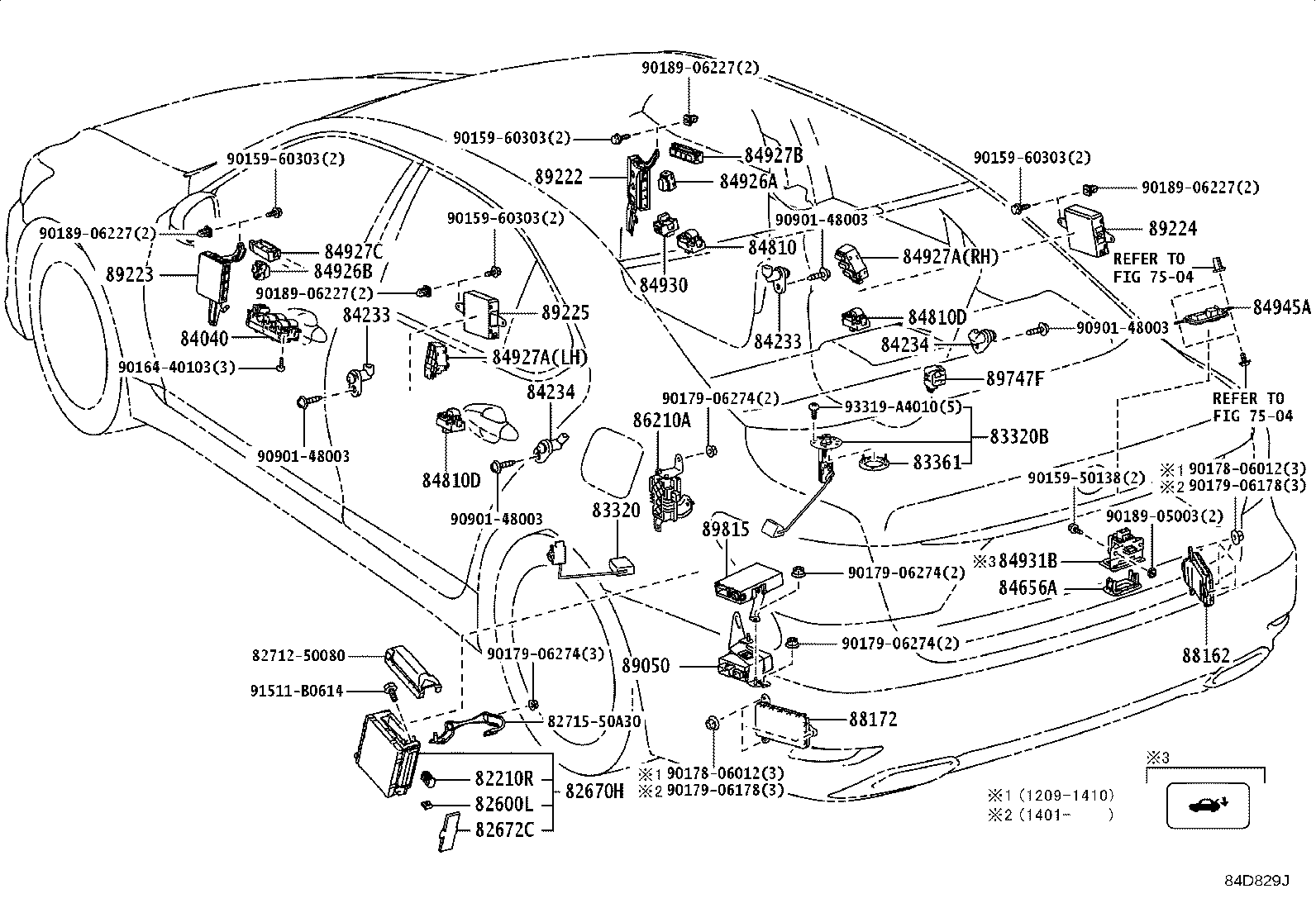

82210R	Luggage Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600L	Luggage Room Fuse
82620A	Block Assy, Fusible Link
82660	Block Assy, Relay, Engine Room
82660B	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82662E	Cover, Relay Block, Upper, NO.7
82662F	Cover, Relay Block, Upper, NO.8
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82663C	Cover, Relay Block Lower, NO.4
82663E	Cover, Relay Block, Lower, NO.7
82663F	Cover, Relay Block, Lower, NO.8
82670H	Block Assy, Luggage Room Junction
82672A	Cover, Junction Block
82672B	Cover, Junction Block
82672C	Cover, Junction Block
82720	Block Assy, Engine Room Junction
82721B	Block, Engine Room Junction
82731	Block, Driver Side Junction
82735	Block, Passenger Side Junction
82743	Block, Engine Room Relay, NO.3
82861	Bracket, Computer Integration, NO.1
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83361	Gasket, Fuel Sender Gage

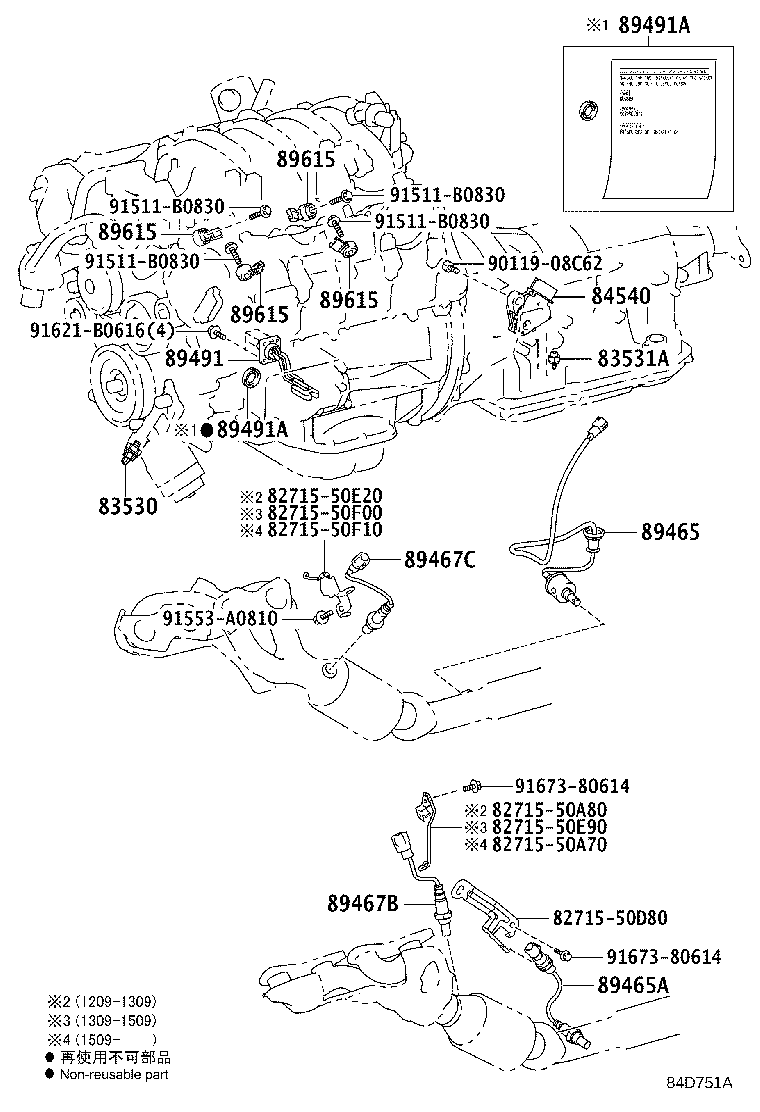

83530	Switch Assy, Oil Pressure (FOR ENGINE)
83531A	Switch, Oil Pressure
84010D	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network

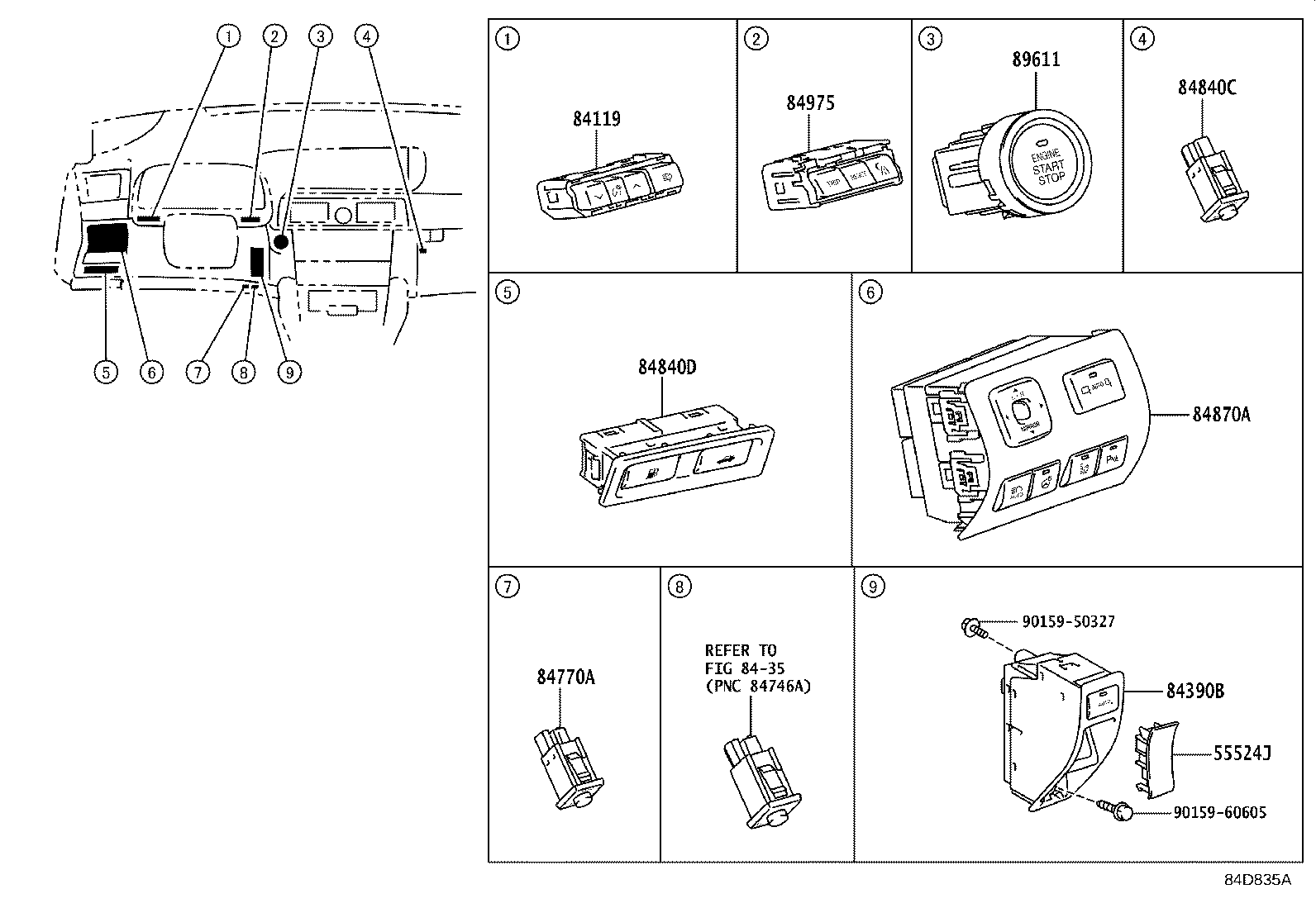

84119	Rheostat, Light Control

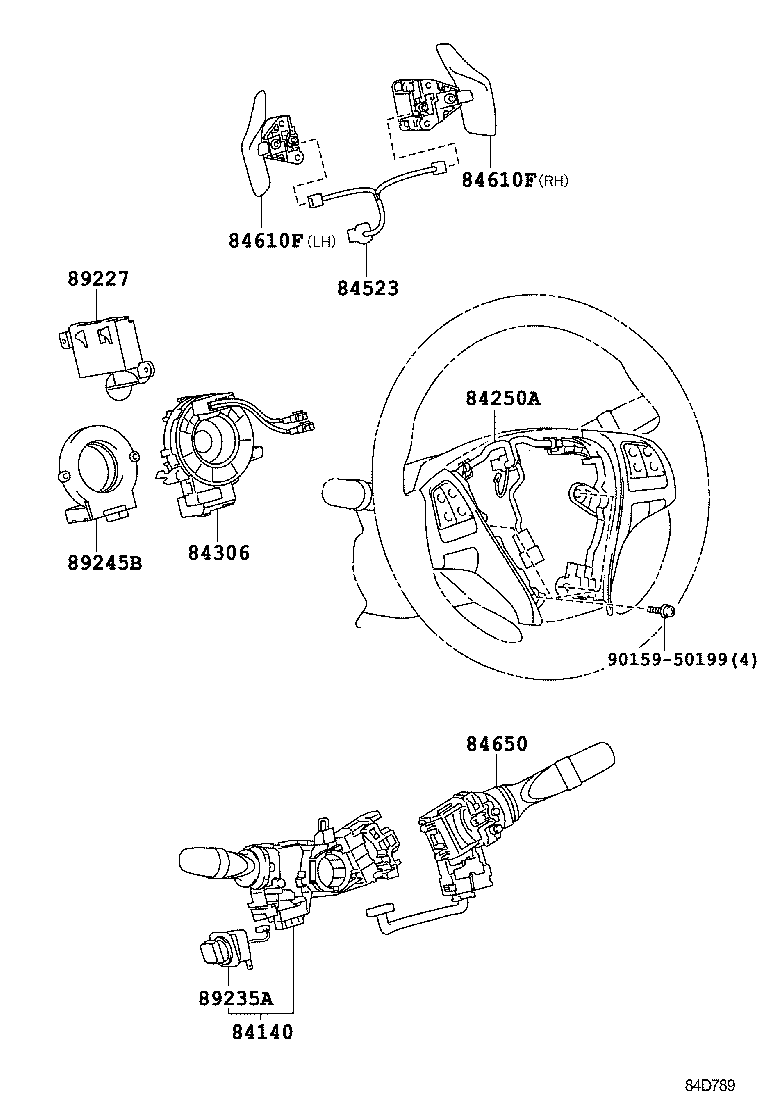

84140	Switch Assy, Headlamp Dimmer
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84340	Switch Assy, Stop Lamp
84390B	Switch Assy, Electric Parking Brake
84523	Wire, Switch NO.1
84540	Switch Assy, Neutral Start
84610F	Switch Assy, Transmission Shift
84650	Switch Assy, Windshield Wiper
84656A	Bezel, Switch
84770A	Switch Assy, Pre-collision System Cancel
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840C	Switch Assy, Luggage Door Opening, Cancel
84840D	Switch Assy, Luggage Door Opening
84870A	Switch Assy, Outer Mirror
84920	Switch Assy, Power Seat
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH

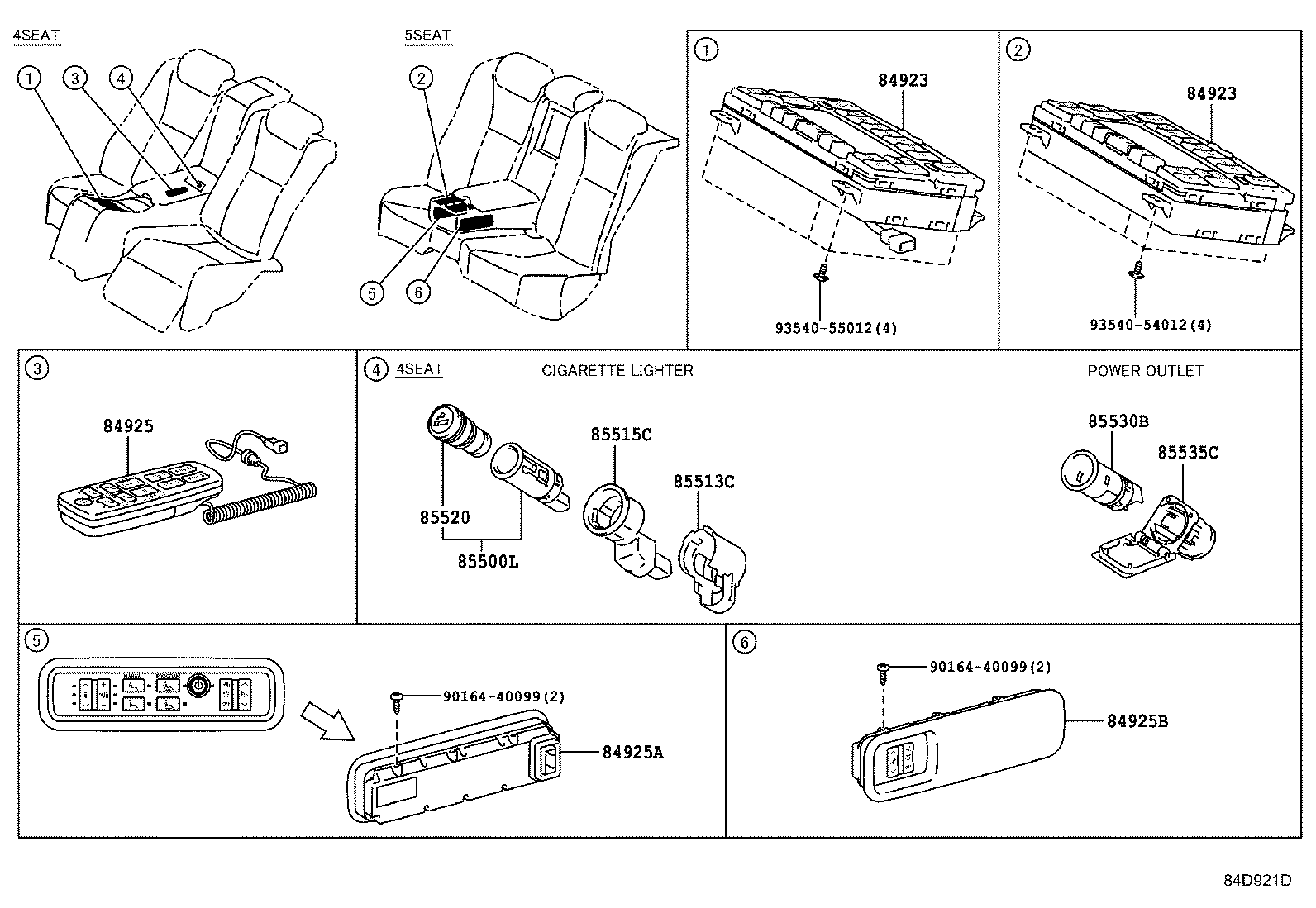

84923	Switch, Rear Power Seat
84925	Switch, Seat Vibrator
84925A	Switch, Seat Vibrator, RH
84925B	Switch, Seat Vibrator, LH
84926A	Switch, Height Adjustable Anchor
84926B	Switch, Height Adjustable Anchor
84927A	Switch, Rear Seat Memory
84927B	Switch, Seat Memory, RH
84927C	Switch, Seat Memory, LH
84930	Switch Assy, Door Control
84931B	Switch, Door Control
84945A	Switch, Luggage Electrical Key
84970	Switch Assy, Combination
84975	Switch, Trip
85500	Lighter Assy, Cigarette
85500G	Lighter Assy, Cigarette, Rear
85500L	Lighter Assy, Cigarette, Rear, NO.2
85513	Cover, Cigarette Lighter
85513A	Cover, Cigarette Lighter, Rear
85513C	Cover, Cigarette Lighter, Rear, NO.2
85515	Stay, Cigarette Lighter Bezel
85515A	Stay, Cigarette Lighter Bezel, Rear
85515C	Stay, Cigarette Lighter Bezel, Rear, NO.2
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85535B	Cover, Power Outlet Socket, NO.1
85535C	Cover, Power Outlet Socket, Rear
85535E	Cover, Power Outlet Socket, NO.2
85861B	Computer, Seat Climate Control, Front RH
85861C	Computer, Seat Climate Control, Front LH
85861D	Computer, Seat Climate Control, Rear RH
85861E	Computer, Seat Climate Control, Rear LH
85912	Relay, Defogger
85925D	Relay, Ptc Heater
85925F	Relay, Ptc Heater NO.2
85927	Relay, Cooling Fan
85942	Relay, Headlamp Cleaner Control
86210A	Inverter Assy, Voltage
88150A	Computer Assy, Driving Support
88162	Sensor, Blind Spot Monitor, RH
88172	Sensor, Blind Spot Monitor, LH
89050	Computer Assy, Parking Brake
89111A	Computer, Network Gateway, NO.2
89120A	Sensor, Automatic Light Control
89181A	Computer, Steering Control
89219	Computer, Multiplex Network Front Lamp
89222	Computer, Multiplex Network Door, Front RH
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89257	Computer, Cooling Fan
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89530C	Computer Assy, Transmission Control
89539M	Bracket, Transmission Control Computer, NO.1
89539N	Bracket, Transmission Control Computer, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering

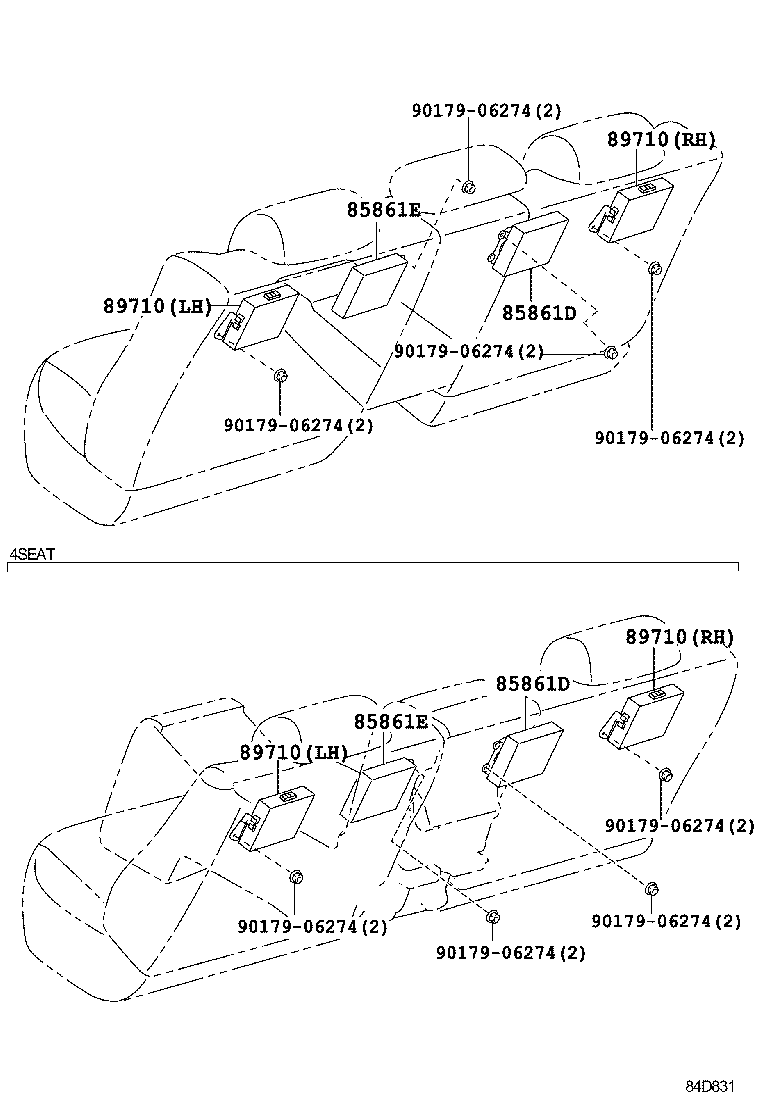

89710	Computer Assy, Position Control
89747F	Buzzer, Blind Spot Monitor
89815	Computer, Seat Belt Control
89940	Computer Assy, Headlamp Swivel
G9250	Converter Assy, Power Steering

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
